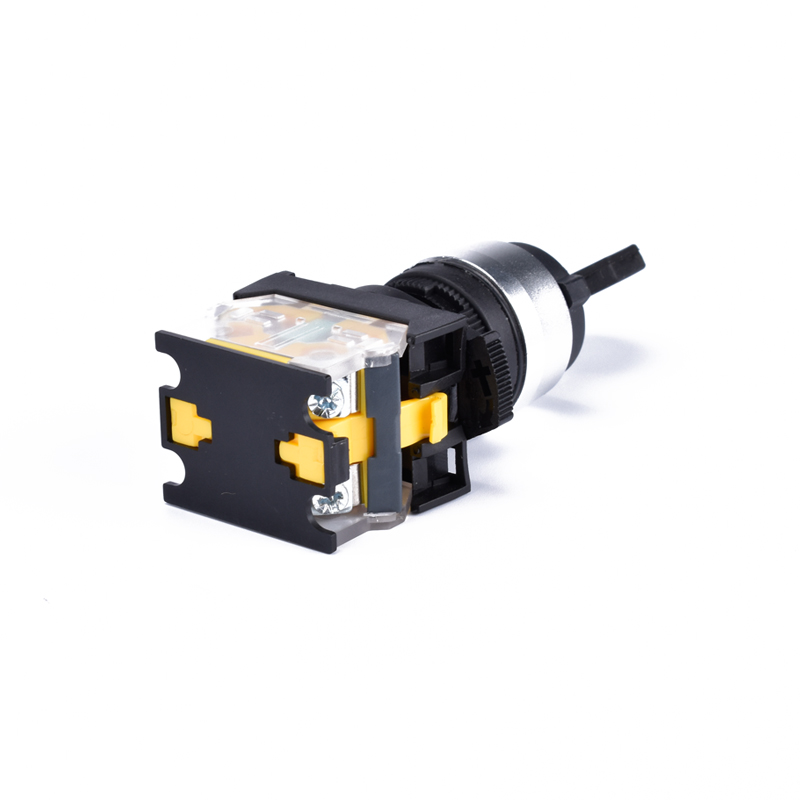

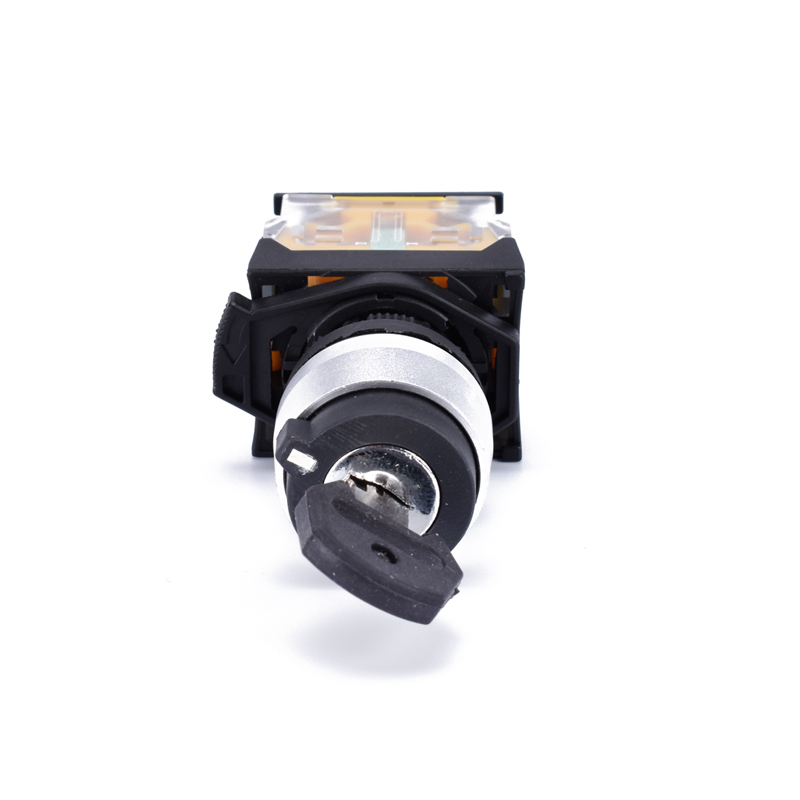

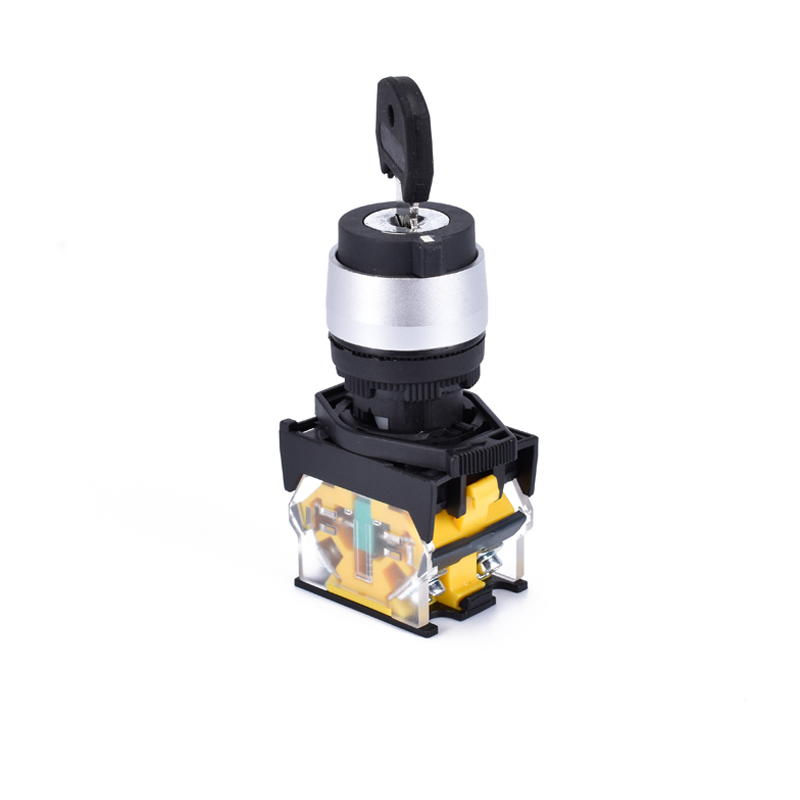

2 position key selector switch elevator push button with key XDL31-BG33

Share to:

2 position key selector switch elevator push button with key XDL31-BG33

Model:: XDL31-BG33

MOQ:: 240

Payment:: T/T L/C

Brand:: XINDALI

Delivery time:: One week

Start Port:: Shanghai/ningbo

Certification:: ISO9001 RoSH CE UL TUV

SKU:
Availability:

Product Description

◆ Characteristic: waterproof level IP65,Easy installation long service life,Higher performance than LAY series

◆ Features: It is used for controlling signal and interlocking purposes.

◆ Material: The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.

Basic Characteristic
Conforming to standards as	IEC60947-5-1:GB/T14048.GB14048.5
Ambient temperature	operating temperature:-5℃~+55℃ storage temperature:-25℃~+70℃
Operating and storage air relative humidity	35~85%RH
Vibration frequency	Conforming to IEC 68-2-6
Impact resistance	Conforming to IEC 68-2-27
Pollution grade	3
Installation sort	ClassⅢ
Protection grade	Ordinary:IP40 IP54
Protection grade	Protection:IP65 IP66 IP67 IP68
Mechanical life	pushbutton:30010 push and pull type emergency button:3010
Fastening torque	0.8Nm(MAX:1.2Nm)

Product Details

elevator push button with key rotary selector switches selector switch selector push button key push button switch elevator button switch keylock switches emergency key release switch elevator key switch industrial pushbutton switch
