200A DC Battery Disconnect Switch | IP65 Battery Master Switch
200A DC Battery Disconnect Switch
Heavy Duty Battery Master Switch for Vehicles & Industrial Equipment
- Rated current 200A, peak up to 600A
- IP65 waterproof & dustproof
- Designed for 12V / 24V DC battery systems
Key Features
- Designed for battery power isolation and safety protection
- Silver alloy contacts for low resistance and stable conduction
- Copper terminals for high current applications
- Reinforced nylon housing for durability
- Available with 2-hole or 4-hole mounting options
Typical Applications
- Trucks & Tail Lift Systems
- Forklifts & Stackers
- Hydraulic Power Units
- Battery Powered Industrial Equipment
- Vehicle Modification & Power Control Systems

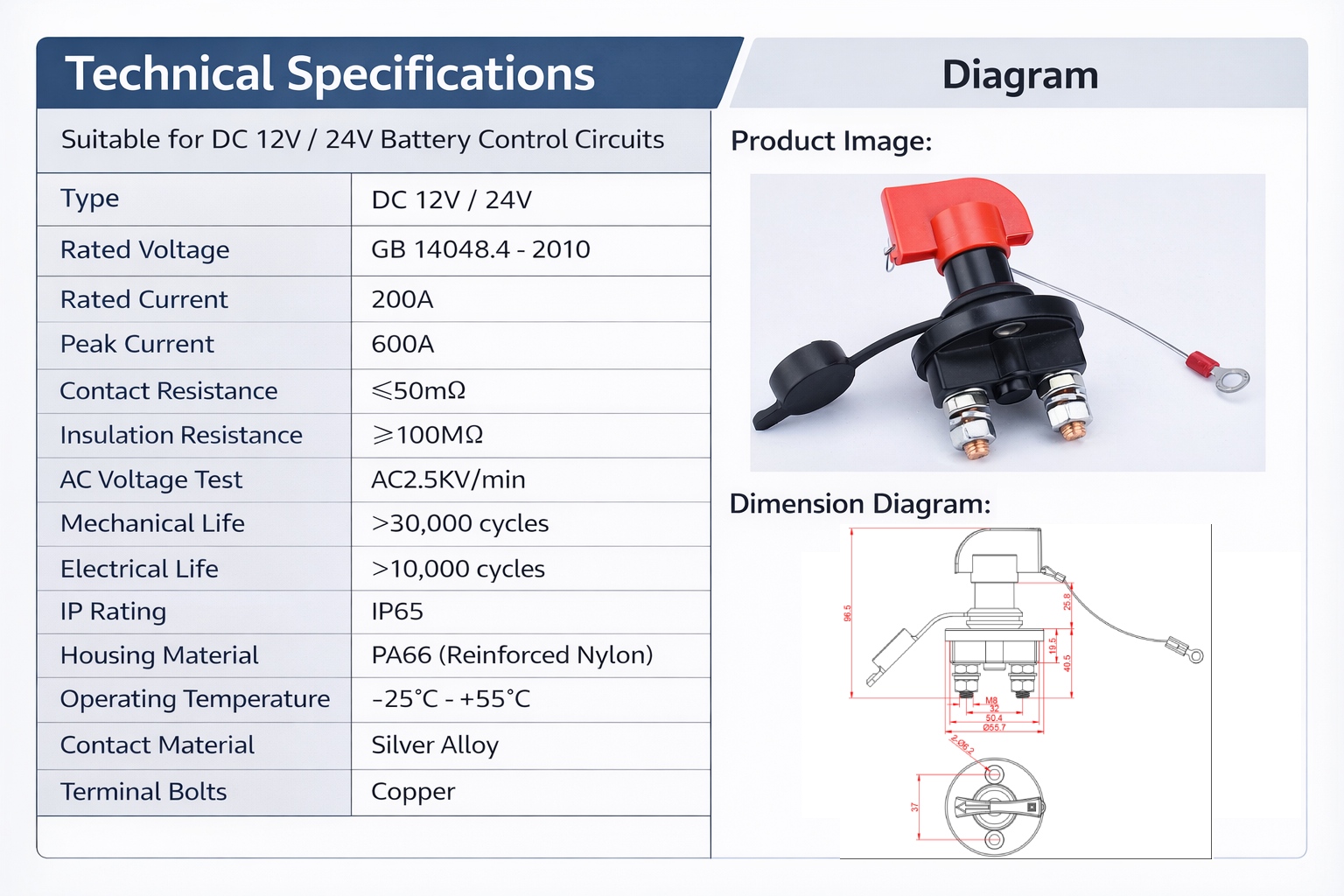

Technical Specifications
| Rated Voltage | DC 12V / 24V |
| Rated Current | 200A |
| Peak Current | 600A |
| Protection Level | IP65 |
| Contact Material | Silver Alloy |
| Terminal Material | Copper |
| Housing Material | Reinforced Nylon |
| Operating Temperature | -25℃ to +55℃ |
| Mounting Options | 2-hole / 4-hole |
OEM & Custom Solutions
- Mounting structure customization
- Handle color options
- With or without safety lanyard
- Logo marking
- OEM packaging
- Long-term bulk supply
Related Power Control Products
- Tail Lift Control Box
- Pendant Controller
- Hydraulic Control Unit
Get a Quote or Sample
Looking for a reliable battery disconnect switch for your equipment? Contact us for pricing, samples and OEM solutions.
