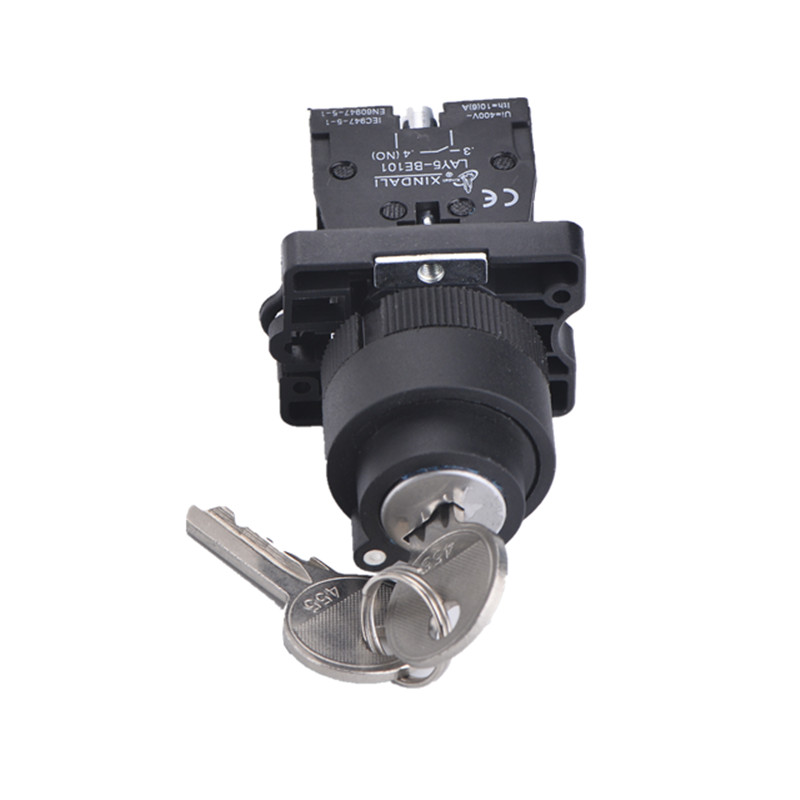

lay5 lock key push button switch with key

Product Description

⊹ Characteristic：The LAY5 series has a long market life, high stability, and high repurchase rate..Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROSH and UL certified.
⊹ Product Features：It is used for controlling signal and interlocking purposes.It is used for controlling the circuit of elecromagnetic starter,contactor,relay and so on.The pushbutttons with indicator are applied to place where signal indicators are needed as well.

⊹ Product material：The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.

Basic technical parameter of button			Basic technical parameter of signal lamp
Rated insulation	AC 600V(50Hz/60Hz)		Insulation resistance	≥50MΩ
Conventional heating current	10A		Contact resistance	≤25MinΩ
Insulation resistance	≥50MΩ		Pf withstand voltage	AC 2.5KV/min
Contact resistance	≤25MinΩ		Voltage wave	±20%
Mechanical life	100x10000 pushbutton	50x10000 selector switch	Brightness	60cd/m2
Electrical life	500x10000 pushbutton	25x10000 Selector switch	Continuous working life	10x10000h

Product Details

BLOCK 24810
