22mm Selector Switches | Standard & Long Handle | Illuminated LED & Non-Illuminated Options

Product Features

• Mounting Size: 22mm

• Handle Options: Standard handle / Long handle

• Illumination: With LED (12–440V, White / Green / Yellow / Blue / Red) or Non-illuminated

• Contact Options: N/O, N/O+N/C, N/O+N/O

• Function Types:

  • 2-position stay put

  • 2-position spring return

  • 3-position stay put

  • 3-position spring return

• Compact & Rugged: Designed for industrial environments, easy installation, reliable performance

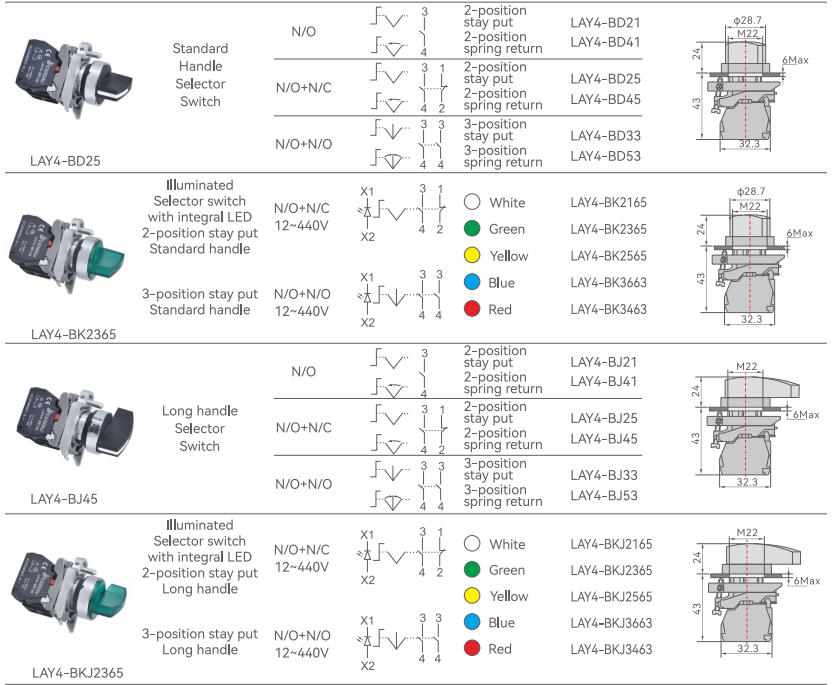

Available Models

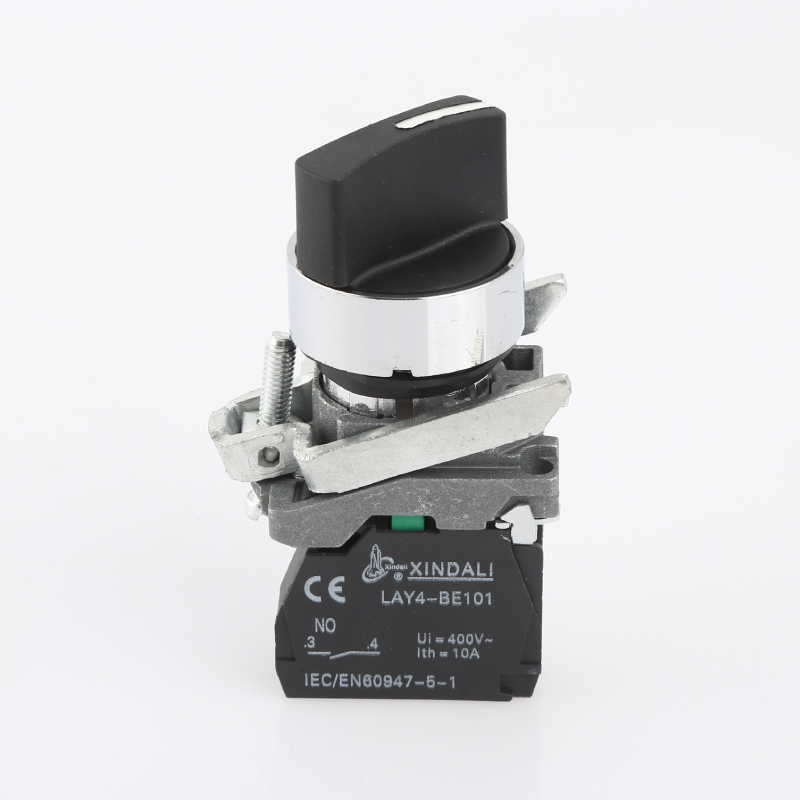

🔹 Standard Handle (Non-illuminated) – LAY4-BD25 Series

• Options: 2-position stay put, 2-position spring return, 3-position stay put

• Contacts: N/O, N/O+N/C, N/O+N/O

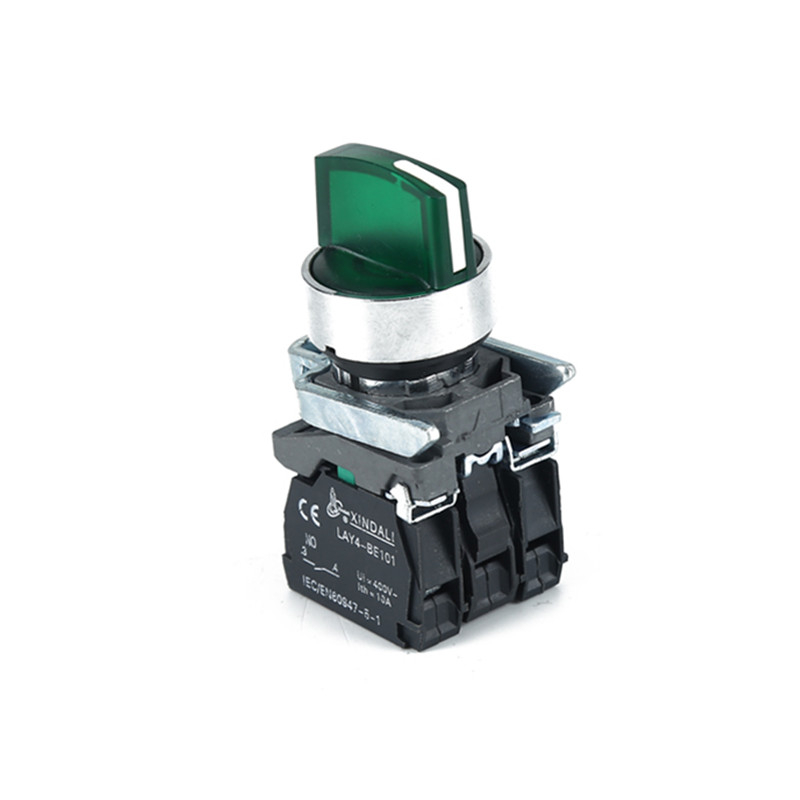

🔹 Standard Handle (Illuminated) – LAY4-BK2365 Series

• LED Voltage: 12V–440V

• LED Colors: White, Green, Yellow, Blue, Red

• Options: 2-position stay put, 3-position stay put

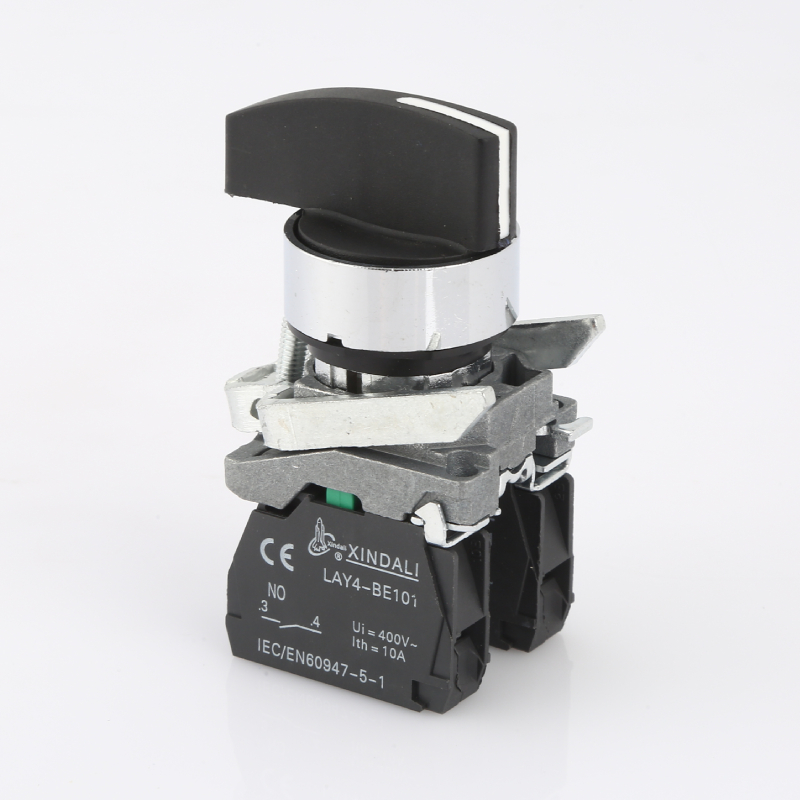

🔹 Long Handle (Non-illuminated) – LAY4-BJ45 Series

• Options: 2-position stay put, 2-position spring return, 3-position stay put

• Contacts: N/O, N/O+N/C, N/O+N/O

🔹 Long Handle (Illuminated) – LAY4-BKJ2365 Series

• LED Voltage: 12V–440V

• LED Colors: White, Green, Yellow, Blue, Red

• Options: 2-position stay put, 3-position stay put

Applications

• Industrial control panels

• Machinery operation systems

• Elevators, cranes, tail lift controllers

• Electrical distribution equipment

• OEM custom control boxes
