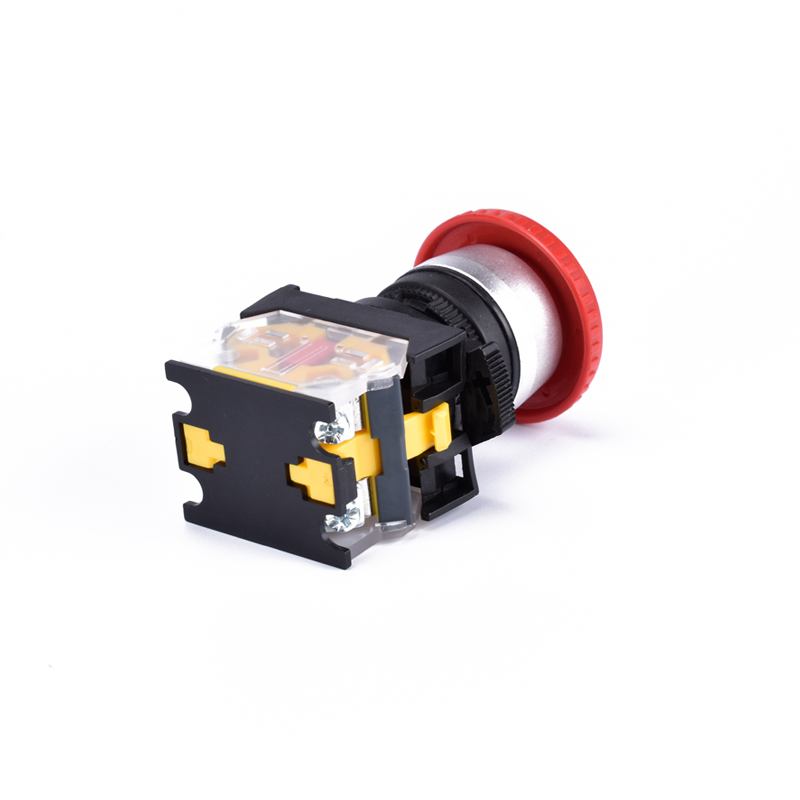

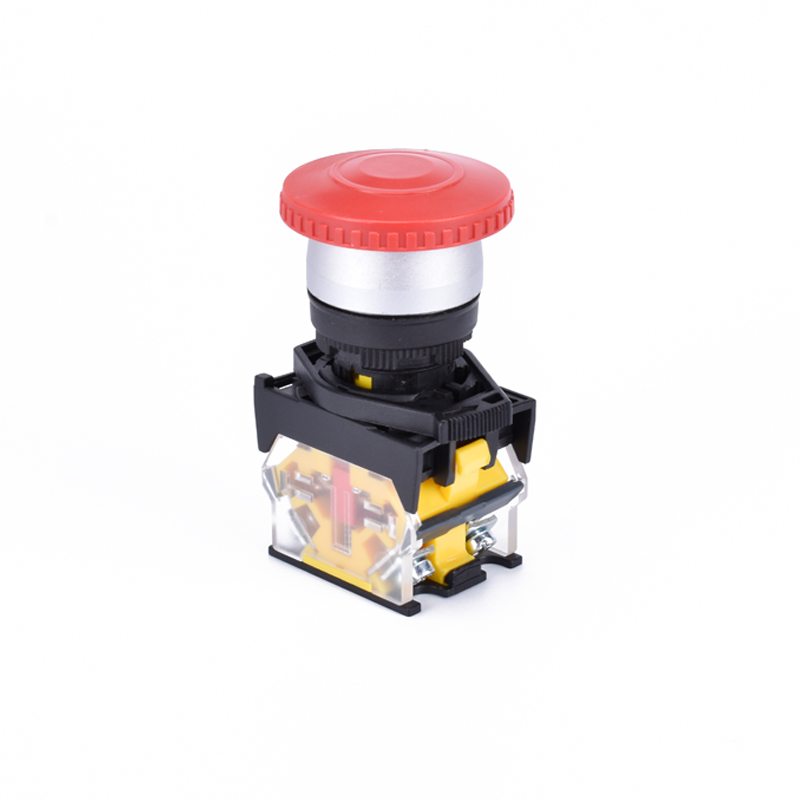

40mm mushroom push button head metal push pull switch XDL31-BT42

Share to:

40mm mushroom push button head metal push pull switch XDL31-BT42

Model:: XDL31-BT42

MOQ:: 240

Payment:: T/T L/C

Brand:: XINDALI

Delivery time:: One week

Start Port:: Shanghai/ningbo

Certification:: ISO9001 RoSH CE UL TUV

SKU:
Availability:

Product Description

◆ Characteristic: waterproof level IP65,Easy installation long service life,Higher performance than LAY series

◆ Features: It is used for controlling signal and interlocking purposes.

◆ Material: The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.

Basic Characteristic
Conforming to standards as	IEC60947-5-1:GB/T14048.GB14048.5
Ambient temperature	operating temperature:-5℃~+55℃ storage temperature:-25℃~+70℃
Operating and storage air relative humidity	35~85%RH
Vibration frequency	Conforming to IEC 68-2-6
Impact resistance	Conforming to IEC 68-2-27
Pollution grade	3
Installation sort	ClassⅢ
Protection grade	Ordinary:IP40 IP54
Protection grade	Protection:IP65 IP66 IP67 IP68
Mechanical life	pushbutton:30010 push and pull type emergency button:3010
Fastening torque	0.8Nm(MAX:1.2Nm)

Product Details

head metal spring return switch with mushroom head push button switch mushroom head push-pull emergency button switch spring return push button switch springs parts elevator switch head spring return push button switch Metal push button switch metal button switch lamp metal push button switch metal indicator light
