Waterproof Emergency Stop Industrial 6 Holes Push Button Switch Selector Control Box Power Start Stop Switch Station

This is a high - quality industrial control box. Its model is XDL35 - BE634.

It has 6 holes. The control box has various functions. It's equipped with an emergency stop button. Turn it to release. There's a selector switch. There's a 2 - position stay put button. There are 4 flush push buttons. It has spring return function.

Model Number XDL35 - BE634
Button Type Momentary (spring return)
Protection Rating IP65/IP66
Dimensions 247 x 68 x 60.5 mm
Contact Configuration Normally closed (N/C) circuit
Operating Voltage AC 660V, 10A
Control Elements 1 Emergency Stop (NC) 1 selector 1 Selector Switch (NO + NC) 3 Flush Push Buttons (NC / NO)

Product Detail

Photo Details

This is a high - quality industrial control box. Its model is XDL35 - BE634.

The control box has high waterproof performance. Its IP grade reaches IP65/IP66.

The electrical parameters of each hole are as follows:

Hole 1: N/C, 24V/1A or 220V/2A.
Hole 2: N/O+N/C, 24V/1A or 220V/2A.
Hole 3: N/O, 24V/1A or 220V/2A.
Hole 4: N/C, 24V/1A or 220V/2A.

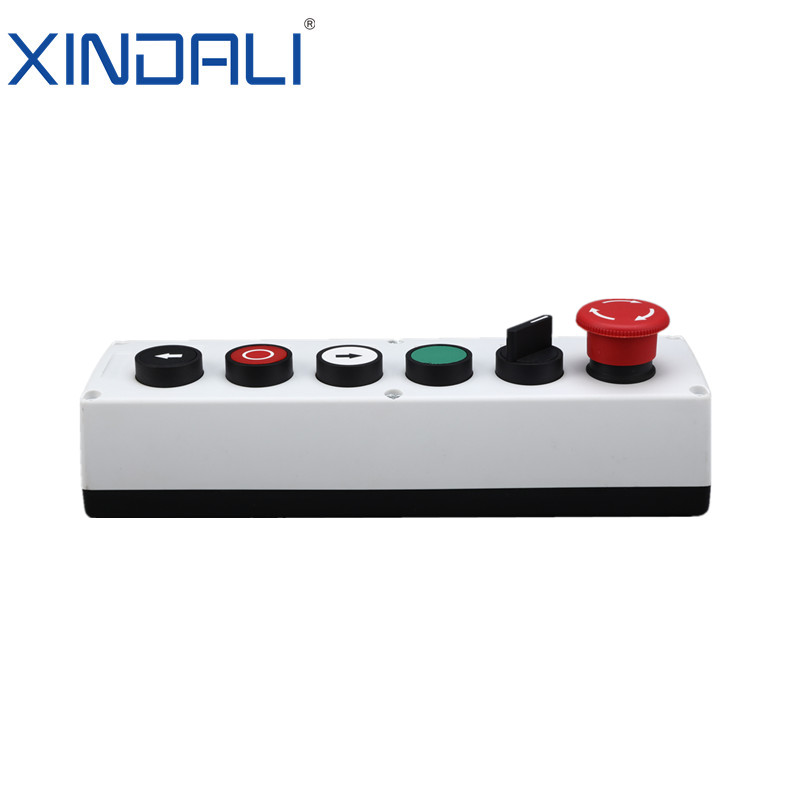

The control box has a compact size of 68x247mm. It's easy to install and use. The side of the control box has a clear model marking of XDL35 - BE634. On the front, there are intuitive markings for the functions of each button and switch. The emergency stop button is red and prominent. The selector switch is black. The 2 - position stay put button is green. The 4 flush push buttons are red and black. The control box has a sturdy structure. It can provide reliable control functions in industrial environments. It can be used for starting and stopping power equipment. It can also be used for emergency stopping in case of danger. It plays an important role in ensuring the safe operation of industrial production.
