Looking ahead to 2026, when you're choosing a Momentary Push Button Switch, it's really about matching the switch to your equipment—not just how it looks. The button might be sitting on a small control panel, a bench-top device, or a machine you wear gloves with. Each setting changes what you need to pay attention to. For example, a low-profile actuator saves space, but a bigger, textured cap can be easier to find by touch when you're in a hurry. You press it, and the circuit switches; you release it, and it goes back to normal. Super simple, right? But trust me, all those tiny details actually matter.
Choosing the right switch starts with understanding your electrical load—things like voltage, current, and whether you’re controlling a signal or a higher-power circuit. It’s a good idea to peek at the datasheet to check the contact setup, how many times it’s rated to switch, terminal types, and mounting sizes. Don’t forget to think about environmental factors—dust, moisture, vibration, or how hot or cold it gets where you’ll install it. You also want to consider how much force it takes to press the button. These little things all help you narrow down your options before you even install a sample and see how it really works in your panel.
Sure, specifications can look pretty convincing on paper, but nothing beats testing in real-world conditions. This guide is here to help you compare different switch types and decode those specs so you can make smarter choices for your 2026 project. It also points out common mistakes, like picking a switch just because it’s cheap or ignoring depth limitations of your panel. Sometimes, folks get too hung up on a long cycle-life number without digging into the test conditions behind it—that's definitely worth a second look.
By balancing documented ratings with the actual needs of your application, both buyers and designers can avoid the hassle of replacing a switch that just wasn’t right for the job from the get-go. Better safe than sorry, right?
A momentary push Button Switch changes its contact state only while pressure is applied. Inside, the actuator moves a small contact assembly against a spring. Press it, and the contacts connect or separate; release it, and the spring returns the mechanism. Release it. That return action distinguishes momentary switches from latching switches, which stay in their new state.
Check the contact description before choosing one. A normally open switch completes a circuit when pressed, while a Normally Closed switch interrupts one. Some models offer both contact paths. For example, a doorbell circuit may use a normally open button: pressing it briefly signals the chime, then releasing it stops the signal. A control panel might instead use a normally closed contact to detect an interrupted circuit. The details matter.
Also match the switch’s electrical rating to the circuit’s voltage, current, and load type. A motor can draw more current at startup than its running label suggests, so a button suitable for a small indicator may not be suitable for direct motor control. It is easy to focus on the cap and overlook the contacts. I would check the datasheet and wiring diagram, then test the intended circuit safely; a familiar-looking button can behave differently than expected.
| Selection Dimension | How It Works or What to Check | Common Options or Reference | Selection Guidance |
|---|---|---|---|
| Momentary operation | The contacts change state while the actuator is pressed and return to their normal state when it is released, usually by a spring. | Normally open (NO), normally closed (NC), or changeover contact configurations. | Choose the contact state that matches the circuit’s unpressed condition. Do not confuse momentary action with a latching switch, which stays in its changed state after release. |
| Contact configuration | Contact configuration describes which electrical paths are available and how many circuits the switch can control. | SPST switches one circuit; SPDT switches between two paths. Multi-pole options can control more than one circuit. | Confirm the required number of poles and throws, and check the circuit diagram in the switch datasheet. |
| Electrical rating | The voltage and current rating defines the electrical load the contacts are designed to switch. | Ratings vary by switch. A datasheet may state separate AC and DC ratings, which are not automatically interchangeable. | Select a switch rated for the actual voltage, current, and load type. Allow appropriate design margin and check any separate ratings for resistive, inductive, or lamp loads. |
| Load type and switching frequency | Motors, relays, lamps, and capacitive loads can create inrush current or electrical arcing that differs from a steady resistive load. | Relevant datasheet details can include electrical life, maximum switching frequency, and load-specific ratings. | Use the manufacturer’s specified load conditions when estimating service life. Consider a relay or electronic driver if the button should only provide a low-current control signal. |
| Contact material | Contact materials affect conductivity, corrosion behavior, and suitability for different signal levels and loads. | Silver-based contacts are commonly used for many general switching applications; gold-plated contacts are available for some low-level signal applications. | Match the contact material to the expected current, environment, and signal requirements. Verify suitability in the product datasheet. |
| Panel cutout and mounting | The mounting dimension is the hole or opening required to install the switch in a panel. | Panel-mount switches are sold in different cutout sizes and mounting styles; there is no single universal dimension. | Measure the panel and check the specified cutout diameter, panel thickness range, clearance, and mounting hardware before ordering. |
| Actuator shape and travel | Actuator shape, protrusion, and movement affect access, feel, and compatibility with the enclosure. | Options include flat, raised, and guarded actuators, with travel and operating force varying by design. | Choose a shape that is easy to operate but unlikely to be pressed accidentally. Check travel and force specifications if the switch is used frequently or by gloved users. |
| Environmental protection | An IP code indicates protection against solid objects and water under specified test conditions. | For example, IP65 indicates dust-tight protection and protection against water jets; IP67 indicates dust-tight protection and temporary immersion under specified test conditions. | Choose a rating appropriate to the installation environment. Verify whether the stated rating applies to the front of the panel, the rear terminals, or the complete installed assembly. |
| Mechanical and electrical life | Mechanical life counts operating cycles without considering the electrical load; electrical life is tested while switching a specified load. | Both are usually expressed as cycle counts and depend on the test conditions. | Compare life figures only when their test conditions are relevant to your application. Higher load, contamination, and frequent operation can affect service life. |
| Connection and wiring | Terminals connect the switch to the circuit and may be designed for soldering, quick-connect tabs, or screw connections. | Terminal style, terminal dimensions, and wire requirements vary by model. | Confirm the connector type, available space, wire size, and required insulation or strain relief before installation. |
| Temperature and operating environment | Temperature limits define the conditions in which the switch is specified to operate and be stored. | Operating and storage ranges are stated in the individual datasheet. | Check the full expected temperature range, including heat from nearby equipment, sunlight, or an enclosed panel. |
| Safety and installation | Correct wiring and mounting help prevent unintended operation, overheating, and exposure to hazardous voltage. | Terminal diagrams, insulation ratings, and mounting instructions are product-specific. | Disconnect power before installation, follow the wiring diagram, and use a qualified person where electrical safety rules require it. |
Note: The options above are general selection references, not universal specifications. Always confirm ratings, dimensions, test conditions, and installation requirements in the datasheet for the specific switch.

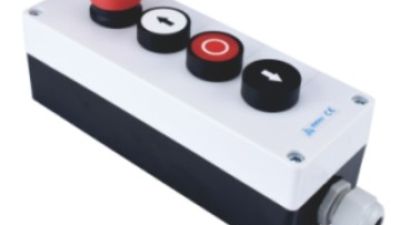

Choosing a waterproof 4-hole push-button control box starts with matching its ingress protection to the installation. Under IEC 60529, IP54 indicates protection against harmful dust deposits and water splashes, while IP65 indicates dust-tight protection and resistance to water jets. Since the enclosure is described as IP54/IP65, verify the rating of the specific configuration and ensure cable entry, mounting, and sealing preserve it. The U.S. Bureau of Labor Statistics’ *2023 Survey of Occupational Injuries and Illnesses* recorded 2.6 million nonfatal workplace injury and illness cases in private industry, underscoring why clearly accessible, dependable machine controls matter—although a control box alone cannot prevent incidents.
For equipment needing an emergency stop plus several operator inputs, this box combines a twist-to-release emergency stop with three flush, spring-return push buttons. The buttons offer normally closed (N/C) and normally open (N/O) contacts, allowing the control circuit to be configured to suit the application; confirm contact arrangements and safety-system requirements with a qualified controls professional. Its stated dimensions are 65 mm × 12 mm, with a 192 × 72 × 192.72 mm overall contour, and a PG13.5 cable gland for cable entry. Check panel space, cable compatibility, and the intended washdown or exposure conditions before installation.
The circuit closes only while you press the button. It opens again when released.
Match voltage and current to the real circuit. Motors can stress contacts more than small signal inputs.
Check for dust, moisture, vibration, and temperature changes. Also measure panel thickness and rear clearance.
A raised button is easier to locate by touch. Try it inside the actual enclosure.
Panel mounts need a correctly sized cutout and room for terminals. PCB mounts need accurate alignment and soldering access.
Not necessarily. A 12 mm cap may feel cramped beside nearby controls. A cardboard mock-up can reveal awkward spacing.
Confirm its separate terminals and required voltage. It may need a suitable supply or current-limiting component.
Compare mechanical life with expected use. Hundreds of presses each shift deserve a real test.
Isolate power and follow the wiring diagram. Verify connections with a meter when practical. Don’t guess.
Choosing a Momentary Push Button Switch in 2026 starts with understanding how it works: the contacts change state while the button is pressed and return when it is released. Consider the application and operating environment, including how often the switch will be used and whether it may encounter dust, moisture, vibration, or temperature changes. These conditions help narrow down suitable designs and protection levels.
Next, match the switch’s voltage, current, and contact configuration to the circuit, then choose an actuator, mounting style, and size that fit the equipment and feel comfortable to operate. Check material quality, electrical ratings, and relevant safety requirements before making a selection. Finally, compare expected durability, maintenance needs, and available product options. A careful evaluation of these factors can help identify a switch that fits the application reliably without unnecessary complexity.
