19mm Metal Emergency Stop Button – Applications, Features and Selection Guide
2026-01-06
SEO Guide 19mm Metal E-Stop Twist Release

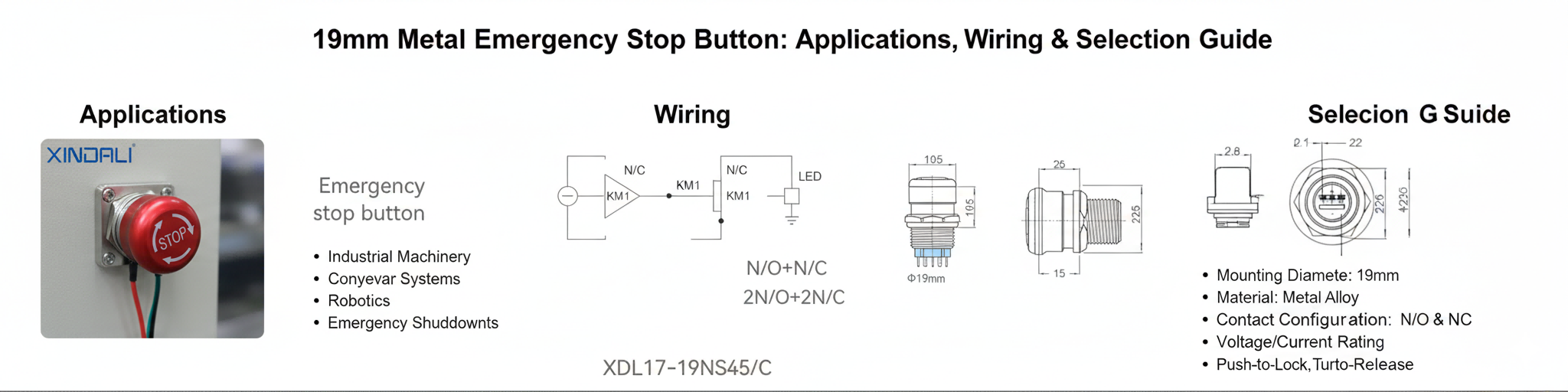

19mm Metal Emergency Stop Button – Applications, Wiring & Selection Guide
A compact, durable metal emergency stop button (19mm mount) with twist-to-release and N/O + N/Ccontact options—ideal for CNC machines, kiosks, elevators, vehicles, and OEM control panels.
Table of Contents
Introduction
An emergency stop button is a core safety component used to stop machinery instantly during abnormal or dangerous conditions. For compact panels and modern equipment designs, a 19mm emergency stop button is often preferred over larger 22mm/30mm options.
The XDL17 Series (e.g., XDL17-19NS45/C) is a metal emergency stop push button switch with a reliable twist release (latching) mechanism and flexible contact configurations such as 1NO+1NC or 2NO+2NC.
Safety reminder: In many safety circuits, N/C contacts are commonly used to ensure the machine stops if the button is pressed or if a wiring fault occurs. Always follow your local safety standards and system design requirements.
Key Features of a 19mm Metal Emergency Stop Button
- Standard 19mm mounting hole for compact enclosures and dense control panels
- Twist-to-release (latching): press to lock, rotate to reset
- Metal housing (anti-vandal): typically stainless steel or nickel-plated brass
- High-visibility red mushroom head for fast recognition
- Contact options: N/O + N/C or expanded 2N/O + 2N/C
Typical Applications
1) Industrial Automation & Machinery
- CNC machines – panel-mounted emergency stop for immediate shutdown
- Laser cutting/engraving machines – stop the machine instantly during malfunction
- Conveyors & packaging lines – operator safety and equipment protection
- Robot control cabinets – emergency stop in automation cells
2) Public Facilities & Self-Service Terminals
- Self-service kiosks, information terminals
- ATM and unattended equipment
- EV charging stations (metal housing is often preferred for public use)
3) Elevators & Lifting Equipment
- Elevator control panels – emergency braking or alarm triggering
- Freight elevators, lifting platforms, hydraulic lifting machines
4) Transportation & Special Vehicles
- Modified vehicles – main power cut-off switch
- Marine equipment – corrosion-resistant metal housing
- Engineering vehicles – emergency stop on operation panels
5) Precision Instruments & Medical Equipment
- Laboratory instruments and test benches
- Medical laser equipment and dental control consoles
6) Electronics Hobbyists & DIY Projects
- Sim racing button boxes
- DIY 3D printer control panels
- Custom electronic enclosures
Understanding N/O and N/C Contacts
Normally Open (N/O): Circuit is open in normal state and closes when pressed.
Normally Closed (N/C): Circuit is closed in normal state and opens when pressed.
Practical tip: Many safety circuits prefer N/C to ensure fail-safe stopping if wiring breaks.
How to Choose the Right Emergency Stop Button
- Mounting size: 19mm for compact panels; 22mm/30mm for standard industrial panels
- Contact configuration: 1NO+1NC for standard needs; 2NO+2NC for more complex control logic
- Reset method: Twist release is recommended to avoid accidental restart
- Material: Metal for durability and anti-vandal needs
- Environment: indoor/outdoor, public access, corrosion, vibration, etc.
Need a matching model quickly?
Browse our category page: Metal Push Button Switches
Or Contact us for datasheets, samples and OEM pricing.
OEM & Customization Support
We support OEM/ODM customization for metal emergency stop buttons, including logo marking, terminal options, contact combinations, and matching control solutions.
👉 For a fast quotation, send your spec and application photos here: Contact Us.
FAQ
Q1: What is a 19mm emergency stop button used for?
A 19mm emergency stop button is used to stop machinery quickly in emergencies. The compact 19mm mounting size is ideal for CNC machines, kiosks, elevator panels, vehicles, and DIY control boxes.
Q2: What does N/O and N/C mean on an emergency stop switch?
N/O closes when pressed. N/C opens when pressed. Many safety circuits prefer N/C to ensure fail-safe stopping if a wiring fault happens.
Q3: How does a twist release emergency stop button work?
The button locks when pressed to stop the machine. It requires deliberate rotation (often clockwise) to reset, helping prevent accidental restart.
Q4: Should I choose 1NO+1NC or 2NO+2NC contacts?
Choose 1NO+1NC for standard stop circuits. Choose 2NO+2NC if you need additional signaling, multiple interlocks, or more complex control logic.
Q5: Where can I get a metal emergency stop button for OEM projects?
Visit Metal Push Button Switches or Contact us for datasheets, samples, and OEM pricing.
