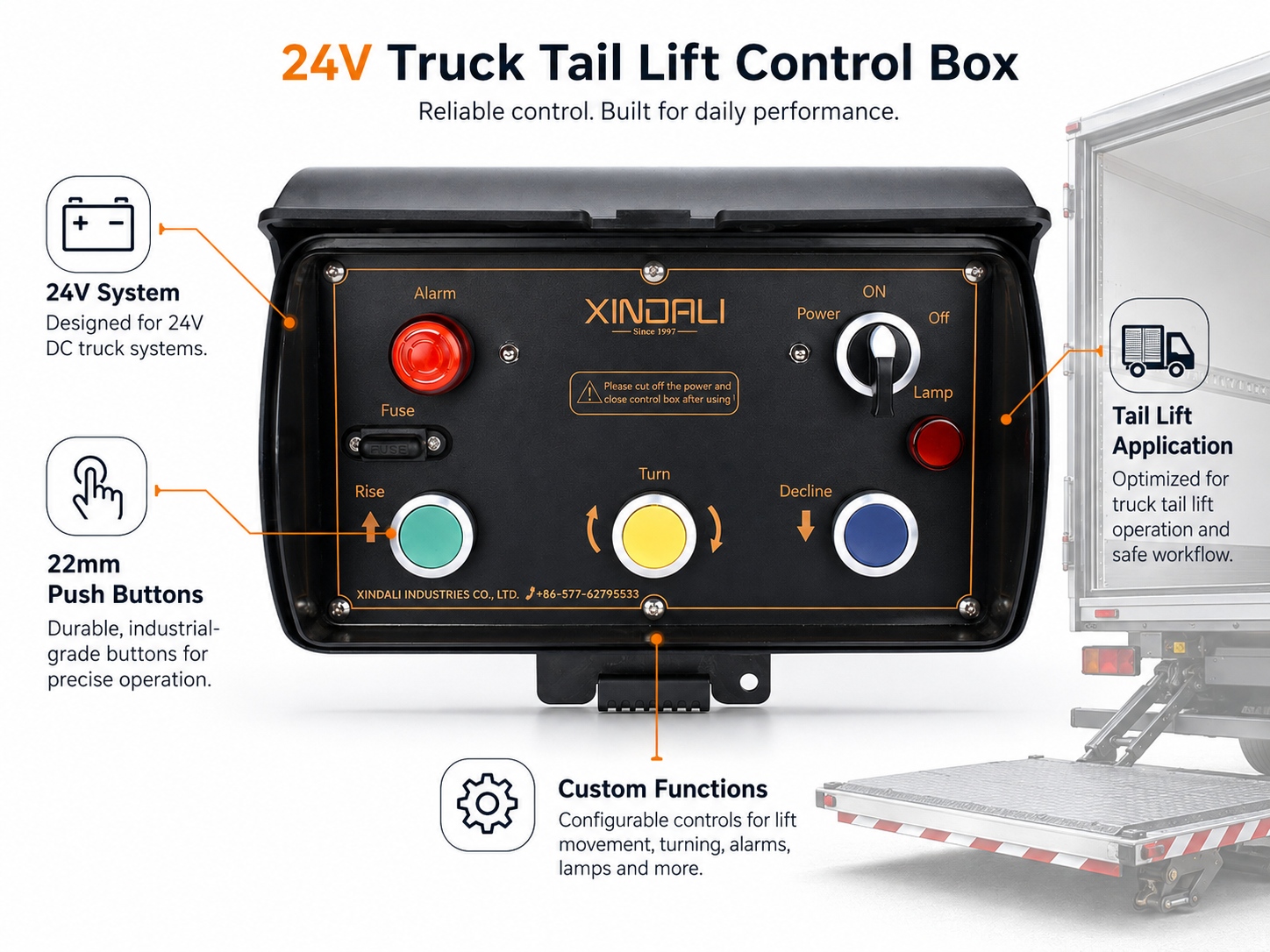

24V Truck Tail Lift Control Box: How to Choose the Right Configuration

A truck tail lift may look like a relatively simple hydraulic system, but the Control Box is one of the components operators interact with most frequently. A suitable24V truck tail lift control box must match the vehicle voltage, button functions, wiring logic, installation environment and the hydraulic power unit.

A recent inquiry from a truck operator in Argentina provides a useful real-world example. The customer required several Control Boxes in different configurations, including D3, D4 and DY4 versions, all using24V control voltage and 22mm operating components.

This type of inquiry illustrates an important point: there is rarely one universal control box for every truck liftgate. In many applications, a custom push button control box for truck tail lift is a better solution than trying to adapt a standard control station.

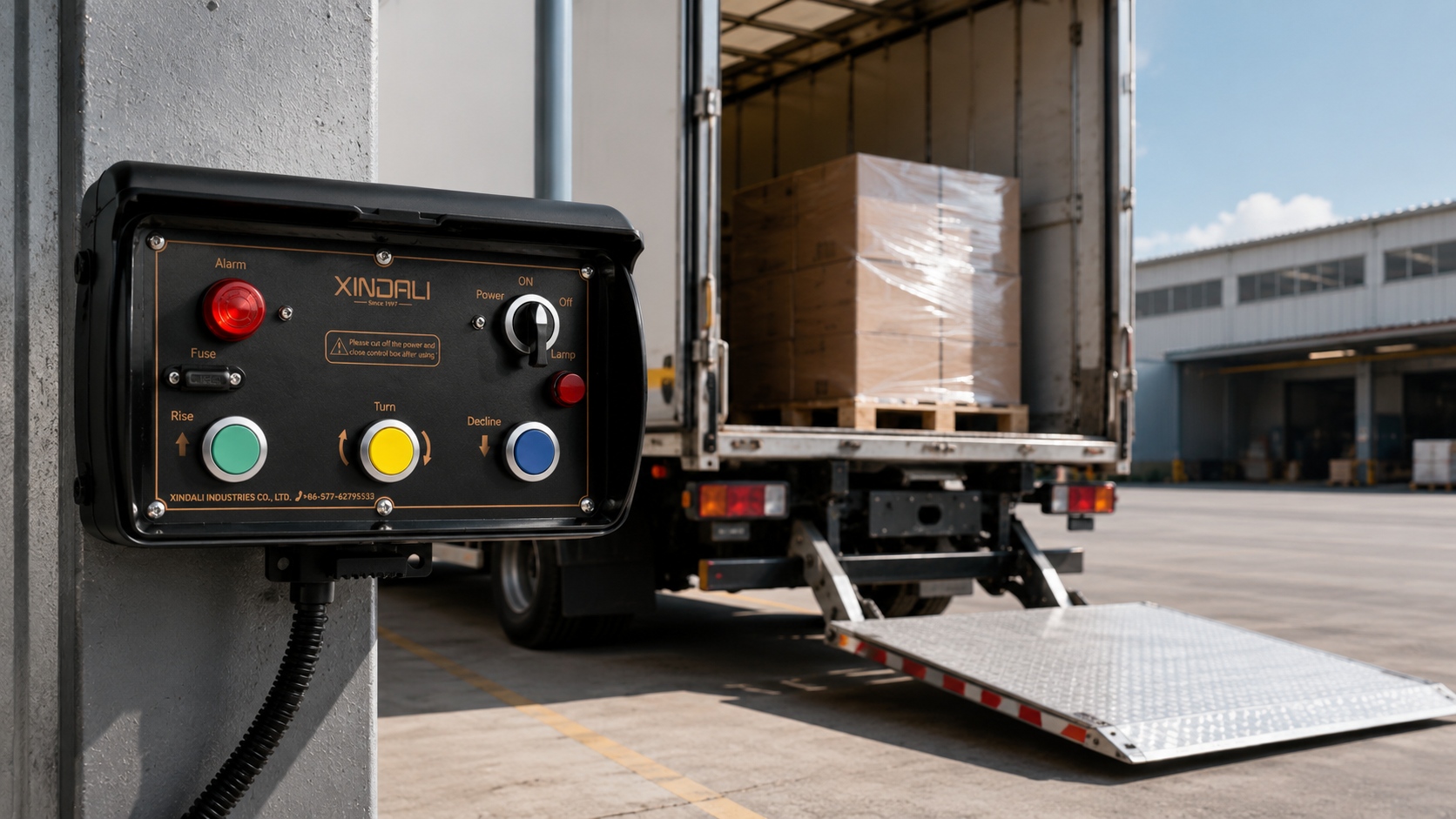

What Does a Truck Tail Lift Control Box Do?

A tail lift control box sends electrical commands to the hydraulic system that raises, lowers, opens or closes the lift platform. Depending on the design of the tail lift, the operator may need two, three, four or more control functions.

Typical commands include:

• UP – raises the tail lift platform.
• DOWN – lowers the platform.
• OPEN / TILT DOWN – moves the platform outward or adjusts its angle.
• CLOSE / TILT UP – returns the platform toward the transport position.
• Emergency Stop – interrupts the control circuit when required.

The exact button configuration depends on the hydraulic circuit and the tail lift manufacturer. Therefore, replacing an existing controller requires more than simply matching the number of buttons.

Why Is 24V Common for Truck Tail Lift Systems?

Commercial trucks frequently use 24V DC electrical systems. For this reason, 24V control components are widely used in hydraulic tail lifts, truck-mounted lifting platforms and other commercial vehicle equipment.

Before manufacturing or replacing a control box, however, the system voltage should always be confirmed. A manufacturer should check:

• Vehicle supply voltage
• Hydraulic power unit voltage
• Solenoid coil voltage
• Relay or contactor control voltage
• Existing controller wiring

Using the correct voltage helps ensure reliable communication between the push buttons and the hydraulic control circuit.

Why Does the 22mm Push Button Size Matter?

In the Argentina inquiry, the customer specifically requested 22mm components. This refers to the mounting diameter used for the push buttons and related control devices.

22mm is one of the most common industrial control component sizes because it allows manufacturers to combine different operating elements within the same enclosure.

For example, a 22mm control box can potentially accommodate:

• Momentary push buttons
• Illuminated push buttons
• Selector switches
• Emergency stop switches
• Indicator lights

This makes a 22mm platform particularly useful when a truck builder, tail lift manufacturer or maintenance company needs several control box variants but wants to keep the enclosure and component platform standardized.

D3, D4 and DY4: Why Different Button Configurations May Be Required

A fleet operator may use more than one type of liftgate or hydraulic system. That means different trucks can require different control layouts even when they all operate at 24V.

For example, one control box may require three operating functions while another needs four. A further version may use a different button sequence or internal wiring arrangement.

This is why XINDALI does not only focus on the enclosure itself. For a customized truck control station, several parameters can be adapted to the actual application.

What Information Is Needed to Customize a Tail Lift Control Box?

When replacing an existing controller, photographs are often more useful than a simple model number. To avoid wiring or compatibility problems, we normally recommend providing the following information.

1. Truck or tail lift brand and model
2. System voltage – for example, 12V DC or 24V DC
3. Number of operating buttons
4. Function of each button
5. Existing control box photos
6. Rear wiring or terminal photos
7. Required cable length
8. Connector or plug requirements
9. Required quantity

For replacement applications, sending photos of both the front panel and internal wiring can significantly reduce the risk of ordering the wrong configuration.

Why Use a Custom Control Box Instead of a Standard Box?

Standard control boxes work well when the required circuit exactly matches an existing product. Truck applications, however, frequently involve different hydraulic systems, cable lengths, button arrangements and mounting requirements.

Customization can help solve several practical problems.

• Match an existing truck wiring configuration.
• Reduce modification work during installation.
• Standardize replacement controllers across a fleet.
• Add application-specific button symbols.
• Pre-install cables to reduce assembly work.
• Create OEM versions for truck body builders and tail lift manufacturers.

For companies purchasing replacement parts regularly, standardizing a customized controller can also simplify future spare-parts management.

Can a Tail Lift Control Box Be Supplied with Pre-Wired Cable?

Yes. For many OEM and replacement applications, the control box can be supplied with a pre-installed cable according to the customer's wiring requirements.

Compared with purchasing an empty enclosure and wiring every controller locally, a pre-wired control box can reduce installation time and improve consistency between units.

Customers should provide the required cable length, wire quantity, wire specification and terminal or connector information before production.

What About Outdoor Protection?

Truck tail lift controllers operate in a demanding environment. Rain, road spray, dust, vibration and frequent operator contact can all affect the service life of the controller.

For outdoor vehicle applications, enclosure sealing and cable-entry protection should therefore be considered during product selection. An IP65-type protected control enclosure is commonly selected for applications requiring resistance to dust and water jets.

The complete protection performance also depends on correct cable installation, enclosure assembly and field installation.

Who Typically Needs Customized Truck Tail Lift Controllers?

A customized tail lift controller is not only suitable for individual vehicle repairs. It can also be supplied to:

• Truck body builders
• Tail lift manufacturers
• Hydraulic equipment manufacturers
• Commercial vehicle maintenance companies
• Truck spare-parts distributors
• Logistics fleets
• OEM equipment manufacturers

Small trial quantities can be used to verify the mechanical and electrical configuration before moving to regular production quantities.

Frequently Asked Questions

Can I replace my existing 24V tail lift switch box?

Yes, provided that the voltage, button functions and wiring logic can be confirmed. Sending photos of the existing controller and wiring is recommended before ordering.

Can the button arrangement be customized?

Yes. The number, position and function of the control elements can be configured according to the application and enclosure design.

Can you manufacture a control box according to a sample?

In many cases, yes. A physical sample, dimensional drawing, wiring diagram or detailed photographs can be used to evaluate the required configuration.

Can the cable length be customized?

Yes. Cable length and wiring can be specified according to the installation requirement. For OEM projects, connector and terminal requirements can also be discussed.

Can I order a small quantity first?

Small-batch sampling is useful for verifying fit, button configuration and electrical compatibility before regular production. Contact XINDALI with your required quantity and specifications for evaluation.

What should I send when requesting a quotation?

Please provide the quantity, voltage, required functions, button configuration, cable length and photos or drawings of the existing controller whenever possible.
