Why Custom Wired Control Units Are Needed

In many industrial equipment projects, a standard push button control station is not enough. Machines may require a complete custom wired control unit that combines emergency stop, push buttons, operating mode selection, internal wiring, cable assembly, and connector output.

For OEM customers, equipment manufacturers, and industrial importers, a ready-to-install industrial control box can reduce wiring work, improve assembly efficiency, and ensure stable product consistency across batch production.

What Is a Custom Wired Control Unit?

A custom wired control unit is a complete operator interface designed according to the customer's machine function, wiring logic, installation space, and working environment.

• Emergency stop button
• Momentary push buttons
• Selector switch
• Key selector switch
• Internal wiring according to schematic
• Pre-assembled cable
• Industrial connector output
• IP65 waterproof enclosure

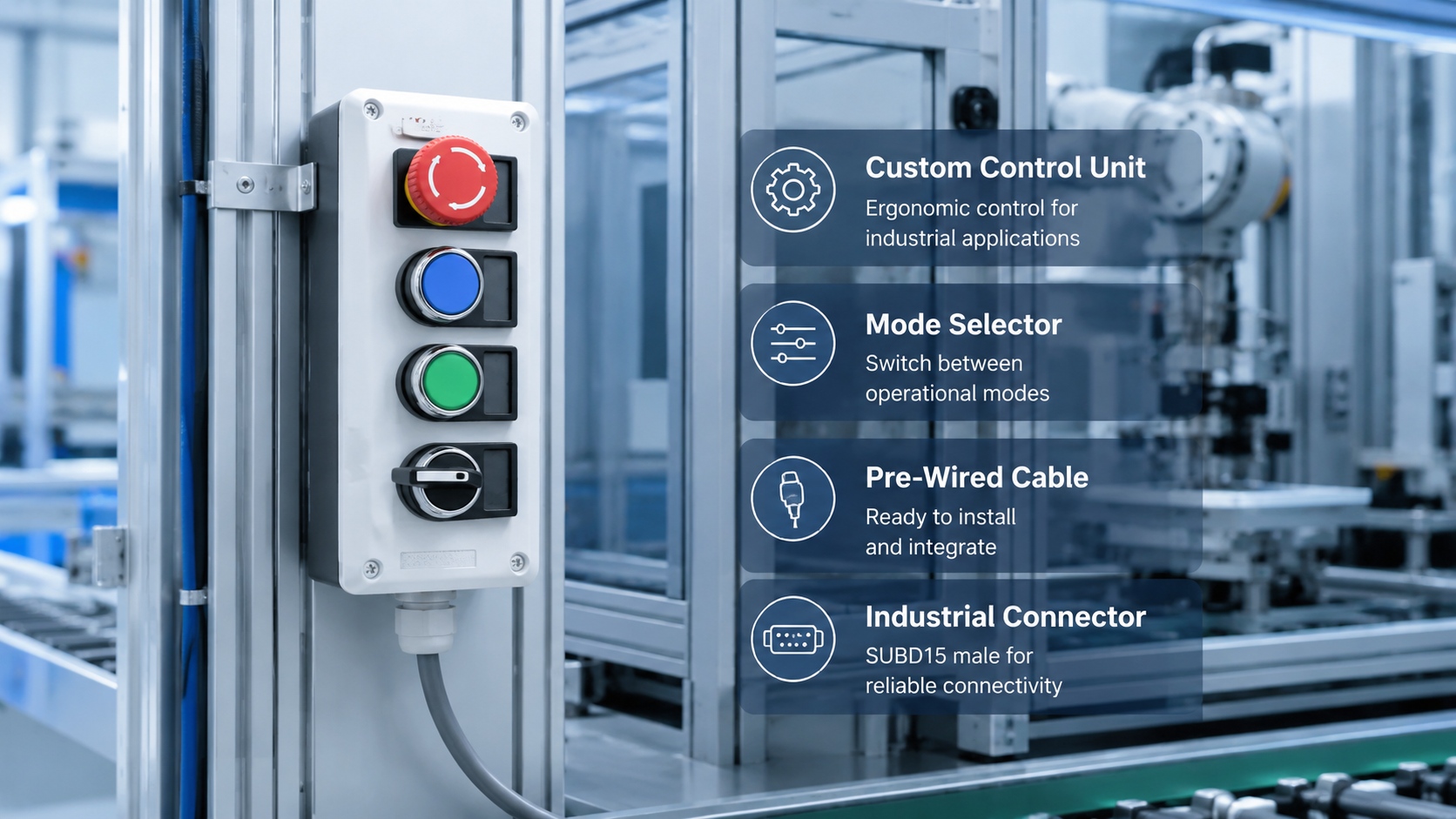

Typical Control Unit Configuration

Selector Switch Options: With Key or Without Key

The operating mode selector switch is one of the key components in many customized control units. XINDALI can provide both standard selector switches and key selector switches.

A normal selector switch is suitable for general operation mode selection. A key selector switch is more suitable when the machine requires authorized access, maintenance mode protection, or restricted operation.

Pre-Wired Cable and Connector Assembly

For OEM control box projects, wiring accuracy is very important. The control unit must not only match the external button layout, but also follow the customer's internal wiring diagram and connector pin definition.

XINDALI can assemble the internal wiring according to the provided schematic. Cable length, wire color, terminal type, connector type, and pin assignment can all be customized.

• Custom cable length
• Multi-core cable assembly
• Internal wiring according to schematic
• SUB-D connector option
• M12 connector option
• Aviation plug option
• Waterproof cable gland
• Customized pin assignment

Why Choose an IP65 Industrial Control Box?

Industrial control units are often used in environments with dust, humidity, water spray, vibration, oil mist, or outdoor exposure. An IP65 enclosure helps protect the internal wiring and electrical components from dust and water spray.

For lifting equipment, mobile machinery, automation devices, hydraulic systems, and industrial testing equipment, an IP65 push button control box provides better durability and reliability than a simple indoor control panel.

Customization Process

Applications of Custom Wired Control Units

Customized wired control units are suitable for many industrial and commercial equipment applications, especially when standard products cannot fully meet the required wiring, function, or installation method.

• Industrial machines
• Lifting equipment
• Hydraulic systems
• Automation equipment
• Testing equipment
• Mobile machinery
• Tail lift systems
• Hoist and crane control

Why Work with XINDALI?

XINDALI has long-term experience in industrial push buttons, control stations, pendant controllers, tail lift control boxes, and customized wiring solutions. Instead of only supplying separate electrical components, we help customers build complete control units ready for machine installation.

For importers, distributors, machine builders, and OEM customers, this means fewer suppliers, faster assembly, more stable quality, and easier repeat orders.

FAQ About Custom Wired Control Units
