Customized Solutions for Embroidery Machine Power Boxes: Professional Practices of Button Control Box Manufacturers

Customized Solutions for Embroidery Machine Power Boxes:Professional Practices of Button Control Box Manufacturers

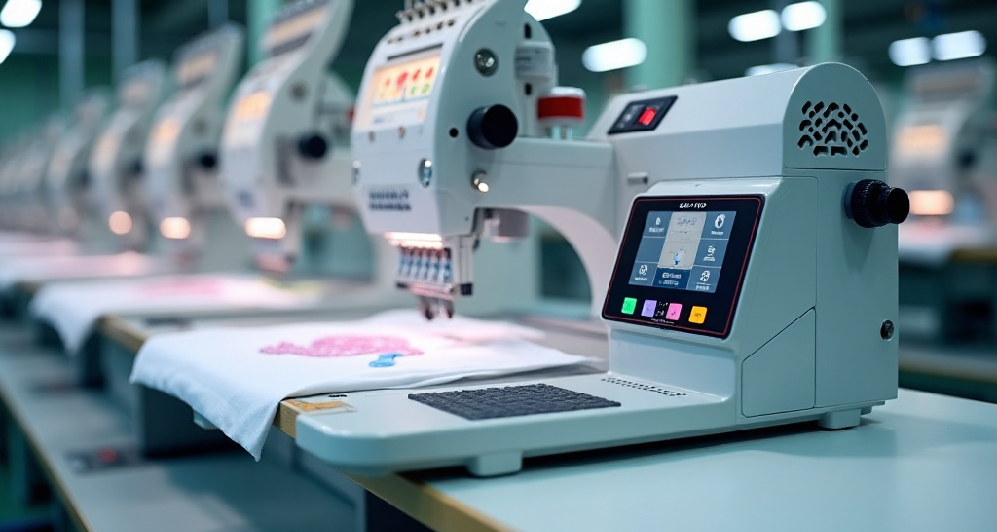

In the context of the textile industry's intelligent upgrade,embroidery machines,as core production equipment,play a crucial role in determining the efficiency of embroidery operations and the quality of the finished products.As a professional button control box manufacturer,we have specialized in the field of industrial Button Switch boxes for many years.By combining customer needs with industry standards,we offer comprehensive solutions ranging from power module integration to human-machine interface design.This article will discuss the topic from three dimensions:the functional requirements of embroidery machine power boxes,the technical adaptation of button control boxes,and the competitive advantages of customized services.

I.Functional Requirements of Embroidery Machine Power Boxes and Technical Adaptation of Button Control Boxes

Embroidery machine power boxes need to meet several key requirements,including high stability,anti-interference capabilities,and dynamic load response.According to available data,modern embroidery machine control systems rely on DC/DC power modules(such as URB4805LD-15WR2)to achieve multiple voltage outputs:36V for the main spindle motor and stepper motors,5V for the display screen and encoder,and 3.3V/1.8V generated by LDO chips for CPU power supply.As the core of human-machine interaction,button control boxes need to work in coordination with the power system in the following aspects:

Electrical Isolation and Anti-Interference Design

When the motor starts,voltage spikes may affect the control circuit.Therefore,it is necessary to use isolated power supplies(with an isolation voltage of 1500VDC)and configure large-capacity filter capacitors to ensure the stability of the control circuit and avoid interference that could lead to malfunctions or equipment failures.

Dynamic Load Compatibility

The instantaneous start-up current of the embroidery machine motor is relatively high(for example,for X/Y-axis stepper motors).The power module needs to provide a power output of at least 15W to meet the motor's start-up requirements.Meanwhile,the button control box's contacts should support a current load of up to 10A to ensure stable operation under high load conditions and prevent contact damage or poor contact due to excessive current.

Environmental Adaptability

Textile workshops often have complex environments with dust,oil,and fluctuations in temperature and humidity.To ensure stable operation in such conditions,the button control box should have a protection rating of IP65 or higher.The choice of material can be either aluminum alloy(for its impact resistance)or engineering plastic(for lightweight and cost-effective solutions),depending on different customer needs.

II.Key Technical Parameters and Design Innovations of Customized Button Control Boxes

As a button control box manufacturer,our customization plan focuses on the following core parameters to ensure deep compatibility with embroidery machine power boxes:

Structural Design

• Modular Layout:Supports multiple button combinations(such as start,stop,and emergency stop buttons)and reserves expansion interfaces(such as Profibus and EtherNet bus)to meet the multi-motor coordinated control requirements of embroidery machines.This modular design not only enhances system flexibility but also facilitates future upgrades and expansions.

• Human-Engineered Optimization:Features short-stroke buttons with a travel distance of no more than 2mm,combined with full-color LED indicators.This design not only improves the intuitiveness of operation feedback but also allows operators to quickly and accurately obtain equipment status information in complex environments,thereby increasing work efficiency.

Material Selection

• Metal Materials(Stainless Steel/Zinc Alloy):Suitable for explosion-proof environments(such as ExedⅡCT6 certification),with excellent corrosion resistance and strong heat dissipation performance.In situations where high safety standards are required,metal button control boxes can provide a higher level of security.

• Engineering Plastics(ABS/PC):Cost-effective,with good insulation properties,suitable for non-explosion-proof scenarios.The flame retardancy rating of ABS can reach V0,while that of PC is V2.This type of button control box,while ensuring performance,can effectively control costs and meet the needs of different customers.

Safety and Compatibility

• Built-in Overload Protection Circuit:Supports rated parameters of 10A/220V,matching the input specifications of the embroidery machine power supply.This design can effectively prevent equipment damage caused by overloading and improve system reliability.

• Compatibility with Encoder Signal Input:Supports encoder signal input,such as HE34CF1B12 Hall elements,to achieve closed-loop control of embroidery stitches.By doing so,the precision and quality of embroidery can be improved,meeting the requirements of high-end embroidery machines.

III.Competitive Advantages of Customized Services:From Customer Needs to Industry Validation

Demand Response Capability

We support rapid prototyping and flexible production,offering a variety of configurations,such as single button boxes and multi-station control stations(capable of linking up to four embroidery machines).In addition,we can integrate additional functional modules according to customer-specific needs,such as explosion-proof buzzers and temperature control instruments,to meet the special working conditions of textile factories.

Customer Case and Industry Evaluation

A leading embroidery machine manufacturer reported that our customized button box with an IP67 protection design significantly reduced the failure rate caused by workshop dust.The modular structure also increased maintenance efficiency by 40%.Industry reports also indicate that customized button switches outperform generic products in terms of tactile feedback and durability(with a mechanical life of at least 1 million cycles),becoming a key factor for equipment manufacturers to gain a competitive edge.

IV.Future Trends:Intelligence and IoT Integration

With the advancement of Industry 4.0,the integrated design of embroidery machine power boxes and button control boxes will move towards intelligence:

Condition Monitoring

By incorporating built-in sensors(such as temperature and vibration sensors)to monitor the status of power modules and button contacts in real-time,potential faults can be detected early to prevent machine downtime.This condition monitoring feature helps equipment manufacturers and users identify potential issues in advance,reducing downtime and improving production efficiency.

Remote Control

Support for protocols such as EtherNet/IP enables centralized control and data acquisition for clusters of embroidery machines.Through remote monitoring and control,users can manage the operation of embroidery machines from a distance,achieving intelligent production management and enhancing the competitiveness of enterprises.

Sustainable Design

Adopting low-power LEDs and recyclable materials(such as PC polycarbonate)to meet the trend of green manufacturing.In today's world,where environmental awareness is increasingly important,sustainable design not only helps reduce environmental impact but also enhances the social image of enterprises.

Conclusion

As a professional push button control box manufacturer,we have provided a one-stop solution for embroidery machine manufacturers,covering everything from power management to human-machine interaction.By leveraging our technical expertise and market insights,we will continue to innovate and drive breakthroughs in the precision,reliability,and intelligence of button switch boxes,contributing to the high-quality development of the textile industry.
