What Is a Handheld Pendant Controller?

A handheld pendant controller is a wired operating device that allows an operator to control industrial equipment from a convenient position. Commands are transmitted through a multi-core cable to the machine control circuit, relay, contactor, hydraulic power unit or programmable controller.

Compared with a fixed control panel, a pendant controller gives the operator greater freedom to observe the load, platform or moving equipment while issuing operating commands.

Why Button Quantity Alone Is Not Enough

A buyer may request a 6-button pendant controller , but two six-button controllers can have completely different electrical configurations.

One controller may use six independent normally open contacts. Another may contain three interlocked directional pairs. A third may combine four control buttons with an emergency stop and a start button.

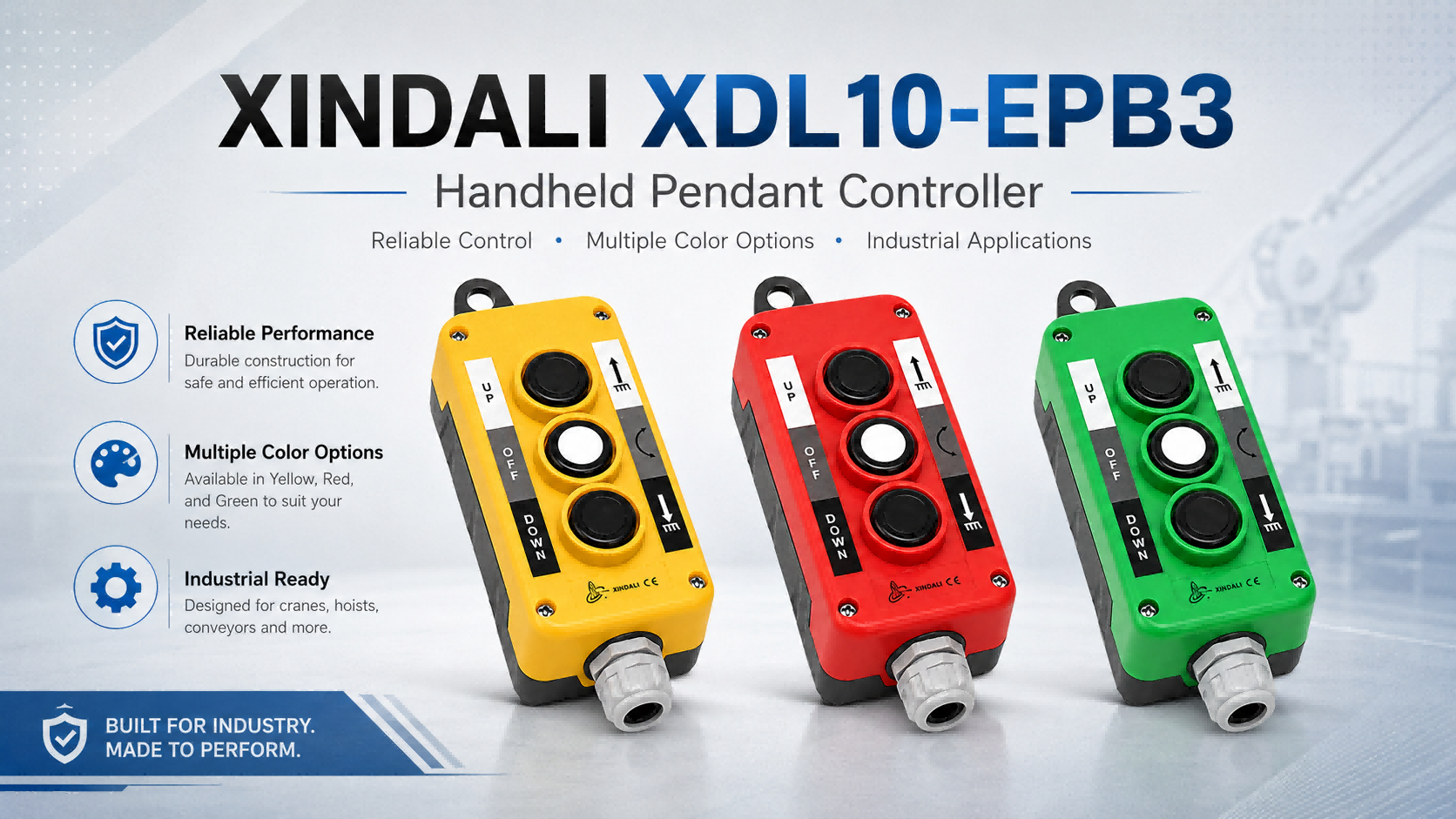

Introducing the XINDALI XDL10 Series

The XINDALI XDL10 Series is a compact pendant controller platform developed for industrial equipment, hydraulic systems, vehicle-mounted lifting equipment and other machinery requiring reliable handheld operation.

The series can be configured with different push-button layouts, emergency-stop options, cables, connectors and internal wiring arrangements. This allows the same housing platform to support both standard replacement requirements and customized OEM projects.

Typical Functions of a Six-Button Controller

Six-button configurations are commonly used when equipment requires several paired movements or multiple independent commands.

For example, a hydraulic platform may use one pair of buttons for raising and lowering, another pair for opening and closing, and a third pair for extending and retracting.

An electric hoist or small crane may use up, down, left, right, forward and reverse commands. The controller contact arrangement must always match the electrical circuit of the equipment.

Why Is Interlocking Important?

Interlocking prevents conflicting commands from being activated at the same time. For example, raising and lowering should not normally be energized simultaneously. The same applies to forward and reverse or extend and retract functions.

Interlocking may be achieved through:

• Mechanical button structures
• Electrical contact arrangements
• Relays and contactors
• Programmable controller logic
• The machine’s safety-control architecture

Buyers should explain the required operating sequence and provide an electrical diagram before ordering a customized controller.

Does the Controller Need an Emergency Stop?

An emergency stop pendant controller may be required when the operator needs immediate access to a clearly identifiable stop function.

The emergency-stop button is normally larger and visually different from regular operating buttons. Its contact configuration must also correspond with the machine’s control circuit.

Why Environmental Protection Matters

Handheld controllers are frequently exposed to dust, oil, moisture, rain, vibration and accidental impact. Environmental conditions should therefore be confirmed during product selection.

A waterproof pendant controller is particularly valuable for:

• Outdoor loading operations
• Truck tail lifts
• Vehicle repair and recovery equipment
• Industrial workshops
• Humid or dusty warehouses
• Construction and material-handling equipment

The protection performance of a completed controller depends not only on the enclosure, but also on the push buttons, emergency-stop device, cable gland, cable outlet and assembly quality.

Information Required for a Replacement Controller

Similar external dimensions do not guarantee electrical compatibility. Before ordering a replacement unit, provide as much of the following information as possible:

What Determines the Price?

The price of a handheld controller depends on its complete configuration, not only on the number of buttons or the external enclosure.

For an accurate quotation, buyers should provide the required quantity, technical configuration, destination country and delivery postcode.

Standard Model or Customized Controller?

A standard controller is suitable when its contacts and functions already match the machine circuit. A custom pendant control station is usually more appropriate when the project requires special wiring, connectors, labels, cable lengths or button logic.

How Long Does Delivery to France or Europe Take?

Delivery time depends on whether the customer selects a standard configuration or a customized controller.

The complete lead time normally includes:

1. Technical requirement confirmation
2. Sample or production preparation
3. Internal wiring and assembly
4. Inspection and functional testing
5. International transportation
6. Destination customs processing

Standard samples can generally be prepared more quickly. Customized wiring, special connectors, printed labels and non-standard cables may require additional production time.

Customers should provide a full delivery postcode so that XINDALI can calculate a more accurate freight quotation and estimated transit time.

Why Work with XINDALI?

XINDALI has manufactured industrial push buttons, control stations and handheld controllers since 1997.

As an experienced pendant controller manufacturer , XINDALI supports customers with more than a standard enclosure and several installed push buttons.
