How to Choose a 22mm Joystick Switch for Industrial Control Panels
A 22mm joystick switchis a compact and practical control component for machine control panels, lifting equipment, construction machinery, operator boxes, and customized Control Stations.
View XDL22 Joystick SwitchWhat Is a 22mm Joystick Switch?
A 22mm joystick switch, also known as an industrial joystick switch or cross selector switch, is designed to fit a standard Ø22mm mounting hole. The operator moves the actuator in different directions to send control commands to the machine or electrical control system.
Compared with using several separate push buttons, a joystick switch provides more intuitive directional control in a smaller panel space. It is commonly used for up/down, left/right, forward/reverse, open/close, and multi-direction machine operation.
Common Applications of Industrial Joystick Switches
Industrial buyers usually choose a panel mount joystick switch when they need reliable directional control in machinery, equipment maintenance, automation systems, or control box assembly.
- Machine control panels
- Construction machinery
- Hoists and lifting equipment
- Industrial operator boxes
- Custom push button control stations
- Automation equipment
- Electrical control cabinets
- OEM machinery projects

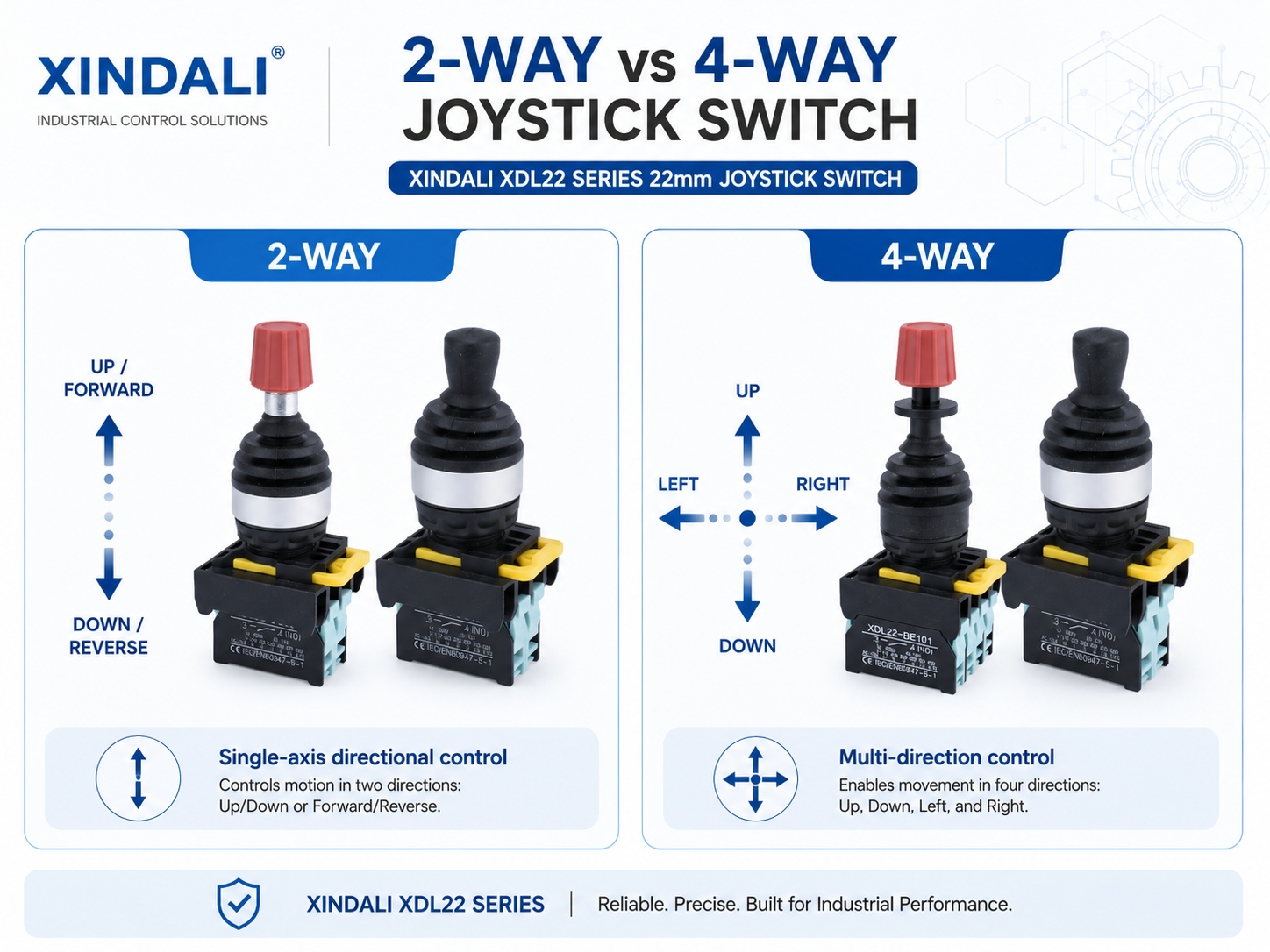

2-Way vs 4-Way Joystick Switch: Which Type Should You Choose?
2-Way Joystick Switch
A 2-way joystick switch is suitable for simple single-axis directional control.
- Up / down control
- Forward / reverse control
- Open / close operation
- Single-axis machine movement
4-Way Joystick Switch
A 4-way joystick switch is used when the equipment requires multi-direction control from one actuator.
- Up / down / left / right operation
- Two-axis machine movement
- Compact industrial control panels
- Operator stations with multiple commands
If the machine only needs one axis of control, a 2-way type is usually enough. If the operator needs to control two axes or multiple directions from one actuator, a 4-way type is the better choice.

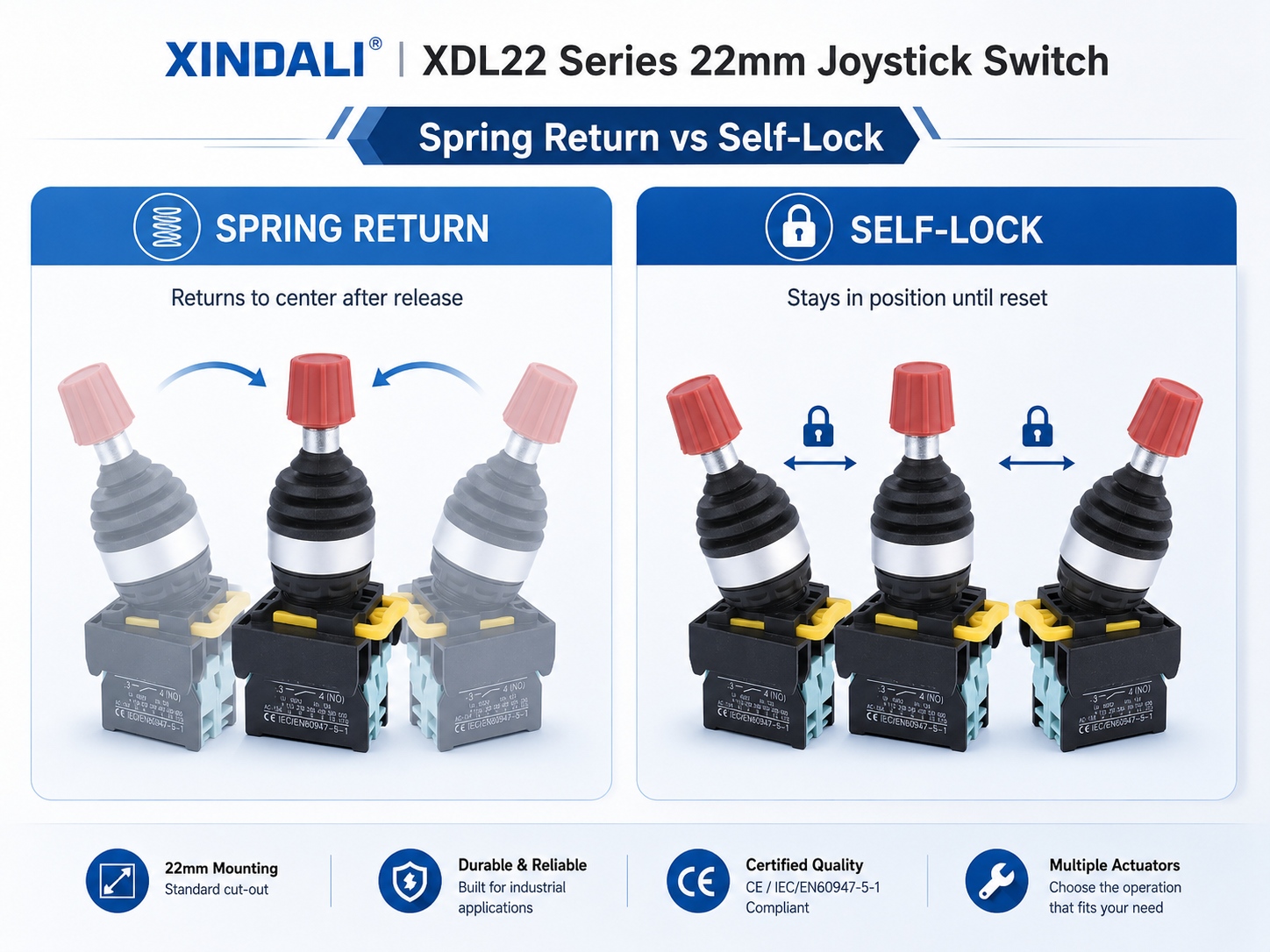

Spring Return or Self-Lock: How to Select the Operation Mode
Spring Return Joystick Switch
A spring return joystick switch automatically returns to the original position when the operator releases the actuator.
It is suitable for temporary commands such as lifting, lowering, inching, or machine movement where the action should stop after release.
Self-Lock Joystick Switch
A self-lock joystick switch stays in the selected position after operation.
It is suitable for maintained control logic where the selected direction or function needs to remain active until manually changed.
For most lifting equipment, hoist control, and movement control applications, spring return operation is often preferred because it provides better manual control and safer operation logic.
Key Specifications to Check Before Ordering
Before purchasing a 22mm industrial joystick switch, buyers should confirm the following technical details.
| Selection Item | Recommended Check Point | Typical Option |
|---|---|---|
| Mounting Hole | Confirm whether the panel opening is standard Ø22mm. | 22mm panel mount |
| Direction Type | Choose according to machine movement and control axis. | 2-way / 4-way |
| Operation Mode | Select according to control logic and safety requirement. | Spring return / Self-lock |
| Contact Configuration | Match the control circuit and wiring design. | 2NO / 4NO |
| Protection Rating | For industrial use, dust and water resistance are important. | IP65 |
| Mechanical Protection | Suitable for demanding panel environments. | IK10 |
| Application | Confirm equipment type and installation environment. | Machinery / lifting / automation / control box |
Why IP65 Protection Matters for Industrial Use
Many control panels are installed in environments with dust, humidity, oil mist, vibration, or occasional water splashing. An IP65 joystick switch helps improve durability and reduce failure caused by dust or water ingress.
For construction machinery, workshop equipment, outdoor devices, rental machines, and industrial control boxes, IP65 protection is a practical specification for long-term operation.
XINDALI XDL22 Series 22mm Joystick Switch
The XINDALI XDL22 Series 22mm Joystick Switch is designed for industrial control panels, machinery operation interfaces, lifting equipment, automation systems, and customized control stations.
Main Features
- Standard Ø22mm panel mount design
- 2-way and 4-way operation options
- Spring return or self-lock type available
- 2NO / 4NO contact options
- IP65 waterproof protection
- IK10 mechanical protection
Suitable For
- OEM control panel projects
- Machine control systems
- Industrial control boxes
- Hoist and lifting equipment
- Construction machinery maintenance
- Automation equipment assembly
Need More Than a Joystick Switch?
In many industrial projects, buyers do not only need one joystick switch. They may also need push buttons, emergency stop buttons, indicator lights, pendant controllers, control boxes, wiring, labels, and customized panel layout.
XINDALI can support buyers with related industrial control components and customized control box solutions for OEM projects, equipment repair, machinery manufacturing, and electrical control system assembly.
Request a Quotation for XDL22 Joystick Switch
Send us your required quantity, direction type, operation mode, contact configuration, and shipping address. Our team will help confirm the suitable model, lead time, and shipping option for your project.
Get XDL22 Product DetailsHow to Request a Faster Quotation
To receive a faster and more accurate quotation, please provide the following information:
- Required quantity
- 2-way or 4-way operation
- Spring return or self-lock type
- 2NO or 4NO contact configuration
- Control voltage and application
- Installation environment
- Shipping country, city, and postal code
- Whether samples or bulk order are required
FAQ About 22mm Joystick Switches
What is a 22mm joystick switch used for?
A 22mm joystick switch is used for directional control in machine panels, lifting equipment, operator boxes, automation equipment, and industrial control systems.
What is the difference between a 2-way and 4-way joystick switch?
A 2-way joystick switch controls one axis, such as up/down or forward/reverse. A 4-way joystick switch controls multiple directions, such as up/down/left/right.
Should I choose spring return or self-lock?
Spring return is suitable for temporary machine movement and safety-related operation. Self-lock is suitable when the selected position needs to remain active.
Can XINDALI support OEM control panel projects?
Yes. XINDALI can support OEM and project-based customization, including model selection, contact configuration, control box layout, wiring, labeling, and related industrial control components.
