What Is a Momentary Push Button Switch and How Does It Work?
Momentary push Button Switches are essential components in industrial control systems. Though small in size, these buttons play a crucial role in controlling machines, activating circuits, and ensuring operational safety.
In this article, we'll explain what a momentary push button switch is, how it works, where it's used, and what to consider when selecting one for your application.
What Is a Momentary Push Button Switch?
A momentary push button switch is a type of electromechanical switch that remains active only while it is being pressed. As soon as the pressure is released, the button returns to its original state — breaking or completing the circuit accordingly.
This differs from a latching switch, which stays in its ON or OFF state until it's pressed again.
Momentary Switch Operation: NO vs NC
| Contact Type | Behavior |
|---|---|
| Normally Open (NO) | Circuit is open until button is pressed. Current flows only while the button is held down. |
| Normally Closed (NC) | Circuit is closed until button is pressed. Pressing the button breaks the circuit. |
How Does It Work Internally?
Internally, the momentary push button contains a spring-loaded mechanism. When you press the button:
- The actuator (button cap) moves inward.
- It pushes a conductive contact to close (or open) the circuit.
- Once released, the spring mechanism returns it to the default position, disconnecting the contact.
Where Are Momentary Push Button Switches Used?
Momentary switches are used across a wide range of industries due to their simple yet effective design.
- Elevator buttons – Activate the motor or signal but don't remain engaged.

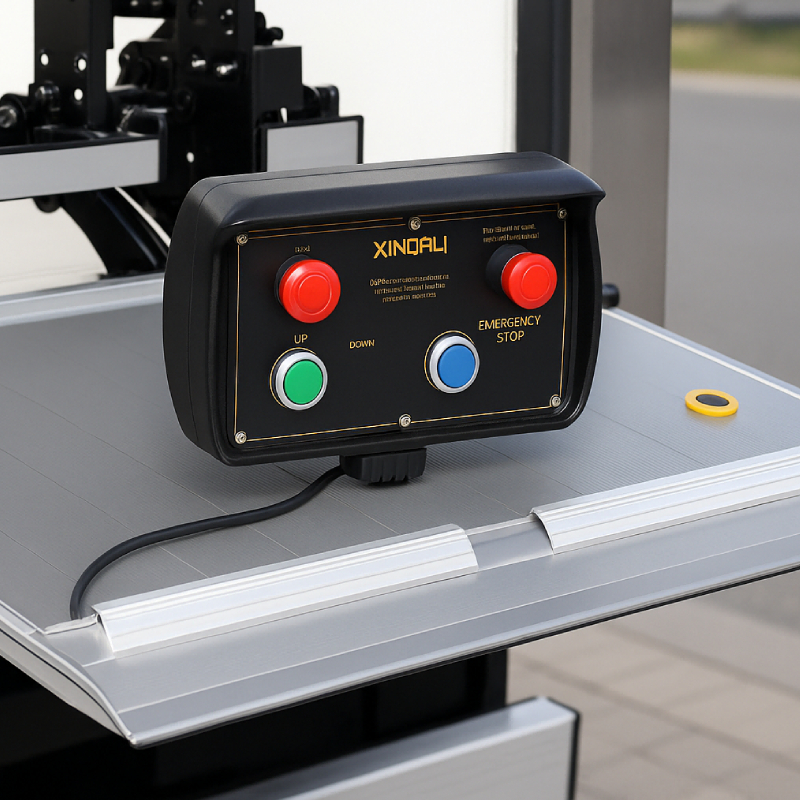

- Tail lift control systems – Prevent accidental or continuous movement.
- Machine start/stop systems – Press-to-start motor, release to stop or trigger a timer.

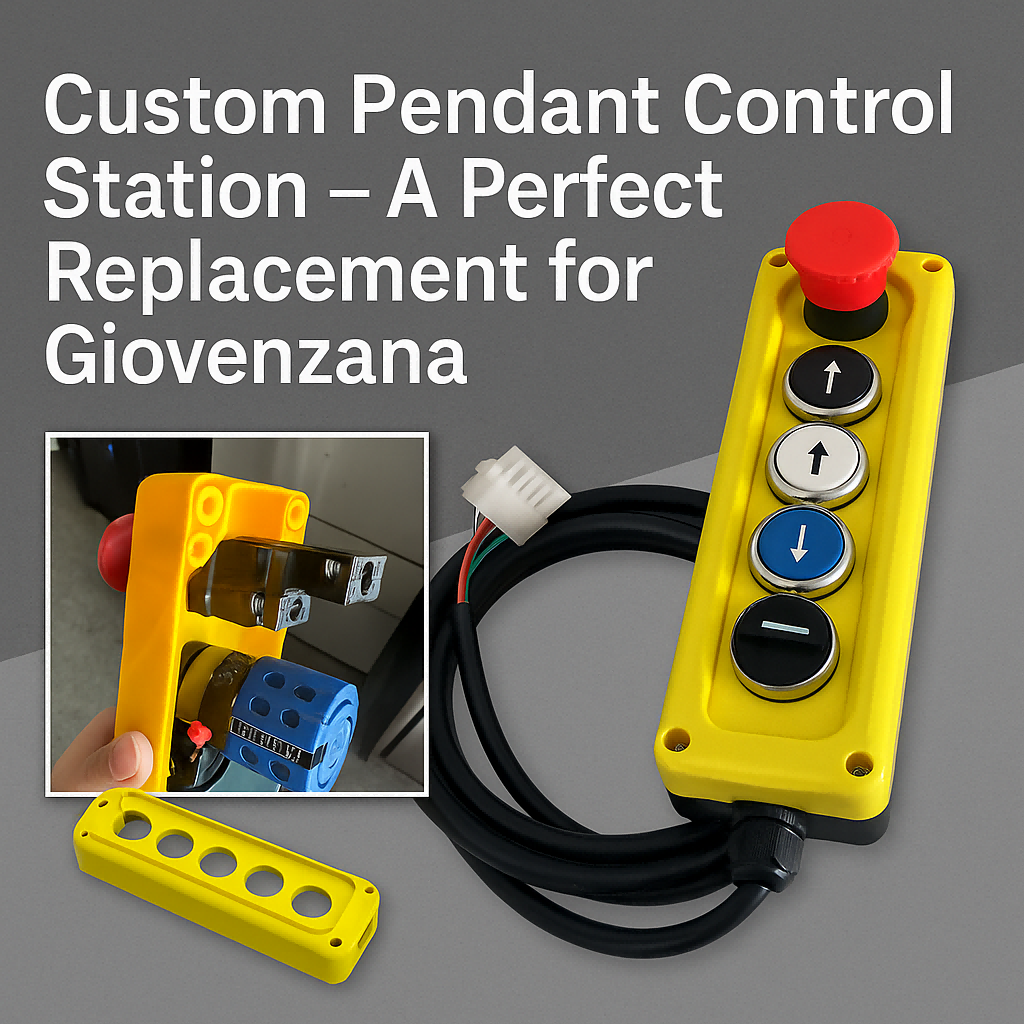

- Crane pendant controls – Real-time responsiveness with momentary action.
- Alarm systems and buzzers – Push to trigger, auto-reset after release.
Key Features to Look for
| Feature | Why It Matters |
|---|---|
| Mounting size | Must fit control panel or enclosure hole |
| Rated voltage/current | Match system requirements (12V / 24V / 220V, 5A / 10A) |
| IP Rating | For waterproof and dustproof performance |
| Material | Stainless steel, plastic, or metal for durability |
| Illumination | LED-lit buttons for visibility in dark environments |
| Color and symbol | Red for emergency, green for start, etc. |
Example: XINDALI Momentary Push Button Switch
At XINDALI, we offer a range of industrial momentary push button switches in 12mm, 16mm, 22mm, and 25mm diameters. Key features include:
- IP65/IP67 waterproof protection
- NO/NC combination contacts
- LED backlight options (red, green, yellow, blue)
- Available in metal, plastic, or anti-vandal models
- Customizable symbols and cable lengths
View our push button switch collection »
Momentary vs. Latching: What's the Difference?
| Type | Action | Typical Use |
|---|---|---|
| Momentary | Returns after release | Elevator, start/stop, temporary activation |
| Latching | Stays ON/OFF until pressed again | Power toggle, light switch, mode selection |
Conclusion
A momentary push button switch is simple, efficient, and safe — ideal for any application where you need precise, temporary control.
Whether you're designing a lift control box, an industrial crane panel, or a safety interlock system, momentary switches are indispensable.
