XDL11 Series Elevator Inspection Box for Lift Maintenance and Inspection Control
2026-06-16
XINDALI Elevator Control Solution
XDL11 Series Elevator Inspection Box for Lift Maintenance and Inspection Control
The XDL11 Series Elevator Inspection Box is designed for elevator maintenance, inspection control and service operation. It is suitable for elevator car top inspection, elevator pit inspection, machine room maintenance, lift service control and elevator control cabinet applications.
This series offers different layouts, including 2-hole and 6-hole inspection boxes, emergency stop buttons, spring return Push Buttons, selector switches, rocker switches, European sockets and signal lamp options.
Elevator Inspection Box Lift Maintenance Control Station Car Top Inspection Box European Socket Custom Wiring
What Is an Elevator Inspection Box?
An elevator inspection box is a maintenance control station used during elevator inspection and service work. It allows maintenance personnel to control specific lift functions safely and conveniently during inspection operation.
Compared with a standard push button box, an elevator inspection control box usually requires a more practical layout. It may include UP, DOWN, RUN, STOP, INSPECTION, emergency stop, selector switch, European socket and signal indication functions.

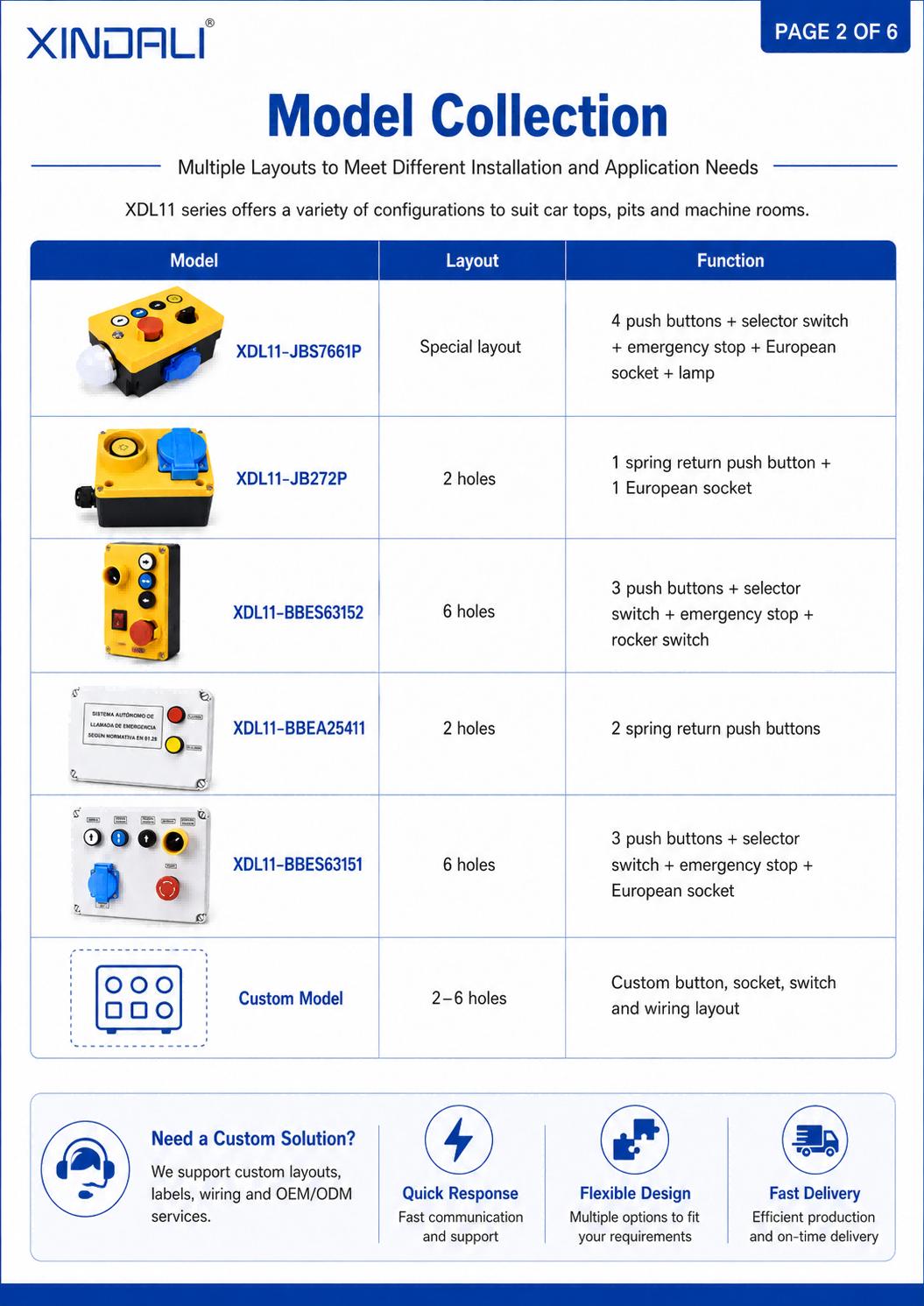

XDL11 Series Model Collection
The XDL11 series includes several standard and customized layouts. Customers can choose an existing model or send a sample photo, drawing or wiring diagram for customization.
| Model | Layout | Function |
|---|---|---|
| XDL11-JBS7661P | Special layout | 4 push buttons + selector switch + emergency stop + European socket + side signal lamp |
| XDL11-JB272P | 2 holes | 1 spring return push button + 1 European socket |
| XDL11-BBES63152 | 6 holes | 3 push buttons + selector switch + emergency stop + rocker switch |
| XDL11-BBEA25411 | 2 holes | 2 spring return push buttons |
| XDL11-BBES63151 | 6 holes | 3 push buttons + selector switch + emergency stop + European socket |
| Custom Model | 2–6 holes | Custom button, socket, switch and wiring layout |
XDL11-JBS7661P with Side Signal Lamp
Among the XDL11 series, XDL11-JBS7661P is a special layout model with a built-in side signal lamp. The white dome lamp provides clear visual indication during elevator maintenance operation.
This model combines push buttons, emergency stop, selector switch, European socket and side signal lamp in one compact inspection box. It is suitable for elevator car top, pit and machine room applications that require both control operation and visual indication.
Key Features of XDL11 Elevator Inspection Box
1. Emergency Stop for Safe Maintenance
The emergency stop button allows quick shutdown during elevator inspection and maintenance operation. It is one of the most important components in a lift maintenance control station.
2. Spring Return Push Buttons
Spring return push buttons are commonly used for directional or momentary control functions. Button color, symbol and contact combination can be customized according to customer wiring requirements.
3. Selector Switch and Rocker Switch Options
XDL11 inspection boxes can be equipped with selector switches, rocker switches or standard push buttons for UP, DOWN, RUN, STOP or INSPECTION functions.
4. European Socket for Maintenance Power
Some XDL11 models include a European socket for convenient power connection during elevator maintenance. Socket type can also be customized.
5. Signal Lamp Option
The XDL11-JBS7661P model includes a side signal lamp. The signal lamp helps provide clear visual indication and improves operating visibility.
6. Custom Wiring and Labels
XINDALI supports custom wiring, terminal arrangement, cable length, button symbols, labels and logo printing for elevator projects.

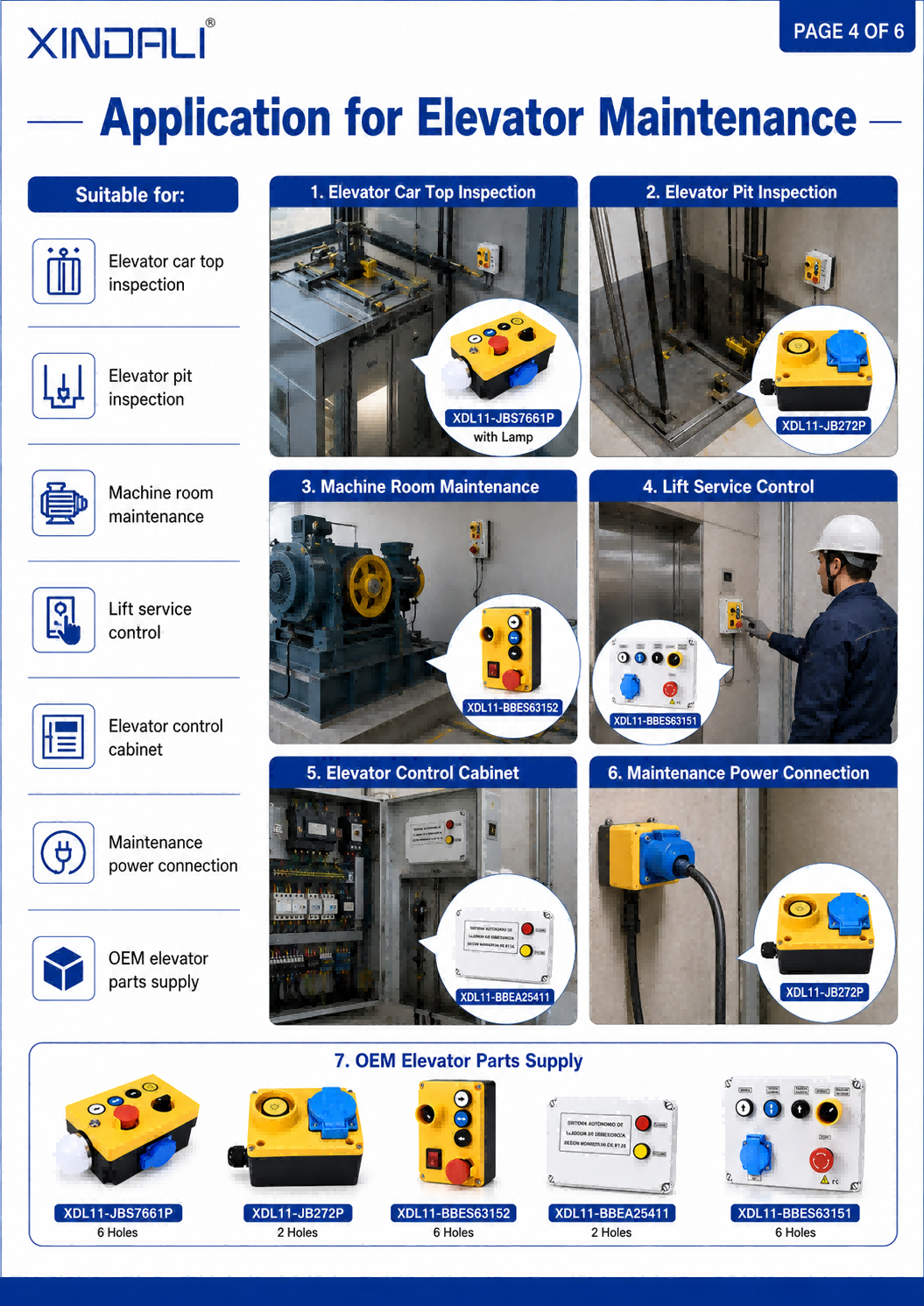

Application for Elevator Maintenance
The custom elevator control box can be used in many elevator maintenance and service applications.
Elevator Car Top Inspection Used for car top service, inspection operation and maintenance control.
Elevator Pit Inspection Suitable for pit maintenance and inspection control applications.
Machine Room Maintenance Designed for machine room service control and maintenance power connection.
Lift Service Control Provides practical control functions for lift service and inspection operation.
Elevator Control Cabinet Can be connected with elevator control systems according to wiring requirements.
OEM Elevator Parts Supply Suitable for elevator manufacturers, maintenance companies and parts distributors.
Customization Options
XINDALI offers flexible customization for the XDL11 series. Customers can choose different button quantities, switch types, socket options, contact combinations and wiring solutions.
- Button quantity: 2 holes, 3 holes, 4 holes, 5 holes or 6 holes
- Button function: UP, DOWN, RUN, STOP, INSPECTION or custom function
- Emergency stop: Push-pull reset or turn-to-release
- Socket type: European socket or customized socket
- Switch type: Selector switch, rocker switch or push button
- Contact type: NO, NC or NO+NC
- Label: English label, custom label or logo
- Wiring: According to customer wiring diagram
How to Get a Fast Quotation?
To help us recommend the suitable XDL11 inspection box for your elevator project, please send us the following information:
- Required model or sample photo
- Button quantity and function
- Emergency stop type
- Socket requirement
- Wiring diagram if available
- Order quantity and destination country
Why Choose XINDALI XDL11 Series?
XINDALI focuses on industrial push button control boxes, pendant control stations and customized electrical control solutions. The XDL11 series is designed for buyers who need a practical, customizable and easy-to-install elevator inspection box.
Whether you need a standard 2-hole inspection box, a 6-hole maintenance control station, or a customized model with emergency stop, European socket and signal lamp, XINDALI can provide OEM support according to your project requirements.
Send Us Your Required Layout
We can recommend the suitable XDL11 inspection box for your elevator project. Send us your model, sample photo or wiring diagram to get a fast quotation.
Get a Fast QuotationFAQ
What is the XDL11 Series Elevator Inspection Box used for?
It is used for elevator maintenance and inspection control, including car top inspection, pit inspection, machine room maintenance and lift service control.
Can the button layout be customized?
Yes. Button quantity, button function, labels, socket type, emergency stop type and wiring can be customized according to your requirements.
Does XDL11-JBS7661P have a lamp?
Yes. XDL11-JBS7661P includes a side signal lamp, which provides visual indication during maintenance operation.
Can I send a wiring diagram for customization?
Yes. You can send us your wiring diagram, sample photo or required function list. We can help recommend the suitable layout and quotation.
Is OEM production available?
Yes. XINDALI supports OEM and ODM production, including custom wiring, labels, logo and product layout.
