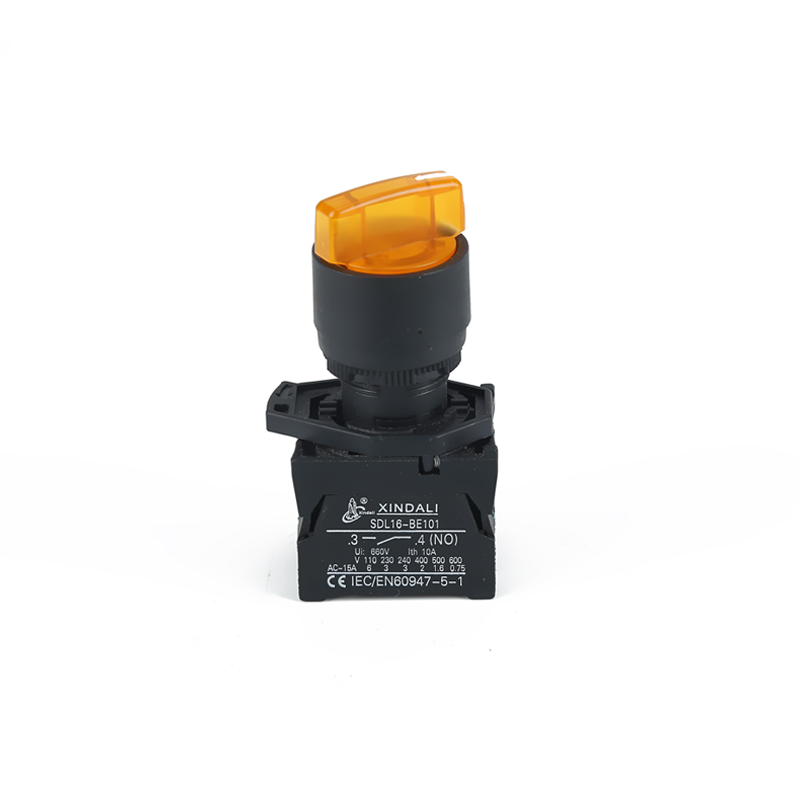

plastic handle push button led indicator rotary switch XDL21-EK2565

Model:
XDL21-EK2565
MOQ:
240
Payment:
T/T L/C
Brand:
XINDALI
Delivery time:
One week
Start Port:
Shanghai/ningbo
Certification:
ISO9001 RoSH CE UL TUV
SKU:
Availability:

Product Description

Characteristic: waterproof level IP65,Easy installation long service life,Higher performance than LAY series

Features: It is used for controlling signal and interlocking purposes.

Material: The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.

Basic Characteristic
Conforming to standards as
IEC60947-5-1:GB/T14048.GB14048.5
Ambient temperature
operating temperature:-5℃~+55℃ storage temperature:-25℃~+70℃
Operating and storage air relative humidity
35~85%RH
Vibration frequency
Conforming to IEC 68-2-6
Impact resistance
Conforming to IEC 68-2-27
Pollution grade
3
Installation sort
ClassⅢ
Protection grade
Ordinary:IP40 IP54
Protection:IP65 IP66 IP67 IP68
Mechanical life
pushbutton:300*10 push and pull type
emergency button:30*10
Fastening torque
0.8Nm(MAX:1.2Nm)
