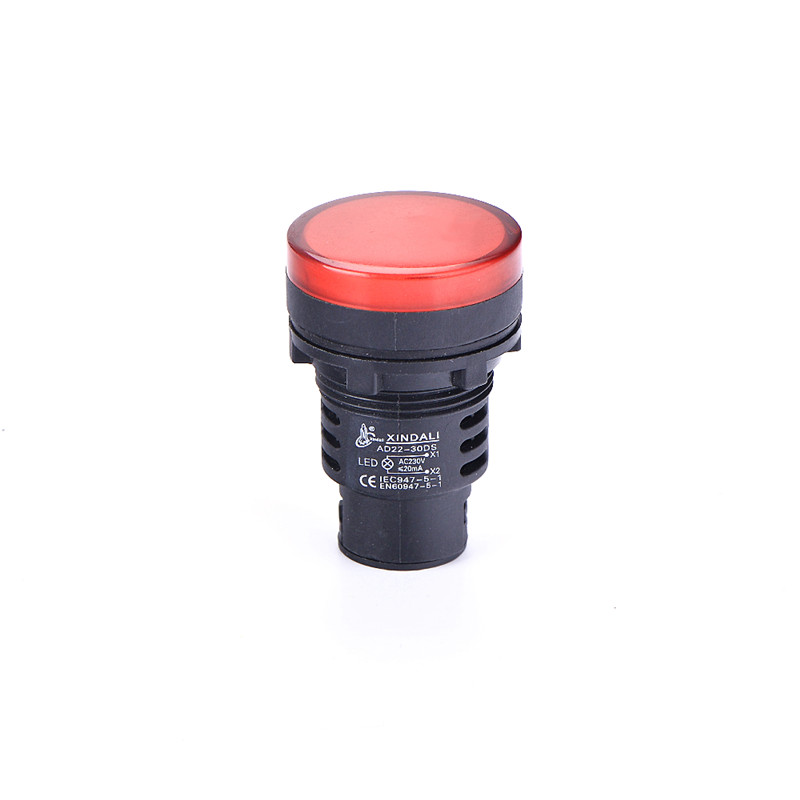

Product Name : Indicator Signal Light

Voltage : 12V 24V 110V 220V 380V

Current : <=20mA

Material : Plastic, Electric Components;

Led Light Color : Red,Green,Yellow,Blue,White

Mounting Hole Diameter : 22mm/0.9";

Voltage Range: 220-240V AC/DC

Color Options: Red, Green, Yellow, Blue, White

Type: Neon (AD22E-005 to AD22E-018) and LED (AD22E-019L to AD22E-021L)

Mounting Hole Diameter: Varies from M8 to M10, depending on the model

Dimensions: Varies from 28.4mm to 35.5mm, depending on the model

Circuit: Single or double wire, depending on the model

Voltage Range: 24V AC/DC, 220V AC/DC

Color Options: Red, Green, Yellow, White, Blue

Type: LED, Neon

Protection Level: IP40 rating for some models

Mounting Hole Diameter: M16

Dimensions: Varies from 18x18mm to 24x26mm, depending on the mode

Voltage Range: 24V AC/DC, 36V AC/DC, 48V AC/DC, 110V AC/DC, 220V AC, 380V AC

Color Options: Red, Yellow, Green, Blue, White

Protection Level: Not explicitly stated, but features protective capabilities

Dimensions: Diameter 36.2mm, mounting hole diameter M28, height 20.3mm

Installation: Supports 6Max installation method

Voltage Range: 220V AC, 50-500V AC

Color Options: Red, Yellow, Green, Blue, White

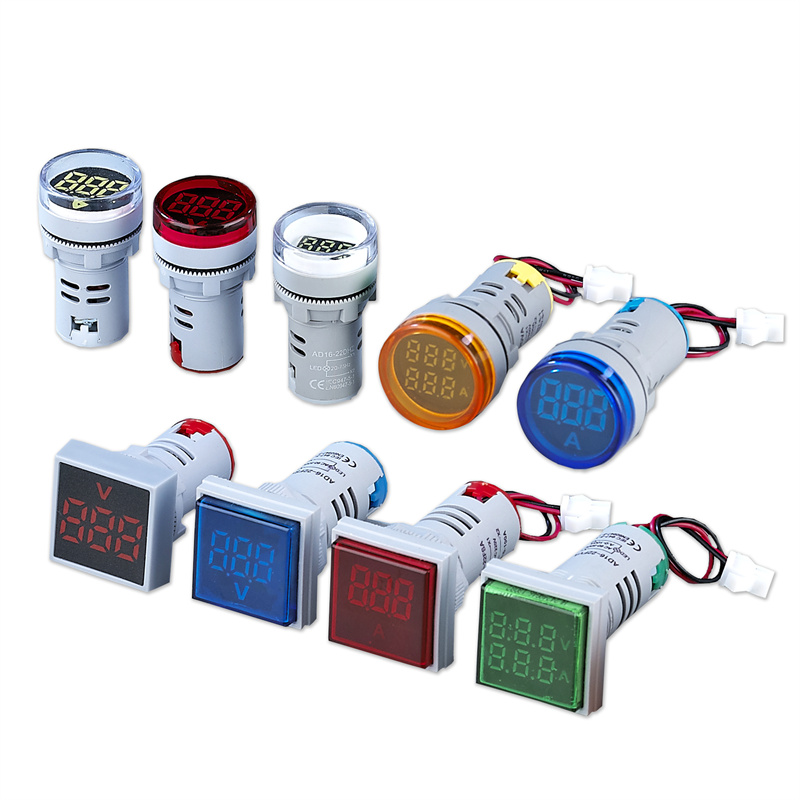

Function Types: Thermometer, Voltmeter, Ammeter, Frequency Indicator Light

Size Specifications: Round (Φ29mm, Φ20.3mm), Square (31.5x31.5mm)

Measurement Range: Temperature (-20~200°C), Current (0~50A, 50~100A), Voltage (50~500V AC), Frequency (0~80Hz)

Contour: Various diameters and heights are provided to accommodate different installation spaces and design requirements
