Products
01
view
detail
22mm Silicone Head Push Button Switch – IP67 Wa...
2025-11-12
The XINDALI XDL32 and XDL22 series silicone head push button switches are designed for industrial environments requiring high reliability and weather resistance.
Featuring IP67 waterproof protection, anti-freeze silicone actuator, and optional LED illumination, these switches ensure stable operation in harsh
outdoor or low-temperature conditions.
Available in momentary or latching types, they are ideal for machinery control panels, elevators, hoist systems, tail lifts, and automation equipment.
02
view
detail
IP65 Waterproof Plastic Push Button Switch Flat...
2025-09-30
Engineered for superior performance, our XDL21 Series Push Button Switches provide dependable operation in the most demanding conditions. Featuring a robust IP65 waterproof and dust-tight rating , these switches are built to withstand water jets, dust, and harsh industrial environments. Constructed from high-grade, anti-flame plastic and durable zinc alloy, they ensure long-lasting reliability. Ideal for controlling signals and interlocking in machinery, electrical panels, and outdoor applications, the XDL21 series offers a versatile and secure solution for your control needs.
03
view
detail
22mm Selector Switches | Standard & Long Handle...
2025-08-16
A complete series of 22mm selector switches , available in standard or long handle designs, with optional integral LED illumination. Designed for reliable operation in industrial control systems, these selector switches provide multiple contact configurations and return functions to suit diverse applications
04
view
detail
XINDALI High-Quality IP65 Waterproof LAY4 Serie...
2025-01-09
Rated Insulation Voltage: AC 600V (50Hz/60Hz)
Insulation Resistance: ≥250MΩ
Conventional Heating Current: 10A
Contact Resistance: ≤25mΩ
Insulation Resistance: ≥50MΩ
Withstand Voltage: AC 2.5KV/min
Operating Temperature Range: -25℃ to +55℃
Humidity: ≤85%
Protection Level: Up to IP65
Altitude: ≤2000m
05
view
detail
XINDALI Good Quality IP65 Waterproof LAY5 Serie...
2025-01-09
Rated Insulation Voltage: AC 600V (50Hz/60Hz)
Insulation Resistance: ≥250MΩ
Conventional Heating Current: 10A
Contact Resistance: ≤25mΩ
Insulation Resistance: ≥50MΩ
Withstand Voltage: AC 2.5KV/min
Operating Temperature Range: -25℃ to +55℃
Humidity: ≤85%
Protection Level: Up to IP65
Altitude: ≤2000m
06
view
detail
Waterproof Stainless Steel 12mm 16mm 19mm 22mm ...
2025-04-27
Contact Types: N/O, N/C, 1NO+1NC, 2NO+2NC, etc.
Circuit Voltage: AC/DC 6V to 500V, with specific models for 12V, 24V, 110V, 127V, 220V, and 380V.
Insulation Resistance: ≥1000MΩ.
Contact Resistance: ≤30mΩ.
Withstand Voltage: 2.5KV AC/min.
Operating Temperature Range: -25℃ to +55℃.
Humidity Resistance: Up to 98%.
Protection Level: IP67/IP65.
Operating Frequency: AC 50 to 60 Hz
07
view
detail

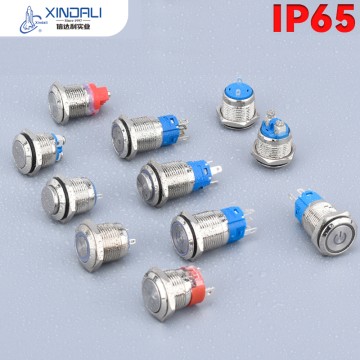

Waterproof 12mm 16mm 19mm 22mm Illuminated Meta...
2025-04-27
Contact Types: N/O, N/C, 1NO+1NC, 2NO+2NC, etc.
Circuit Voltage: AC/DC 6V to 500V, with specific models for 12V, 24V, 110V, 127V, 220V, and 380V.
Insulation Resistance: ≥1000MΩ.
Contact Resistance: ≤30mΩ.
Withstand Voltage: 2.5KV AC/min.
Operating Temperature Range: -25℃ to +55℃.
Humidity Resistance: Up to 98%.
Protection Level: IP67/IP65.
Operating Frequency: AC 50 to 60 Hz
08
view
detail

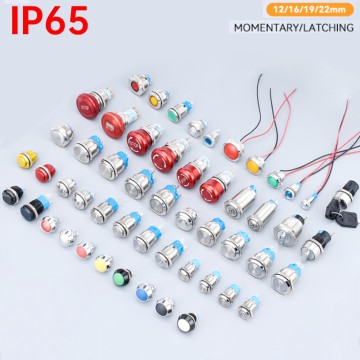

XINDALI IP67 High-Quality Metal XDL17 Series Pu...
2025-01-09
Contact Types: N/O, N/C, 1NO+1NC, 2NO+2NC, etc.
Circuit Voltage: AC/DC 6V to 500V, with specific models for 12V, 24V, 110V, 127V, 220V, and 380V.
Insulation Resistance: ≥1000MΩ.
Contact Resistance: ≤30mΩ.
Withstand Voltage: 2.5KV AC/min.
Operating Temperature Range: -25℃ to +55℃.
Humidity Resistance: Up to 98%.
Protection Level: IP67.
Operating Frequency: AC 50 to 60 Hz
09
view
detail
XINDALI XDL16 Series Waterproof Push Button Swi...
2025-01-09
Contact Types: N/O, N/C, 1NO+1NC, 2NO+2NC, etc.
Circuit Voltage: 24VAC/DC, 220VAC/DC.
Insulation Resistance: ≥250MΩ.
Contact Resistance: ≤25mΩ.
Withstand Voltage: AC 2.5KV/min.
Operating Temperature Range: -25℃ to +50℃.
Humidity Resistance: Up to 85%.
Altitude: Up to 2000m.
Protection Level: IP40/IP55
10
view
detail
22mm Double-Headed Push Button Switch with Led ...
2025-01-09
Contact Types: N/O (Normally Open), N/C (Normally Closed), N/O+N/C (Normally Open + Normally Closed)
Circuit Voltage: 220-240V for illuminated models, compatible with standard industrial voltages.
Color Options: Green, Red, Yellow, White, Black
Marking Options: 'I' for input (green), 'O' for output (red), with additional options for yellow and white.
Protection Ratings: IP40, IP65, IP66, suitable for diverse environmental conditions.
Dimensions: 42x30mm to 55x30mm, with various contour options to fit specific design requirements.
Mounting: M22 thread for secure installation.
11
view
detail
IP65 Safety Emergency Stop Button 30mm ,40mm, 5...
2025-01-09
Operating Methods: Turn-to-release, Push-pull, Key release, Spring return
Contact Types: N/C (Normally Closed), N/O+N/C (Normally Open + Normally Closed)
Color Options: Red, Black, Green, Blue
Size Specifications: Φ30mm, Φ40mm, Φ50mm, Φ60mm
Mounting Hole Diameter: M16, M22, M30, etc.
Protection Level: IP65, suitable for various industrial environments
12
view
detail
Automation Control Waterproof 2 or 3 Position I...
2025-01-09
Contact Types: N/O, N/C, N/O+N/C, 2NO+2NC
Circuit Configurations: 2-position stay put, 3-position stay put, 2-position spring return, 3-position spring return
Operating Voltage: Supports 24V/AC/DC, 220V/AC
Color Options: Black, Red, Green, Yellow, Blue, White
Handle Types: Standard handle, Long handle, Illuminated handle, Key release handle
Mounting Hole Diameter: M22
Dimensions: Various sizes available, such as 18x18mm, 18x24mm, etc.
Protection Level: Different levels of protection offered depending on the model
