Quick-Connect LED Circuit Tester Light for House Wiring | XINDALI
House Wiring Inspection Tool
Quick-Connect LED Circuit Tester Light for House Wiring Inspection
The XINDALI quick-connect LED circuit tester light is specially designed for new house wiring inspection. Electricians can plug it into ceiling or wall lighting circuits to verify continuity and power, long before the final fixtures are installed. With push-in terminals and universal 12–220V AC/DC options, it is a simple but powerful tool to save time on every project.
- Fast continuity and power check for ceiling and wall lighting circuits
- Push-in quick-connect terminals – no screws, no tools
- Available in 12V / 24V / 110V / 220V AC/DC
- Reusable design with IP65 front protection
- Five LED colors for easy circuit identification
Why Electricians Use Quick-Connect LED Test Lights for Wiring Inspection
On multi-storey buildings and new house projects, electricians often need to test hundreds of lighting points on each floor. A common method is to use cheap bulbs and wire nuts, connecting and disconnecting wires again and again. This takes a lot of time and creates safety risks.

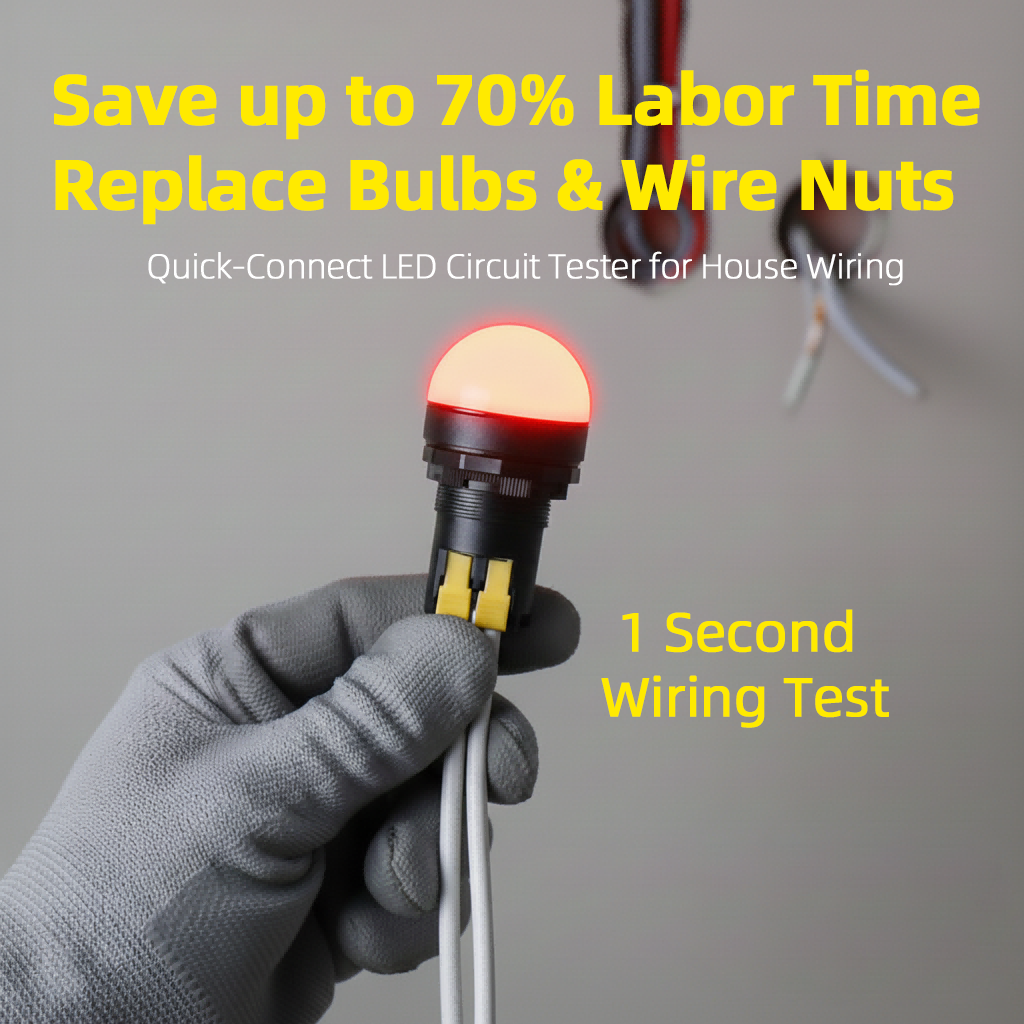

The XINDALI quick-connect LED circuit tester offers a cleaner and faster solution. Simply push the wires into the terminals, power on the circuit and the LED will light up if the wiring is correct. After inspection and approval, the tester can be removed and reused on the next project.
Key Features
Quick-Connect Push-In Terminals
The tester uses push-in terminals compatible with common solid and stranded wires. There are no screws to loosen, and no tools are required. This greatly improves efficiency compared with traditional bulb plus wire nut solutions.
Universal Voltage Options
To adapt to different markets and systems, the product is available in 12V, 24V, 110V and 220V AC/DC. You can select the proper version according to your local standard and application.
Reusable and Durable
The compact PC housing and copper terminals are designed for repeated use on construction sites. The front part reaches IP65 protection, making it suitable for dusty and humid environments during rough-in stages.
Clear Visual Indication
Five LED colors – red, green, yellow, blue and white – are available for different circuits or phases. When the circuit and power are correct, the LED lights up immediately, giving inspectors an instant visual confirmation.
Typical Applications
- New house and apartment wiring inspection
- Multi-storey building ceiling lighting circuit test
- Temporary test lamps for electrical contractors
- Home renovation and basement wiring verification
- Tools for professional home inspectors

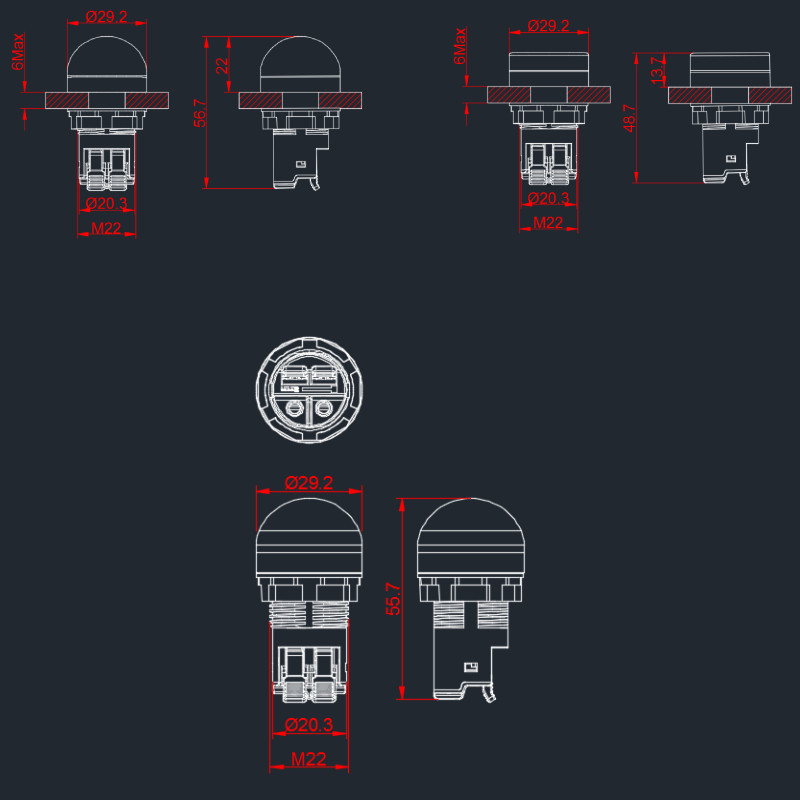

Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Quick-Connect LED Circuit Tester Light |
| Brand | XINDALI |
| Voltage Options | 12V / 24V / 110V / 220V AC/DC |
| LED Colors | Red, Green, Yellow, Blue, White |
| Mounting | Quick-connect push-in terminals |
| Protection | IP65 front side |
| Housing Material | PC (polycarbonate) |
| Terminal Material | Copper alloy |
| Application | Temporary circuit test for house wiring inspection |
Need OEM or Custom Solutions?
XINDALI can provide custom colors, voltage options and packaging for distributors and electrical tool brands. Please contact us with your project details or click the inquiry button below to get a fast quotation.
