XINDALI · Tail Lift Control Solution
XDL20–XCD SERIES Tail Lift Control Box
Safe & Waterproof IP65 — OEM Wiring, Fast Samples
Designed for truck tailgates / liftgates / hydraulic tail lifts. We support replacement and OEM customization — and we can supply a complete kit (Control Box + Pendant + Foot Switch + Warning Light).
Replacement Ready
Match wiring & functions from your old box / diagram.
OEM Custom
Branding, harness, connectors, interlock logic optional.
Complete Kit
Pendant / Foot switch / Warning lamp — one package.
Fast Quote Request
Send your wiring diagram / old box photos. We’ll confirm wiring & functions and reply with a quotation.
Suggested fields:
- Country / Company
- Email / WhatsApp
- Voltage (12V/24V)
- Required functions (Up/Down/Enable/Stop)
- Attach wiring diagram / old box photos / connector pinout
Tip: The more details you send, the faster we match your wiring.
Before You Continue (to save your time)
This page is for truck tail lift / liftgate control boxes used in hydraulic liftgate systems. If you are searching for an industrial electrical control panel, PLC cabinet, switchgear, or power distribution box, this is likely not the right product. For liftgate buyers: send wiring/pinout and we’ll match fast.
Main Product

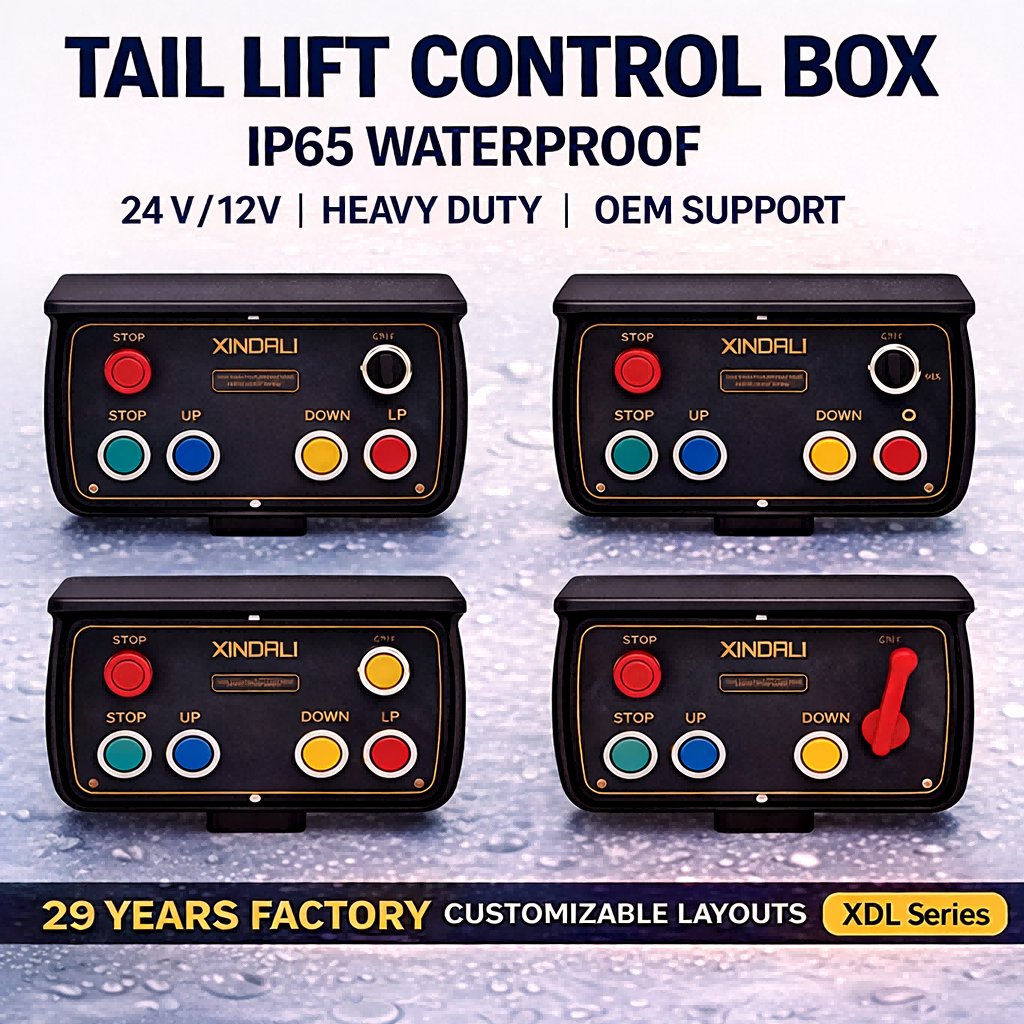

XDL20–XCD SERIES Tail Lift Control Box — safe & waterproof design for liftgate/tailgate applications. Ideal for replacement and OEM projects.
What You Get
- Wiring match based on diagram / old box photos / connector pinout
- OEM options: harness length, connector types, labels/branding
- System compatibility: 12V/24V liftgate systems (confirm per project)
- One-stop kit: pendant + foot switch + warning lamp
Goal: Confirm wiring once, then supply the whole set consistently.
30-Second Self-Check: Which Case Are You?
A) Replacement
You already have an old control box or model number and want a compatible replacement.
Send us:
- Old box photos (outside + inside)
- Wiring diagram OR connector pinout
- Voltage + required functions
B) OEM Custom
You need customized harness/connectors/labels or logic to match your liftgate design.
Send us:
- Function list (Up/Down/Enable/Stop…)
- Connector type & harness length
- Branding needs (label/silk print)
C) Complete Kit
You want to buy the control box and matching accessories as one package.
Tell us:
- Voltage (12V/24V)
- Button layout you prefer
- Need foot switch & warning lamp?
Shortcut: If you can send a wiring diagram or connector pinout, we can confirm compatibility much faster.
Recommended Accessories (Complete Kit)
Wired Pendant Controller (XDL10 Series)
IP65 waterproof pendant, suitable for tail lift / liftgate operation. Works well as a matched set with the control box.

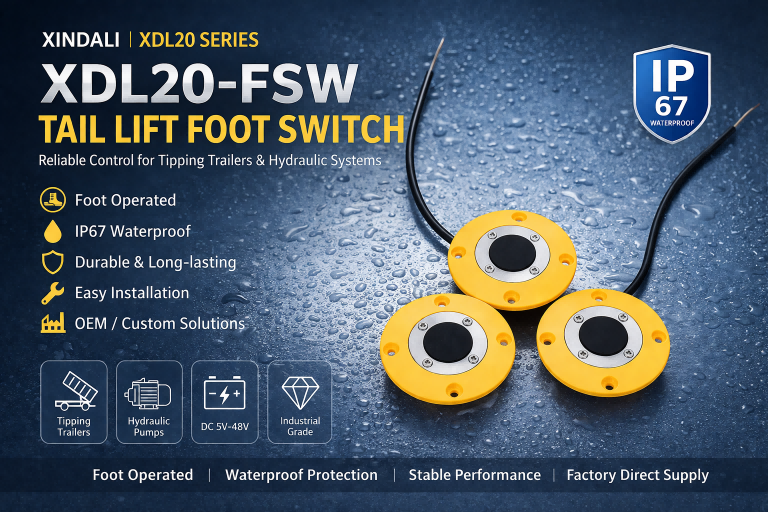

Universal Foot Switch for Tail Lift
Hands-free operation for lifting/lowering. Rugged pedal switch for liftgate working environments.
Tail Lift Warning Lamp (XDL20-TLWL)
DC 5–48V, IP67 warning light for liftgate safety indication during operation.
Want a complete kit quotation? Tell us your liftgate voltage + required functions. We’ll propose the matched set.
Send These to Get a Fast Quote
- Old control box photos (outside + inside wiring)
- Wiring diagram OR connector pinout
- Required functions (Up/Down/Enable/Stop, etc.)
- Voltage (12V / 24V)
- Quantity (sample / small batch / bulk)
Typical Buyer Types
- Liftgate/tail lift manufacturers (OEM)
- Hydraulic system integrators
- Repair shops / aftermarket distributors
- Fleet maintenance & parts buyers
Tip: If you only have a box photo and no diagram, send connector close-ups — we can still help identify wiring.
Ready to match your liftgate wiring and get a quote?
Other Industrial Controls by XINDALI (Optional)
If you also source other industrial control components, we can support OEM/ODM across product lines.
FAQ (People Also Ask)
1) Can you make a replacement for my existing tail lift control box?
Yes. Send your old box photos (inside & outside) plus wiring diagram or connector pinout. We will match functions and wiring, then propose a compatible replacement.
2) What information do you need to quote quickly?
Voltage (12V/24V), required functions (Up/Down/Enable/Stop), wiring diagram or pinout, and quantity. Photos of connectors and internal wiring help a lot.
3) Do you offer a complete kit with pendant and foot switch?
Yes. We can supply the control box together with a matched pendant controller, tail lift foot switch, and warning lamp as a complete set.
4) Can you provide pre-wired harness and connectors?
Yes. Harness length and connector types can be customized. This helps reduce installation time and wiring mistakes.
5) Is the enclosure waterproof?
The XDL20–XCD series is designed for harsh working environments. Please confirm the exact IP requirement and installation position with us for your project.
6) What is the MOQ for OEM customization?
MOQ depends on the customization scope (harness, connectors, labeling/branding, logic). Send your requirement — we will recommend a practical MOQ and sample plan.
7) How fast can you provide samples?
After confirming wiring and functions, we can usually proceed with sampling quickly. Share your timeline — we’ll propose the fastest workable schedule.
8) Which pendant controller matches this control box?
We commonly pair it with the XDL10 waterproof pendant controller. Share your button layout and functions — we’ll match the correct pendant/wiring.
Note: Specifications and configurations can vary by project. For the fastest matching, please send wiring diagram/pinout and your required functions.
