XINDALI · Tail Lift Control Solution

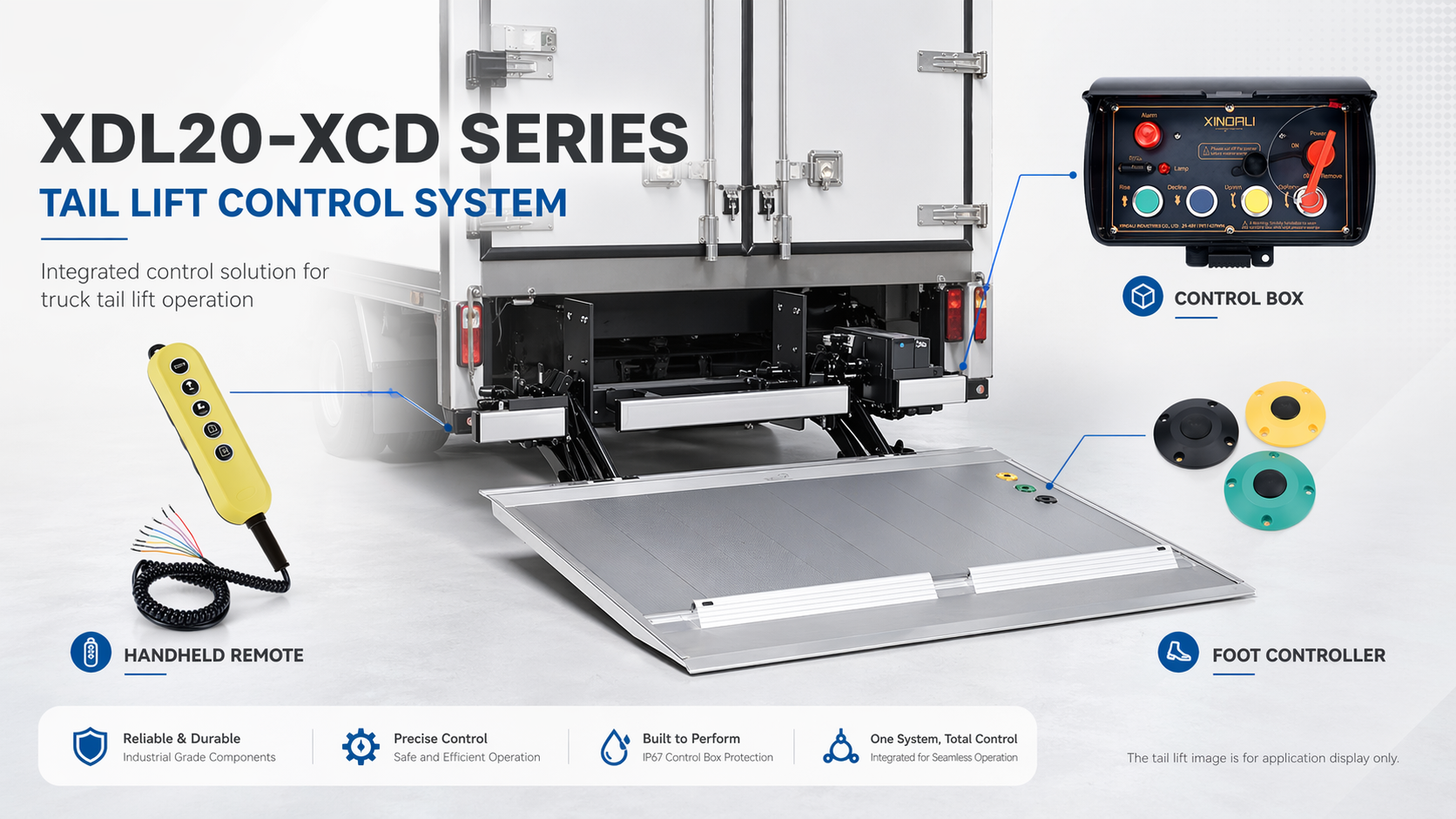

XDL20–XCD SERIES Tail Lift Control Box
Safe & Waterproof IP65 — OEM Wiring, Fast Samples
Designed for truck tailgates, liftgates and hydraulic tail lifts. We support replacement and OEM customization — and we can supply a complete kit: Control Box + Pendant + Foot Switch + Warning Light.
Replacement Ready Match wiring & functions from your old box / diagram.
OEM Custom Branding, harness, connectors and interlock logic optional.
Complete Kit Pendant, foot switch and warning lamp in one package.
Fast Quote Request
Send your wiring diagram / old box photos. We’ll confirm wiring & functions and reply with a quotation.
Suggested fields:
- Country / Company
- Email / WhatsApp
- Voltage: 12V / 24V
- Required functions: Up / Down / Enable / Stop
- Attach wiring diagram / old box photos / connector pinout
Tip: The more details you send, the faster we match your wiring.
Before You Continue
This page is for truck tail lift / liftgate control boxes used in hydraulic liftgate systems. If you are searching for an industrial electrical control panel, PLC cabinet, switchgear, or power distribution box, this is likely not the right product.
For liftgate buyers: send wiring / pinout and we’ll match fast.
Main Product
XDL20–XCD SERIES Tail Lift Control Box — safe & waterproof design for liftgate / tailgate applications. Ideal for replacement and OEM projects.
What You Get
- Wiring match based on diagram / old box photos / connector pinout
- OEM options: harness length, connector types, labels / branding
- System compatibility: 12V / 24V liftgate systems, confirm per project
- One-stop kit: pendant + foot switch + warning lamp
Goal: Confirm wiring once, then supply the whole set consistently.
30-Second Self-Check: Which Case Are You?
A) Replacement
Compatible Replacement
You already have an old control box or model number and want a compatible replacement.
- Old box photos: outside + inside
- Wiring diagram or connector pinout
- Voltage + required functions
B) OEM Custom
Customized Wiring & Branding
You need customized harness, connectors, labels or logic to match your liftgate design.
- Function list: Up / Down / Enable / Stop
- Connector type & harness length
- Branding needs: label / silk print
C) Complete Kit
One Package Solution
You want to buy the control box and matching accessories as one package.
- Voltage: 12V / 24V
- Button layout you prefer
- Need foot switch & warning lamp?
Shortcut: If you can send a wiring diagram or connector pinout, we can confirm compatibility much faster.
Recommended Accessories: Complete Kit
Want a complete kit quotation? Tell us your liftgate voltage + required functions. We’ll propose the matched set.
Wired Pendant Controller
IP65 waterproof pendant, suitable for tail lift / liftgate operation. Works well as a matched set with the control box.
View XDL10 Pendant
Universal Foot Switch
Hands-free operation for lifting / lowering. Rugged pedal switch for liftgate working environments.
View Foot Switch
Tail Lift Warning Lamp
DC 5–48V, IP67 warning light for liftgate safety indication during operation.
View Warning LampSend These to Get a Fast Quote
- Old control box photos: outside + inside wiring
- Wiring diagram or connector pinout
- Required functions: Up / Down / Enable / Stop, etc.
- Voltage: 12V / 24V
- Quantity: sample / small batch / bulk
Tip: If you only have a box photo and no diagram, send connector close-ups — we can still help identify wiring.
Typical Buyer Types
- Liftgate / tail lift manufacturers: OEM
- Hydraulic system integrators
- Repair shops / aftermarket distributors
- Fleet maintenance & parts buyers
FAQ: People Also Ask
1) Can you make a replacement for my existing tail lift control box?
Yes. Send your old box photos, inside and outside, plus wiring diagram or connector pinout. We will match functions and wiring, then propose a compatible replacement.
2) What information do you need to quote quickly?
Voltage, required functions, wiring diagram or pinout, and quantity. Photos of connectors and internal wiring help a lot.
3) Do you offer a complete kit with pendant and foot switch?
Yes. We can supply the control box together with a matched pendant controller, tail lift foot switch, and warning lamp as a complete set.
4) Can you provide pre-wired harness and connectors?
Yes. Harness length and connector types can be customized. This helps reduce installation time and wiring mistakes.
5) Is the enclosure waterproof?
The XDL20–XCD series is designed for harsh working environments. Please confirm the exact IP requirement and installation position with us for your project.
6) What is the MOQ for OEM customization?
MOQ depends on the customization scope, such as harness, connectors, labeling, branding or logic. Send your requirement — we will recommend a practical MOQ and sample plan.
7) How fast can you provide samples?
After confirming wiring and functions, we can usually proceed with sampling quickly. Share your timeline — we’ll propose the fastest workable schedule.
8) Which pendant controller matches this control box?
We commonly pair it with the XDL10 waterproof pendant controller. Share your button layout and functions — we’ll match the correct pendant / wiring.
View XDL10 Pendant ControllerReady to match your liftgate wiring and get a quote?
Send us your wiring diagram, old box photos, connector pinout and required functions. XINDALI will help you confirm the suitable tail lift control box and matched accessories.
Note: Specifications and configurations can vary by project. For the fastest matching, please send wiring diagram / pinout and your required functions.
