Waterproof Two Buttons AC 660V 10A Momentary I/O Red Green Sign NO NC Push Button Switch Station

The XDL35-B213 is a high-quality push button switch station designed for industrial and commercial applications. This station features two flush push buttons with momentary action (spring return), making it ideal for controlling machinery, lighting, or other electrical systems. The unit is equipped with a red and green indicator light for easy status monitoring. Below are the key specifications and features of this product

Model Number XDL35-B213
Button Type Momentary (spring return)
Protection Rating IP54/IP65
Dimensions 60.5 mm (width) x 114.5 mm (height) x 12 mm (depth)
Contact Configuration Normally closed (N/C) circuit
Operating Voltage AC 660V, 10A

Product Detail

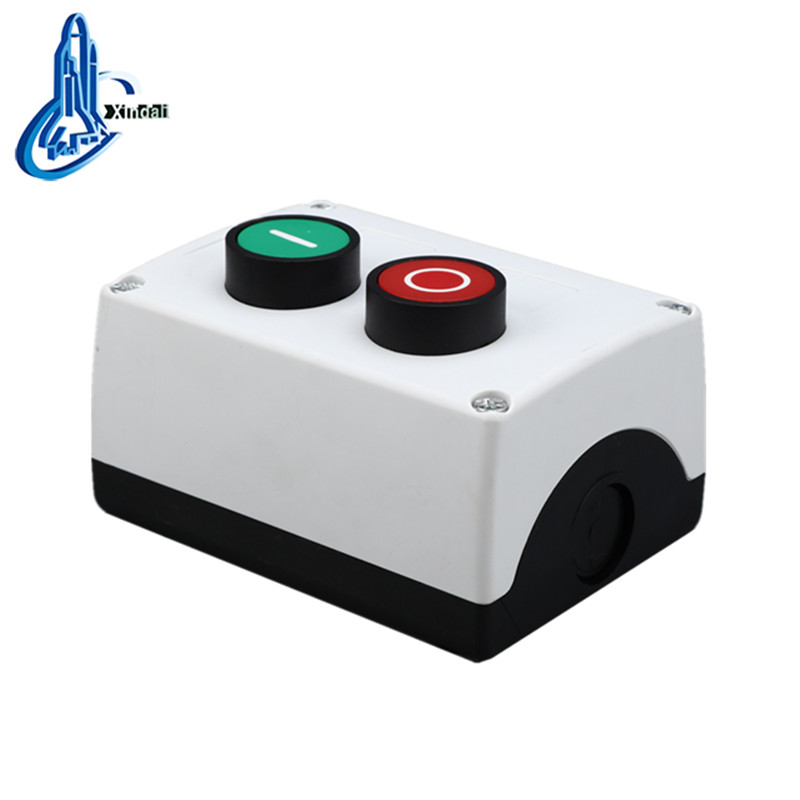

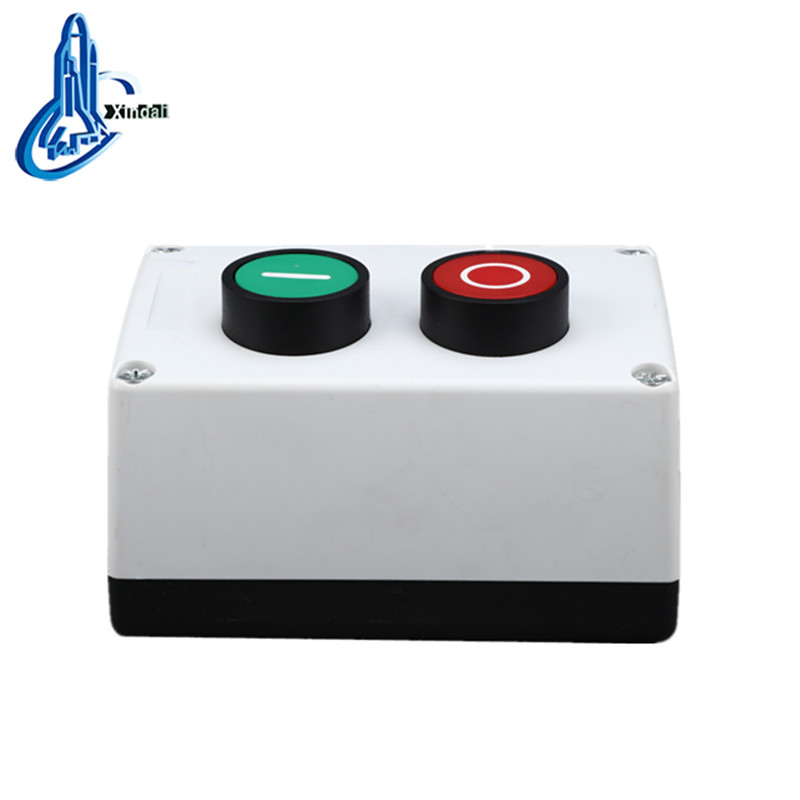

Photo Details

Key Features

Push Button Type: Momentary (spring return)
Indicator Lights: Red and green for clear status indication
Electrical Rating: AC 660V, 10A
Protection Rating: IP54/IP65, ensuring dust and water resistance for reliable operation in harsh environments
Contact Configuration:
- 1 Normally Closed (N/C) contact
- 1 Normally Open (N/O) contact
Mounting: Designed for panel mounting with a compact size for easy integration into control panels.
Dimensions: 60.5 mm (width) x 114.5 mm (height) x 12 mm (depth)

Applications

Industrial control systems
Machinery operation
Lighting control
Emergency stop systems
Automation and process control

Technical Specifications

Voltage: AC 660V
Current: 10A
Contact Rating: 1 N/C and 1 N/O
Momentary Action: Buttons return to their original position when released
Material: Durable plastic housing with metal contacts
Color: Red and green buttons for intuitive operation

Wiring Diagram

The XDL35-B213 includes a clear wiring diagram for easy installation. The contacts are labeled for N/C (Normally Closed) and N/O (Normally Open) connections, ensuring straightforward setup.

Benefits

Reliable Performance: Built to withstand industrial environments with IP54/IP65 protection.
User-Friendly Design: Momentary action and indicator lights provide clear feedback during operation.
Compact Size: Space-saving design for integration into control panels.
Durable Construction: Long-lasting materials ensure extended service life.

The XDL35-B213 is an excellent choice for applications requiring reliable, easy-to-use push button control with clear status indication. Order today to enhance the functionality and safety of your electrical systems!
