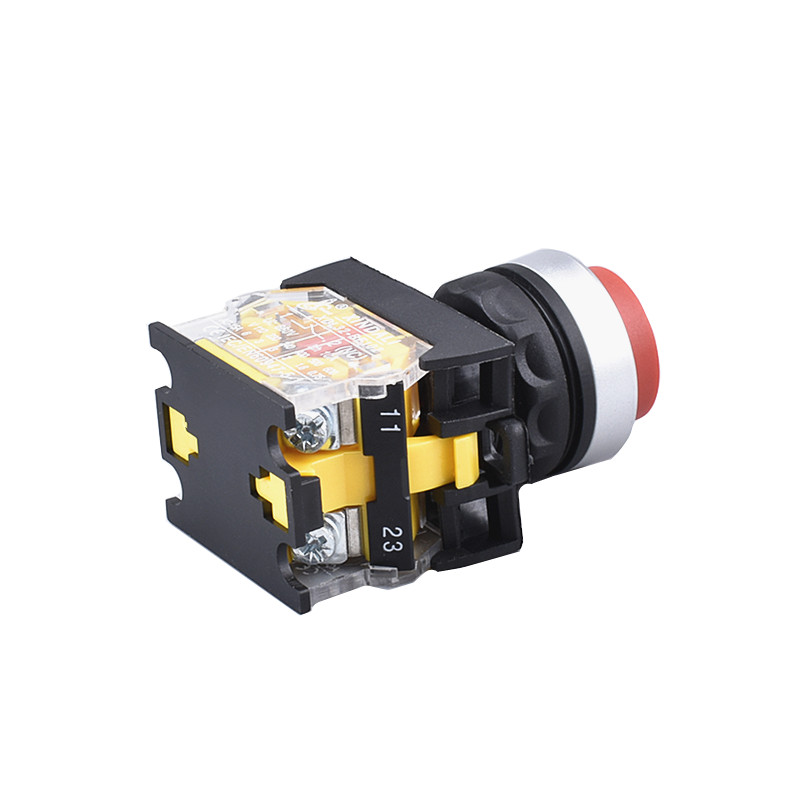

waterproof ip67 red convex head pushbutton switch XDL32-CL42

Share to:

waterproof ip67 red convex head pushbutton switch XDL32-CL42

Model:: XDL32-CL42

MOQ:: 240

Payment:: T/T L/C

Brand:: XINDALI

Delivery time:: One week

Start Port:: Shanghai/ningbo

Certification:: ISO9001 RoSH CE UL TUV

SKU:
Availability:

Product Description

⊹ Characteristic：waterproof level IP67 Easy installation long service life,Higher performance than LAY series

⊹ Product Features：It is used for controlling signal and interlocking purposes.It is used for controlling the circuit of elecromagnetic starter,contactor,relay and so on.The pushbutttons with indicator are applied to place where signal indicators are needed as well.

⊹ Product material：The main body of the push button is alloy and plastic.

Conforming to standards as	IEC60947-5-1:GB/T14048.GB14048.5
Ambient temperature	operating temperature:5℃~+55℃ storage temperature:-25℃~+70℃
Operating and storage air relative humidity	35~85%RH
Vibration frequency	Conforming to IEC 68-2-6
Impact resistance	Conforming to IEC 68-2-27
Pollution grade	3
Installation sort	ClassⅢ
Protection grade	Ordinary:IP40 IP54
	Protection:IP65 IP66 IP67 IP68
Mechanical life	pushbutton:30010 push and pull type emergency button:3010
Fastening torque	0.8Nm(MAX:1.2Nm)

Product Details

can our logo or company name be printed on waterproof cable gland head pushbutton switch push button switch switch push button pushbutton switch push button on off switch convex metal button Metal push button switch waterprrof metal switch waterproof button
