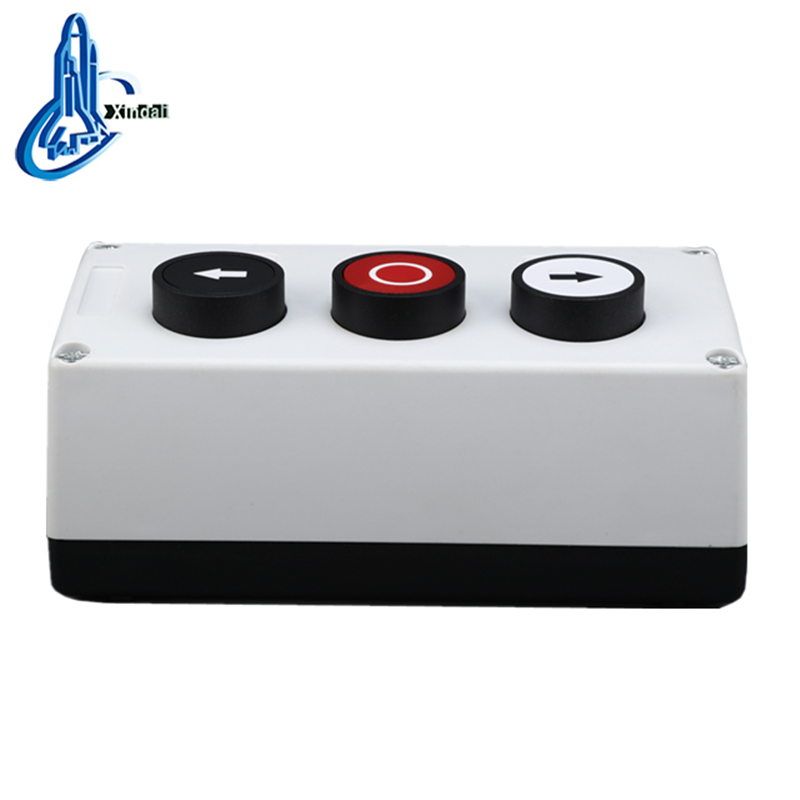

Emergency Stop Industrial Control Button Box (XDL35-B334)
Product Details: Emergency Stop Industrial Control Button Box (XDL35-B334)
The XDL35-B334 is a high-quality industrial control button box designed for reliable operation in demanding environments. This unit features three flush push buttons with momentary action (spring return), making it ideal for emergency stop, start/stop, and other critical control functions. The buttons are equipped with an arrow symbol for intuitive operation, and the unit is fully sealed for waterproof and dustproof performance (IP54/IP65). Below are the key specifications and features of this product:
Key Features
-
Button Type: Three flush push buttons with momentary action (spring return)
-
Emergency Stop Function: Red button with arrow symbol for quick identification
-
Start/Stop Control: Green and black buttons for start and stop operations
-
Contact Configuration:
-
1 Normally Closed (N/C) contact
-
2 Normally Open (N/O) contacts
-
-
Protection Rating: IP54/IP65, ensuring dust and water resistance for reliable operation in harsh environments
-
Self-Sealing Design: Prevents ingress of contaminants for long-term durability
-
Mounting: Designed for panel mounting with a compact size for easy integration into control panels.
-
Dimensions: 60.5 mm (width) x 114.5 mm (height) x 12 mm (depth)
Applications
-
Emergency stop systems
-
CNC machine control
-
Industrial automation
-
Process control
-
Machinery operation
Technical Specifications
-
Contact Rating: 1 N/C and 2 N/O contacts
-
Momentary Action: Buttons return to their original position when released
-
Material: Durable plastic housing with metal contacts
-
Color: Red (emergency stop), green (start), and black (stop) buttons
-
Arrow Symbol: Clear directional indicator for emergency stop functionality
Wiring Diagram
The XDL35-B334 includes a clear wiring diagram for easy installation. The contacts are labeled for N/C (Normally Closed) and N/O (Normally Open) connections, ensuring straightforward setup.
Benefits
-
Reliable Emergency Stop: Red button with arrow symbol for quick identification in critical situations.
-
Durable Construction: IP54/IP65 rating ensures protection against dust and water.
-
User-Friendly Design: Intuitive button colors and symbols for easy operation.
-
Compact Size: Space-saving design for integration into control panels.
-
Self-Sealing Mechanism: Maintains environmental protection even after repeated use.
The XDL35-B334 is an excellent choice for industrial applications requiring a robust, waterproof, and easy-to-use control button box. Its emergency stop functionality and self-sealing design make it ideal for CNC machines, automation systems, and other critical operations. Order today to enhance the safety and efficiency of your industrial processes!
