XINDALI | XDL10 Series

Compact 3-hole handheld pendant control box with 3 flush push buttons, spring-return operation, two-button interlock design, and IP65 protection. Designed for tail lifts, tipping trailers, hydraulic systems, hoists, cranes, trucks, and industrial equipment control.

3-Hole Control Box 3 Flush Push Buttons Two-Button Interlock IP65 Protection Box Holder Available Magnetic Mounting Option

Product Overview

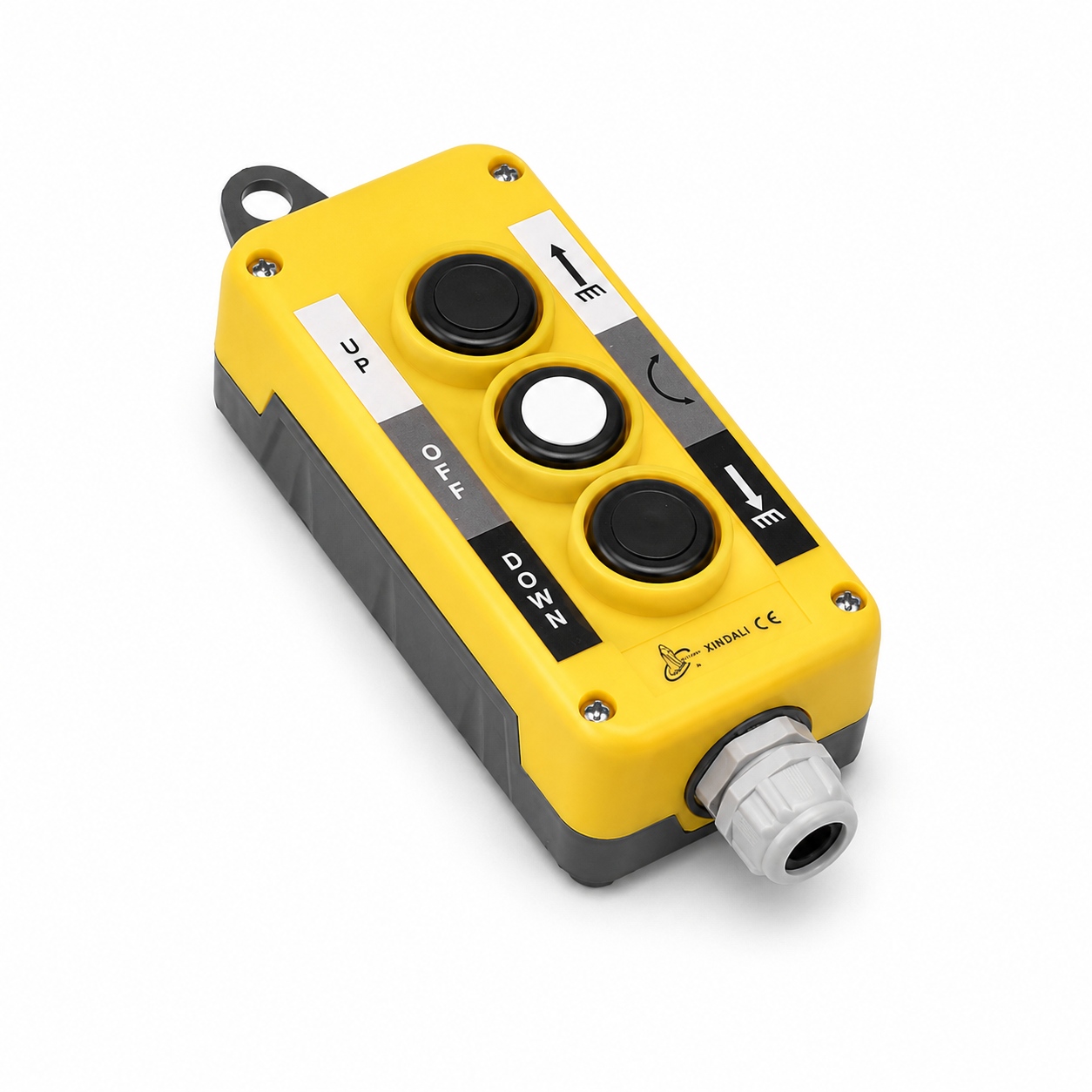

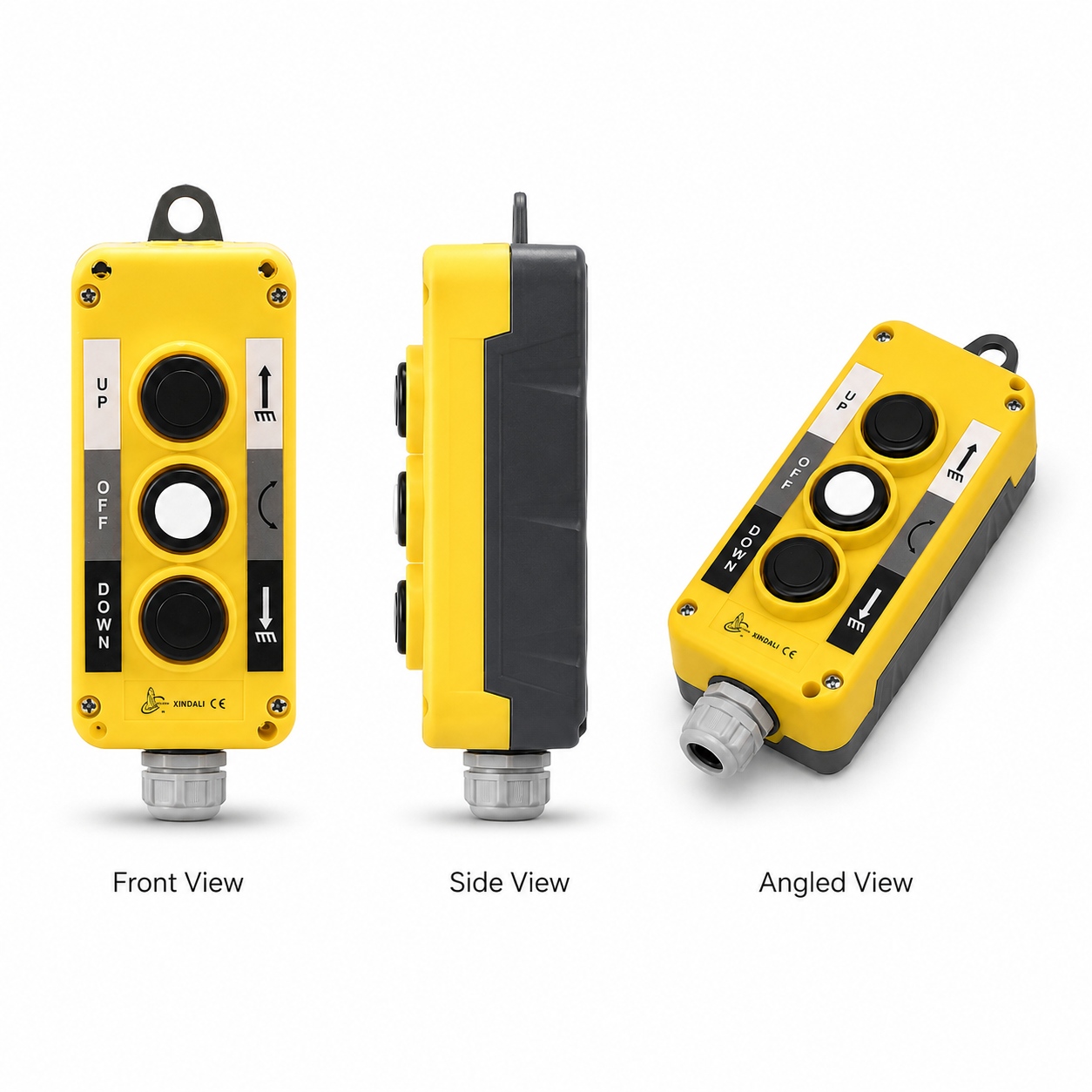

The XDL10-EPB3 is a compact 3-button handheld pendant control box from the XDL10 Series. It is designed with 3 flush push buttons, spring-return operation, and a two-button interlock structure, making it suitable for equipment that requires safe and reliable multi-command operation in a compact handheld format.

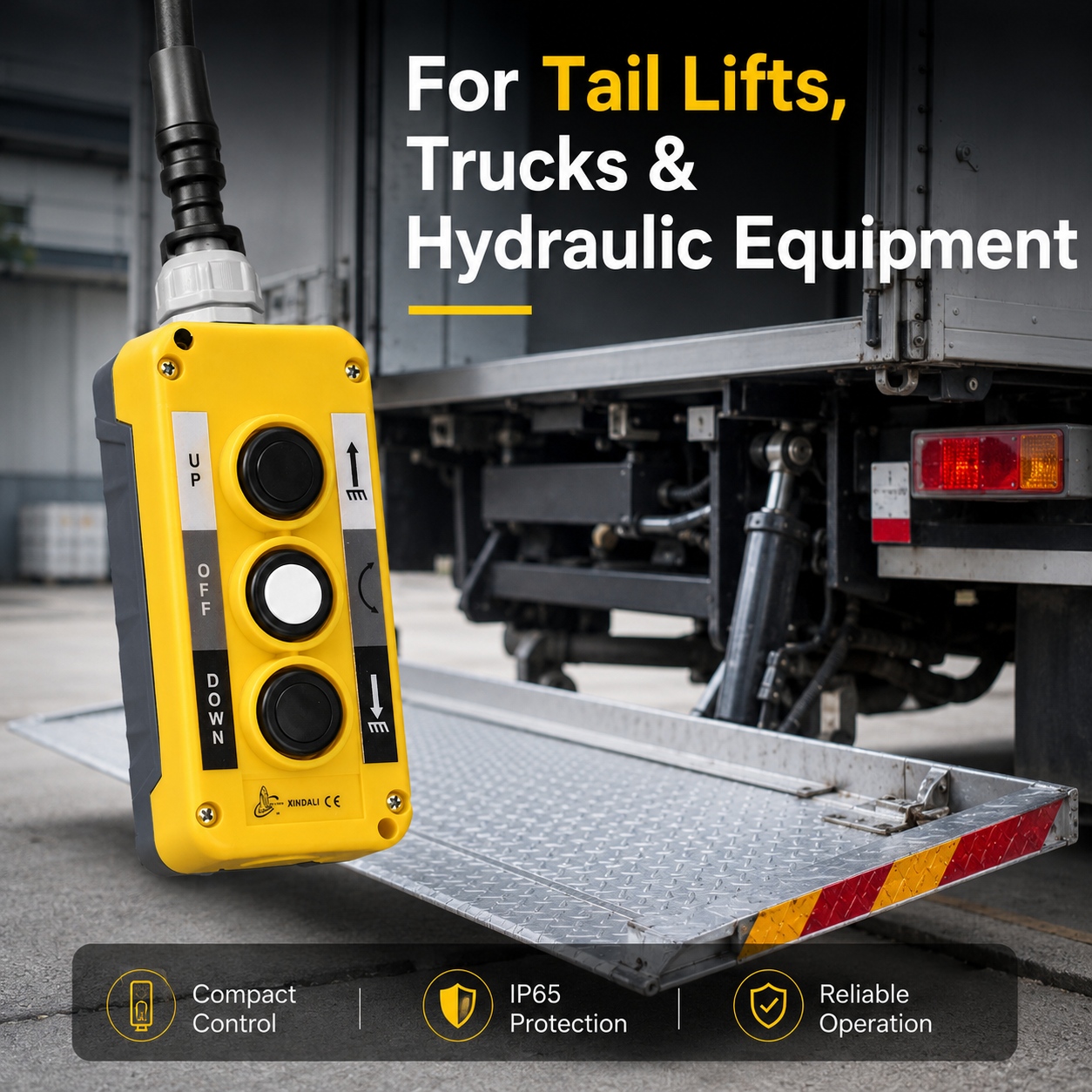

This product is widely used for tail lift control, tipping trailer control, hydraulic pump control, hoist and crane operation, and other truck-mounted or industrial machinery applications. The XDL10 Series can be supplied with a box holder and can also be equipped with a strong magnet on the back, allowing the controller to be conveniently attached to a truck body or metal equipment surface when not in use.

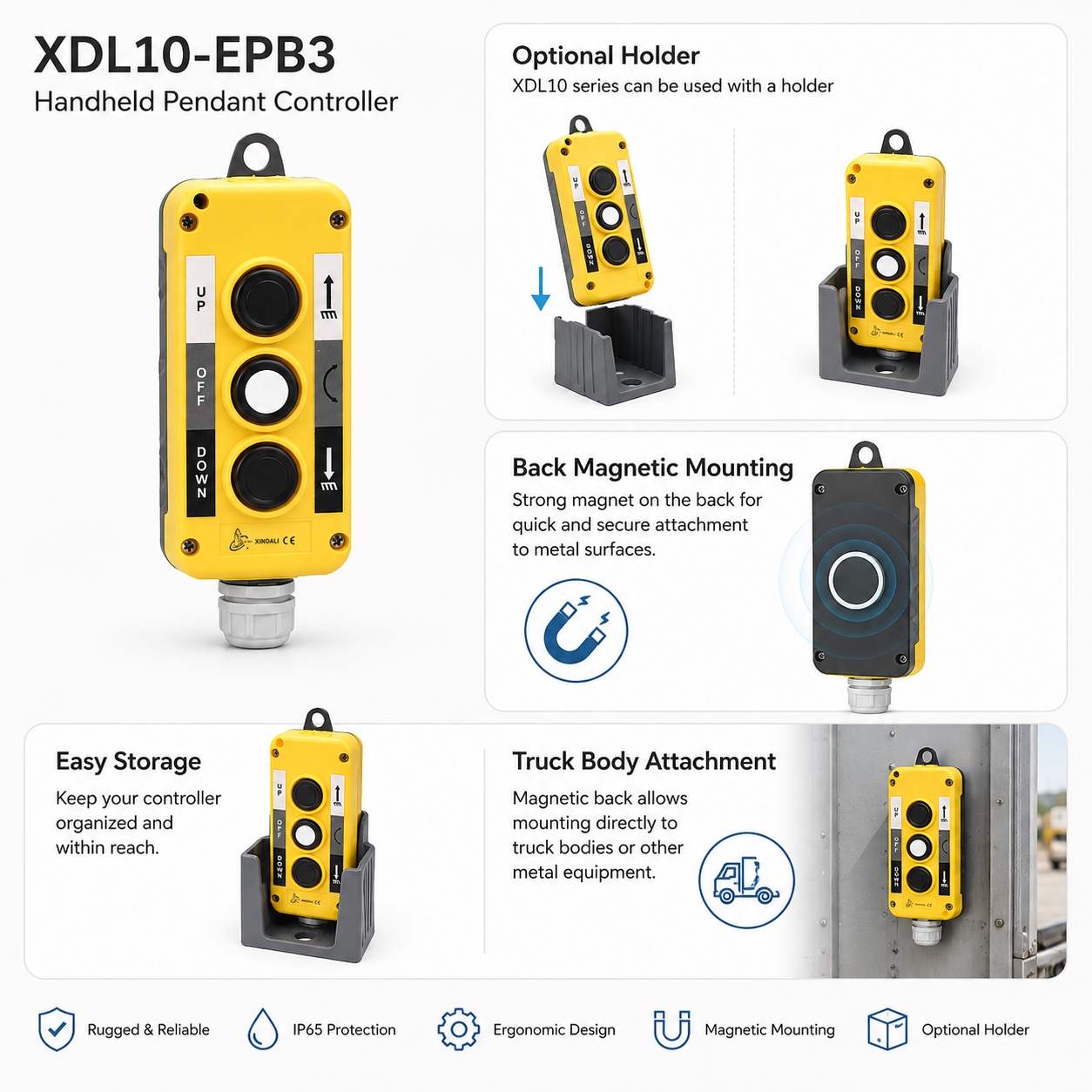

Holder and Magnetic Mounting Option

The XDL10 Series can be supplied with a dedicated XDL10-EPC box holder, allowing the pendant controller to be stored safely when not in use. This is especially useful for trucks, tail lifts, hydraulic equipment, and mobile machinery.

A strong magnet can also be installed on the back of the controller, enabling the control box to be attached directly to the truck body or other metal surfaces. This helps reduce cable dragging, improves storage convenience, and keeps the controller easy to access during operation.

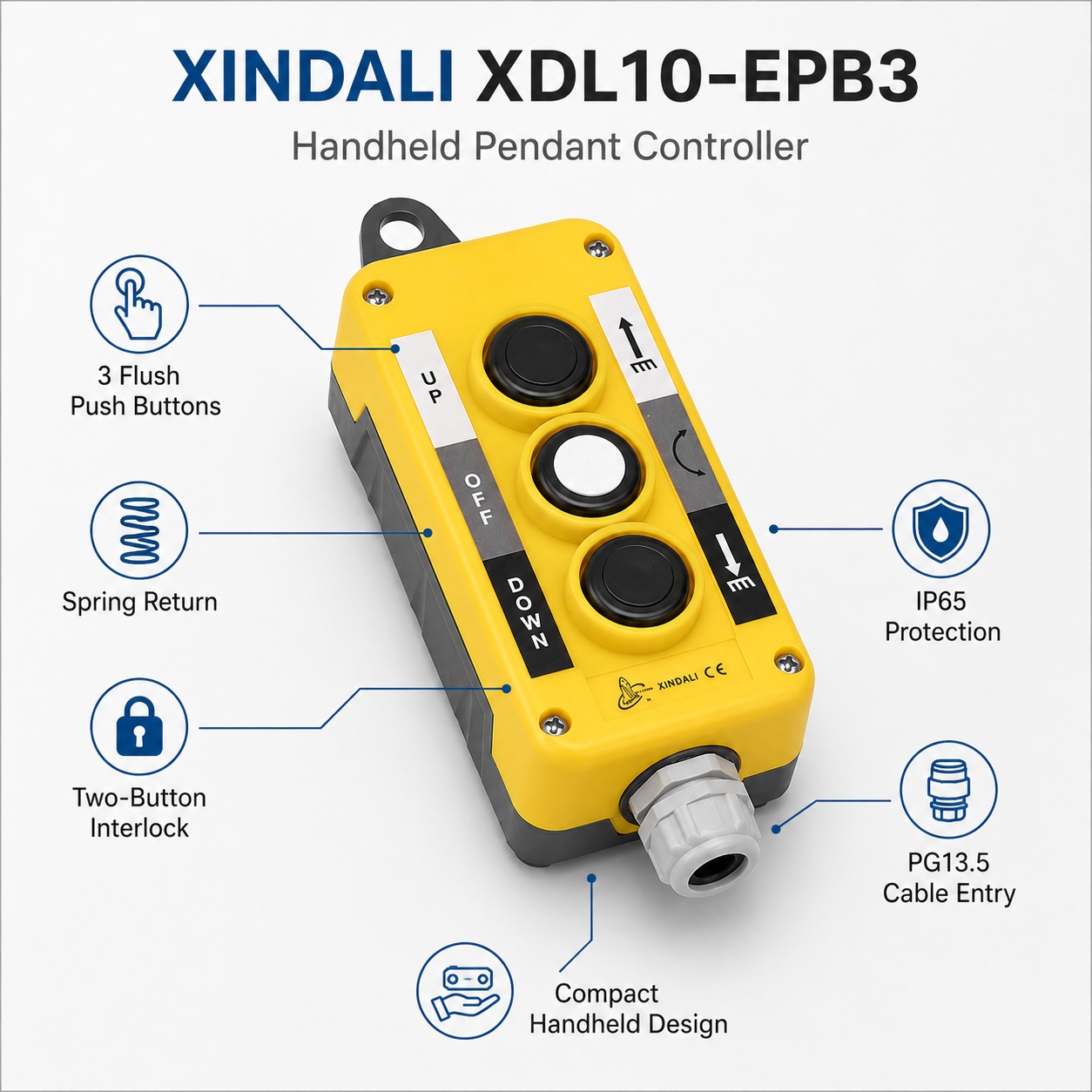

Product Model	XDL10-EPB3
Series	XDL10 Series
Product Type	Handheld Pendant Control Box
Control Box Structure	3 Holes Control Box
Button Configuration	3 Flush Push Buttons
Button Operation	Spring Return / Momentary
Interlock Type	Two-Button Interlock
Contact Configuration	N/O or 2N/O options according to model configuration
Protection Level	IP65
Cable Entry	PG13.5
Approx. Size	142 × 62 mm
Approx. Housing Width	45.9 mm
Holder	Optional XDL10-EPC box holder
Mounting Option	Optional strong back magnet for truck body or metal surface attachment

Applications

The XDL10-EPB3 is suitable for equipment requiring compact, reliable, and portable three-button control:
