XDL10-EPB2 2-Button Interlock Pendant Control Box | IP65 Handheld Controller | XINDALI

XDL10-EPB2 from XINDALI XDL10 Series is a compact 2-button handheld pendant control box with spring-return flush push buttons, two-button interlock, IP65 protection, and PG13.5 cable entry for tail lifts, tipping trailers, hydraulic systems, and industrial machinery.

  • Product Model XDL10-EPB2
  • Series XDL10 Series
  • Product Type Handheld Pendant Control Box
  • Control Box Structure 2 Holes Control Box
  • Button Configuration 2 Flush Push Buttons
  • Button Operation Spring Return / Momentary
  • Interlock Type Two-Button Interlock
  • Contact Configuration N/O or 2N/O options according to model configuration
  • Protection Level IP65
  • Cable Entry PG13.5
  • Application Industrial machinery, hydraulic systems, tail lift control, tipping trailers, automation equipment
Contact us
Product Detail

XINDALI | XDL10 Series

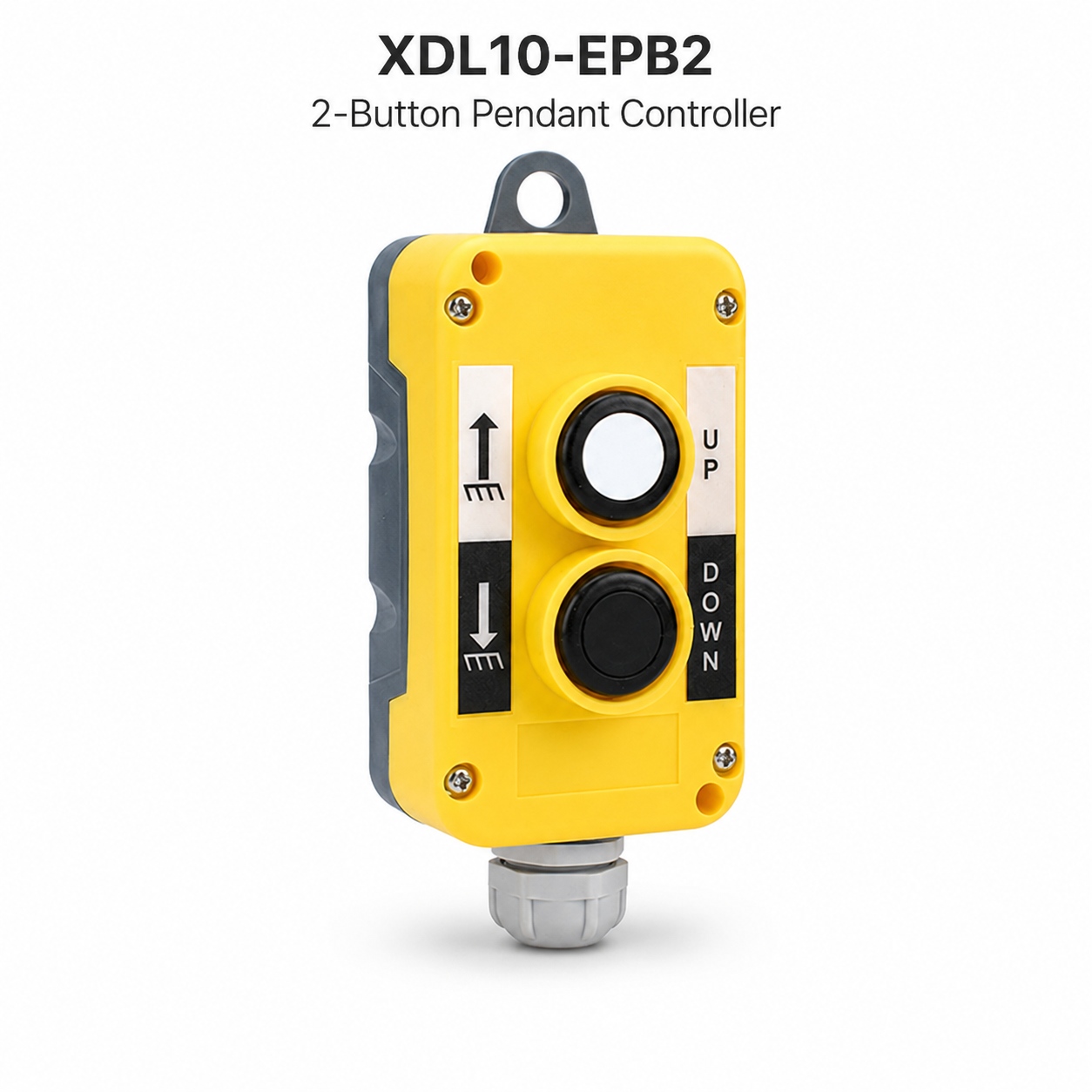

XDL10-EPB2 2-Button Interlock Handheld Pendant Control Box

Compact 2-hole handheld pendant control box with 2 flush push buttons, spring-return operation, two-button interlock design, and IP65 protection. Designed for industrial machinery, hydraulic systems, lifting equipment, tipping trailers, and custom operator control applications.
XDL10 Series 2-Hole Control Box 2 Flush Push Buttons Two-Button Interlock IP65 Protection PG13.5 Cable Entry

Product Overview

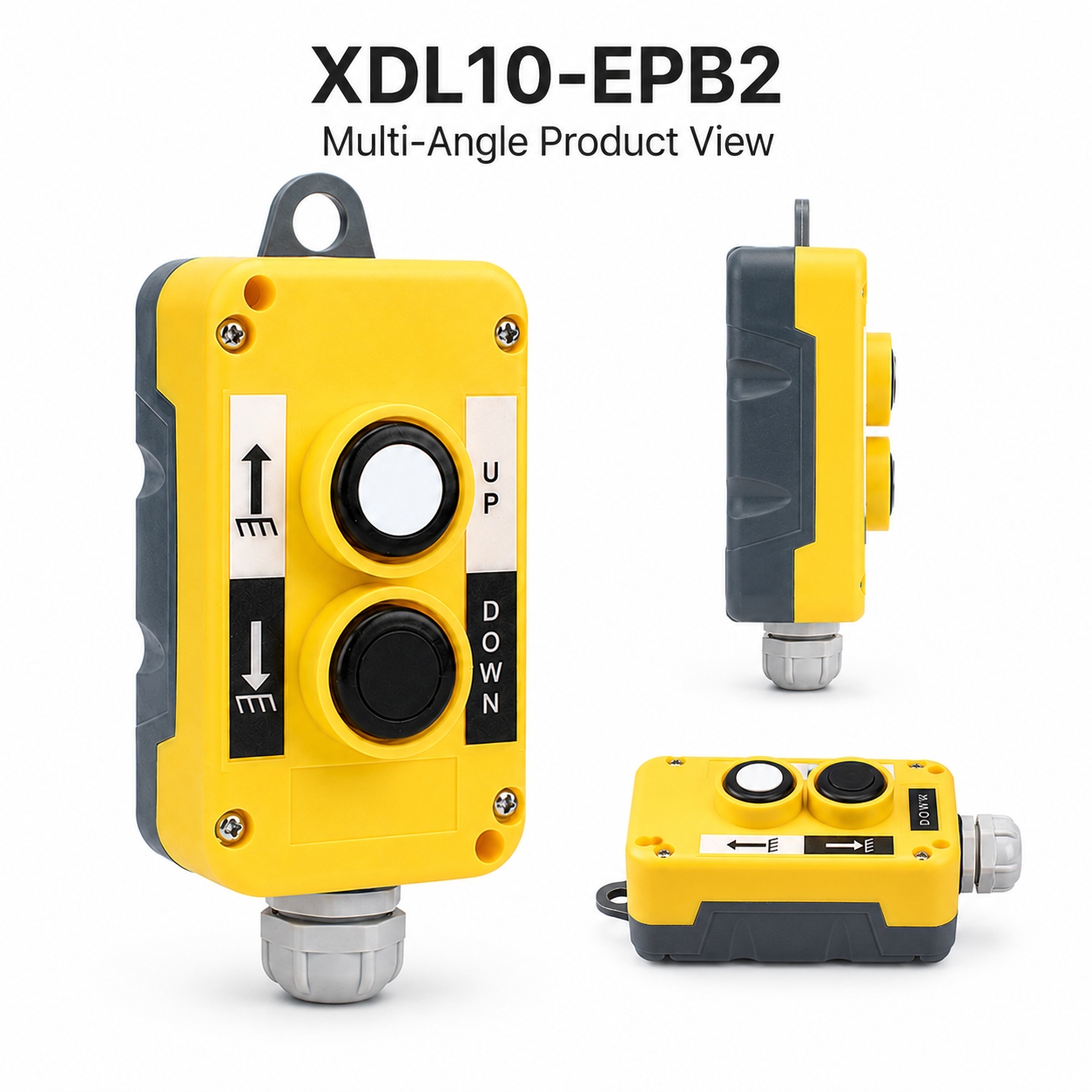

The XDL10-EPB2 is a compact 2-button handheld pendant control box from the XDL10 Series. It is designed with 2 flush push buttons, spring-return operation, and a two-button interlock structure, making it suitable for applications where two opposite or related commands need to be controlled safely and clearly.

This model is commonly used for up/down control, forward/reverse operation, hydraulic pump control, tail lift systems, tipping trailers, and other industrial equipment requiring a compact operator interface. With IP65 protection and PG13.5 cable entry, it is suitable for demanding industrial and outdoor working conditions.

XDL10-EPB2 2 button pendant controller (5).jpgXDL10-EPB2 2 button pendant controller (4).jpgXDL10-EPB2 2 button pendant controller (6).jpg

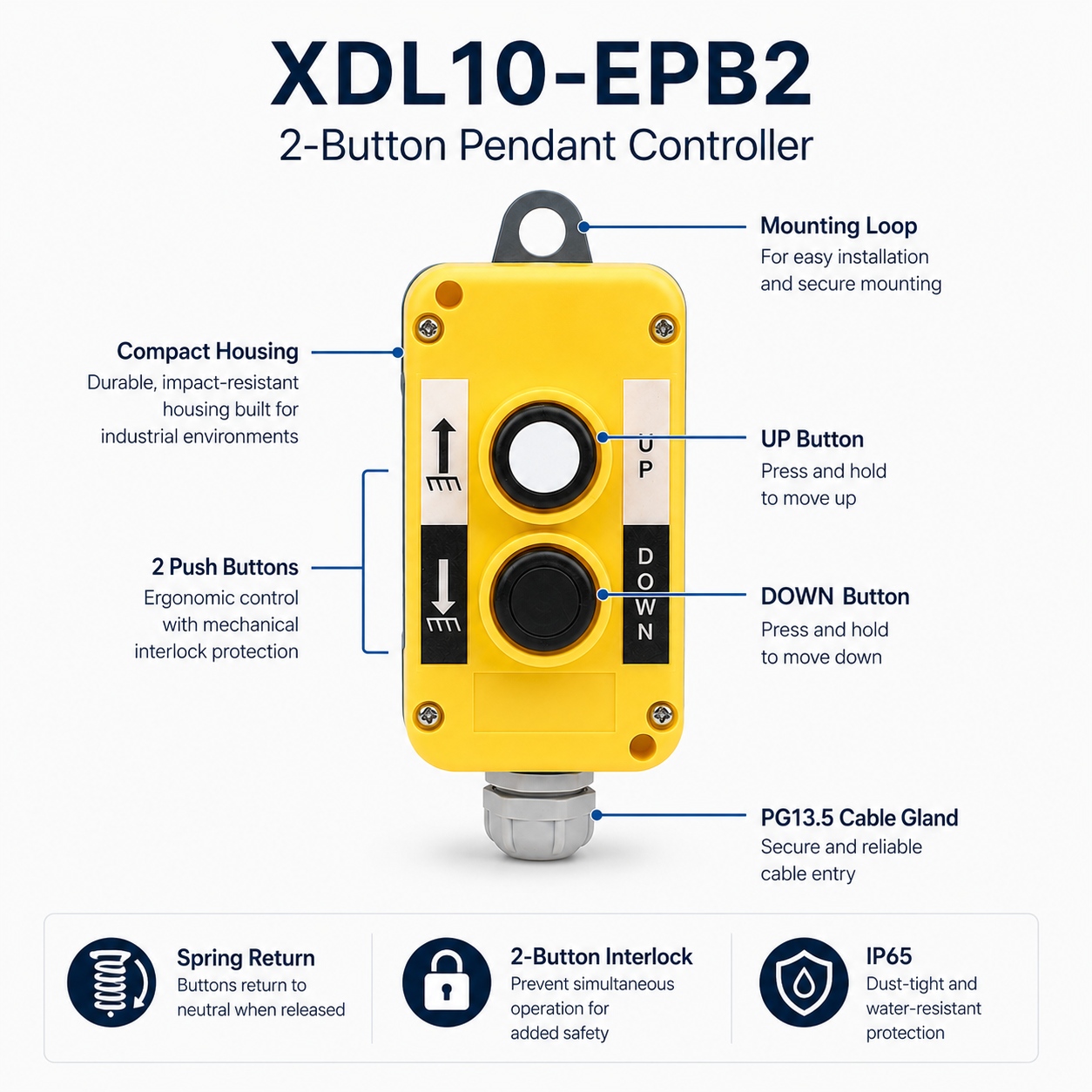

Key Features

2-Hole Compact Design
Compact two-hole control box structure for simple and efficient handheld operation.
2 Flush Push Buttons
Equipped with two flush push buttons for clear and responsive machine command control.
Spring-Return Operation
Buttons return automatically after release, suitable for momentary control functions.
Two-Button Interlock
Interlock design helps prevent two related commands from being activated at the same time.
IP65 Protection
Dust-resistant and water-resistant structure for industrial and outdoor working environments.
PG13.5 Cable Entry
PG13.5 cable entry supports practical wiring and secure cable connection.

Technical Specifications

Product Model XDL10-EPB2
Series XDL10 Series
Product Type Handheld Pendant Control Box
Control Box Structure 2 Holes Control Box
Button Configuration 2 Flush Push Buttons
Button Operation Spring Return / Momentary
Interlock Type Two-Button Interlock
Contact Configuration N/O or 2N/O options according to model configuration
Protection Level IP65
Cable Entry PG13.5

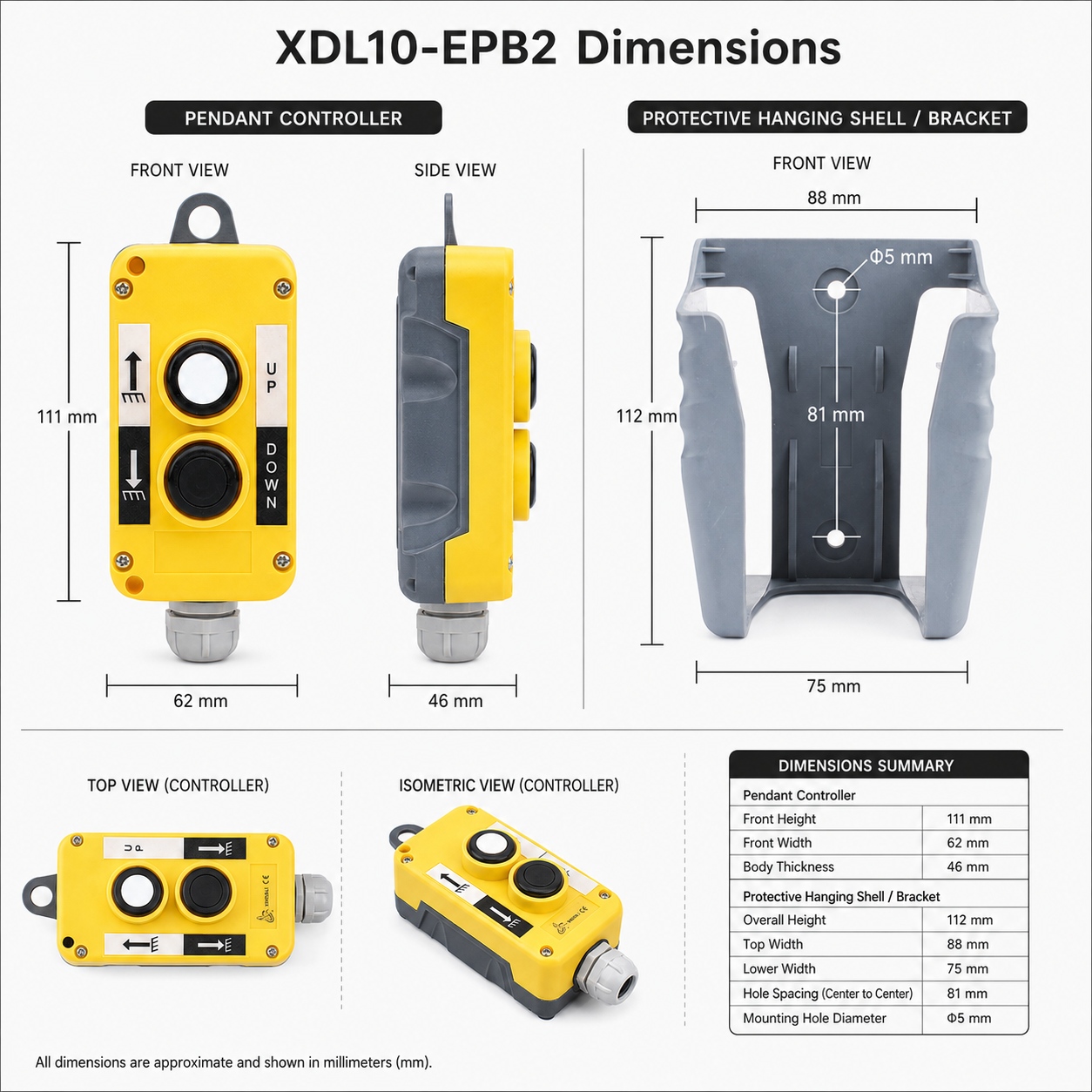

Approx. Housing Width 45.9 mm
Application Industrial machinery, hydraulic systems, tail lift control, tipping trailers, automation equipment

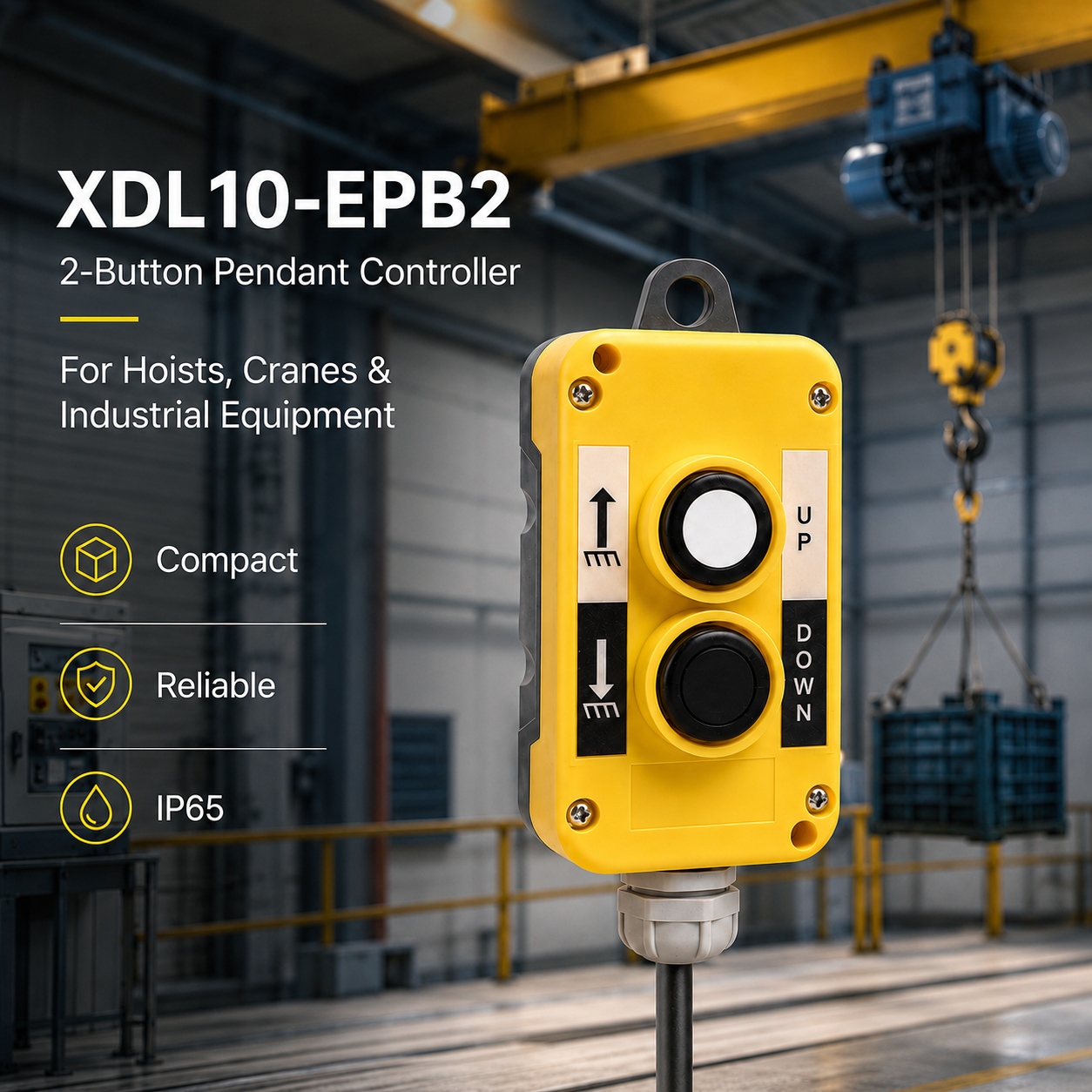

Applications

The XDL10-EPB2 is suitable for equipment requiring simple, reliable, and compact two-button control:

• Tipping trailers
• Hydraulic pump control
• Tail lift systems
• Hoist and lifting equipment
• Industrial machinery
• Automation equipment
• Mobile equipment control
• OEM pendant control assemblies

Why Choose XINDALI XDL10 Series

Compact Handheld Design
Designed for convenient handheld operation in mobile and industrial equipment control.
Reliable Interlock Control
Two-button interlock structure helps improve safety for opposite-direction commands.
OEM / ODM Support

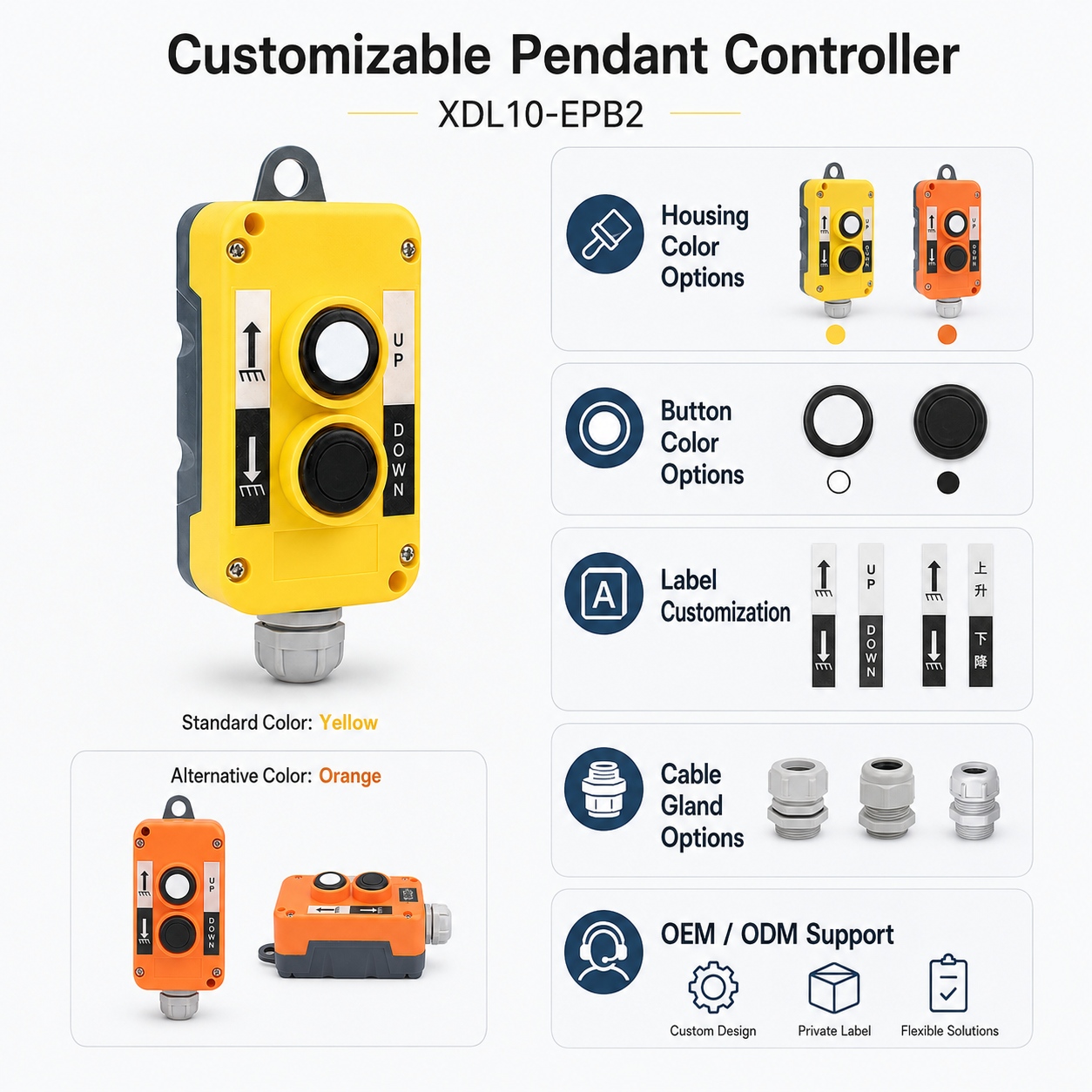

Custom button colors, symbols, labels, cable length, and contact configurations are available.
Factory Direct Supply
XINDALI supports direct supply for industrial control boxes and pendant controller projects.

People Also Ask

Common buyer questions about 2-button handheld pendant control boxes.

What is a 2-button pendant control box used for?

A 2-button pendant control box is used for simple machine commands such as up/down, forward/reverse, start/stop, or hydraulic pump control. It is commonly used in lifting equipment, tail lifts, tipping trailers, and industrial machinery.

What does two-button interlock mean?

Two-button interlock means the two push buttons are designed so that opposite or related commands are not operated at the same time. This is useful for up/down or forward/reverse control applications.

Is the XDL10-EPB2 suitable for outdoor use?

The XDL10-EPB2 has an IP65 protection level, making it suitable for many industrial and outdoor equipment control applications where dust and water resistance are required.

What type of buttons does the XDL10-EPB2 use?

The XDL10-EPB2 uses two flush push buttons with spring-return operation. The buttons return automatically after release, making them suitable for momentary control.

What cable entry does the XDL10-EPB2 use?

The XDL10-EPB2 uses a PG13.5 cable entry, which supports secure wiring and cable connection for handheld pendant control applications.

Can XDL10-EPB2 be customized?

Yes. XINDALI can support custom button colors, symbols, labels, cable length, contact configuration, and OEM/ODM pendant controller assemblies.
