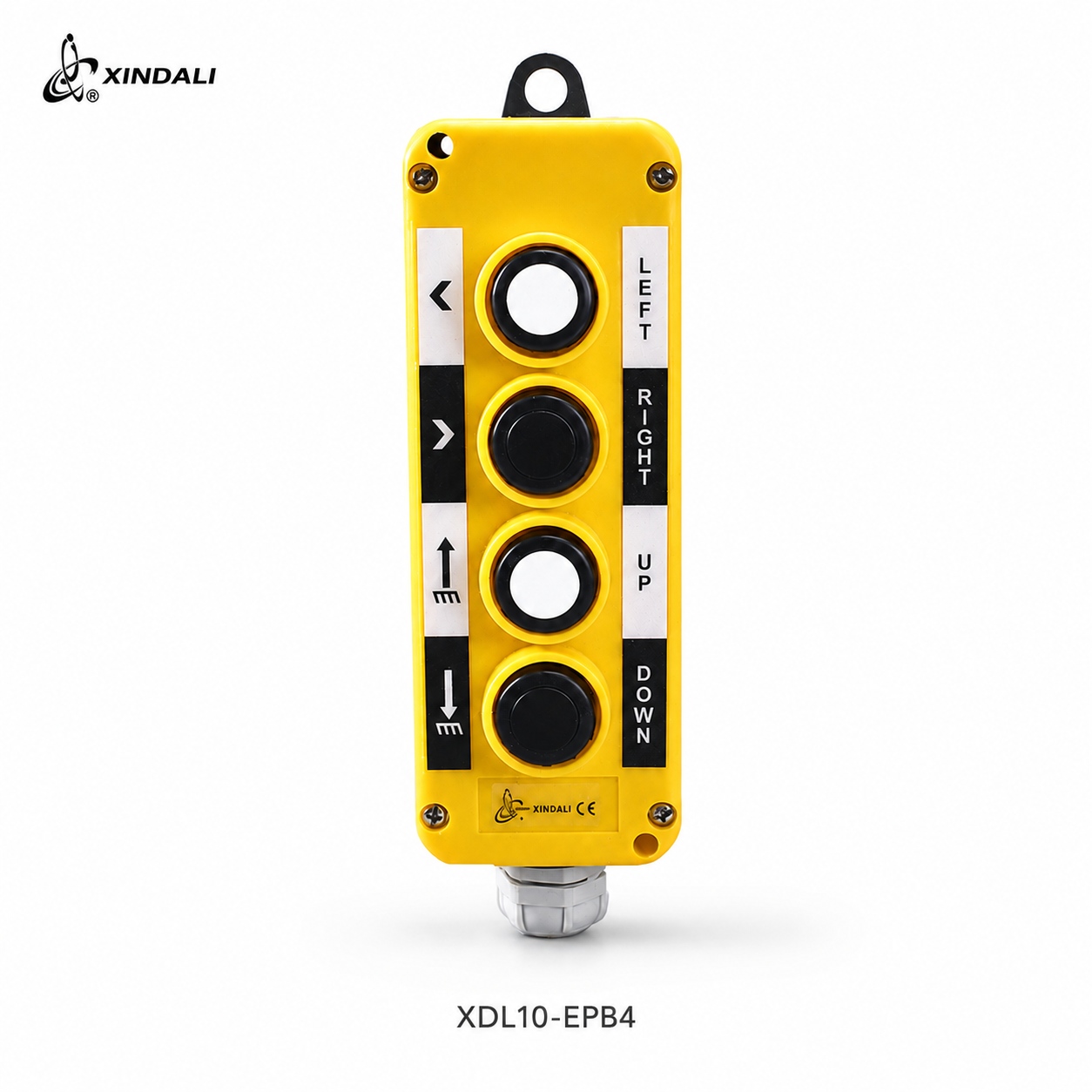

XDL10-EPB4 4-Button Handheld Pendant Controller for Hydraulic & Truck Equipment | XINDALI

XDL10-EPB4 is a 4-button handheld pendant controller for hydraulic systems, tail lifts, truck-mounted equipment, hoists, cranes, and industrial machinery. Features spring-return buttons, two-button interlock, IP65 protection, PG13.5 cable entry, optional holder, and magnetic mounting.

  • Product Model XDL10-EPB4
  • Series XDL10 Series
  • Product Type Handheld Pendant Control Box
  • Control Box Structure 4 Holes Control Box
  • Button Configuration 4 Flush Push Buttons
  • Button Operation Spring Return / Momentary
  • Interlock Type Two-Button Interlock
  • Contact Configuration N/O or 2N/O options according to model configuration
  • Protection Level IP65
  • Cable Entry PG13.5
  • Application Industrial machinery, hydraulic systems, tail lift control, tipping trailers, automation equipment
  • Approx. Size 171 × 62 mm
  • Approx. Housing Width 45.9 mm
  • Holder Optional XDL10-EPC box holder
  • Mounting Option Optional strong back magnet for truck body or metal surface attachment
Contact us
Product Detail

XINDALI XDL10 Series | Multi-Command Pendant Controller

XDL10-EPB4 4-Button Handheld Pendant Controller for Hydraulic & Vehicle Equipment

The XDL10-EPB4 is a compact 4-button handheld pendant controller designed for equipment that requires more than basic up/down control. With four spring-return flush buttons, two-button interlock protection, IP65 enclosure protection, and PG13.5 cable entry, it is suitable for tail lifts, hydraulic platforms, vehicle-mounted equipment, small cranes, hoists, and customized machine control systems.

4 Control Commands Spring Return Buttons Two-Button Interlock IP65 Rated Optional Holder Magnetic Back Option

Built for More Than Simple Up / Down Control

Compared with a basic 2-button or 3-button pendant controller, the XDL10-EPB4 provides four separate control positions in one compact handheld unit. It is especially suitable for equipment that needs multiple momentary commands, such as up / down / start / stop, raise / lower / open / close, or customized hydraulic action control.

For truck-mounted equipment and hydraulic systems, the controller can be supplied with a dedicated XDL10-EPC box holder. A strong magnetic back option is also available, allowing the control box to attach directly to truck bodies or other metal surfaces during operation or storage.

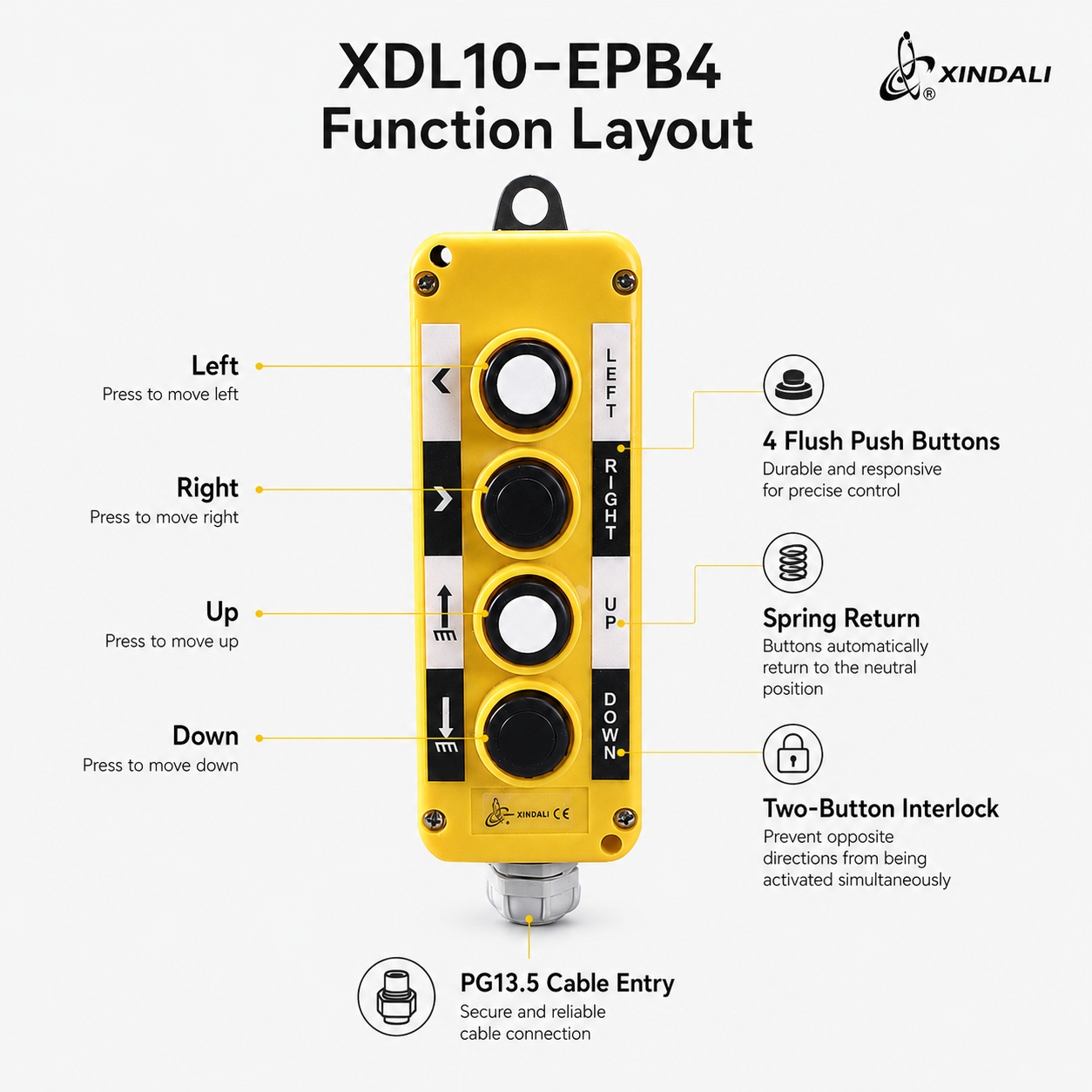

Four-Button Command Layout

More Control Functions
Four buttons allow the operator to control more equipment actions from one handheld unit.
Momentary Operation
Each flush push button is spring return, making it suitable for press-and-hold equipment movement.
Interlock Protection
Two-button interlock helps prevent opposite commands from being triggered at the same time.
Custom Label Support
Button labels can be customized for different control logic, including UP, DOWN, START, STOP, OPEN, CLOSE, and more.

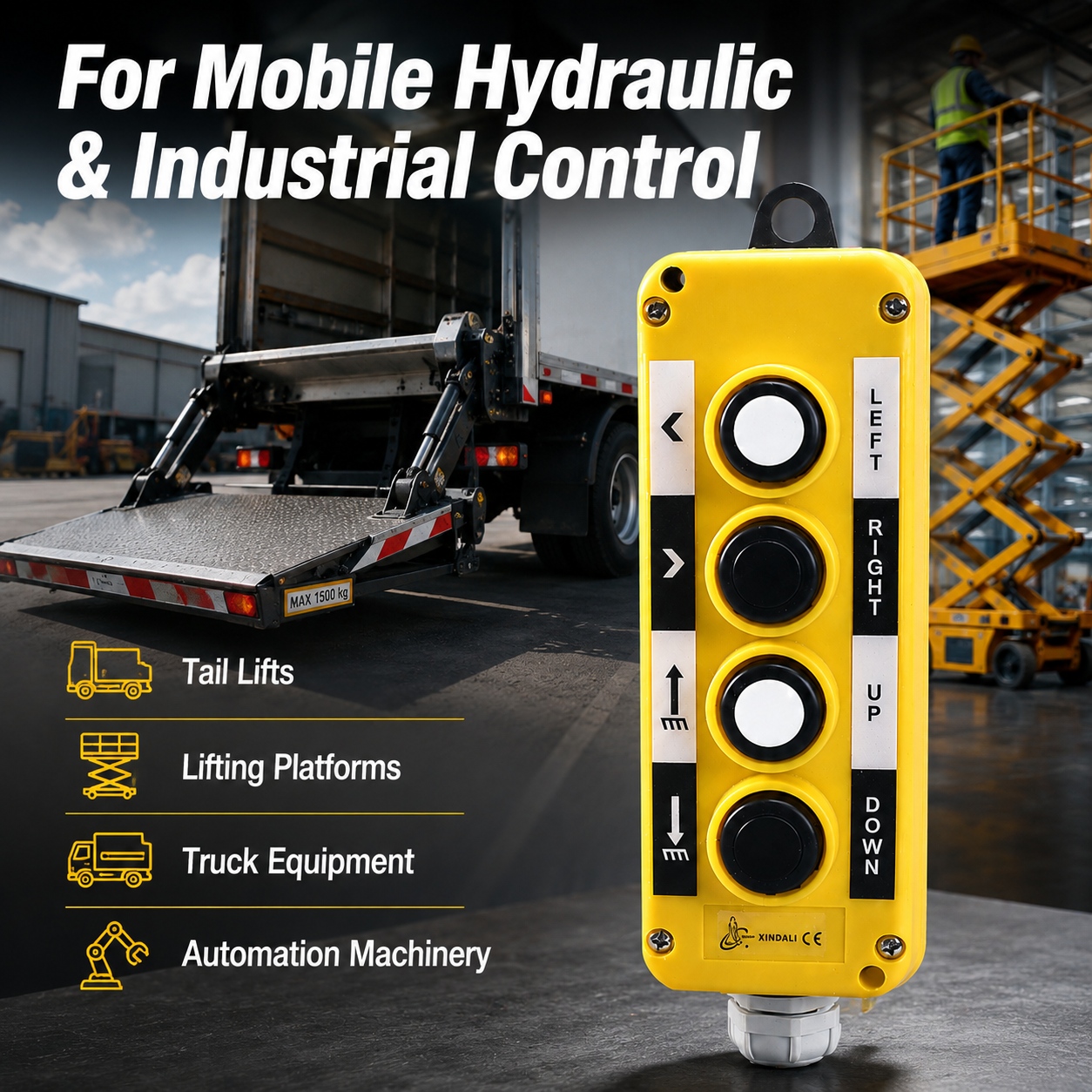

Designed for Truck-Mounted and Mobile Equipment

The XDL10-EPB4 is suitable for mobile equipment where the operator needs to move around the vehicle or machine while keeping control within reach.

• Tail lift control systems
• Hydraulic lifting platforms
• Truck-mounted equipment
• Tipping trailers and dump bodies
• Small cranes and hoists
• Industrial lifting devices
• Mobile machinery control
• OEM hydraulic control assemblies

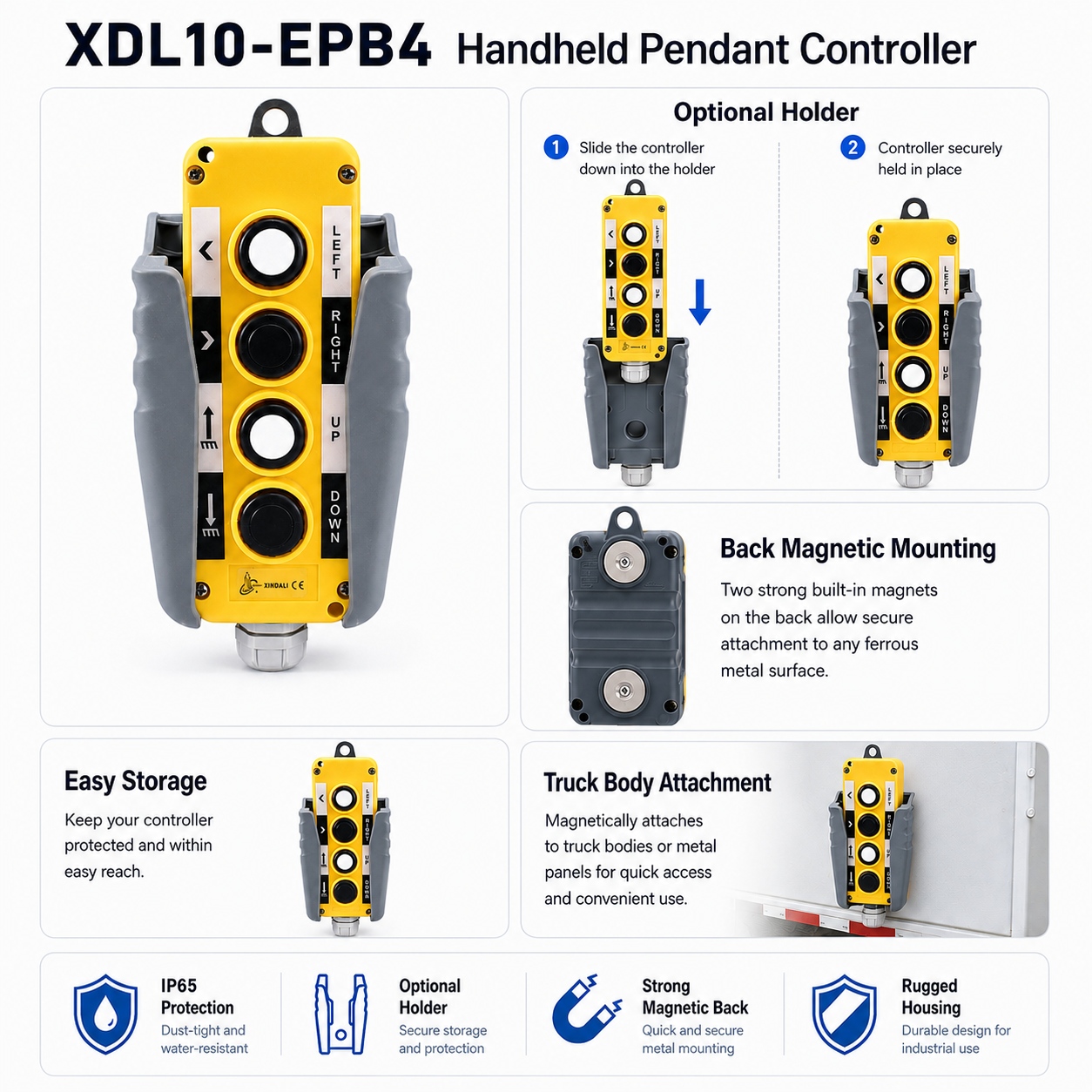

Holder & Magnetic Mounting System

XDL10-EPC Box Holder

The optional holder keeps the pendant controller upright and protected when not in use. It is useful for truck tail lifts, hydraulic equipment, and vehicle service applications where the controller needs a fixed storage position.

Strong Back Magnet Option

Strong magnets can be installed on the back of the controller. This allows the pendant control box to attach directly to a truck body, metal platform, machine frame, or other metal equipment surface.

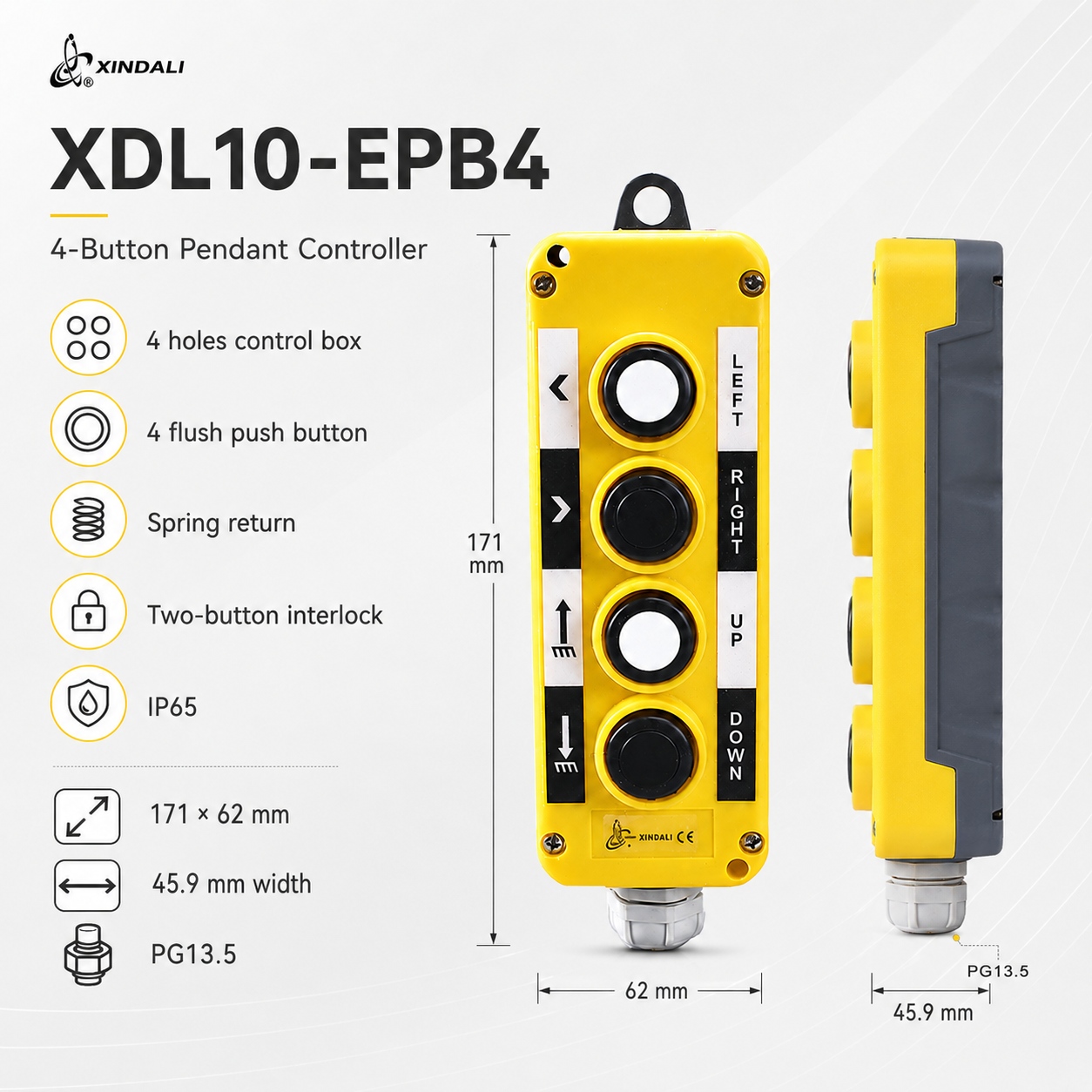

Technical Specifications

Product Model XDL10-EPB4
Series XDL10 Series
Product Type 4-Button Handheld Pendant Controller
Control Box Structure 4 Holes Control Box
Button Type 4 Flush Push Buttons
Operation Mode Spring Return / Momentary
Interlock Function Two-Button Interlock
Contact Version N/O version or 2N/O version according to model configuration
Protection Level IP65
Cable Entry PG13.5
Approx. Size 171 × 62 mm
Approx. Housing Width 45.9 mm
Holder Option XDL10-EPC holder available
Magnetic Option Strong back magnets available for metal surface mounting

People Also Ask

Questions buyers often ask when selecting a 4-button pendant controller for hydraulic or vehicle equipment.

When should I choose a 4-button pendant controller instead of a 2-button controller?

Choose a 4-button pendant controller when the equipment needs more than simple up and down movement. It is suitable for systems requiring additional commands such as start, stop, open, close, forward, reverse, or auxiliary hydraulic actions.

Can XDL10-EPB4 be used for hydraulic tail lift systems?

Yes. XDL10-EPB4 is suitable for hydraulic tail lift systems, especially when the system requires multiple control commands or customized button functions.

What is the benefit of the two-button interlock design?

Two-button interlock helps prevent opposite commands from being pressed at the same time. This is useful for movement control such as up/down, forward/reverse, or open/close.

Why is magnetic mounting useful for truck equipment?

Magnetic mounting allows the controller to attach directly to the truck body or a metal surface. This makes it easier for operators to place the controller temporarily during loading, unloading, maintenance, or hydraulic operation.

Does the XDL10-EPB4 support custom button labels?

Yes. Button labels and function markings can be customized according to the machine control logic, including UP, DOWN, START, STOP, OPEN, CLOSE, and other function symbols.

Can XDL10-EPB4 be supplied as an OEM pendant controller?

Yes. XINDALI supports OEM and ODM projects, including button layout, contact configuration, housing color, cable length, label design, holder matching, and magnetic mounting options.

Need a Multi-Command Pendant Controller?

Contact XINDALI for XDL10-EPB4 quotation, wiring options, custom labels, holder matching, magnetic mounting, and OEM pendant controller solutions.
