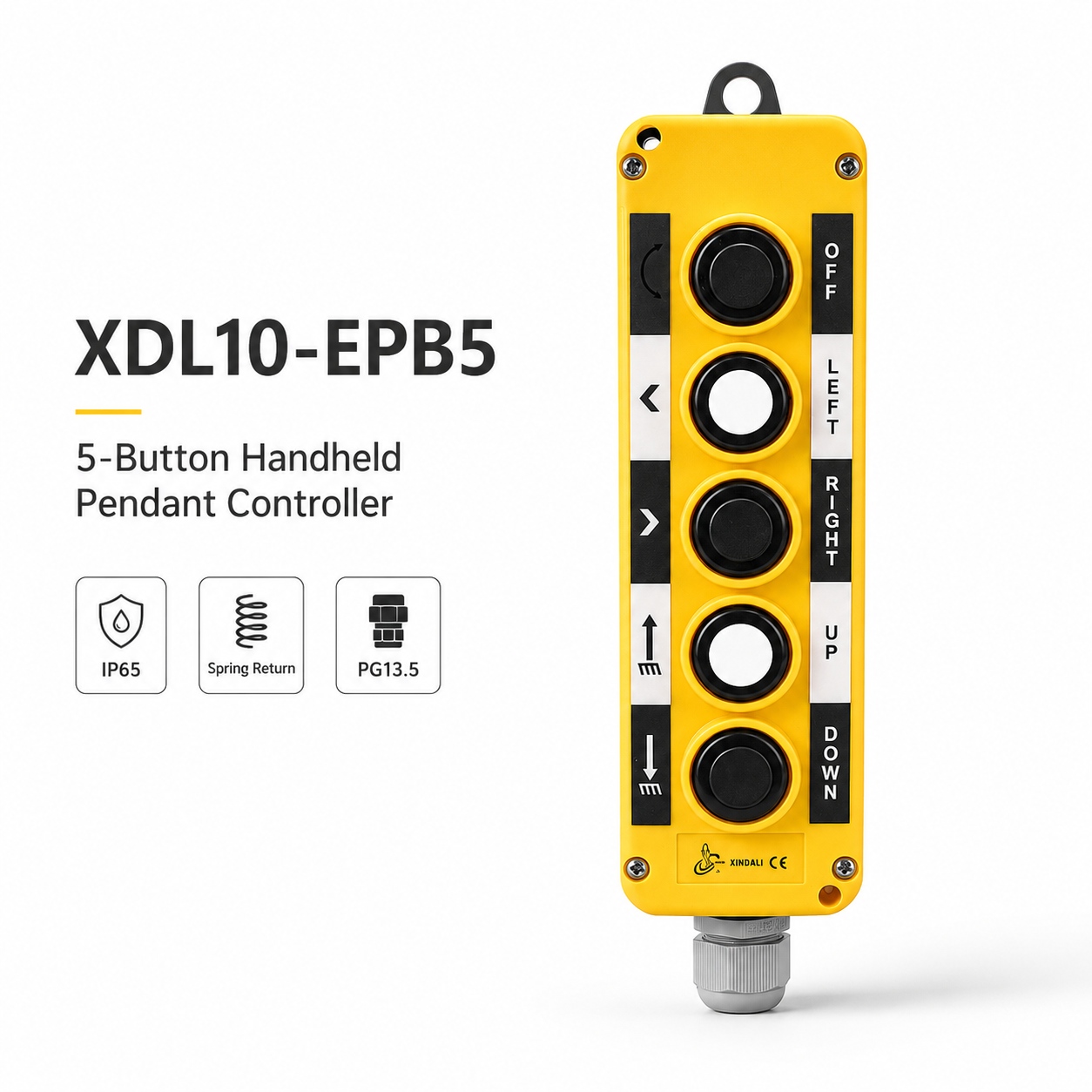

XDL10-EPB5 5-Button Handheld Pendant Controller for Hydraulic & Truck Equipment | XINDALI

XDL10-EPB5 is a 5-button handheld pendant controller for hydraulic systems, tail lifts, lifting platforms, truck-mounted equipment, hoists, cranes, and customized machinery control. Features spring-return buttons, two-button interlock, IP65 protection, PG13.5 cable entry, optional holder, and magnetic mounting.

  • Product Model XDL10-EPB5
  • Series XDL10 Series
  • Product Type 5-Button Handheld Pendant Controller
  • Control Box Structure 5 Holes Control Box
  • Button Configuration 5 Flush Push Buttons
  • Button Operation Spring Return / Momentary
  • Interlock Type Two-Button Interlock
  • Contact Configuration N/O or 2N/O options according to model configuration
  • Protection Level IP65
  • Cable Entry PG13.5
  • Application Industrial machinery, hydraulic systems, tail lift control, tipping trailers, automation equipment
  • Approx. Size 201 × 62 mm
  • Approx. Housing Width 45.9 mm
  • Holder Optional XDL10-EPC box holder
  • Mounting Option Optional strong back magnet for truck body or metal surface attachment
Contact us
Product Detail

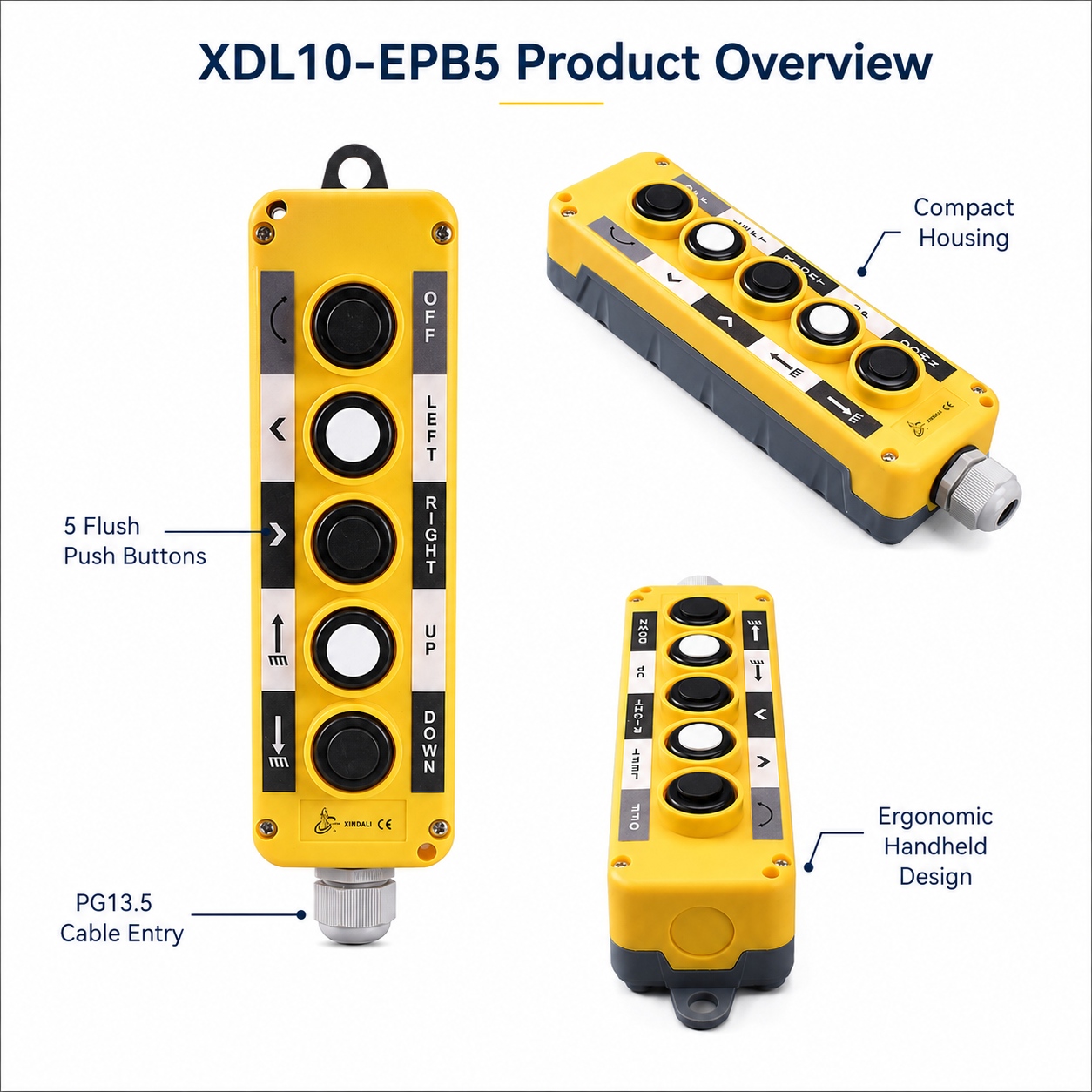

XINDALI XDL10 Series | Extended 5-Command Pendant Controller

XDL10-EPB5 5-Button Handheld Pendant Controller for Multi-Function Equipment

The XDL10-EPB5 is an extended 5-button handheld pendant controller designed for equipment that requires multiple momentary control commands in one compact operator unit. With 5 flush push buttons, spring-return operation, two-button interlock protection, IP65 enclosure protection, and PG13.5 cable entry, it is suitable for hydraulic systems, tail lifts, lifting platforms, truck-mounted equipment, hoists, cranes, and customized machinery control.

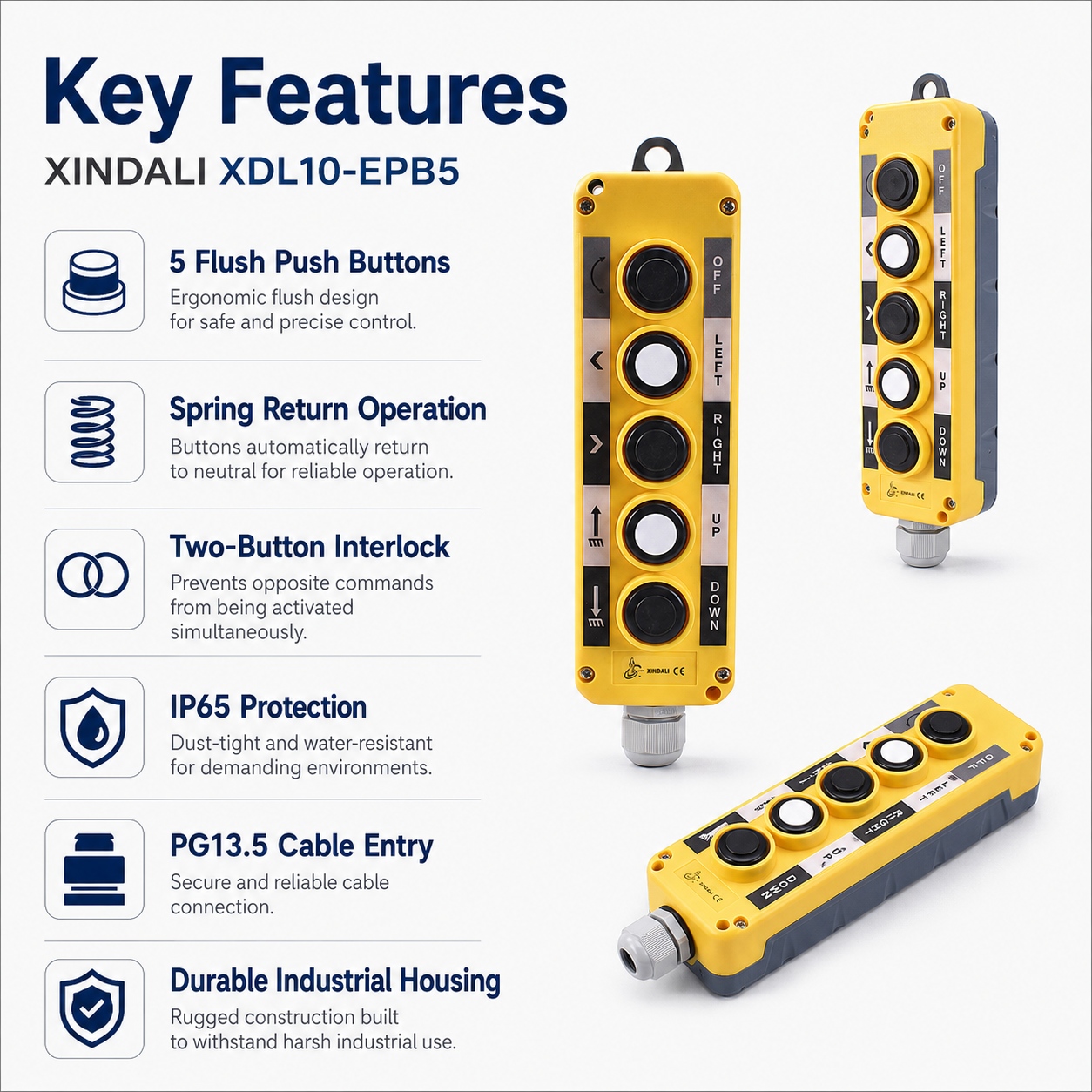

5 Control Commands 5 Flush Push Buttons Spring Return Two-Button Interlock IP65 Rated Optional Holder Magnetic Back Option

Extended Control for More Complex Equipment

The XDL10-EPB5 is built for applications where four commands are not enough. Its 5-button layout allows equipment manufacturers to integrate more control functions into one handheld unit, such as left / right / up / down / auxiliary, raise / lower / start / stop / reset, or other customized hydraulic and mechanical control logic.

This makes the XDL10-EPB5 a practical choice for OEM projects, vehicle-mounted equipment, service vehicles, lifting platforms, hydraulic units, and machinery requiring a compact but more complete control interface.

Why Choose a 5-Button Pendant Controller?

More Functions in One Unit
Five buttons allow additional commands without adding a separate control box or extra operator station.
Suitable for Sequenced Actions
Ideal for equipment that requires multiple step-by-step actions, auxiliary movement, or additional safety-related control.
Momentary Spring Return
Each flush push button returns automatically after release, supporting press-and-hold control logic.
Interlock for Opposite Commands
Two-button interlock helps prevent opposite actions from being triggered at the same time.

Holder and Magnetic Mounting Option

The XDL10 Series can be matched with the XDL10-EPC box holder. The holder keeps the pendant controller in a fixed storage position and helps protect the controller when it is not being used. This is useful for truck tail lifts, hydraulic equipment, vehicle bodies, and mobile machinery.

The controller can also be supplied with strong magnets installed on the back. This magnetic mounting option allows the pendant controller to attach directly to truck bodies, lift platforms, metal panels, or machine frames for quick access during operation.

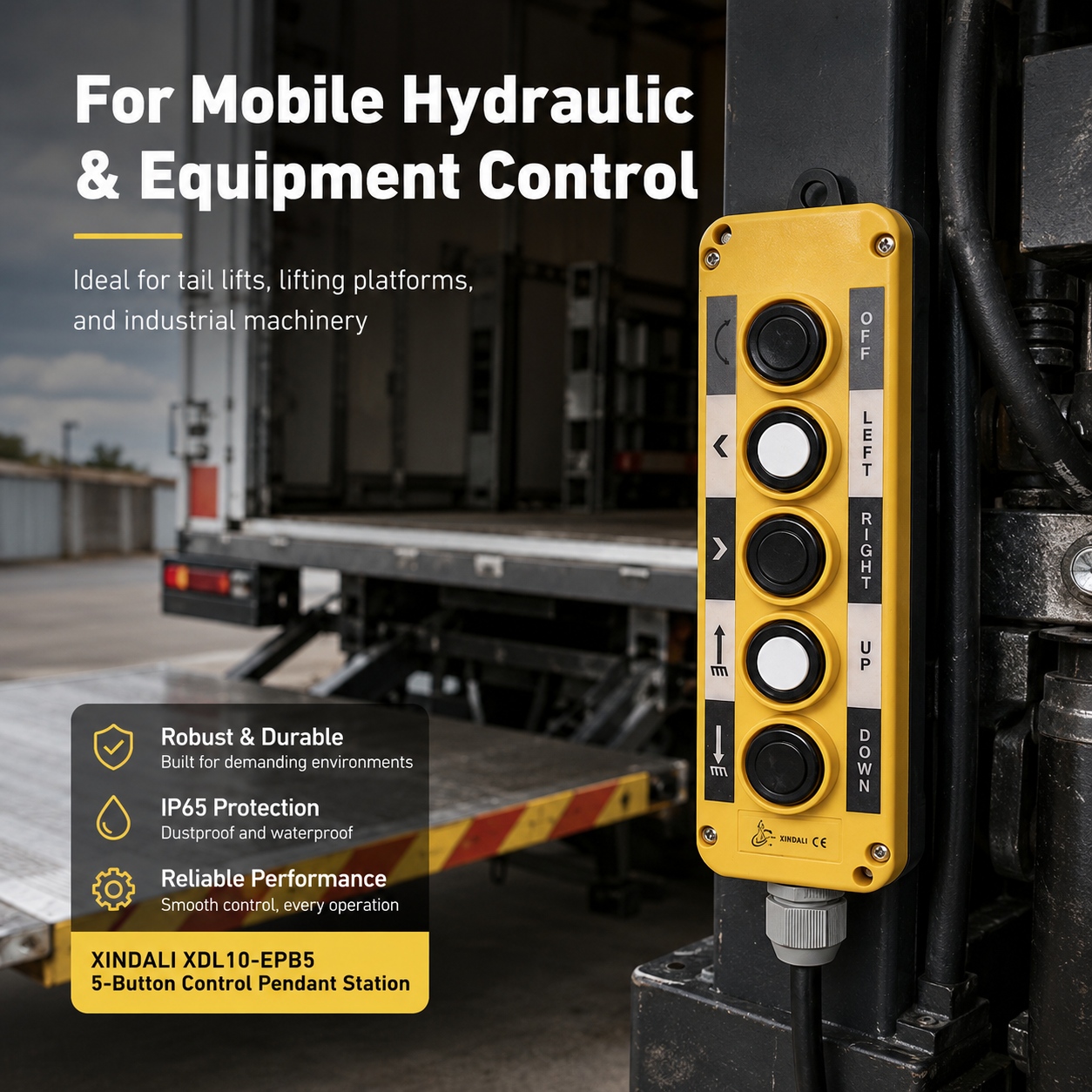

Application Scenarios

The XDL10-EPB5 is suitable for equipment that requires extended handheld control with five momentary commands:

• Tail lift control systems
• Hydraulic lifting platforms
• Truck-mounted equipment
• Tipping trailers and dump bodies
• Small cranes and hoists
• Vehicle-mounted hydraulic units
• Mobile service equipment
• OEM multi-command control assemblies

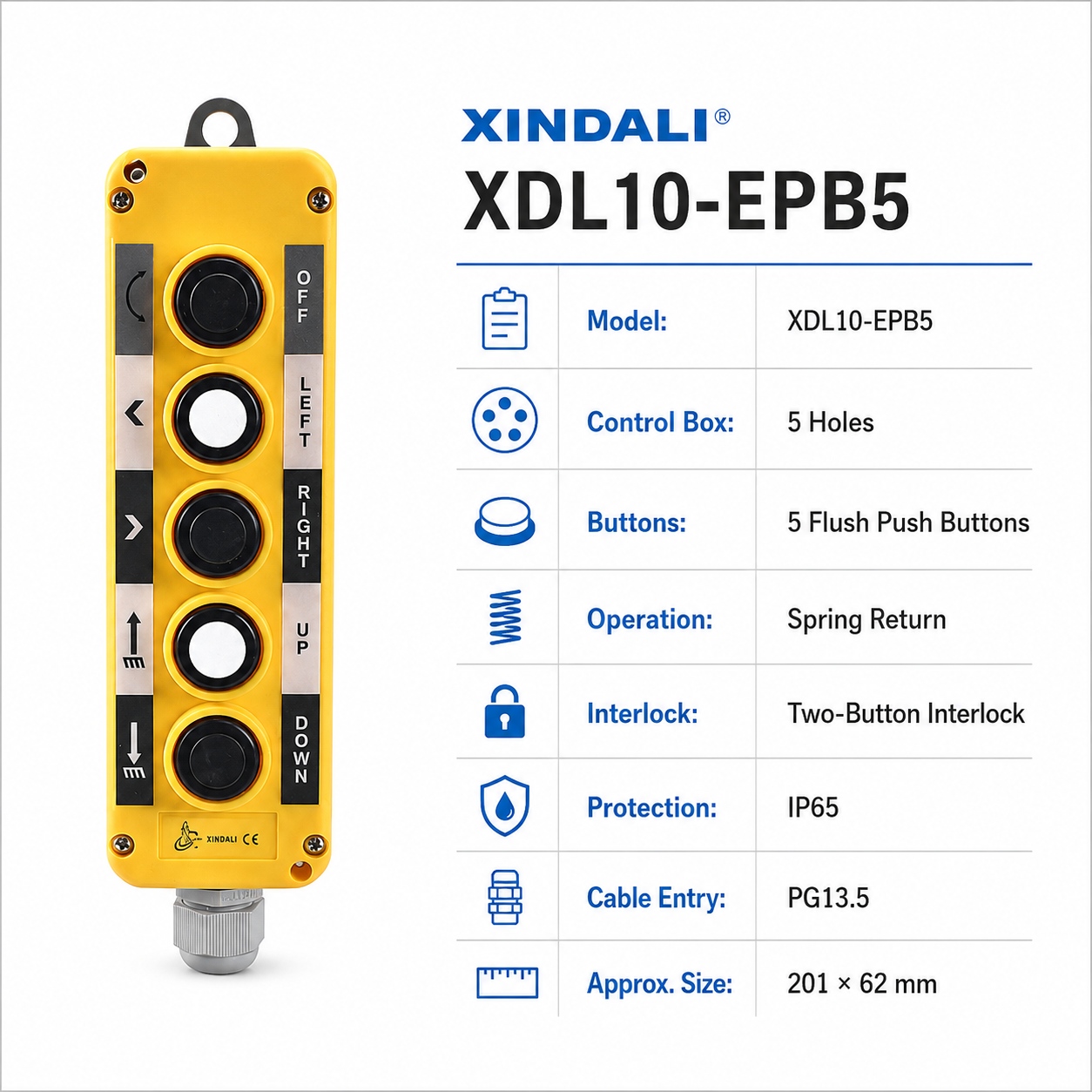

Technical Specifications

Product Model XDL10-EPB5
Alternative Contact Version XDL10-EPB52
Series XDL10 Series
Product Type 5-Button Handheld Pendant Controller
Control Box Structure 5 Holes Control Box
Button Type 5 Flush Push Buttons
Operation Mode Spring Return / Momentary
Interlock Function Two-Button Interlock
Contact Version N/O version or 2N/O version according to model configuration
Protection Level IP65
Cable Entry PG13.5
Approx. Size 201 × 62 mm
Approx. Housing Width 45.9 mm
Holder Option XDL10-EPC holder available
Magnetic Option Strong back magnets available for truck body or metal surface mounting

People Also Ask

Common questions about choosing a 5-button pendant controller for hydraulic and mobile equipment.

What is the XDL10-EPB5 used for?

XDL10-EPB5 is used for equipment that requires five momentary control commands, such as hydraulic lifting equipment, tail lifts, truck-mounted machinery, cranes, hoists, and customized industrial control systems.

Why choose a 5-button pendant controller?

A 5-button pendant controller is suitable when the machine needs more than basic up/down or left/right control. It allows extra functions such as auxiliary movement, start, stop, reset, open, close, or customized hydraulic actions.

What does spring return mean on this controller?

Spring return means the button returns to its original position after the operator releases it. This is suitable for momentary machine control where the equipment moves only while the button is pressed.

Can XDL10-EPB5 be used with a holder?

Yes. The XDL10-EPB5 can be used with the optional XDL10-EPC holder, which helps store the pendant controller safely and keeps it easy to access.

Can the controller be attached to a truck body?

Yes. Strong magnets can be installed on the back of the controller, allowing it to attach directly to truck bodies, metal panels, or machine frames.

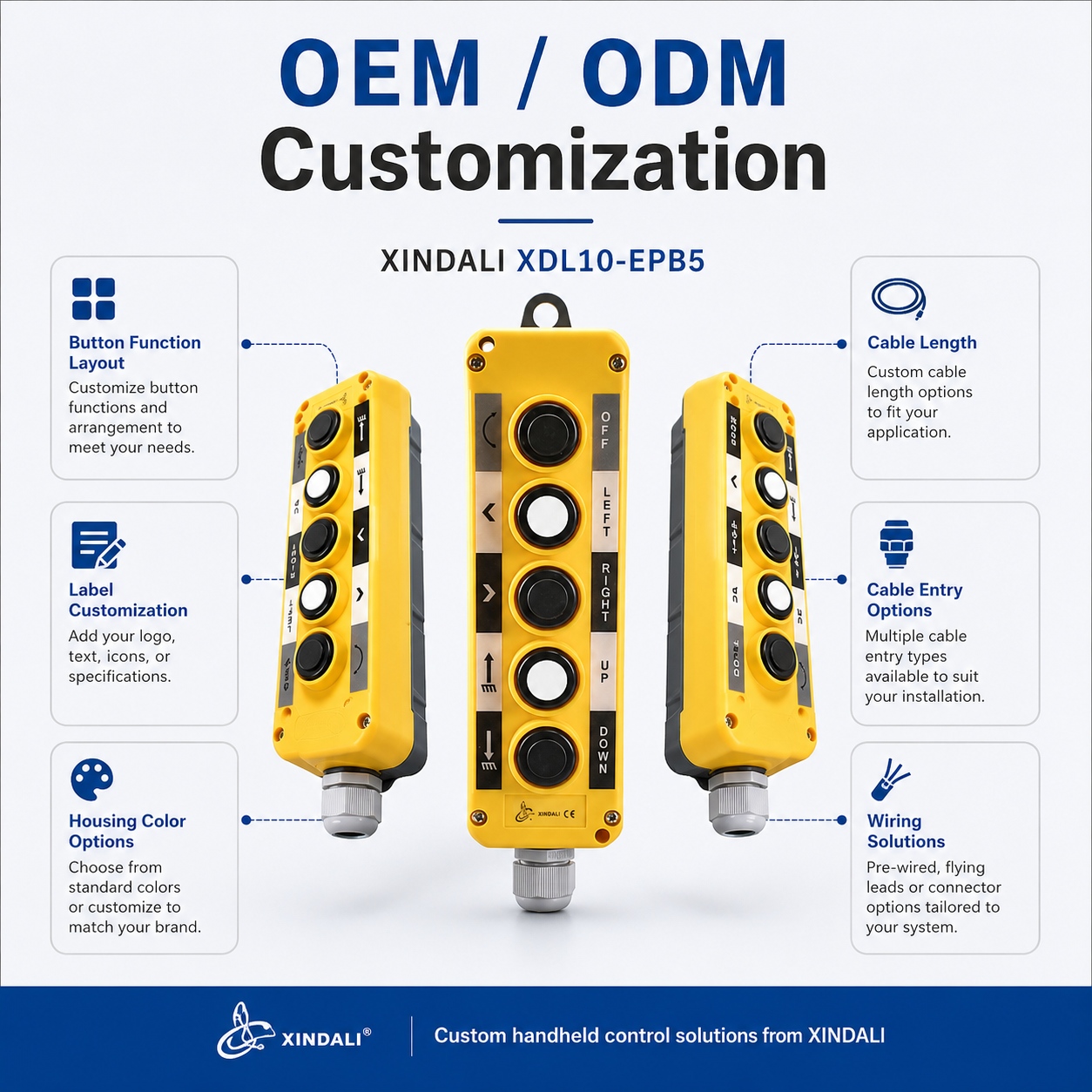

Can XDL10-EPB5 be customized for OEM projects?

Yes. XINDALI supports OEM and ODM customization, including button layout, contact configuration, button color, label design, cable length, holder matching, magnetic mounting, and wiring solutions.

Need a 5-Button Pendant Controller?

Contact XINDALI for XDL10-EPB5 quotation, wiring options, custom labels, holder matching, magnetic mounting, and OEM pendant controller solutions.
