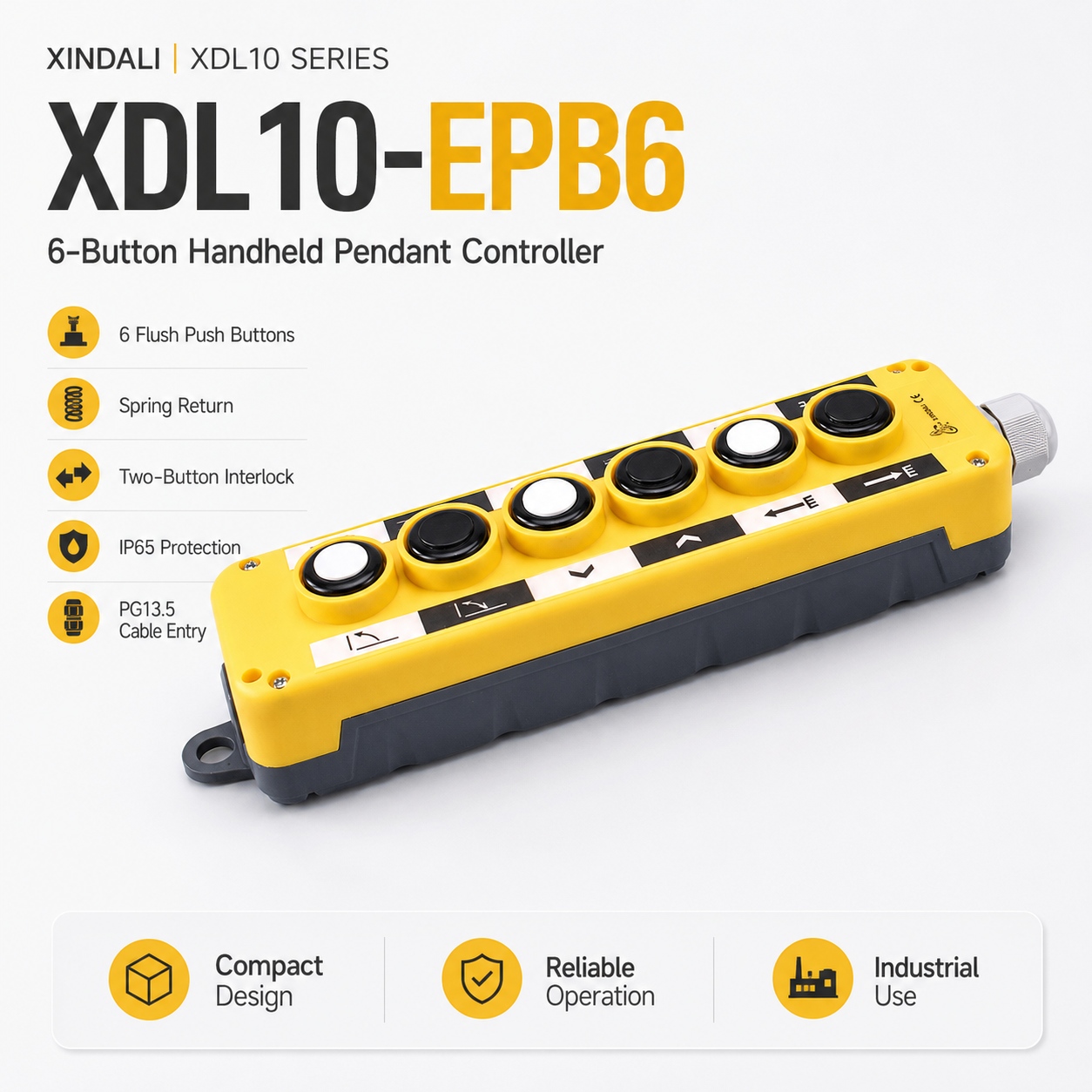

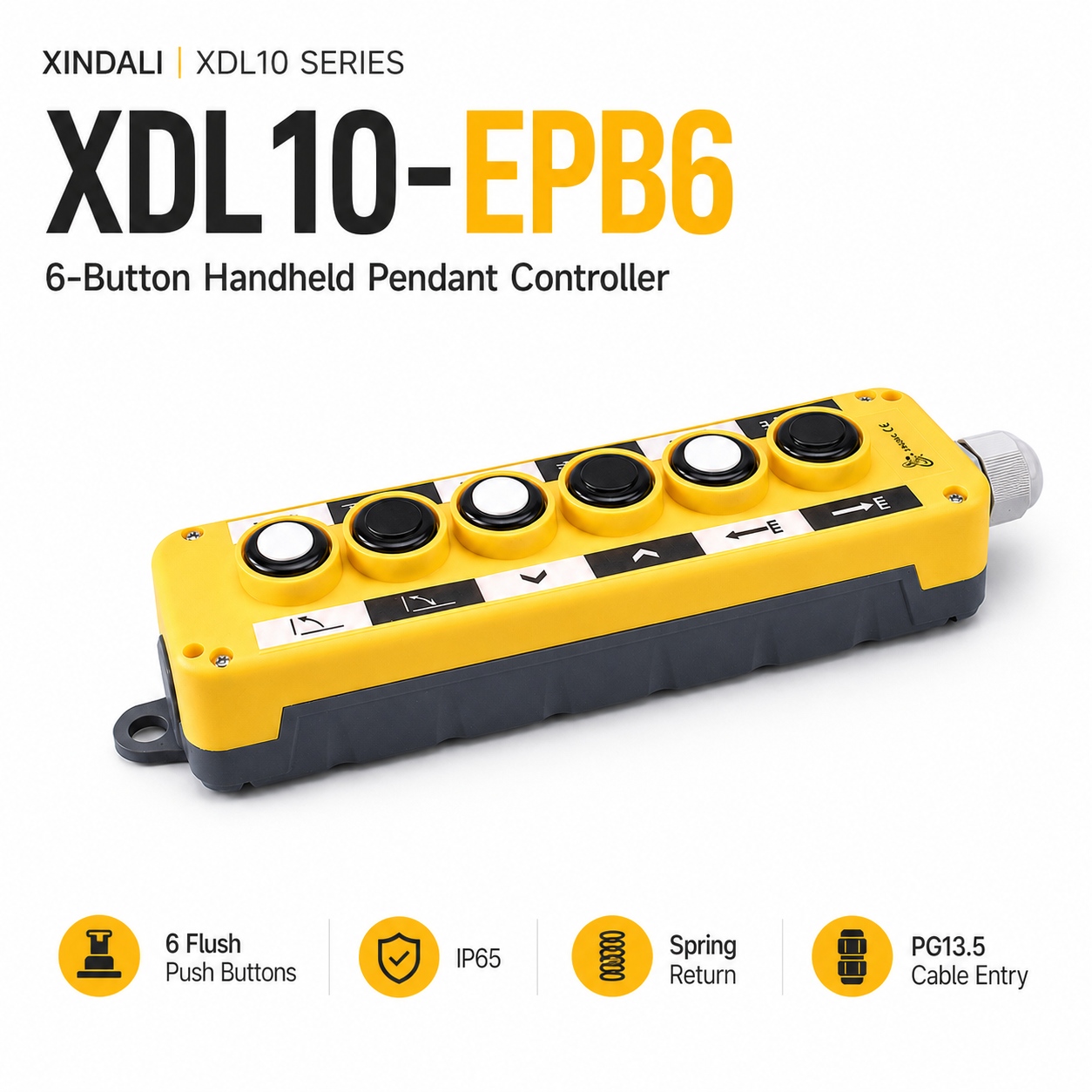

XDL10-EPB6 6-Button Handheld Pendant Controller for Multi-Axis Equipment | XINDALI

XDL10-EPB6 is a 6-button handheld pendant controller for multi-axis hydraulic systems, tail lifts, truck-mounted equipment, lifting platforms, hoists, cranes, and customized machinery control. Features spring-return buttons, two-button interlock, IP65 protection, PG13.5 cable entry, optional holder, and magnetic mounting.

  • Product Model XDL10-EPB6
  • Series XDL10 Series
  • Product Type 6-Button Handheld Pendant Controller
  • Control Box Structure 6 Holes Control Box
  • Button Configuration 6 Flush Push Buttons
  • Button Operation Spring Return / Momentary
  • Interlock Type Two-Button Interlock
  • Contact Configuration N/O or 2N/O options according to model configuration
  • Protection Level IP65
  • Cable Entry PG13.5
  • Application Industrial machinery, hydraulic systems, tail lift control, tipping trailers, automation equipment
  • Approx. Size 234 × 62 mm
  • Approx. Housing Width 45.9 mm
  • Holder Optional XDL10-EPC box holder
  • Mounting Option Optional strong back magnet for truck body or metal surface attachment
Contact us
Product Detail

XINDALI XDL10 Series | 6-Command Multi-Axis Pendant Controller

XDL10-EPB6 6-Button Handheld Pendant Controller for Multi-Axis Equipment Control

The XDL10-EPB6 is a 6-button handheld pendant controller designed for equipment requiring multiple movement directions or multi-axis operation. With 6 flush push buttons, spring-return operation, two-button interlock, IP65 protection, and PG13.5 cable entry, it provides a compact operator interface for hydraulic systems, truck-mounted equipment, lifting platforms, tail lifts, hoists, cranes, and customized industrial machinery.

6 Control Commands 6 Flush Push Buttons Spring Return Two-Button Interlock IP65 Rated Optional Holder Magnetic Back Option

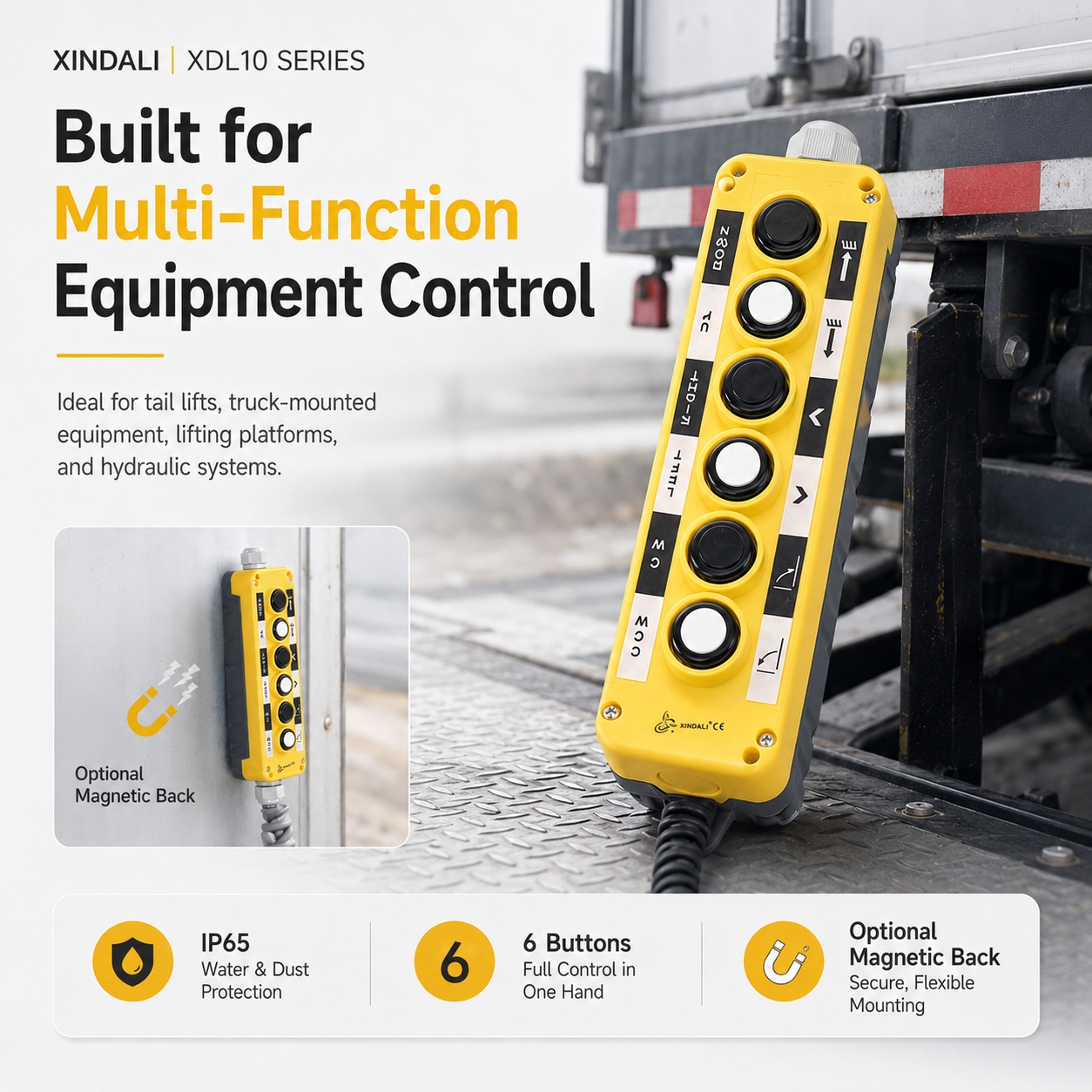

Built for Multi-Axis and Multi-Function Control

The XDL10-EPB6 is designed for machines that need more complete handheld control than a basic 2-button, 4-button, or 5-button pendant controller. Its 6-button layout allows equipment manufacturers to configure multiple command groups such as up / down, left / right, extend / retract, open / close, or other customized hydraulic and mechanical functions.

This model is especially useful for mobile hydraulic equipment, lifting platforms, vehicle-mounted machinery, service trucks, industrial control stations, and OEM control projects where operators need several commands in one compact and portable controller.

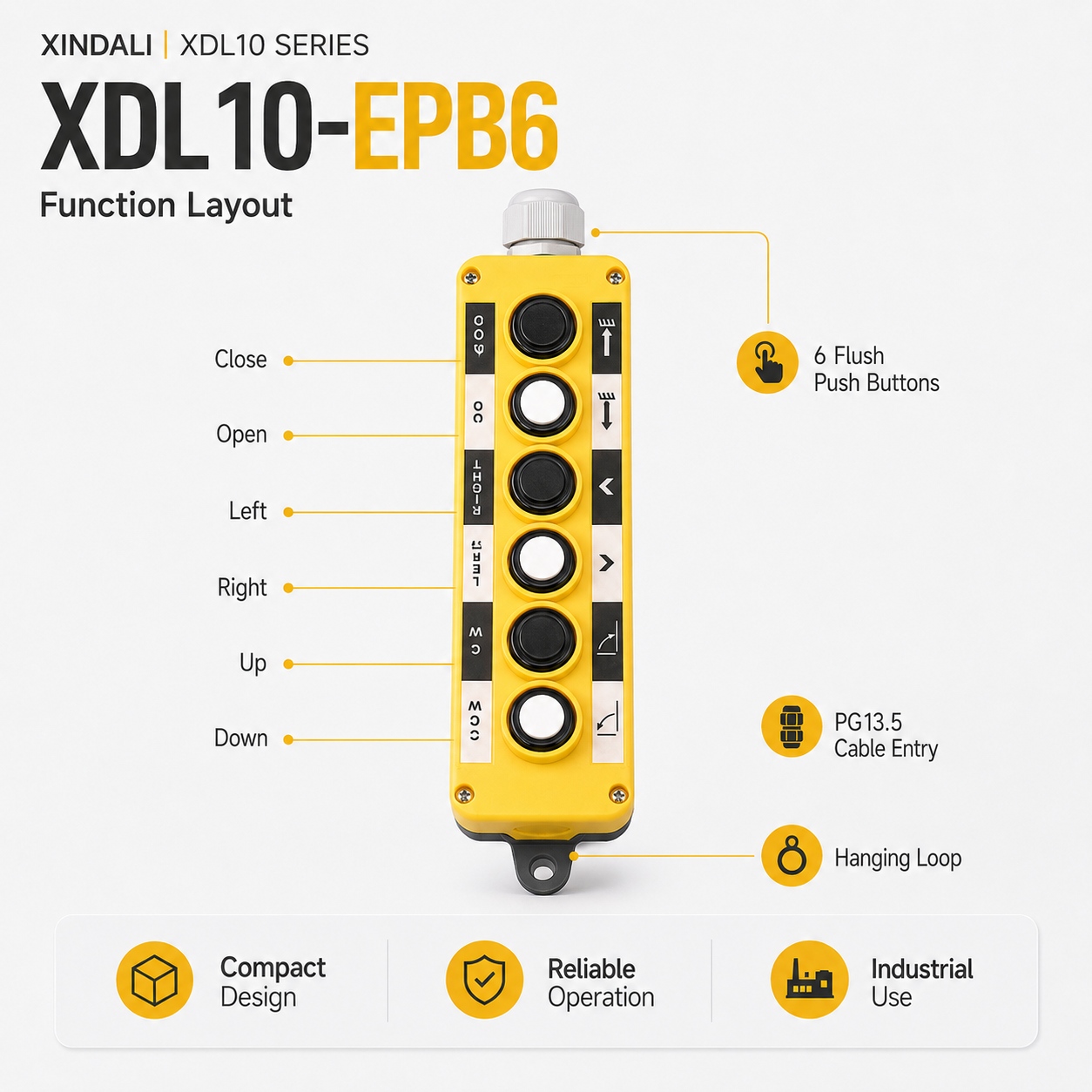

Six-Command Control Layout

More Command Groups
Six push buttons allow more control actions to be integrated into one handheld unit, reducing the need for additional control boxes.
Multi-Axis Operation
Suitable for machines that require several movement directions, such as left/right, up/down, forward/reverse, or extend/retract.
Spring-Return Buttons
Each flush push button returns automatically after release, making it suitable for momentary control and press-and-hold operation.
Two-Button Interlock
Interlock structure helps prevent opposite commands from being activated at the same time, improving operational safety.

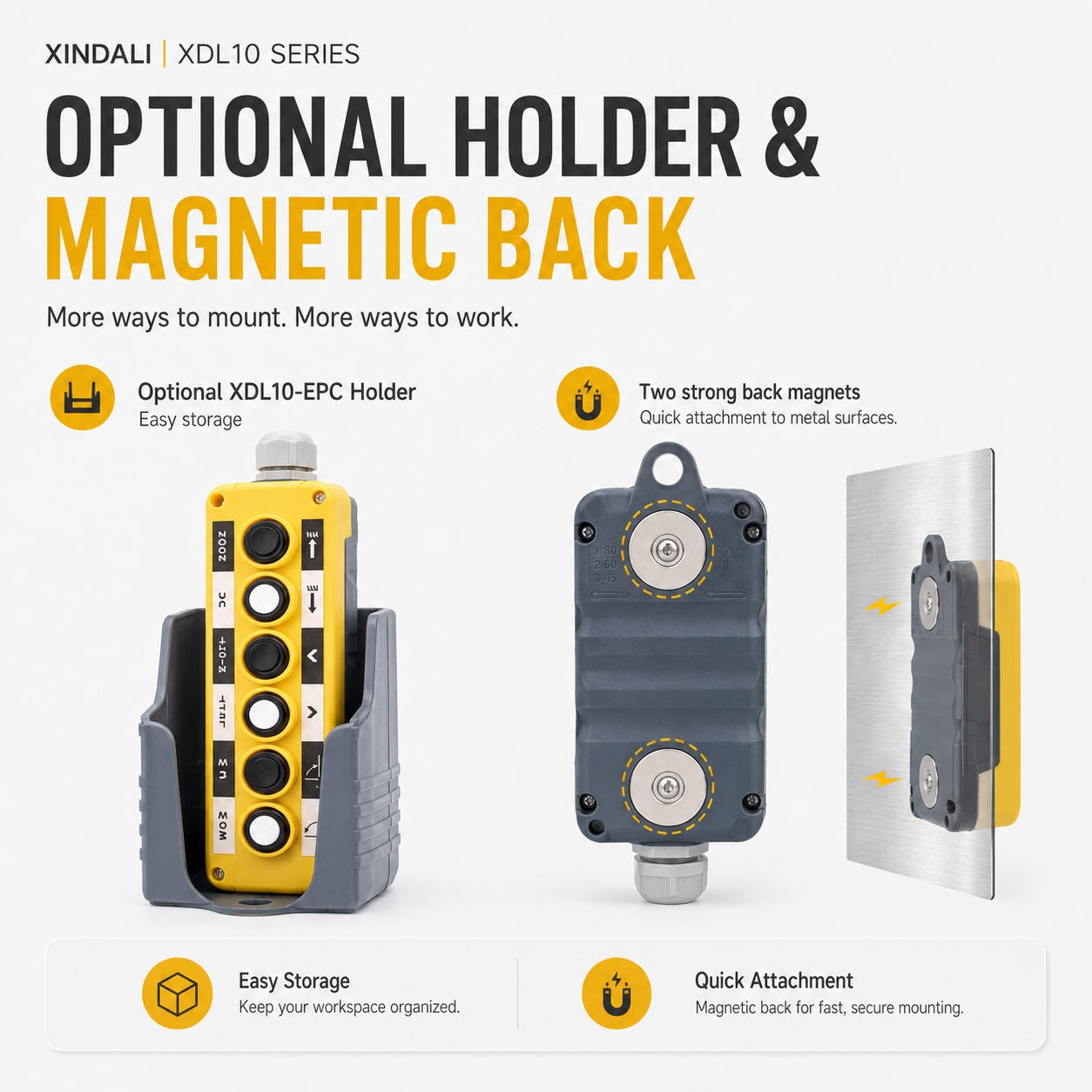

Holder and Magnetic Mounting Option

The XDL10 Series can be matched with the XDL10-EPC box holder. The holder keeps the pendant controller in a fixed storage position and helps protect the controller when it is not in operation.

For truck-mounted and mobile equipment applications, the controller can also be supplied with strong magnets installed on the back. This allows the pendant controller to attach directly to truck bodies, lift platforms, metal panels, or machine frames for quick access during operation.

Application Scenarios

The XDL10-EPB6 is suitable for equipment requiring advanced handheld control with six momentary commands:

• Multi-axis hydraulic control
• Tail lift control systems
• Truck-mounted equipment
• Hydraulic lifting platforms
• Tipping trailers and dump bodies
• Small cranes and hoists
• Mobile service equipment
• OEM multi-command control assemblies

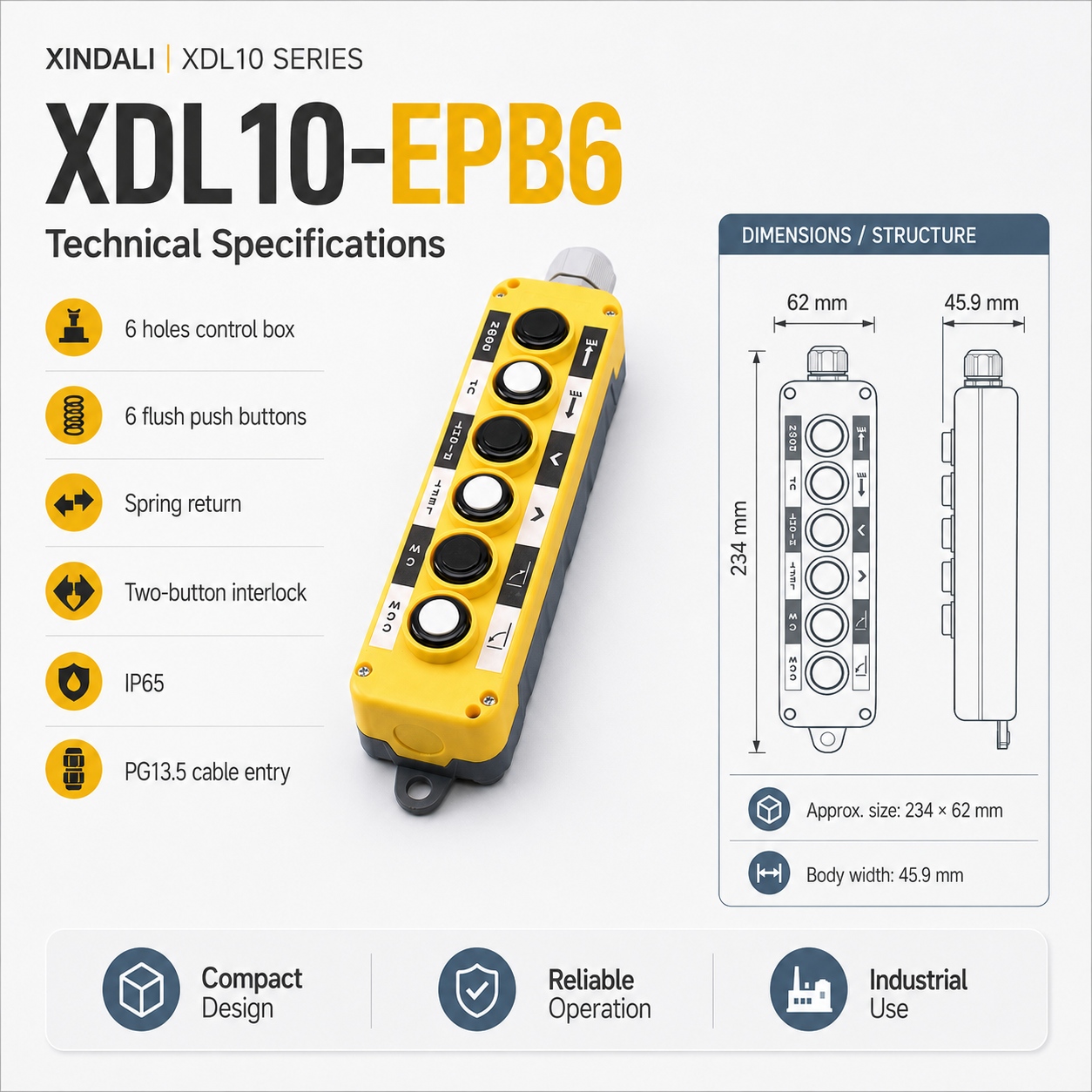

Technical Specifications

Product Model XDL10-EPB6
Alternative Contact Version XDL10-EPB62
Series XDL10 Series
Product Type 6-Button Handheld Pendant Controller
Control Box Structure 6 Holes Control Box
Button Type 6 Flush Push Buttons
Operation Mode Spring Return / Momentary
Interlock Function Two-Button Interlock
Contact Version N/O version or 2N/O version according to model configuration
Protection Level IP65
Cable Entry PG13.5
Approx. Size 234 × 62 mm
Approx. Housing Width 45.9 mm
Holder Option XDL10-EPC holder available
Magnetic Option Strong back magnets available for truck body or metal surface mounting

People Also Ask

Common questions about selecting a 6-button pendant controller for multi-axis equipment control.

What is the XDL10-EPB6 used for?

XDL10-EPB6 is used for equipment requiring six momentary control commands, such as multi-axis hydraulic systems, truck-mounted equipment, tail lifts, lifting platforms, cranes, hoists, and customized industrial machinery.

When should I choose a 6-button pendant controller?

A 6-button pendant controller is suitable when the machine needs several command groups, such as left/right, up/down, extend/retract, open/close, or other customized control functions.

What does two-button interlock mean?

Two-button interlock helps prevent opposite or related commands from being pressed at the same time. This is useful for movement control such as up/down, left/right, or forward/reverse.

Can the XDL10-EPB6 be used with a holder?

Yes. The XDL10-EPB6 can be used with the optional XDL10-EPC holder, which helps store the pendant controller safely and keeps it easy to access during operation.

Can the controller be attached to a truck body?

Yes. Strong magnets can be installed on the back of the controller, allowing it to attach directly to truck bodies, metal panels, lift platforms, or machine frames.

Can XDL10-EPB6 be customized for OEM equipment?

Yes. XINDALI supports OEM and ODM customization, including button layout, contact configuration, label design, cable length, wiring solutions, holder matching, magnetic mounting, and custom control logic.

Need a 6-Button Multi-Axis Pendant Controller?

Contact XINDALI for XDL10-EPB6 quotation, wiring options, custom labels, holder matching, magnetic mounting, and OEM pendant controller solutions.
