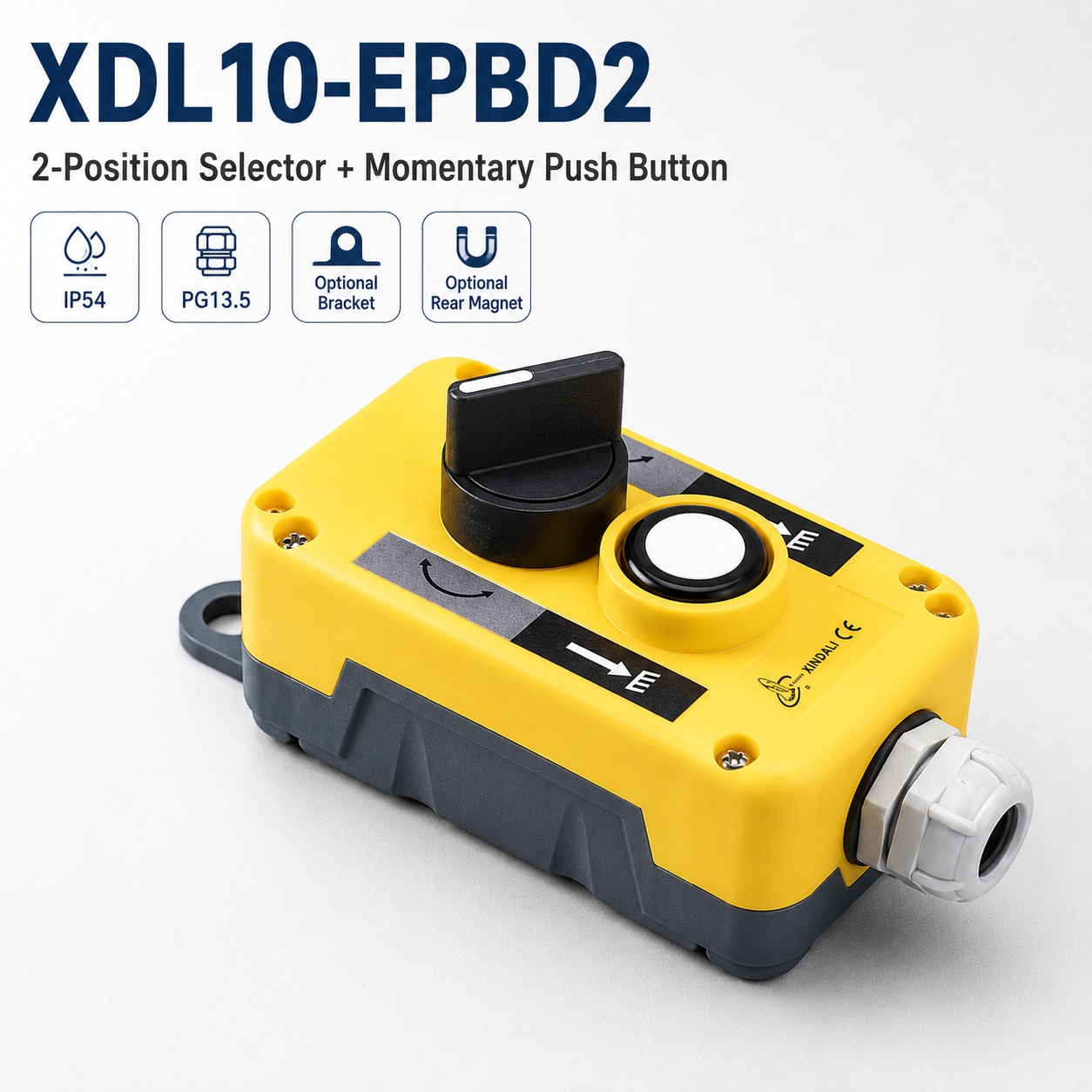

XDL10-EPBD2 2-Position Selector Switch Pendant Controller with Momentary Push Button
XDL10-EPBD2 2-Position Selector Switch Pendant Controller with Momentary Push Button
The XDL10-EPBD2 combines one 2-position stay-put selector switch and one spring-return flush push button in a compact handheld control enclosure. It provides a practical solution for industrial equipment requiring a maintained mode selection together with one momentary operating command.
Simple Mode Selection Without a Key
Unlike the XDL10-EPBG models that use a keyed selector switch, the XDL10-EPBD2 uses a conventional selector operator. This makes it suitable for applications where operators need quick access to a maintained two-position mode without key authorization.
The selector can be assigned to functions such as ON/OFF, LOCAL/REMOTE, MANUAL/AUTO or MODE 1/MODE 2, depending on the final machine circuit.
Selector + Single Command Architecture
The second control position is a spring-return push button, allowing the operator to make a momentary command after selecting the required machine mode.
Typical command assignments may include:
- START
- JOG
- RESET
- UP / LIFT
- TEST
- Auxiliary machine command

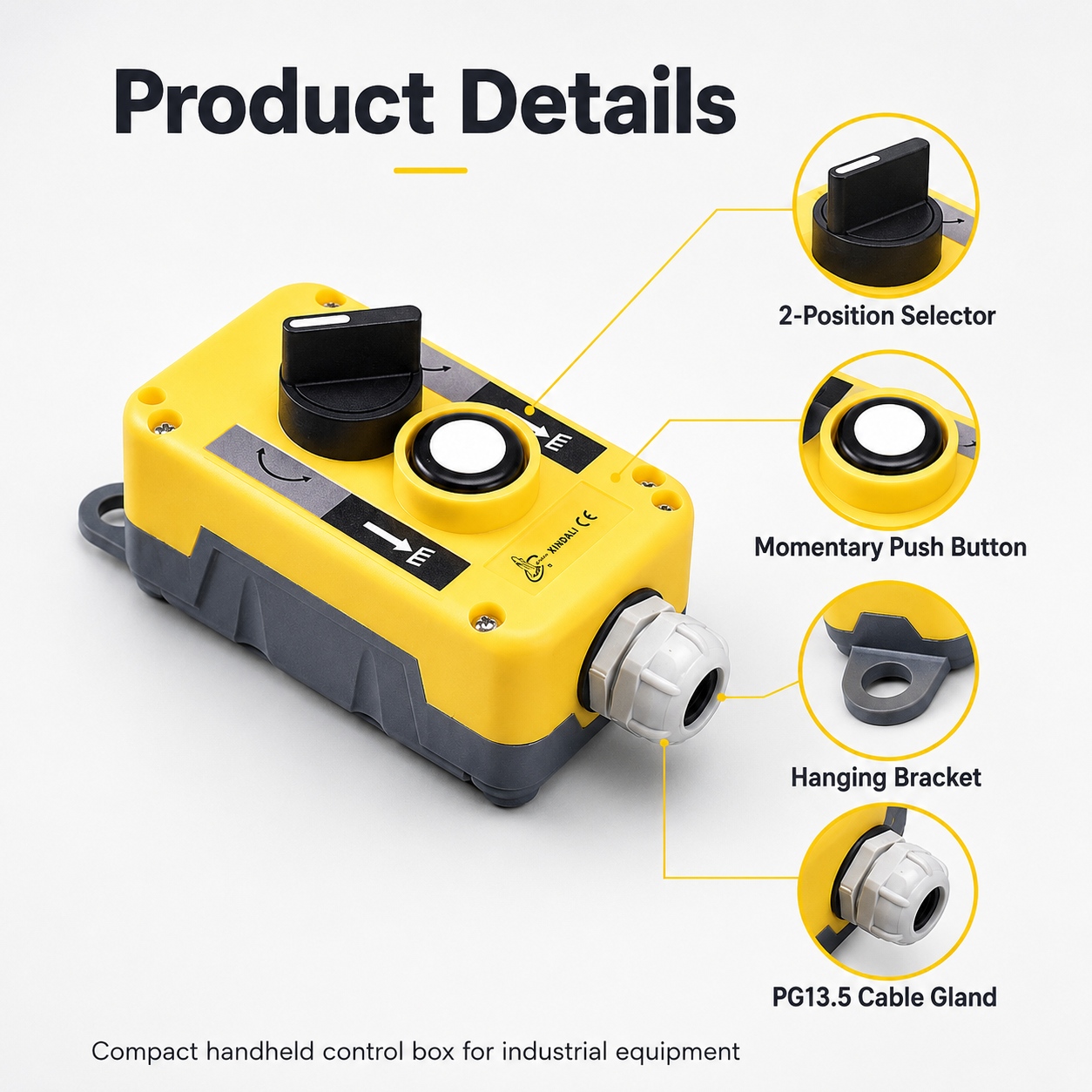

Two Control Elements, Two Different Functions
2-Position Selector Switch
Maintains the selected position and can be used for machine mode, circuit selection or operating-state control.
Spring-Return Push Button
Provides a momentary command and returns automatically after release.

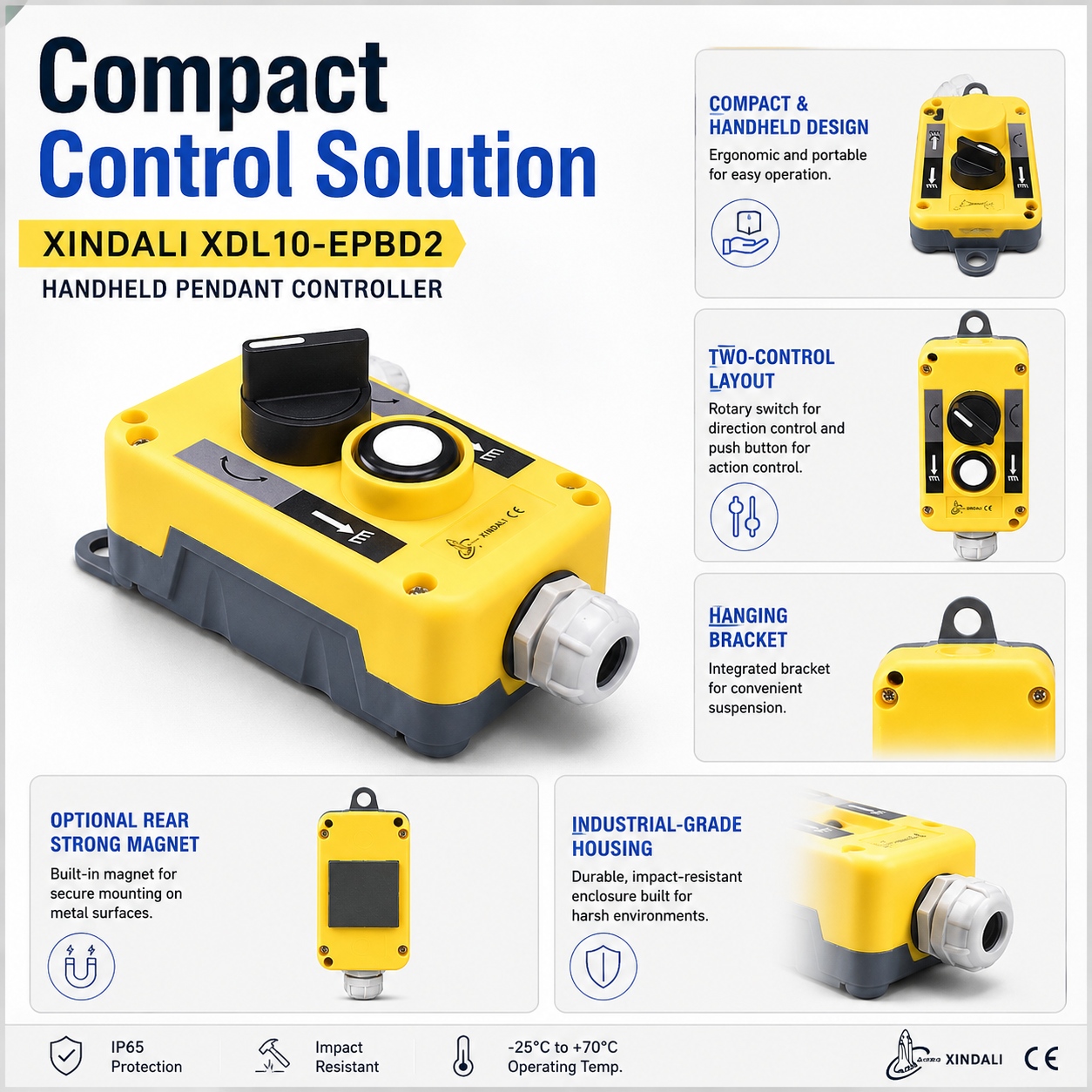

Compact Handheld Housing
Integrates selector and command functions into one portable two-position controller.
Typical Operating Logic
The EPBD2 can be configured as a simple two-stage handheld operating station.
01 — Choose Mode Turn the selector switch to the required maintained position.
02 — Confirm State The selector remains in the chosen position until manually changed.
03 — Send Command Press the momentary push button to activate the assigned function.
04 — Release Button The push button automatically returns after the operator releases it.

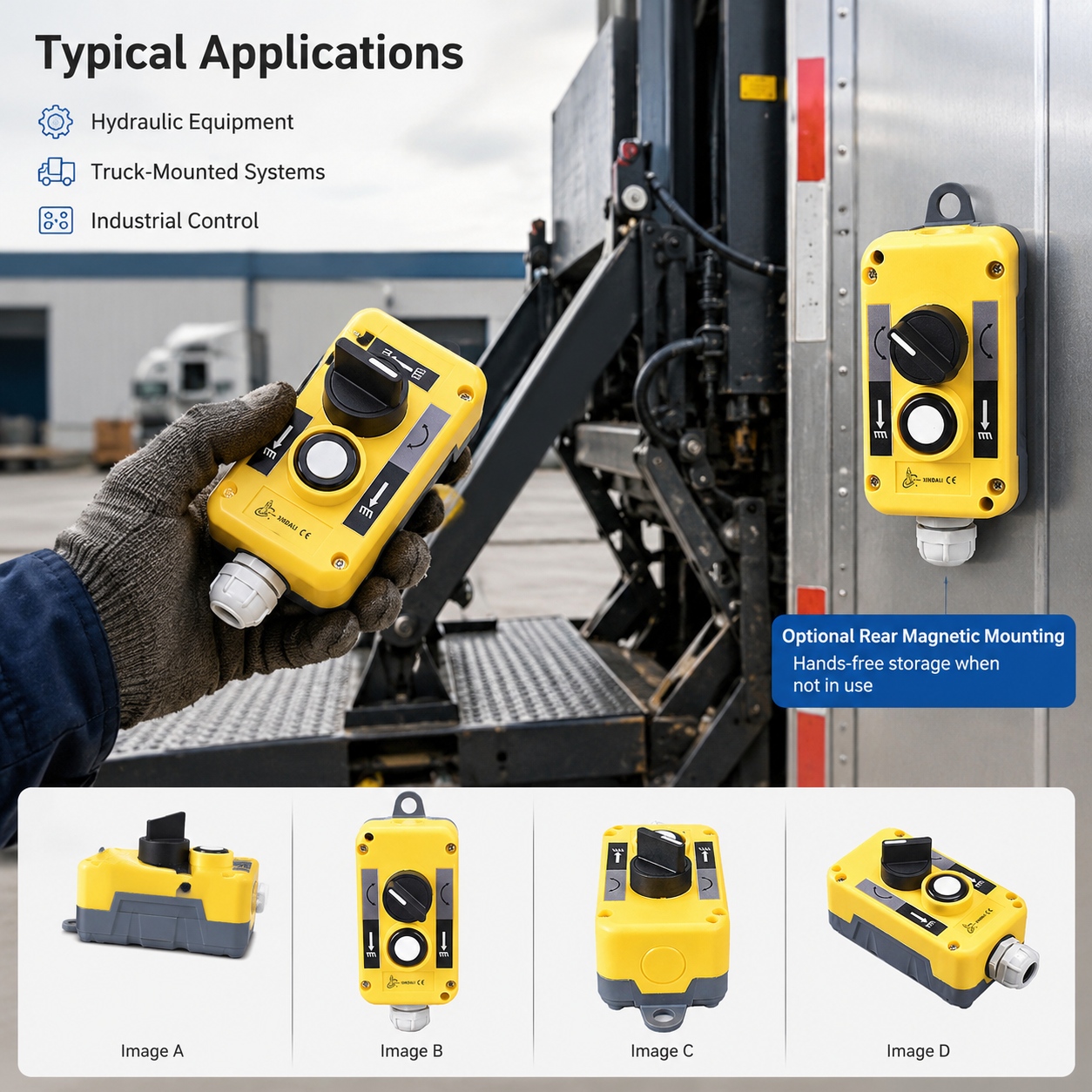

Where Can XDL10-EPBD2 Be Used?
Hydraulic Equipment
Suitable for selecting an operating mode and sending one hydraulic control command.
Truck-Mounted Machinery
Compact handheld control for vehicle-mounted equipment and service machinery.
Tail Lift Systems
Can be configured for mode selection plus a single lift, lower or auxiliary command.
Maintenance Stations
Useful for local/manual mode selection combined with a momentary test or jog command.
Industrial Machinery
Suitable for OEM machines requiring a compact selector and push-button control arrangement.
Custom OEM Assemblies
Selector function, labels, contacts, cable and wiring can be configured to suit the project.
XDL10-EPBD2 vs. Other Two-Position XDL10 Controllers
| Model | Control Layout | Main Difference | Recommended Search Intent |
|---|---|---|---|
| XDL10-EPBD2 | 1 selector + 1 push button | Non-keyed maintained selector | Mode selection + single command |
| XDL10-EPBG2 | 1 keyed selector + 1 push button | Key-controlled maintained selector | Authorized keyed selection |
| XDL10-EPB2 | 2 push buttons | No selector switch | General two-command pendant |
| XDL10-EPBS2 | 1 E-stop + 1 push button | Turn-release emergency stop | Emergency-stop pendant control |
| XDL10-EPBK2 | 1 key-release E-stop + 1 push button | Keyed emergency-stop release | Restricted emergency-stop reset |
Storage Holder and Magnetic Mounting Options
Optional XDL10-EPC Holder
The XDL10 Series holder provides a dedicated storage position for the handheld controller when it is not in use. It can be mounted on machinery, vehicle bodies or other suitable surfaces.
Optional Strong Rear Magnets
Rear magnets can be fitted to the controller for temporary attachment to suitable ferrous truck bodies, steel machinery frames and industrial equipment surfaces.

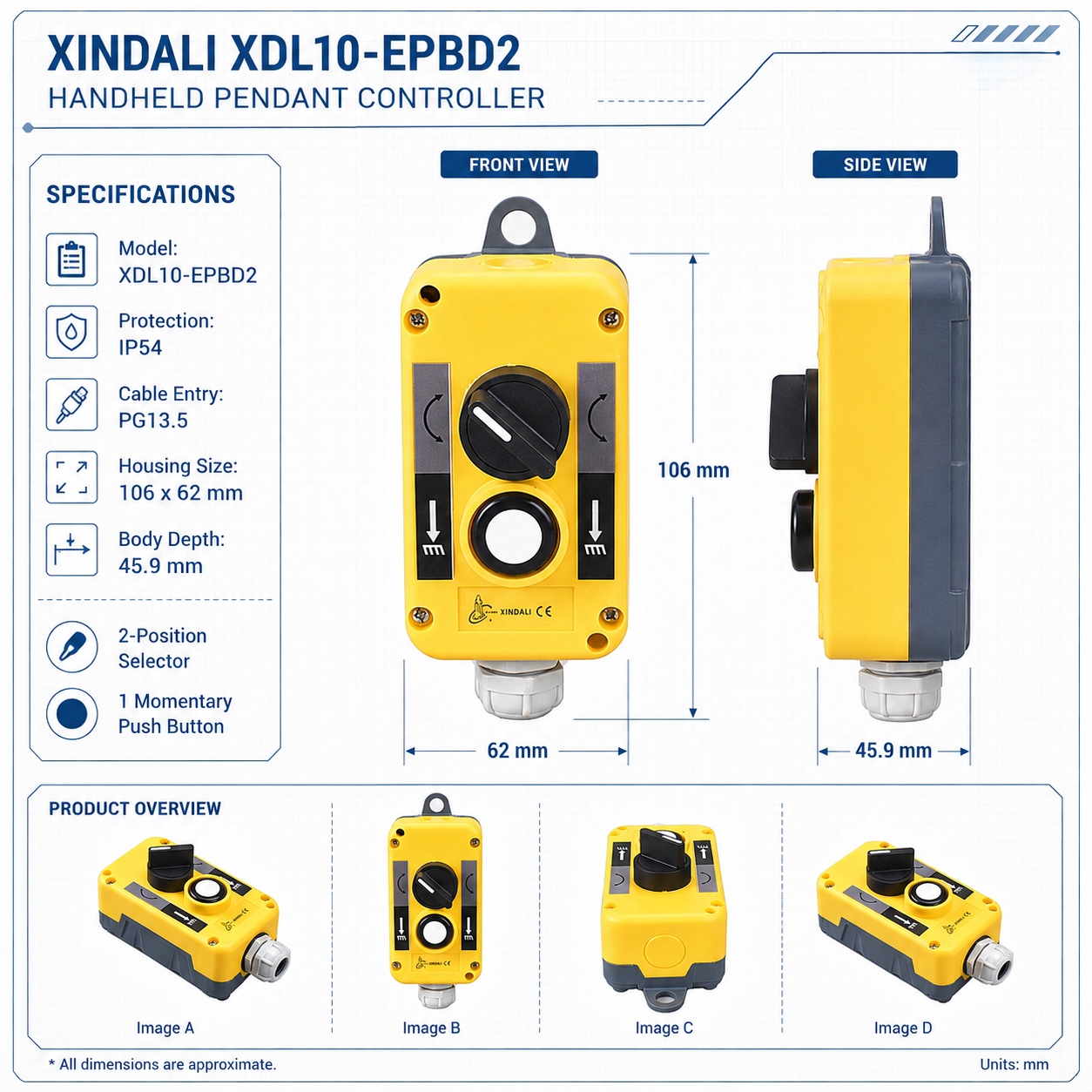

XDL10-EPBD2 Technical Specifications
| Model | XDL10-EPBD2 |
| Alternative Contact Version | XDL10-EPBD22 |
| Series | XDL10 Series |
| Housing Layout | 2 holes control box |
| Selector Switch | 1 selector switch |
| Selector Operation | 2-position stay put |
| Selector Contact | N/O |
| Push Button | 1 flush push button |
| Push Button Operation | Spring return / momentary |
| Push Button Contact – EPBD2 | N/O |
| Push Button Contact – EPBD22 | 2N/O |
| Interlock | Two-control interlock arrangement |
| Protection Level | IP54 |
| Cable Entry | PG13.5 |
| Approx. Housing Size | 106 × 62 mm |
| Approx. Housing Depth | 45.9 mm |
| Approx. Selector Projection | 27 mm |
| Optional Accessories | XDL10-EPC holder, rear magnets, custom labels, cable and wiring options |
OEM Selector Pendant Controller Configuration
XDL10-EPBD2 can be configured for different machine-control applications. XINDALI supports OEM projects involving:
Custom Function Labels
ON/OFF, LOCAL/REMOTE, MANUAL/AUTO, START, JOG or application-specific symbols.
Contact Configuration
Contact arrangements can be matched to the machine control circuit.
Cable & Wiring
Cable length and pre-wiring options can be discussed for OEM assembly projects.
People Also Ask
Common questions about selector switch pendant controllers.
What is XDL10-EPBD2 used for?
XDL10-EPBD2 is designed for equipment requiring a maintained two-position selector and one spring-return momentary command in a compact handheld controller.
What can the 2-position selector switch control?
Depending on the machine circuit, it can be assigned to ON/OFF, LOCAL/REMOTE, MANUAL/AUTO or another two-position maintained control function.
Is the selector switch on EPBD2 key operated?
No. XDL10-EPBD2 uses a standard non-keyed selector switch. For a keyed selector version, the XDL10-EPBG Series is the more appropriate option.
How is XDL10-EPBD2 different from XDL10-EPBG2?
Both models combine a maintained selector with one momentary push button, but EPBD2 uses a conventional selector while EPBG2 uses a keyed selector switch.
What is the difference between XDL10-EPBD2 and XDL10-EPBD22?
They use the same basic control layout. XDL10-EPBD2 uses an N/O push-button contact, while XDL10-EPBD22 uses a 2N/O push-button contact arrangement.
Can XDL10-EPBD2 be mounted on a truck body?
Yes. Optional rear magnets allow temporary attachment to suitable ferrous truck bodies or metal machinery surfaces. An XDL10-EPC holder is also available for storage.
Can the selector and push-button functions be customized?
Yes. XINDALI can support customized function labels, contact arrangements, cable length, wiring, holder matching and magnetic mounting according to OEM requirements.
Related XDL10 Control Solutions
Need key-controlled mode selection instead? Compare the XDL10-EPBG2 keyed selector pendant controller .
For two simple momentary commands without a selector switch, see the XDL10-EPB2 two-button handheld pendant .
Browse more industrial handheld pendant controllers or contact XINDALI for a customized selector control solution .
Need a Compact Selector Switch + Momentary Command Controller?
Send XINDALI your selector function, push-button command, contact arrangement, cable length and mounting requirements for an XDL10-EPBD2 quotation or OEM configuration.
Request a Quotation
