One Selector Defines the Operating State

The rotary selector remains in the selected position until manually changed. Depending on the equipment circuit, it can be used for functions such as LOCAL / REMOTE, MANUAL / AUTO, ON / OFF or another two-state operating mode.

More Functions Without Moving to a Large Control Panel

Three spring-return push buttons allow the controller to handle an additional machine command beyond a standard two-button pendant. Depending on the application, the buttons can be assigned to directional movement, jog control, reset, auxiliary movement or project-specific commands.

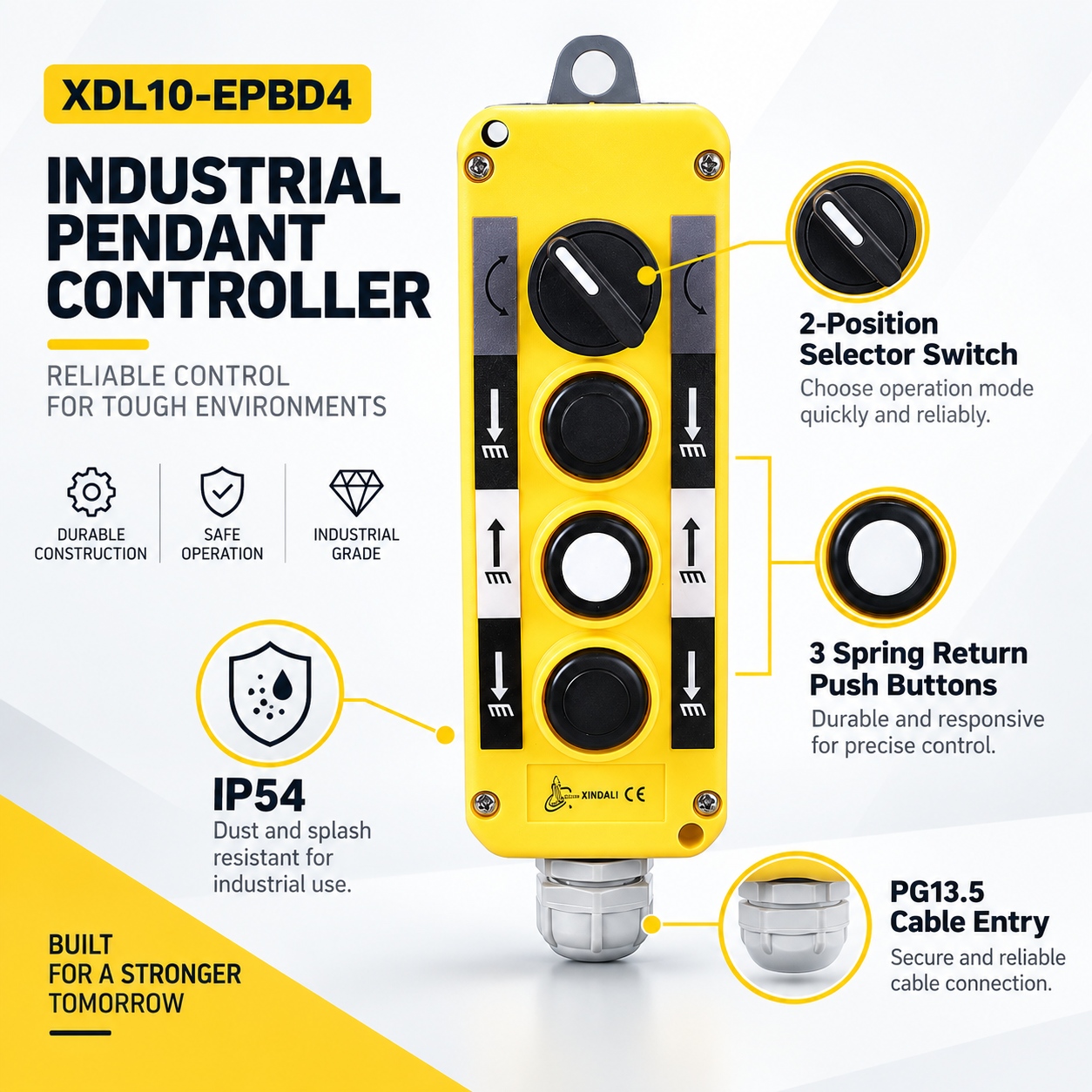

Mode Selector

Maintained 2-position selection separates operating mode from individual commands.

Command A

Spring-return control for the first machine function or direction.

Command B

Can form a paired directional function together with another push button.

Auxiliary Command

Adds another momentary control for reset, jog, enable or an application-specific function.

Hydraulic Power Equipment

Suitable for selecting an operating mode and controlling multiple hydraulic movements.

Truck-Mounted Machinery

Compact handheld control for vehicle-mounted machinery and service equipment.

Tail Lift Systems

Provides additional command capacity for customized tail-lift operating logic.

Lifting Platforms

Suitable for lift movement plus another momentary auxiliary control.

Maintenance Mode Control

Can combine SERVICE or LOCAL mode with several jog or test commands.

OEM Industrial Machinery

Useful for machine builders requiring a compact four-position handheld controller.

Optional XDL10 Series Holder

A dedicated holder provides a convenient fixed storage position for the pendant when it is not being operated.

Optional Rear Strong Magnets

Rear magnets allow the controller to be temporarily attached to suitable ferrous truck bodies, steel machine frames and other metal equipment surfaces.

What is XDL10-EPBD4 used for?

XDL10-EPBD4 is designed for industrial equipment requiring a maintained two-position selector together with three spring-return momentary control commands.

What can the three push buttons control?

Their exact functions depend on the machine circuit. They can be assigned to paired directional commands plus an auxiliary function such as JOG, RESET, ENABLE or another project-specific command.

How is XDL10-EPBD4 different from XDL10-EPBD3?

EPBD4 adds a third momentary push button. EPBD3 is better suited to a selector plus paired commands, while EPBD4 provides additional capacity for another machine function.

What is the difference between XDL10-EPBD4 and XDL10-EPBG4?

Both offer three momentary buttons, but EPBD4 uses a conventional rotary selector, while EPBG4 uses a key-operated selector for applications where controlled access is required.

Can XDL10-EPBD4 be used on truck-mounted equipment?

Yes. Its handheld format is suitable for many truck-mounted and hydraulic equipment applications. Optional rear magnets can also be fitted for temporary attachment to suitable ferrous metal surfaces.

Does XDL10-EPBD4 have a holder?

The XDL10 Series can be used with an optional holder, providing a dedicated storage location for the controller when it is not in use.

Can XDL10-EPBD4 be customized for OEM machinery?

Yes. XINDALI can discuss button symbols, selector functions, contact arrangements, wiring, cable requirements, holder configuration and rear magnetic mounting for OEM projects.
