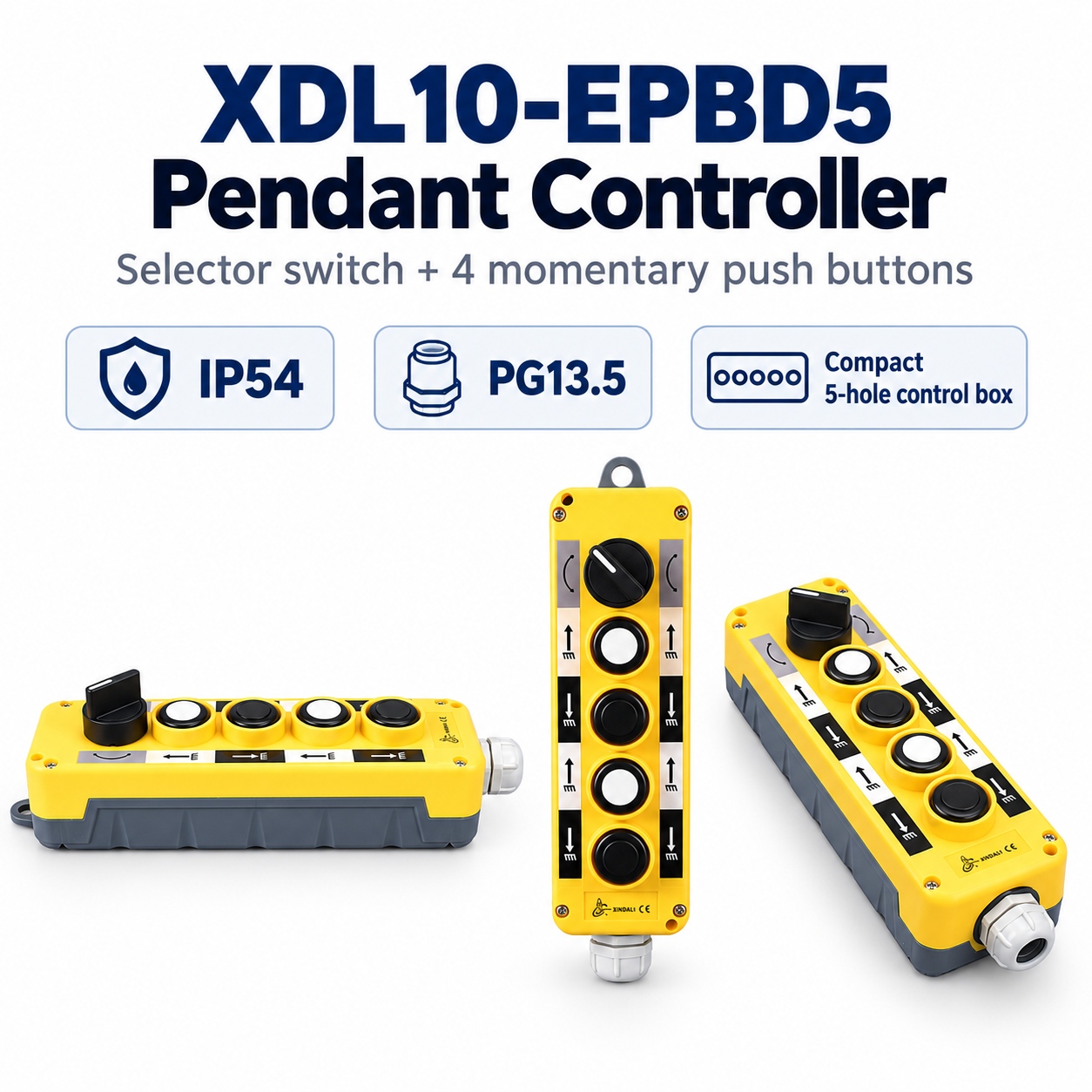

XDL10-EPBD5 5-Hole Selector Pendant Controller with 4 Momentary Push Buttons
XINDALI XDL10 SERIES | MULTI-COMMAND HANDHELD CONTROL
XDL10-EPBD5 5-Hole Selector Pendant Controller with 4 Momentary Push Buttons
The XDL10-EPBD5 is designed for industrial machines that require a maintained operating-mode selection together with several momentary control commands. Its five-position layout combines one 2-position stay-put selector switch with four spring-return flush push buttons, creating a compact control solution for equipment with multiple operating functions.
MODE SELECTION
Set the Machine Operating State
The maintained selector remains in its chosen position until manually changed. Depending on the machine circuit, it can be configured for MANUAL / AUTO, LOCAL / REMOTE, ON / OFF or another two-state operating mode.
FOUR MOMENTARY COMMANDS
Control More Functions from One Handheld Station
Four spring-return buttons allow the operator to control several machine actions without moving to a larger fixed control panel. Depending on the application, the buttons may be assigned to paired directional movements or independent auxiliary commands.
Why Use a 5-Hole Pendant Controller?
More Control Capacity
The EPBD5 provides four momentary commands after the mode selector, supporting more complex equipment than smaller EPBD models.

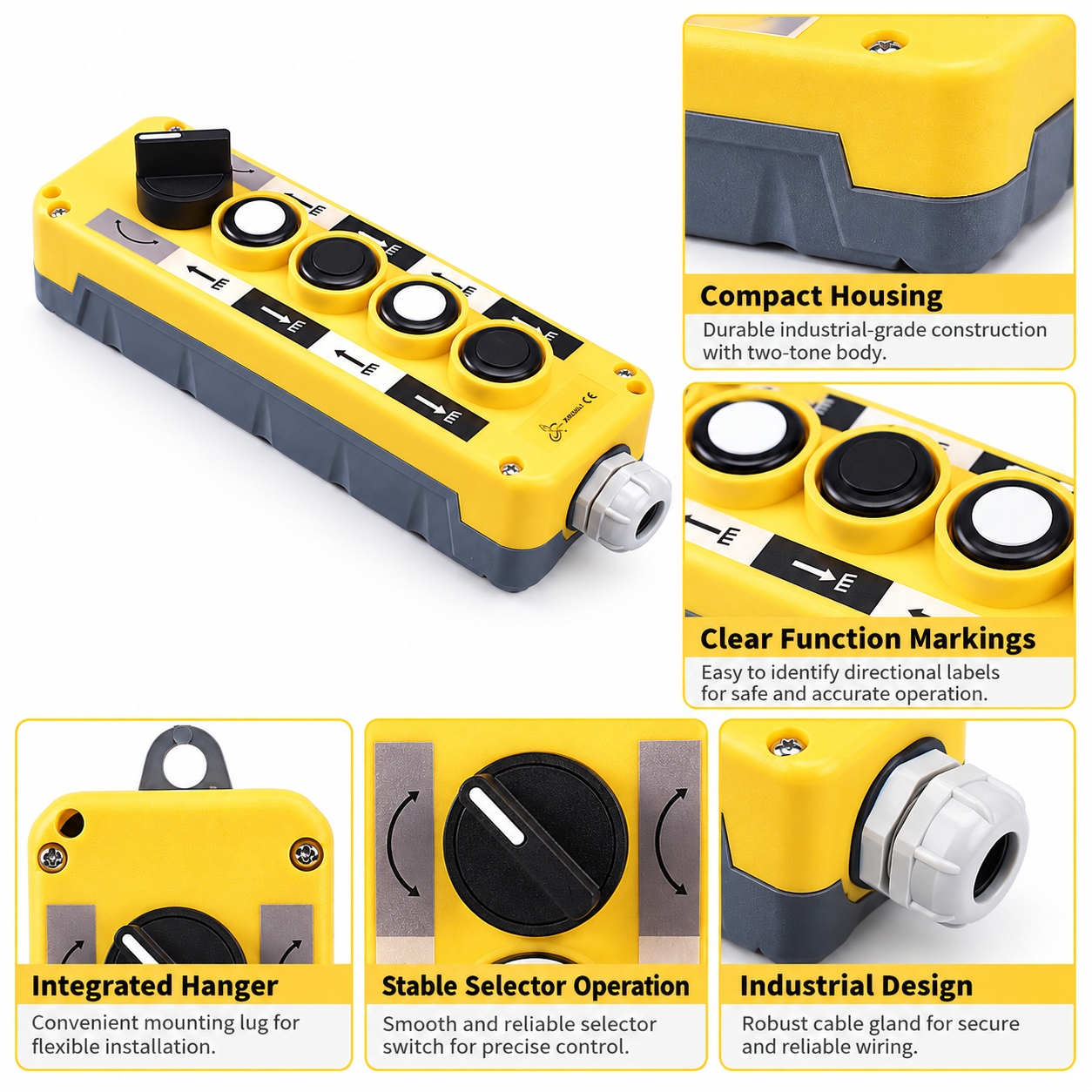

Compact Operator Interface
Multiple commands remain grouped in one slim handheld enclosure, reducing the need for a larger remote control panel.
Flexible OEM Logic
Button functions can be assigned according to the actual hydraulic, lifting or machine control sequence of the customer's equipment.

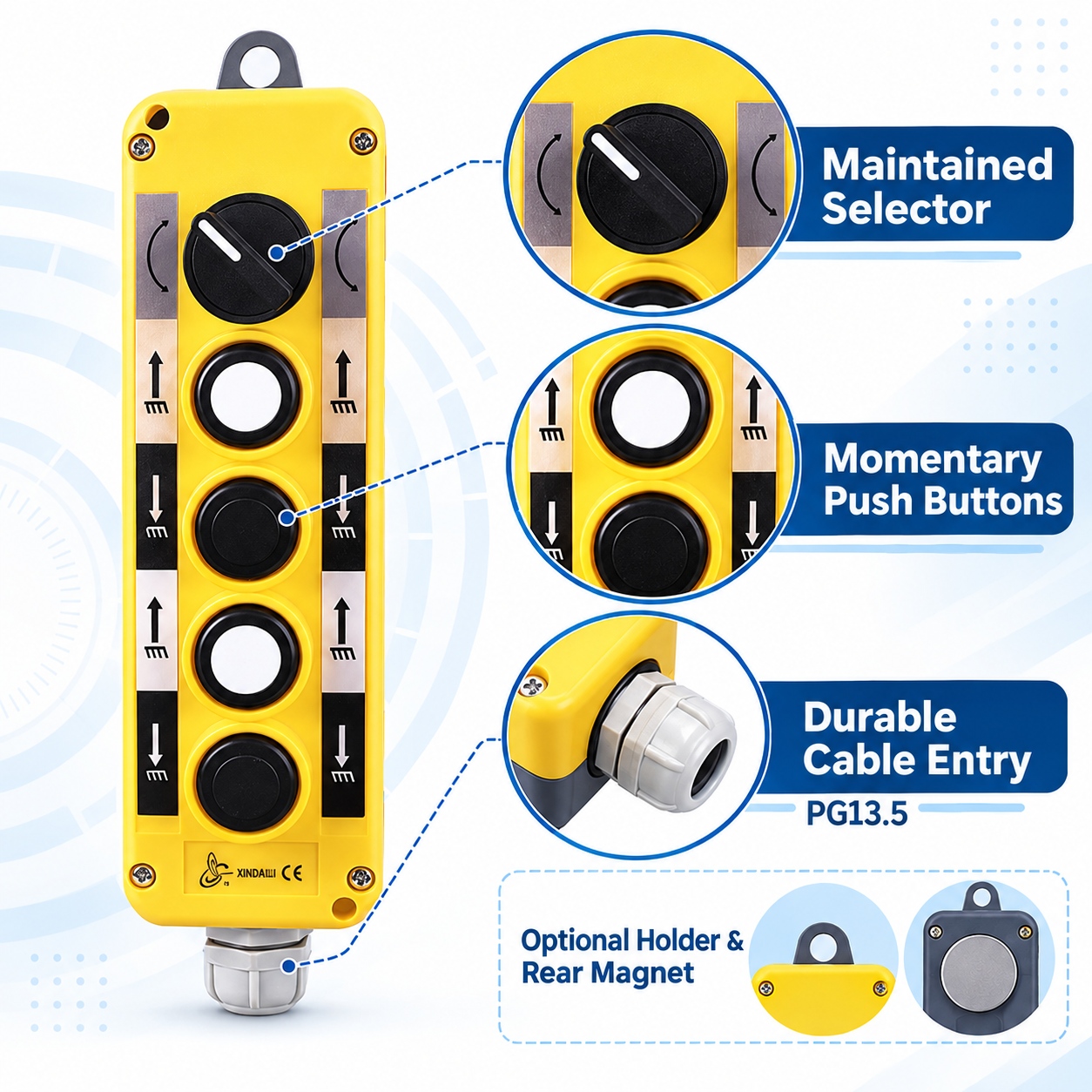

Five-Position Control Architecture
01
Mode Selector
Maintained two-position operating-state selection.
02
Command A
Momentary control for the first machine function.
03
Command B
Can form an opposite or paired control command.
04
Command C
Additional movement or auxiliary equipment function.
05
Command D
Extra momentary control for application-specific operation.
TYPICAL CONTROL LOGIC
One Operating Mode + Two Pairs of Commands
One practical use of the EPBD5 layout is to assign the four buttons as two paired machine functions after the required operating mode is selected. Actual control logic depends on the customer's electrical circuit.
01 — Select Mode Choose the required maintained operating state.
02 — Pair A Use two buttons for opposite movement commands.
03 — Pair B Use the remaining buttons for a second pair of functions.
04 — Release Momentary buttons return automatically after release.
Typical Applications
Hydraulic Machinery
Suitable for equipment requiring several hydraulic directional or auxiliary commands.
Truck-Mounted Equipment
Portable multi-function control for vehicle-mounted machinery and service equipment.
Tail Lift Systems
Can support customized lifting, lowering and auxiliary hydraulic control logic.
Lifting Platforms
Suitable where several movements must be controlled from one handheld pendant.
Industrial Machinery
Compact operator interface for machines requiring mode selection plus multiple commands.
OEM Equipment
Button labels, cable configuration and control assignments can be matched to the customer's machine.
How XDL10-EPBD5 Differs from Other EPBD Models
| Model | Control Layout | Primary Control Logic | SEO Positioning |
|---|---|---|---|
| XDL10-EPBD2 | Selector + 1 Push Button | Single momentary command | Selector + Single Command |
| XDL10-EPBD3 | Selector + 2 Push Buttons | Paired / dual command | Dual Command Pendant |
| XDL10-EPBD4 | Selector + 3 Push Buttons | Three-command control | Three Command Pendant |
| XDL10-EPBD5 | Selector + 4 Push Buttons | Multi-command / two-pair control | Multi-Command Selector Pendant |
| XDL10-EPBG5 | Key Selector + 4 Push Buttons | Authorized multi-command control | Keyed Selector Pendant |
Flexible Storage and Mounting
Optional XDL10 Holder
The XDL10 Series can be used with a dedicated holder that provides a fixed storage location when the pendant controller is not being operated.
Optional Strong Rear Magnets
Rear magnetic mounting can be added for temporary attachment to suitable ferrous truck bodies, steel machinery frames and other metal equipment surfaces.
XDL10-EPBD5 Technical Specifications
| Model | XDL10-EPBD5 |
| Alternative Version | XDL10-EPBD52 |
| Series | XDL10 Series |

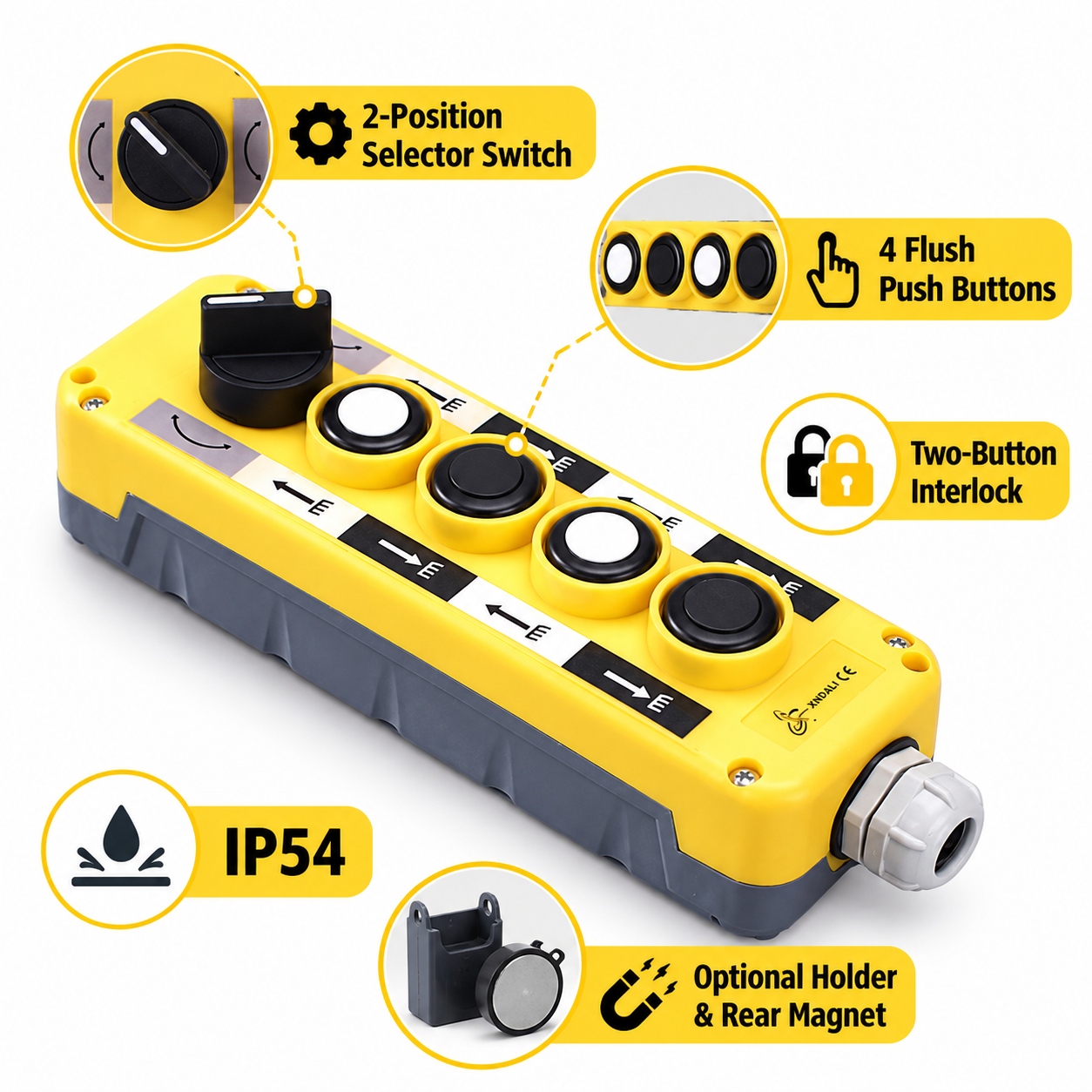

| Housing Layout | 5 holes control box |
| Selector Switch | 1 selector switch |
| Selector Operation | 2-position stay put |
| Selector Contact | N/O |
| Push Buttons | 4 flush push buttons |
| Push Button Operation | Spring return / momentary |
| EPBD5 Contact Configuration | N/O configuration shown in catalogue |
| EPBD52 Contact Configuration | 2N/O configuration shown in catalogue |
| Interlock | Two-button interlock |
| Protection Level | IP54 |
| Cable Entry | PG13.5 |

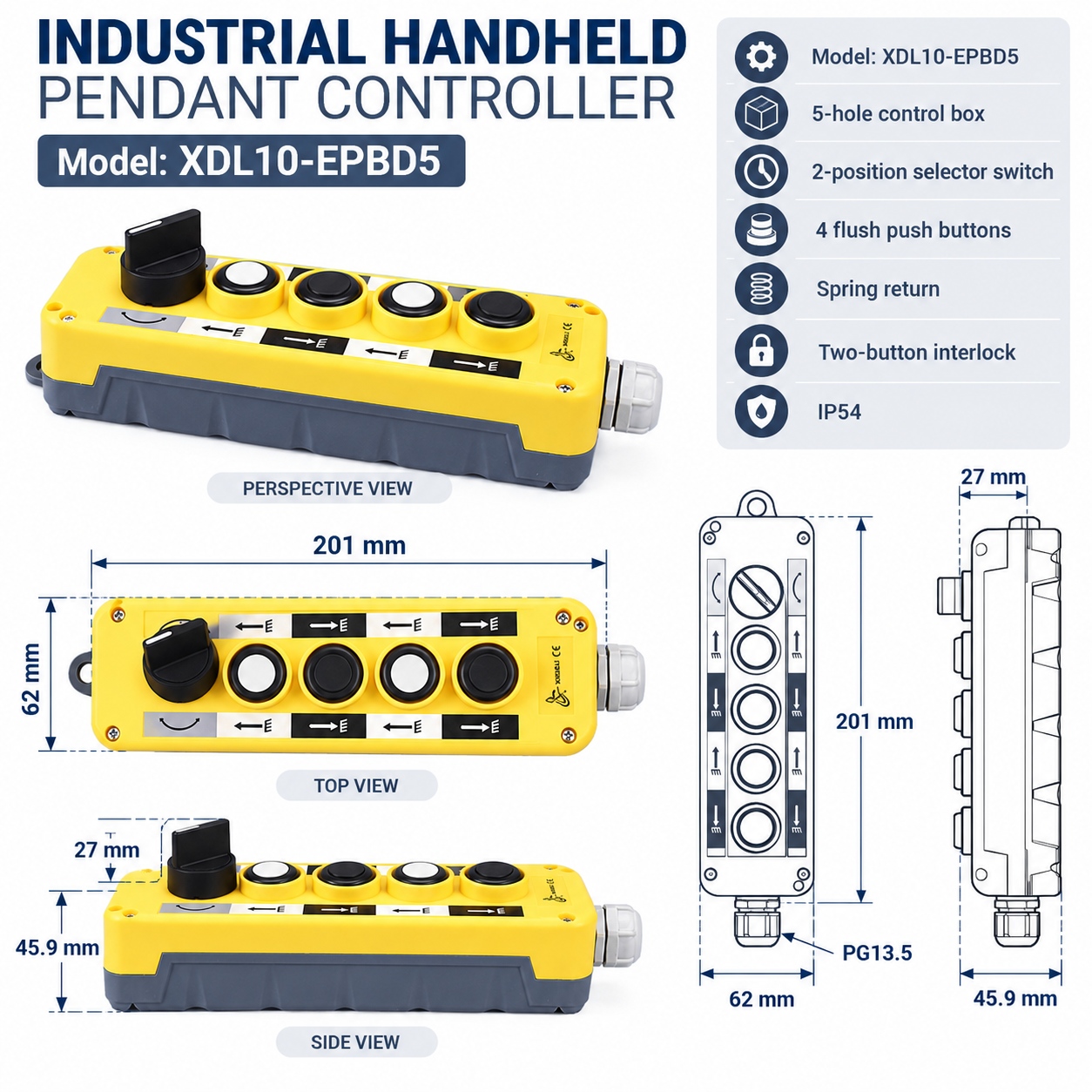

| Approx. Housing Size | 201 × 62 mm |
| Approx. Body Depth | 45.9 mm |
| Approx. Selector Projection | 27 mm |
| Optional Accessories | XDL10 holder, rear magnetic mounting, cable and wiring options |
OEM / ODM CONTROL SOLUTION
Configure EPBD5 for Your Machine
The selector function and four momentary buttons can be configured around your equipment's actual operating sequence.
Custom Labels
Customized arrows, text and machine-function symbols.
Contact Configuration
Contact arrangements according to the customer's control circuit.
Cable & Pre-Wiring
Cable length and pre-wiring options can be discussed for OEM assembly.
PEOPLE ALSO ASK
Common Questions About XDL10-EPBD5
What is XDL10-EPBD5 used for?
XDL10-EPBD5 is designed for industrial equipment requiring a maintained two-position selector together with four spring-return momentary control commands.
What can four push buttons control?
Their functions depend on the machine circuit. They can be configured as two pairs of directional commands or as a combination of movement and auxiliary functions.
How is XDL10-EPBD5 different from XDL10-EPBD4?
EPBD5 adds a fourth momentary push button. This gives it additional control capacity for equipment that requires more functions from one handheld pendant.
What is the difference between XDL10-EPBD5 and XDL10-EPBG5?
Both have four momentary push buttons, but EPBD5 uses a conventional rotary selector, while EPBG5 uses a key-operated selector for applications requiring controlled access.
Can XDL10-EPBD5 be used on truck-mounted equipment?
Yes. Its handheld design is suitable for many truck-mounted and hydraulic equipment applications. Optional rear magnets can also be fitted for temporary attachment to suitable ferrous metal surfaces.
Is a holder available for XDL10-EPBD5?
Yes. The XDL10 Series can be paired with an optional holder for convenient storage when the controller is not in use.
Can XDL10-EPBD5 be customized for OEM projects?
Yes. XINDALI can support customized button labels, selector functions, contact arrangements, cable length, wiring configuration, holder matching and magnetic mounting options.
