XDL10-EPBG2 Keyed Selector Pendant Controller with Momentary Push Button
XINDALI XDL10 Series | Keyed Selection and Momentary Control
XDL10-EPBG2 Keyed Selector Pendant Controller with Momentary Push Button

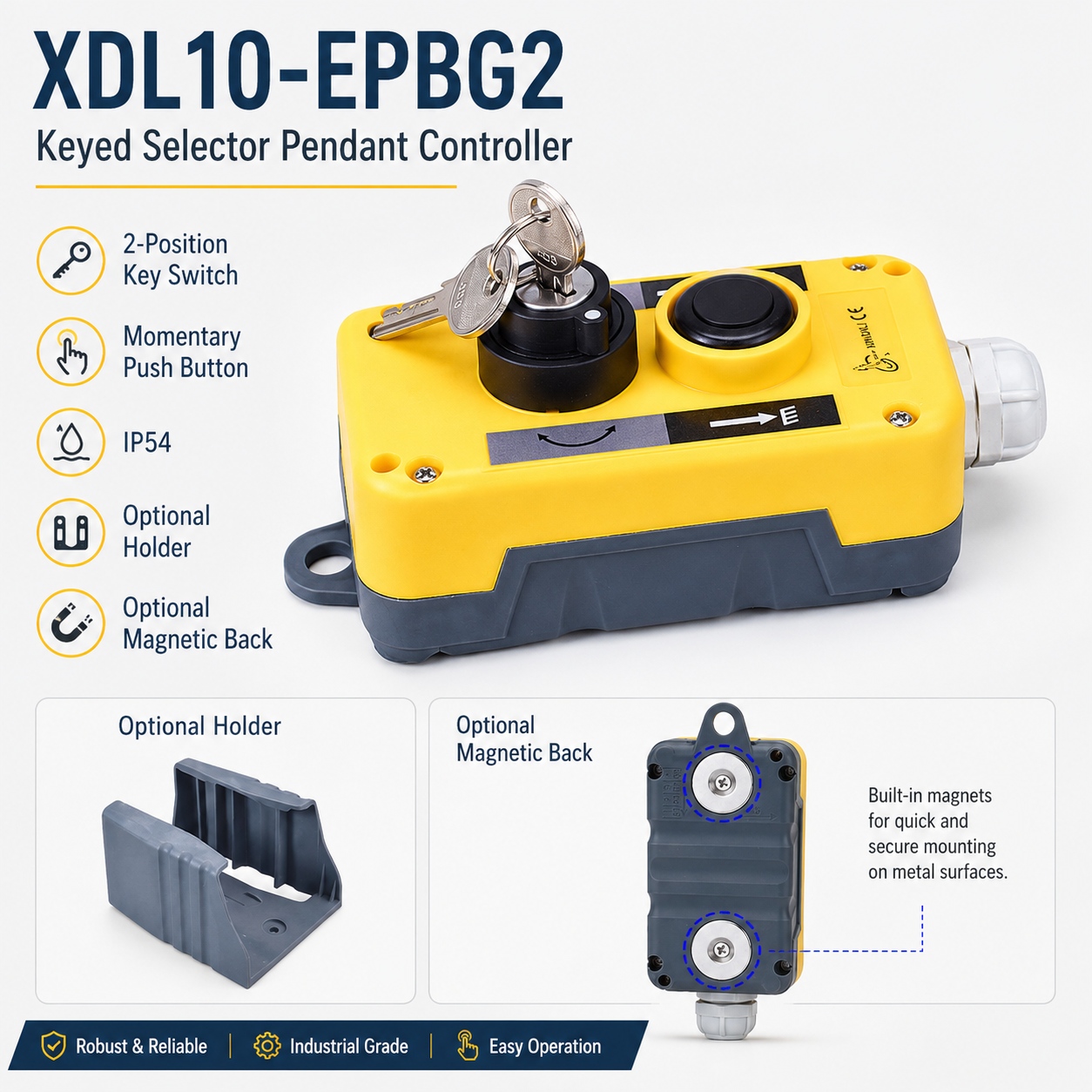

The XDL10-EPBG2 combines one 2-position stay-put keyed selector switch with one spring-return flush push button in a compact handheld control enclosure. It is designed for equipment that requires an authorized selection, enable command or operating mode before a momentary machine function can be activated.
Keyed Selector Switch 2-Position Stay Put 1 Momentary Push Button Interlock Arrangement IP54 Protection PG13.5 Cable Entry Optional Holder Optional Rear Magnets
Separate Authorization from Machine Movement
Unlike a standard two-button pendant, the XDL10-EPBG2 uses one control position for a keyed selector rather than a second momentary command.
The selector can be assigned to an enable, permission or operating-mode circuit, while the flush push button performs the required momentary action. This helps equipment builders create a clearer two-stage operating process.
Typical Circuit Assignments
ENABLE / DISABLE + RUN
The key enables the circuit before the operator presses the command button.
LOCAL / REMOTE + JOG
The selector chooses the operating mode and the button performs a local jog command.
MAINTENANCE / RUN + TEST
The key selects the permitted mode before the test or auxiliary action is activated.
Two-Stage Operating Logic
1
Insert the Key
Authorized personnel insert the corresponding key into the selector switch.
2
Select the Position
Turn the selector to the required stay-put position, depending on the control circuit.
3
Press the Command Button
Press and hold the spring-return button to activate the assigned momentary function.
4
Release or Lock Out
Release the button and return the selector as required by the machine operating procedure.

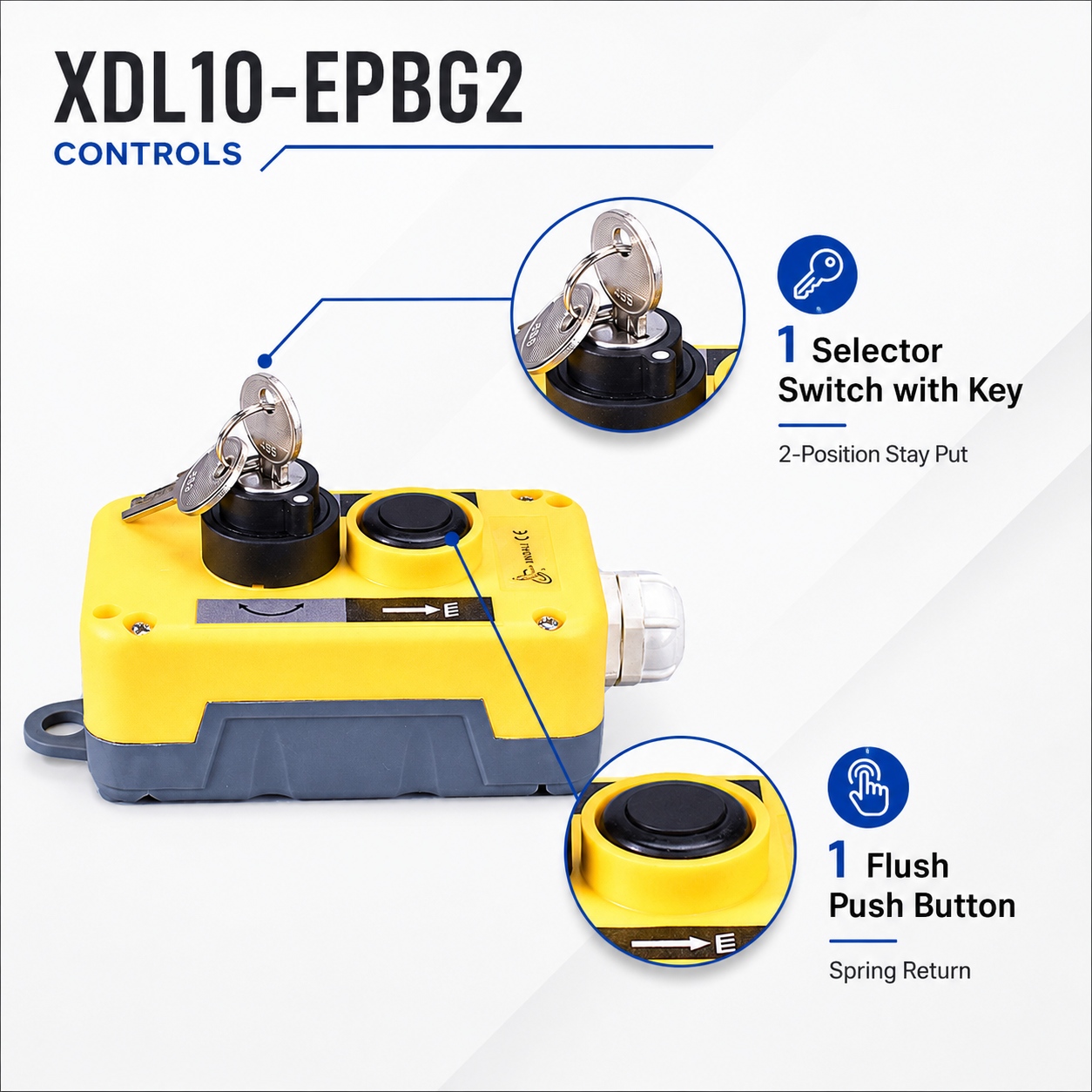

Control Components
Keyed Selector Switch
The keyed selector provides two maintained positions and can be assigned to authorization, mode selection, circuit enabling or another maintained control function.
Spring-Return Push Button
The flush push button returns automatically after release and is suitable for run, jog, test, lift, lower or another momentary command.
Compact Handheld Enclosure
The two-hole XDL10 housing keeps selection and command functions together in one portable control device.
Recommended Applications
XDL10-EPBG2 is suitable for machines requiring a maintained keyed selection and one momentary operating command.
Truck Tail Lift Systems
Key-controlled enable or mode selection before a lift, lower or auxiliary command.
Hydraulic Power Units
Suitable for authorized enable and momentary hydraulic operation.
Maintenance Control Points
Select maintenance mode with the key and use the push button for jog or test operation.
OEM Control Assemblies
Labels, selector functions, contacts, cable and wiring can be configured for the machine.
How XDL10-EPBG2 Differs from Other XDL10 Models
| Model | Control Layout | Maintained Function | Recommended Use |
|---|---|---|---|
| XDL10-EPBG2 | 1 keyed selector + 1 push button | 2-position stay-put selector | Authorized selection plus one momentary command |
| XDL10-EPB2 | 2 spring-return push buttons | No keyed maintained selector | General dual-command operation |
| XDL10-EPBK2 | 1 key-release emergency stop + 1 push button | Keyed release of latched emergency stop | Emergency-stop control with restricted reset |
| XDL10-EPBS2 | 1 turn-release emergency stop + 1 push button | Latched emergency stop | General emergency-stop and single-command control |
Storage and Truck-Body Mounting

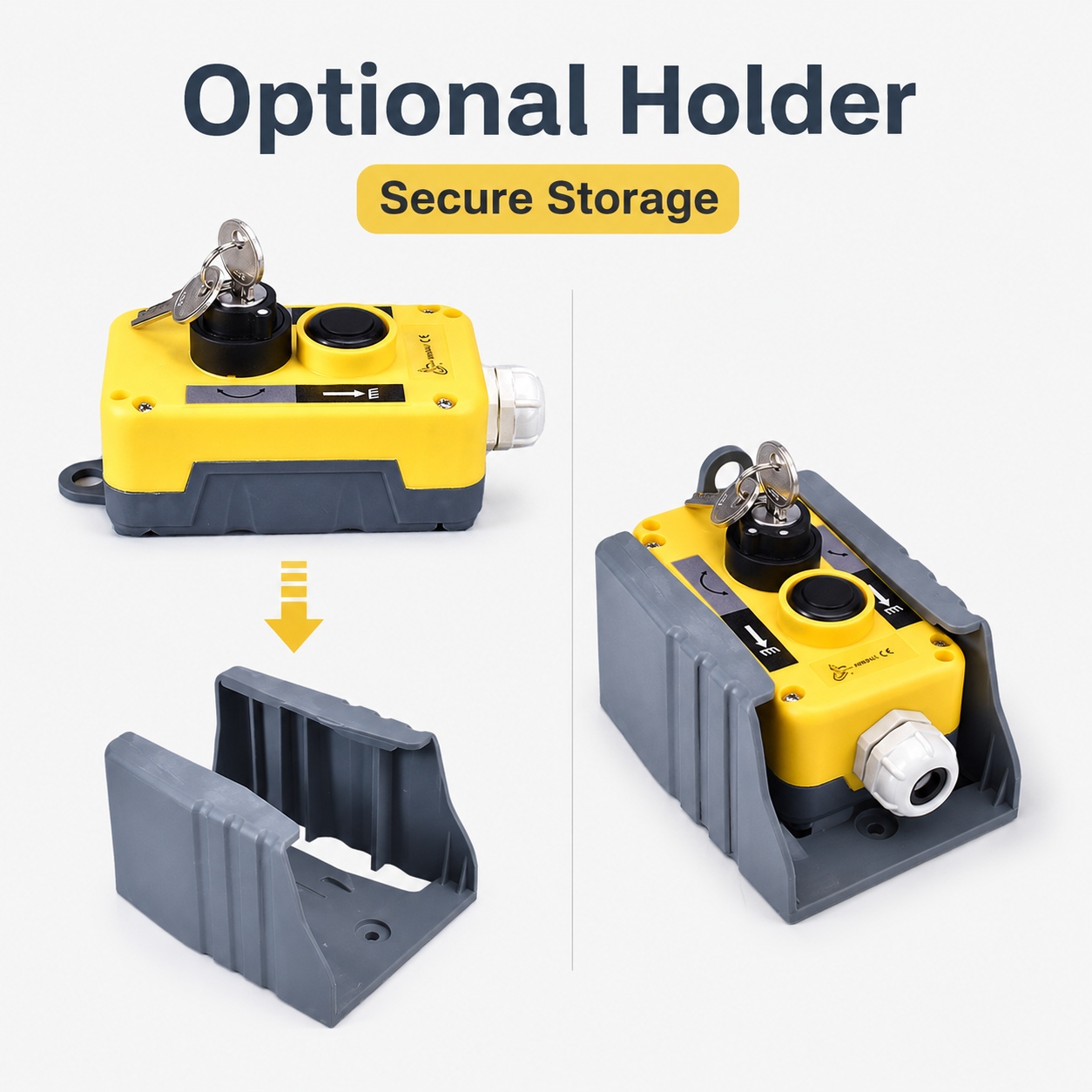

Optional XDL10-EPC Holder
The dedicated holder provides a fixed storage position when the controller is not in use. It can be installed on truck bodies, equipment frames or control panels.

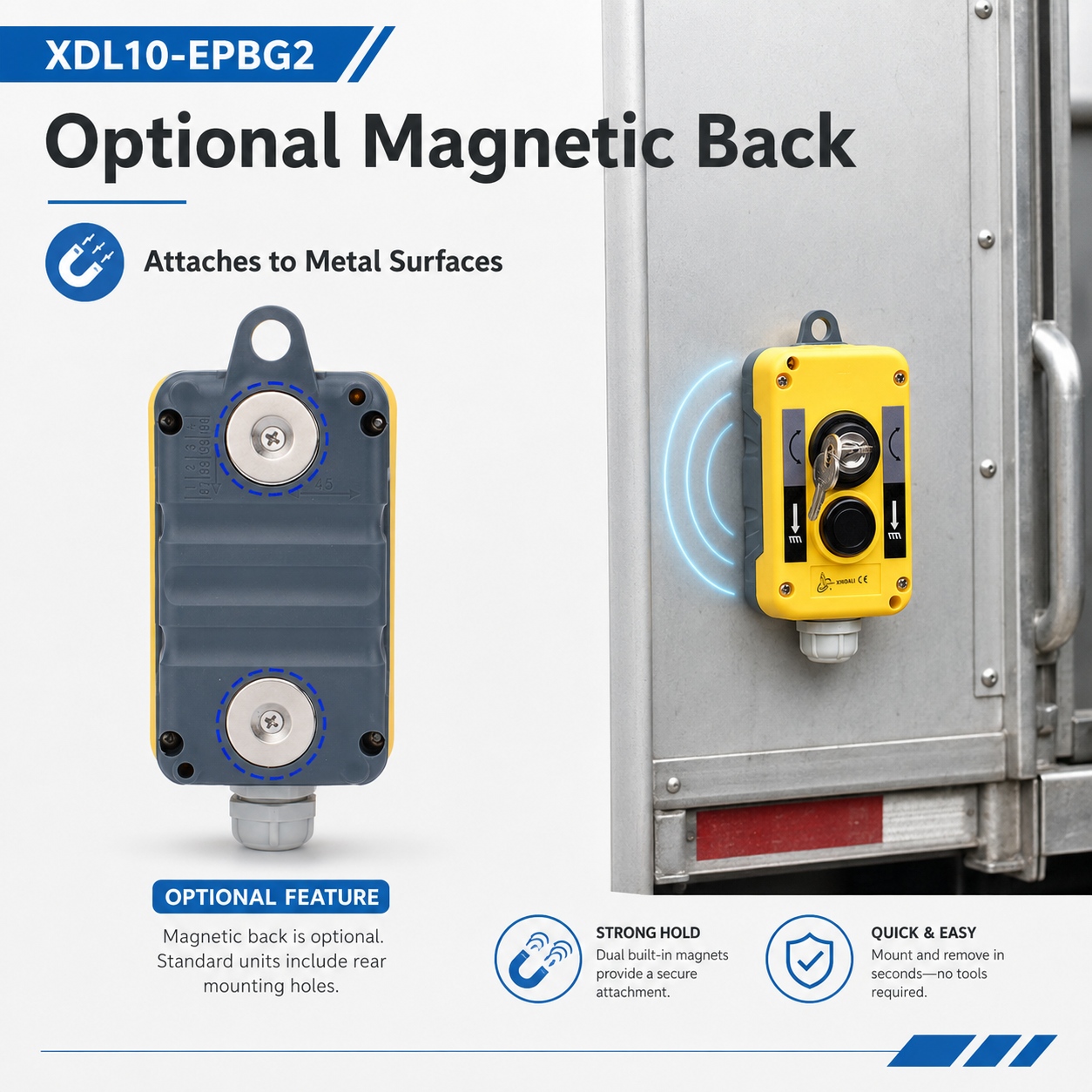

Optional Rear Magnetic Mounting
Strong magnets can be fitted to the rear housing for temporary attachment to suitable ferrous truck panels, steel machinery or equipment frames.

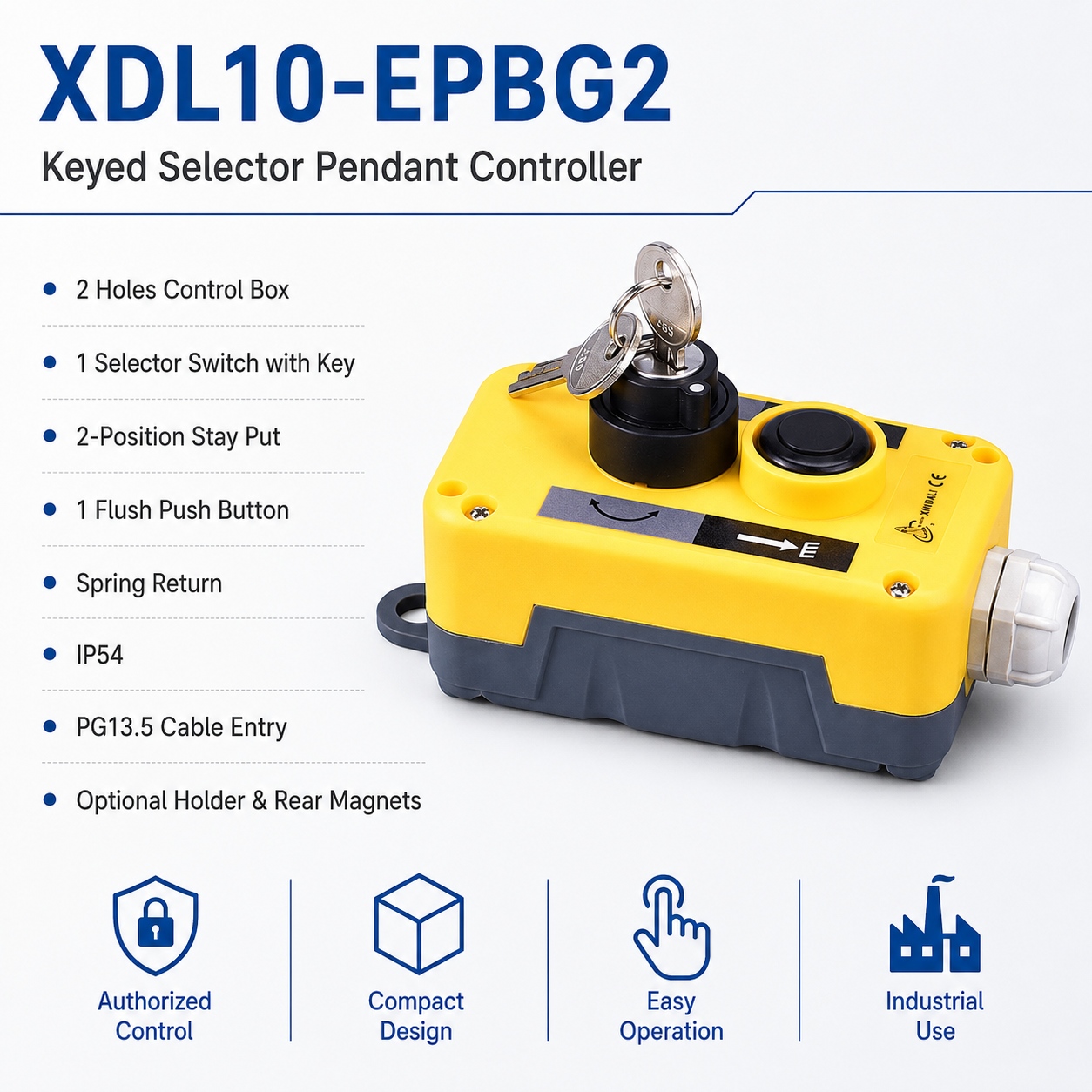

Technical Specifications
| Product Model | XDL10-EPBG2 |
| Alternative Contact Version | XDL10-EPBG22 |
| Product Series | XDL10 Series |

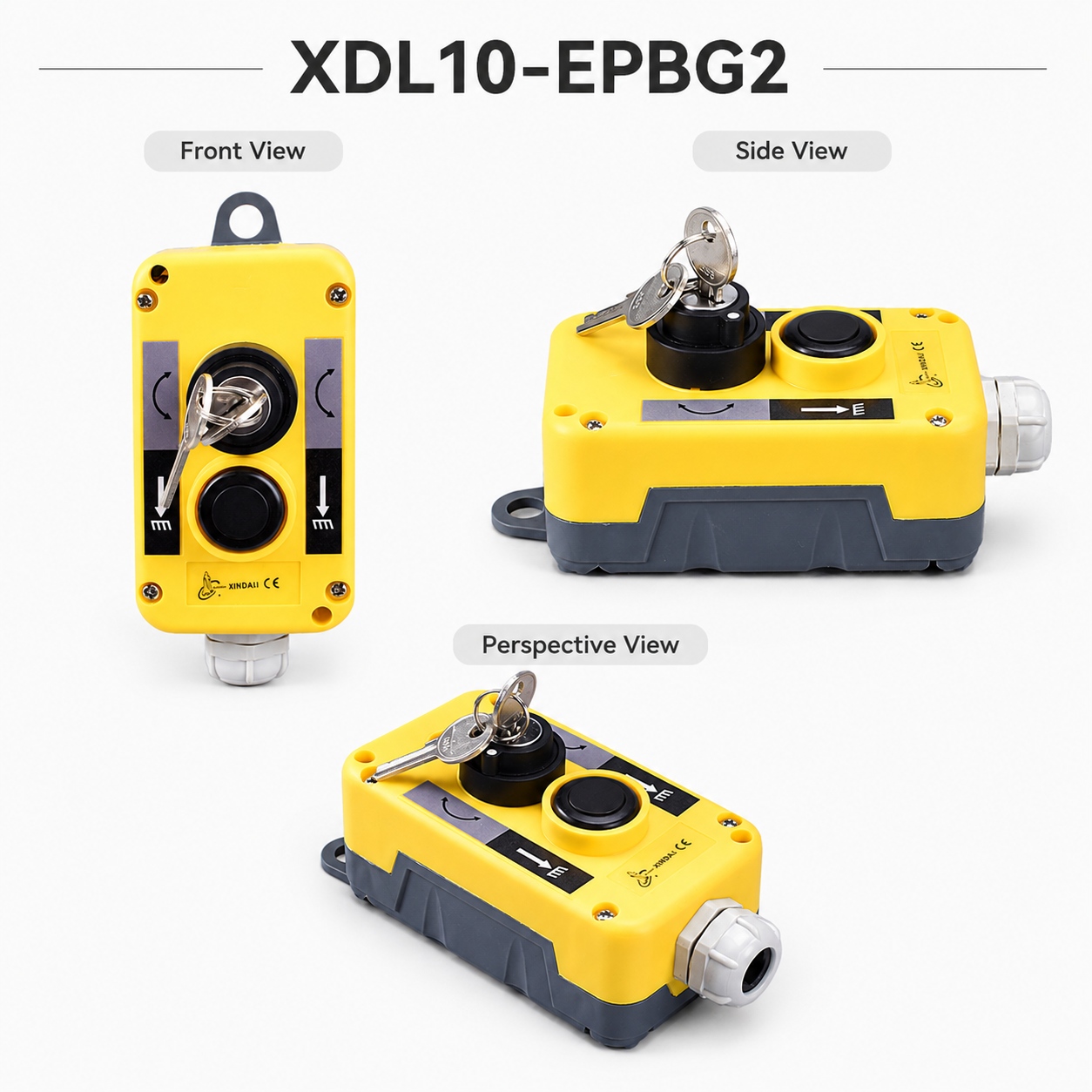

| Housing Layout | 2 holes control box |
| Selector Switch | 1 keyed selector switch |
| Selector Positions | 2-position stay put |
| Command Button | 1 flush push button |
| Push-Button Operation | Spring return / momentary |
| Interlock Arrangement | Two-control interlock arrangement |
| Selector Contact | N/O |
| Push-Button Contact | N/O for XDL10-EPBG2; 2N/O for XDL10-EPBG22 |
| Protection Level | IP54 |
| Cable Entry | PG13.5 |
| Approximate Housing Size | 106 × 62 mm |
| Approximate Housing Depth | 45.9 mm |
| Approximate Selector Projection | 21 mm |
| Optional Accessories | XDL10-EPC holder, rear magnets, custom labels, cable and wiring options |
The final selector function, interlock circuit, restart logic, machine risk assessment and compliance requirements must be verified by the equipment manufacturer or system integrator.
Compare Related XDL10 Pendant Controllers
For two regular spring-return commands without a keyed selector, compare the XDL10-EPB2 two-button handheld pendant .
For a key-release emergency stop plus one command button, review the XDL10-EPBK2 key-release emergency stop pendant .
For a turn-to-release emergency stop with one command button, see the XDL10-EPBS2 compact safety pendant .
Browse the complete industrial handheld pendant controller range , explore tail lift control solutions , or request a customized keyed selector controller .
Need Keyed Selection and Momentary Control in One Handheld Pendant?
Send XINDALI your selector function, push-button command, contact arrangement, cable length and mounting requirements for an XDL10-EPBG2 quotation or OEM configuration.
