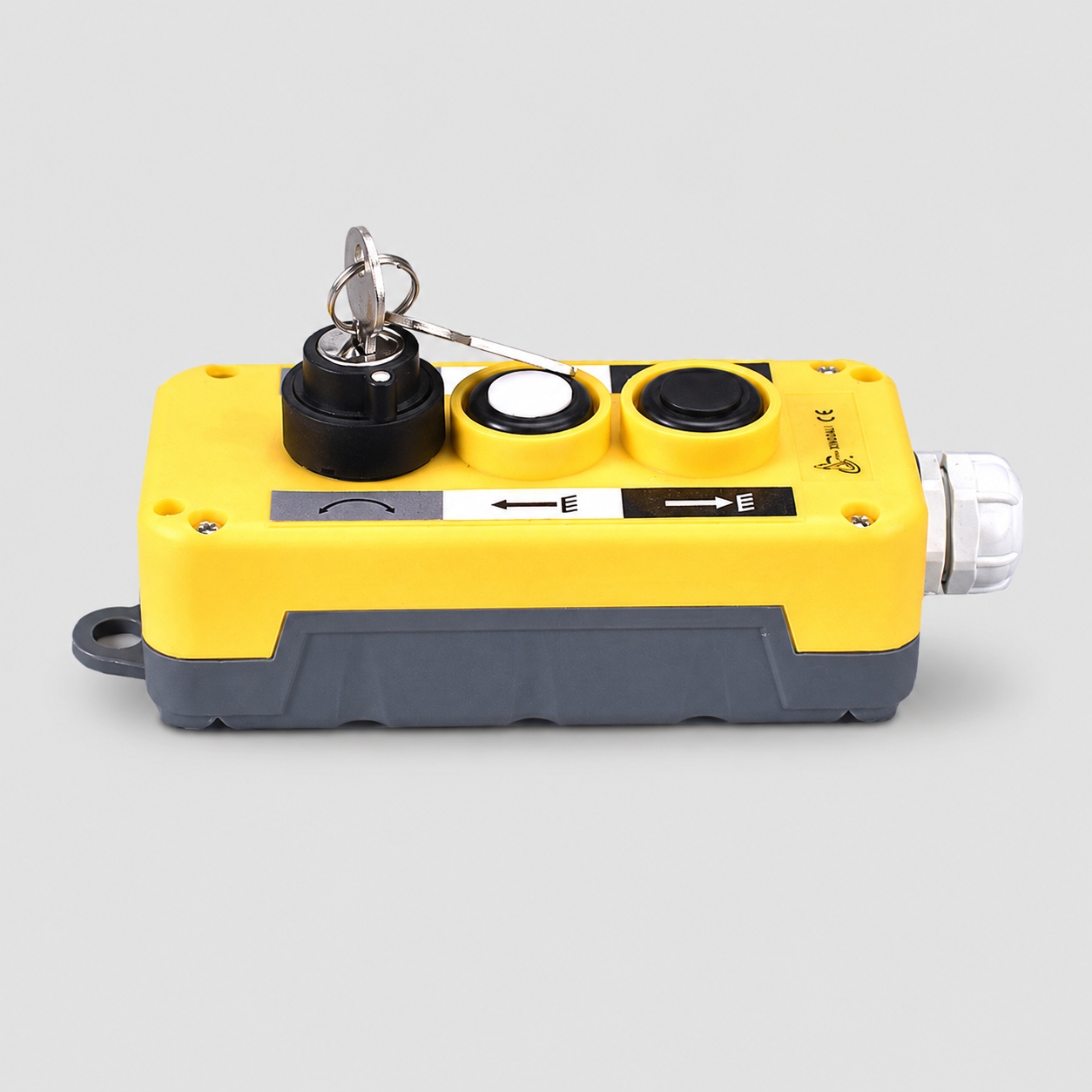

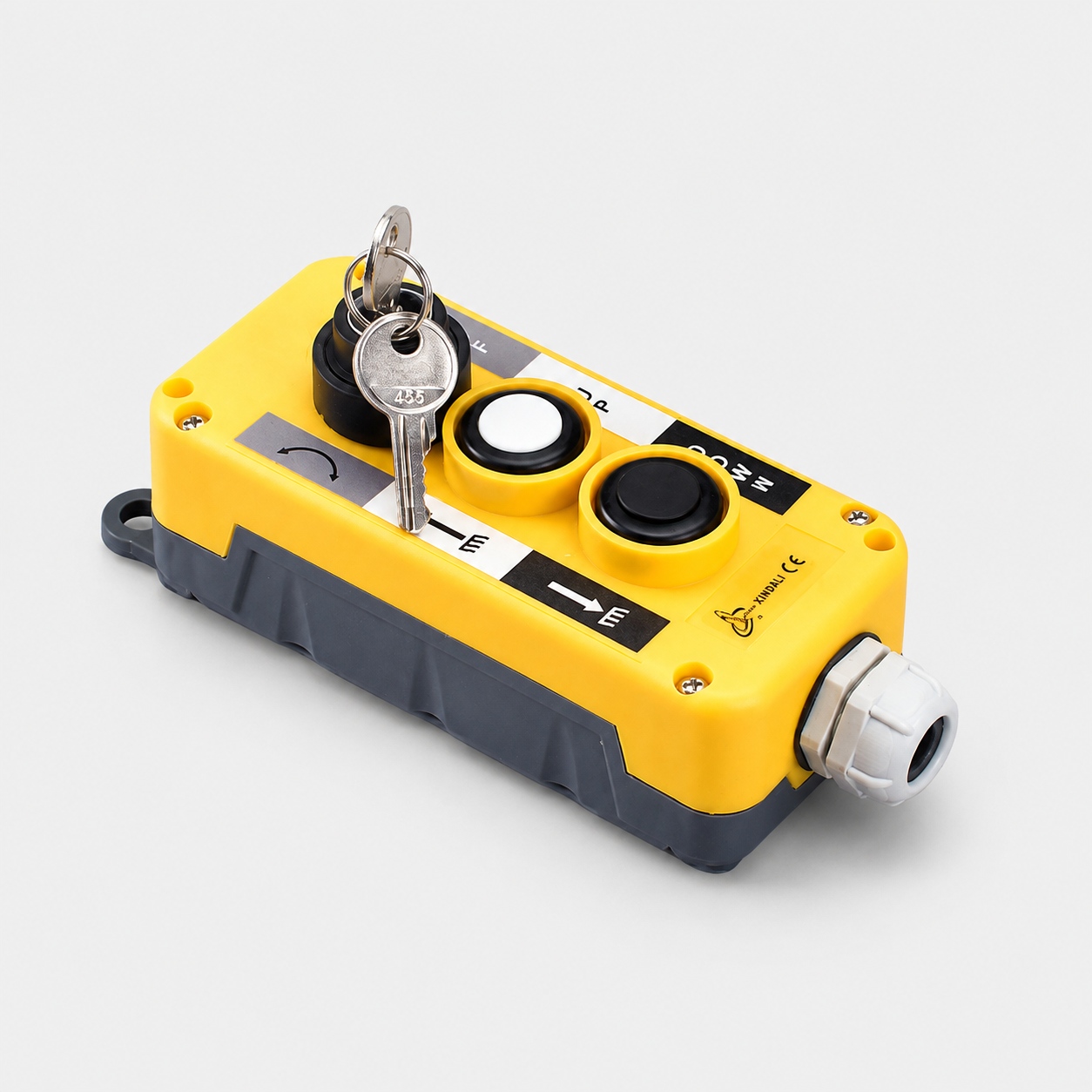

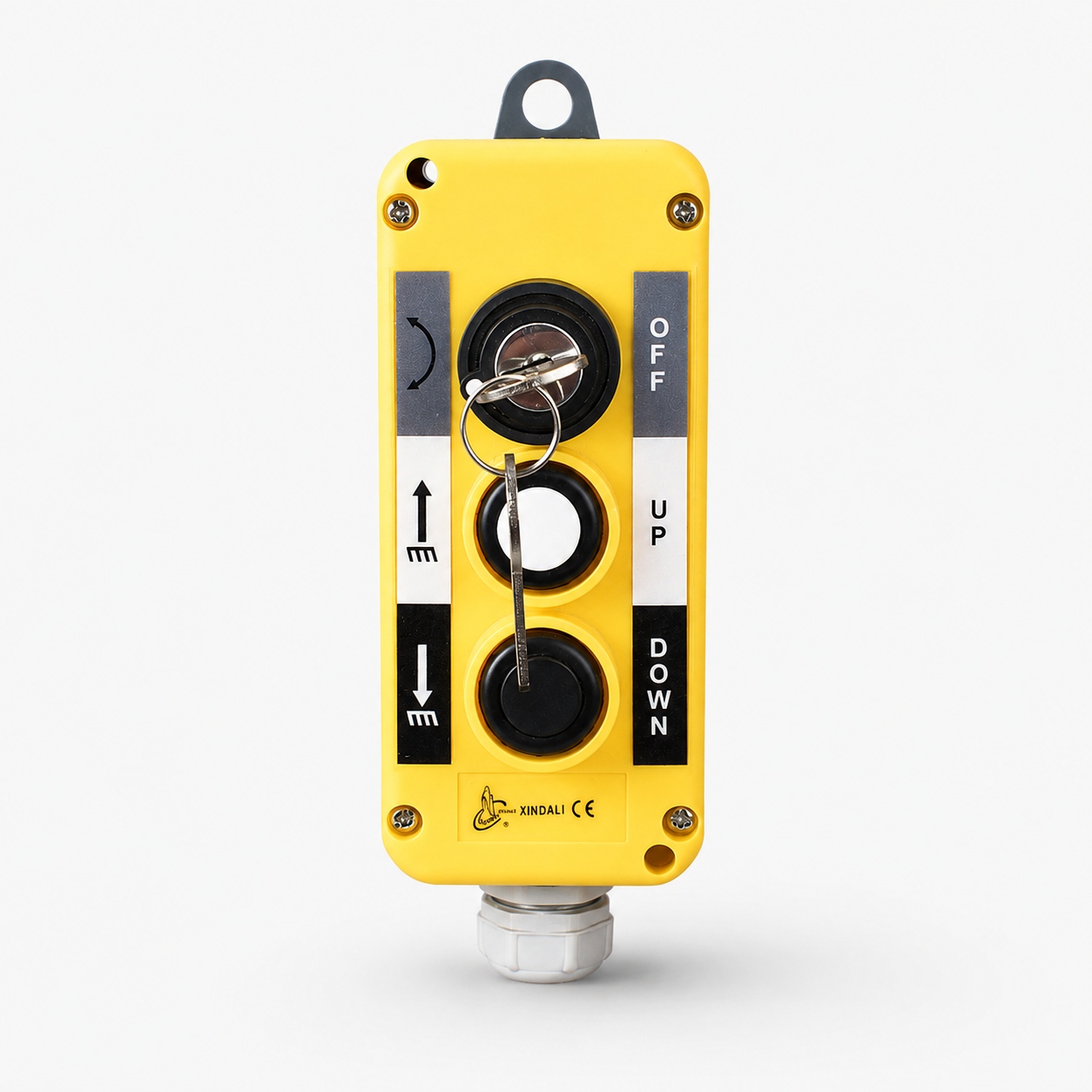

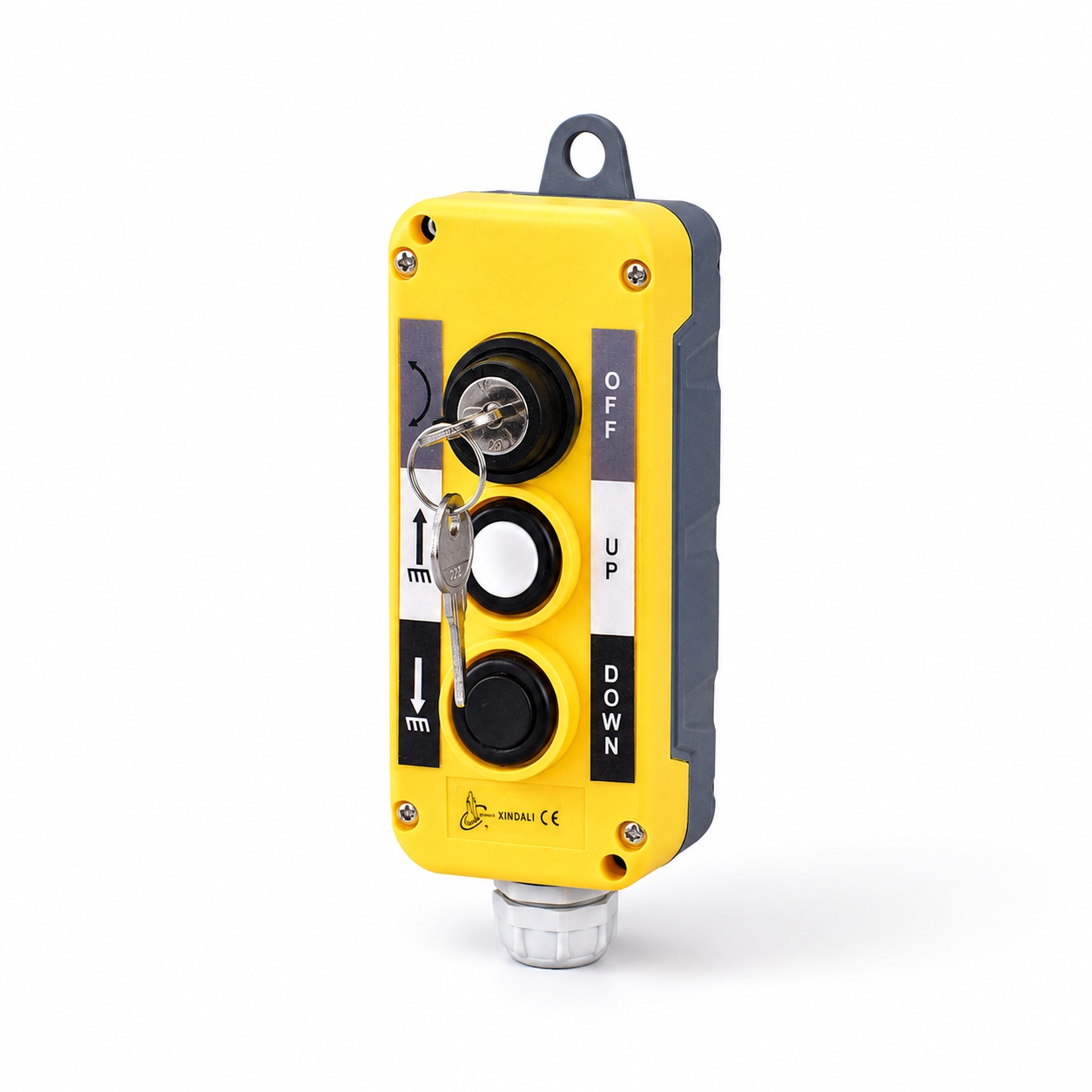

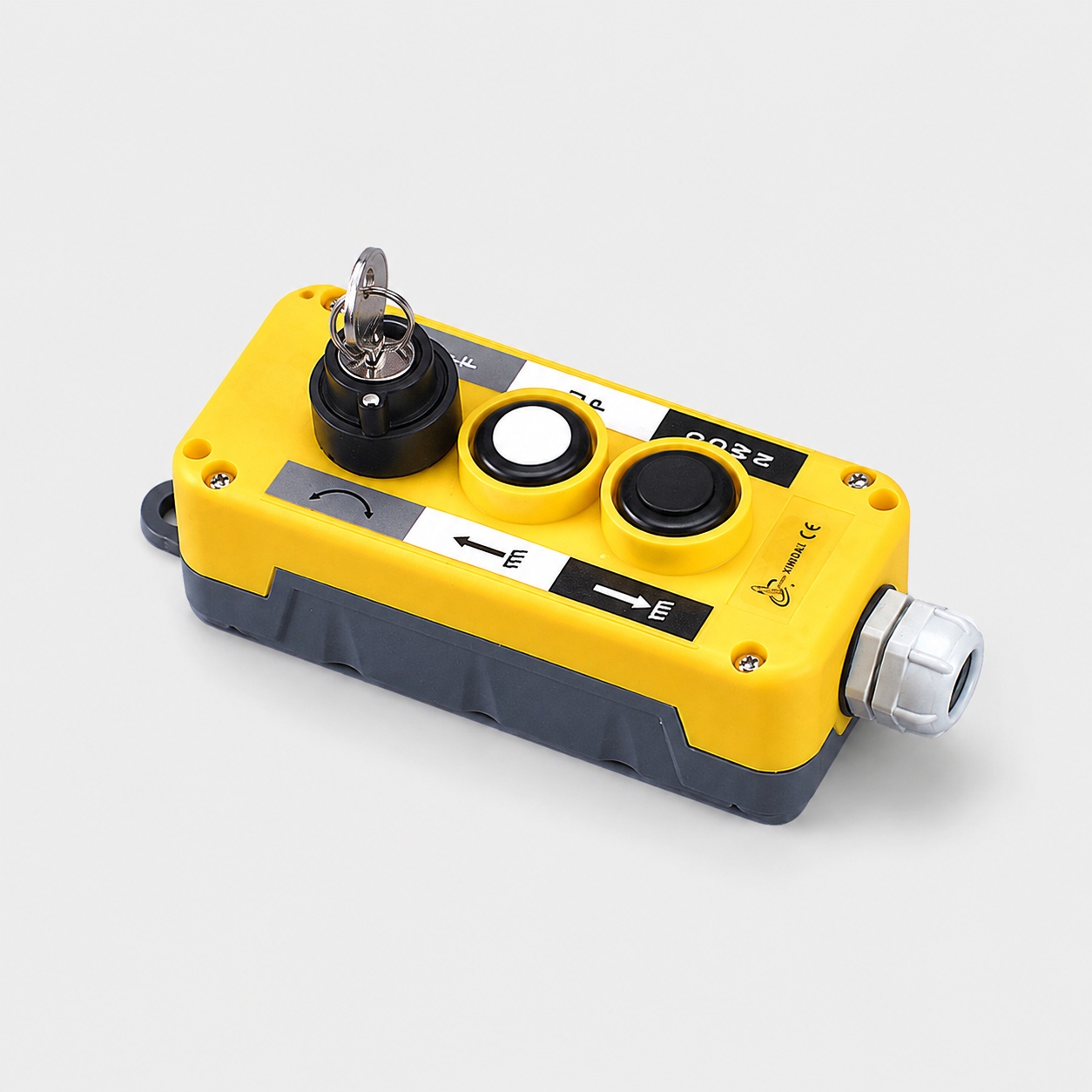

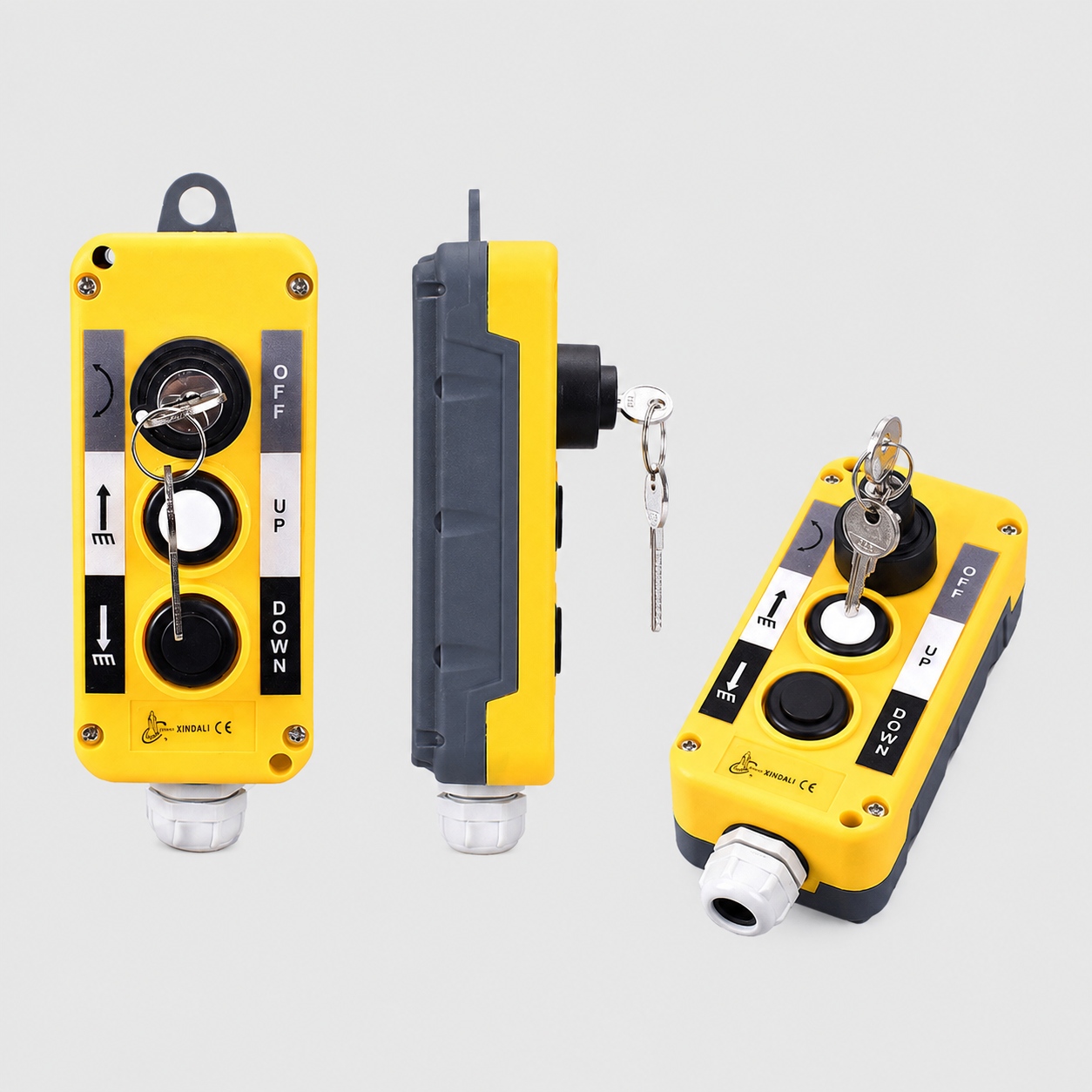

XDL10-EPBG3 Keyed Selector Pendant Controller with Dual Momentary Push Buttons
XINDALI XDL10 Series | Key-Controlled Mode Selection + Dual Command
XDL10-EPBG3 Keyed Selector Pendant Controller with Dual Momentary Push Buttons
The XDL10-EPBG3 combines one 2-position stay-put keyed selector switch with two spring-return flush push buttons. It is designed for hydraulic, vehicle-mounted and industrial equipment where the operator first selects or enables an operating mode and then controls two related momentary functions from the same handheld pendant.
Keyed Selector 2-Position Stay Put 2 Momentary Buttons Two-Button Interlock IP54 PG13.5 Optional Holder Optional Magnetic Back
Select the Operating Mode, Then Control Two Machine Actions
XDL10-EPBG3 is not simply a three-button pendant. One of its three control positions is a maintained keyed selector, while the other two are momentary command buttons.
This architecture is useful when equipment requires a key-controlled enable, mode selection or operating permission together with a paired command such as UP/DOWN, OPEN/CLOSE or EXTEND/RETRACT.
Typical Control Combinations
ENABLE + UP / DOWN
Suitable for hydraulic lifting and tail lift systems.
LOCAL MODE + OPEN / CLOSE
Suitable for hydraulic covers, gates and machine mechanisms.
MAINTENANCE MODE + EXTEND / RETRACT
Suitable for service and maintenance control stations.
Three-Control Functional Architecture
2-Position Key Selector
The stay-put selector maintains the selected position and can be assigned to enable, permission or operating-mode functions.
Dual Spring-Return Commands
Two flush push buttons provide momentary operation and automatically return after the operator releases them.
Opposite-Command Interlock
The two command buttons can use the two-button interlock arrangement, making the layout suitable for paired opposite actions.
Key-Enabled Dual-Command Workflow
A typical EPBG3 control sequence separates mode selection from actual machine movement.
01
Insert Key
The operator inserts the matching key into the selector.
02
Select Mode
Turn the selector to the required maintained position.
03
Operate Direction
Press either momentary command according to the required machine movement.
04
Release Command
The push button returns automatically when released.
Where Is XDL10-EPBG3 Used?
Truck Tail Lifts
The key selector can enable the control circuit before the operator uses the paired lift and lower commands.
Hydraulic Power Units
Suitable for hydraulic equipment requiring a keyed operating mode plus two directional commands.
Vehicle-Mounted Equipment
Provides portable keyed selection and paired momentary control for truck-mounted machinery.
Maintenance Stations
The selector can be configured for maintenance mode while the two buttons control jog movements.
Lifting Platforms
Suitable for key-enabled raise and lower operation from a movable handheld control position.
OEM Machinery
Selector function, button labels, contacts, cable and wiring can be configured for OEM projects.
XDL10-EPBG3 vs. Other Three-Position XDL10 Controllers
| Model | Control Configuration | Key Function | Primary Application |
|---|---|---|---|
| XDL10-EPBG3 | 1 keyed selector + 2 push buttons | Maintained mode / enable selection | Key-enabled dual-command operation |
| XDL10-EPBG2 | 1 keyed selector + 1 push button | Maintained mode / enable selection | Single-command keyed control |
| XDL10-EPBK3 | 1 keyed emergency stop + 2 push buttons | Key releases the latched emergency stop | Dual-command control with keyed E-stop reset |
| XDL10-EPBS3 | 1 turn-release E-stop + 2 push buttons | No key selector | Dual-command control with emergency stop |
| XDL10-EPB3 | 3 push buttons | No keyed function | General three-command operation |
Holder Storage and Magnetic Truck Mounting
Optional XDL10-EPC Holder
The XDL10 Series holder provides a fixed storage position when the handheld pendant is not being used. It helps keep the controller organized and accessible on vehicles and industrial equipment.
Optional Strong Magnetic Back
Strong magnets can be installed on the rear housing, allowing the pendant controller to attach directly to suitable ferrous truck bodies, machine frames and steel equipment surfaces.
Technical Specifications
| Product Model | XDL10-EPBG3 |
| Alternative Contact Version | XDL10-EPBG32 |
| Series | XDL10 Series |
| Housing Layout | 3 holes control box |
| Selector Switch | 1 selector switch with key |
| Selector Operation | 2-position stay put |
| Command Buttons | 2 flush push buttons |
| Push Button Operation | Spring return / momentary |
| Interlock | Two-button interlock |
| Selector Contact | N/O |
| Push Button Contact – EPBG3 | N/O |
| Push Button Contact – EPBG32 | 2N/O |
| Protection Level | IP54 |
| Cable Entry | PG13.5 |
| Approx. Housing Size | 142 × 62 mm |
| Approx. Housing Depth | 45.9 mm |
| Approx. Selector Projection | 21 mm |
| Optional Accessories | XDL10-EPC holder, rear magnets, custom labels, cable and wiring options |
Related XDL10 Control Solutions
For keyed selection with only one momentary command, compare the XDL10-EPBG2 keyed selector pendant controller .
For general handheld control products, browse our industrial pendant controller range .
For truck hydraulic applications, explore tail lift control box and control solutions .
Need a different key function, label or wiring configuration? Contact XINDALI for a custom handheld control solution .
Need Key-Controlled Mode Selection with Two Operating Commands?
Send XINDALI your selector logic, command functions, contact arrangement, cable length and mounting requirements for an XDL10-EPBG3 quotation or OEM configuration.
