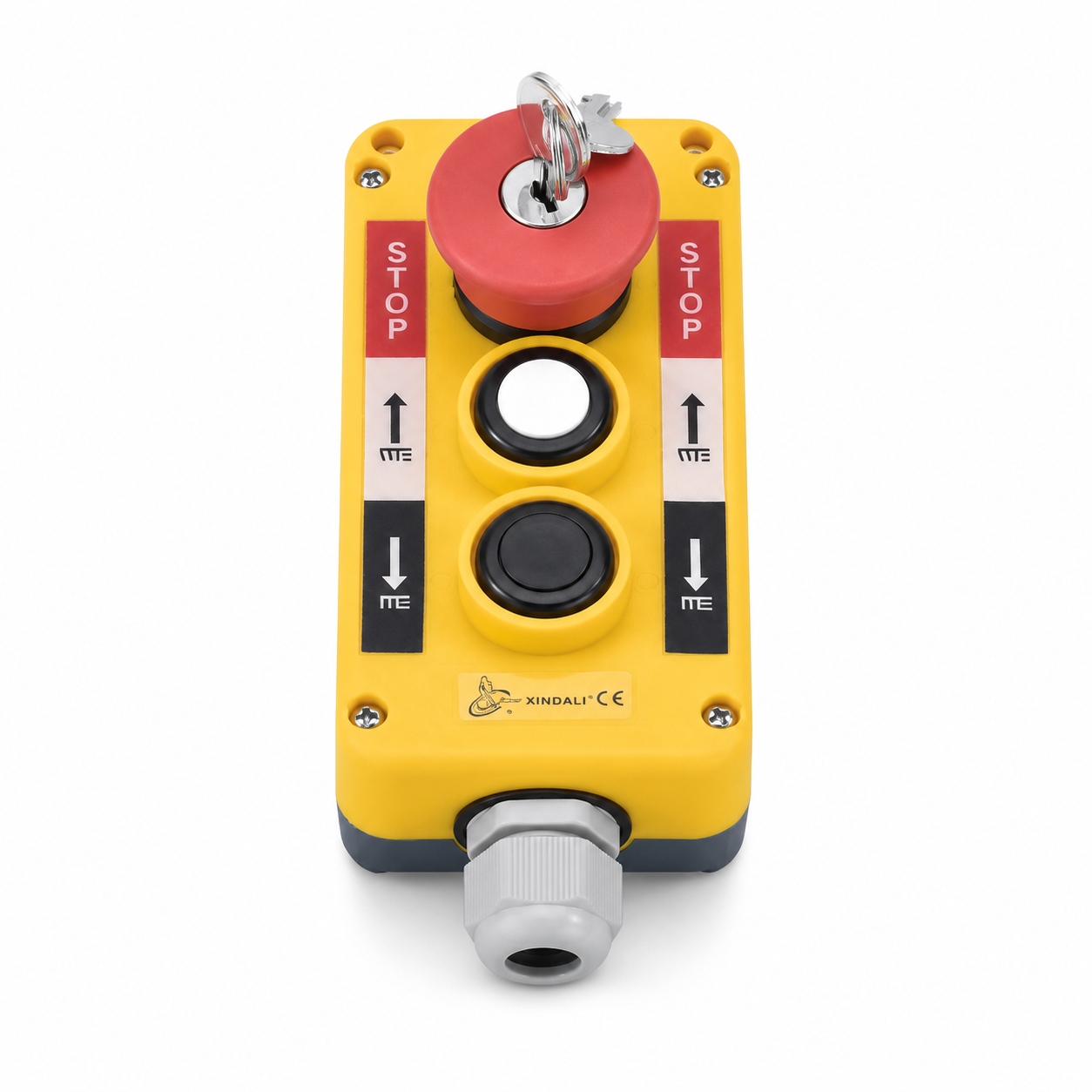

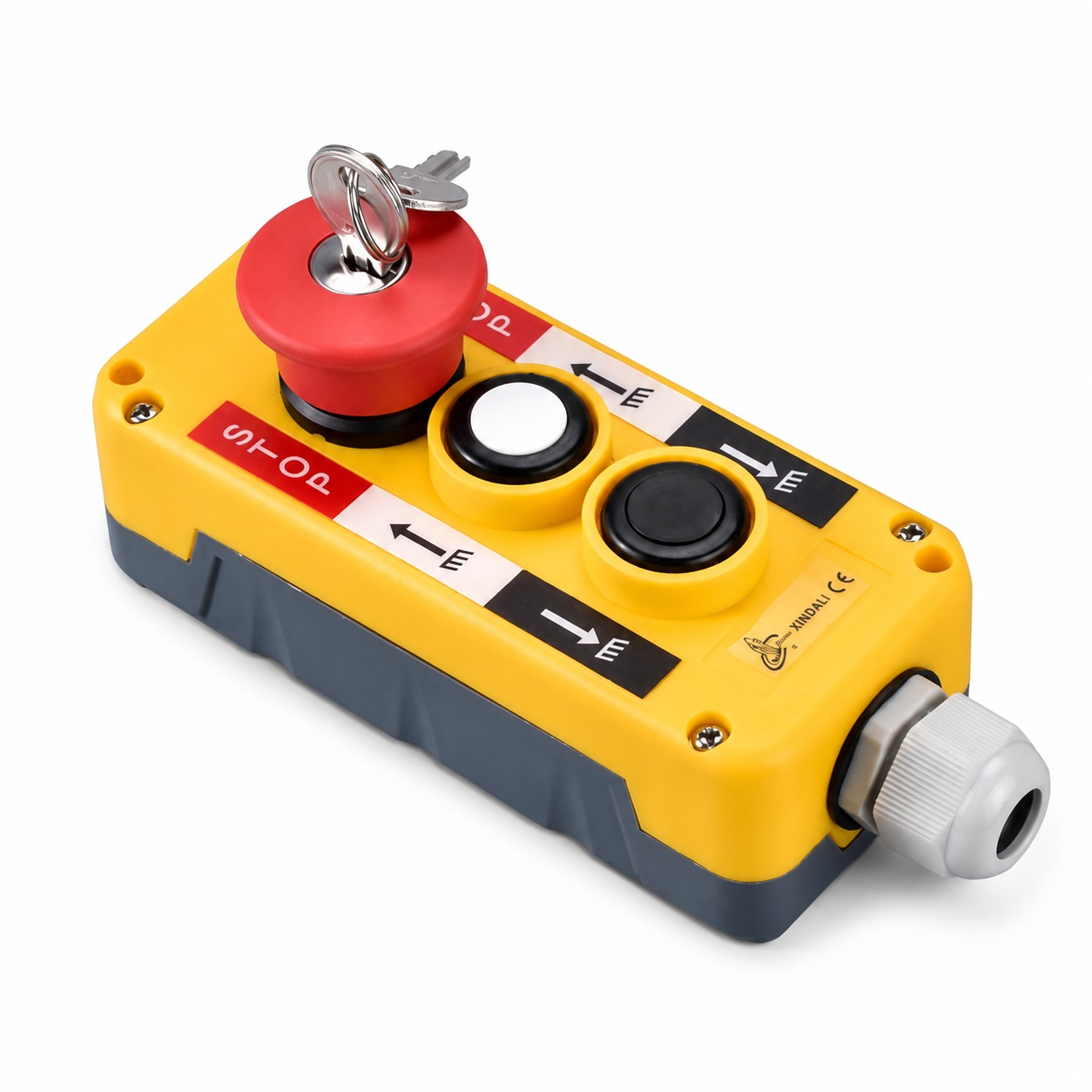

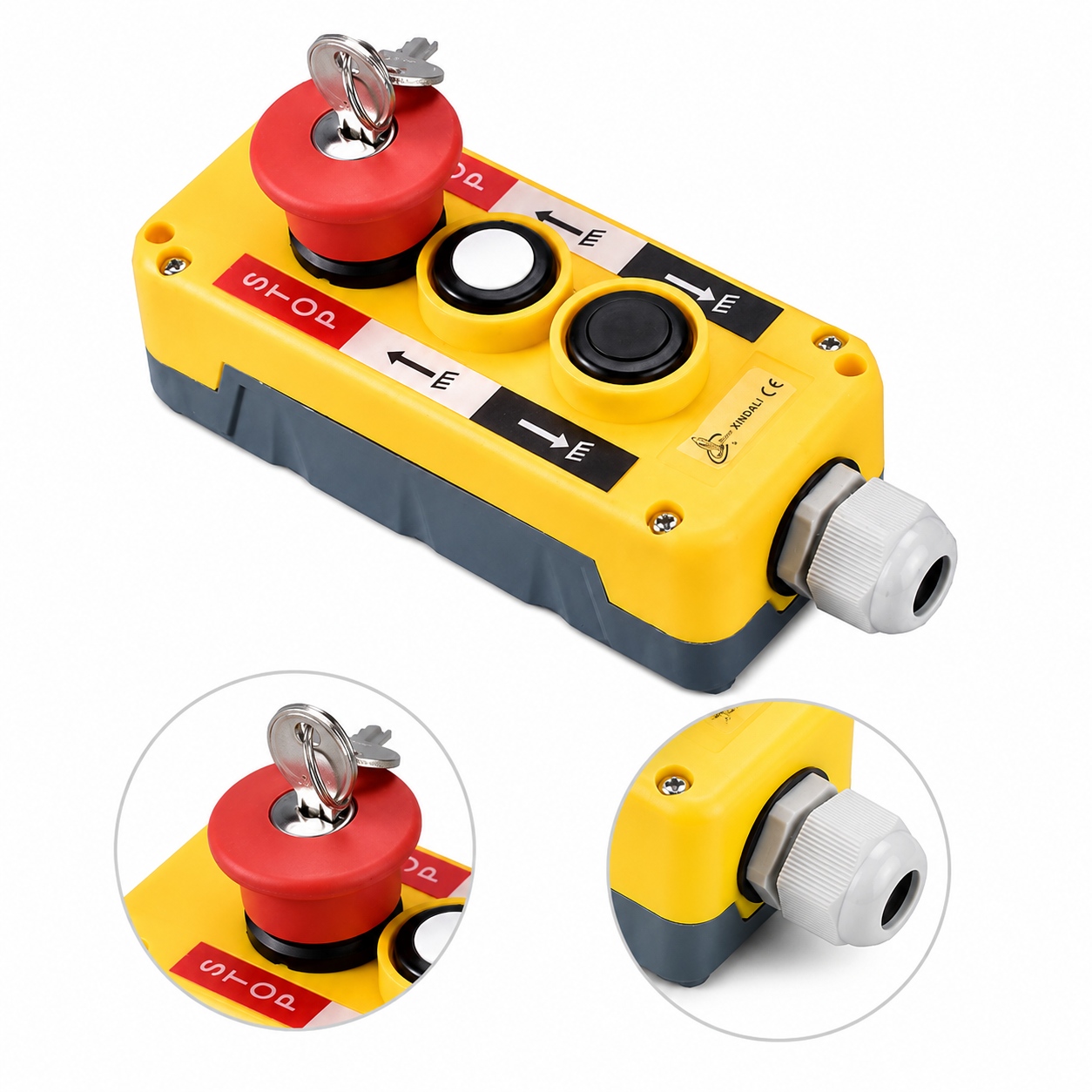

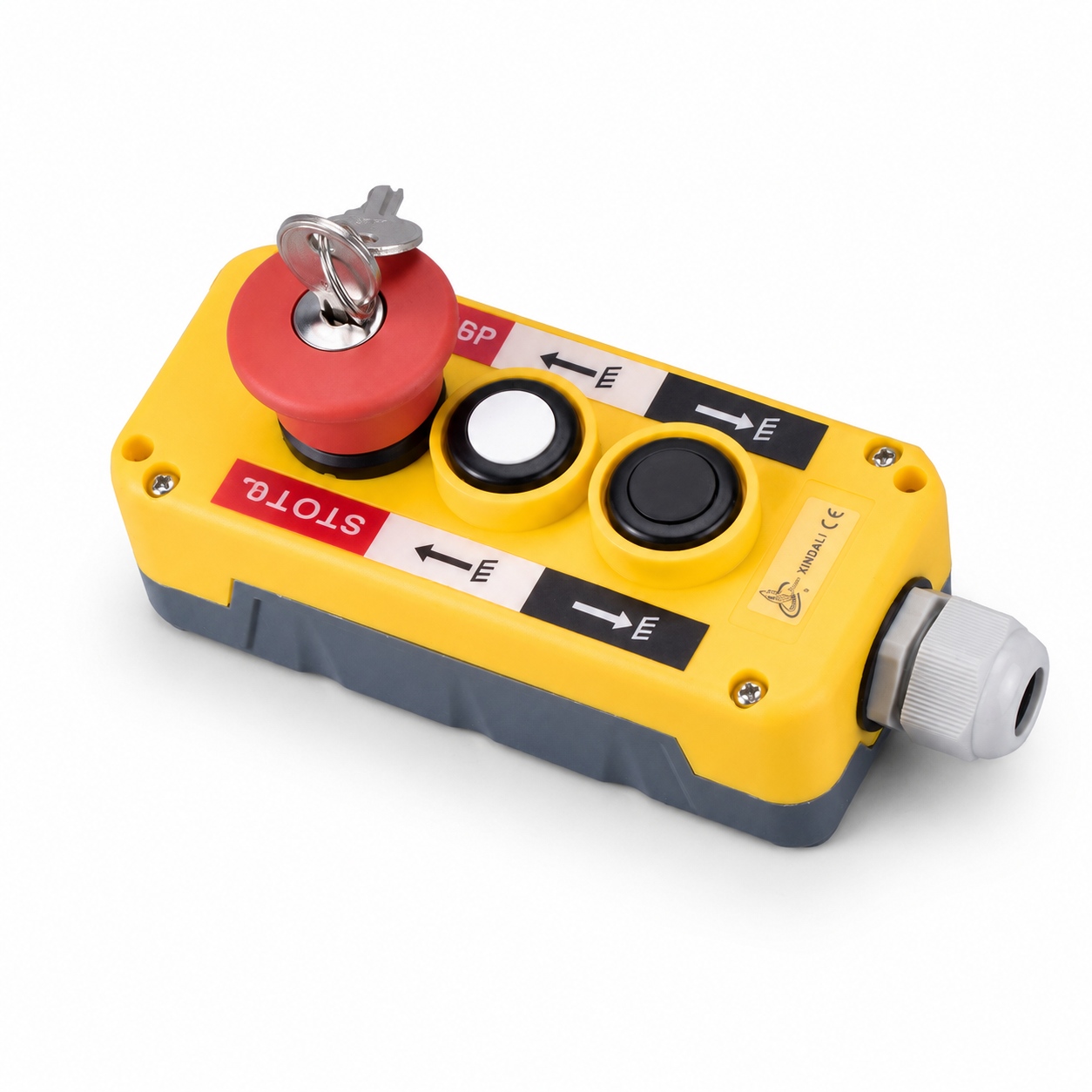

XDL10-EPBK3 Key-Release Safety Pendant for Dual-Direction Control
XINDALI XDL10 Series | Key-Controlled Dual-Direction Pendant
XDL10-EPBK3 Key-Release Safety Pendant for Dual-Direction Control
The XDL10-EPBK3 combines a key-release emergency stop with two spring-return flush push buttons. It is developed for hydraulic, vehicle-mounted and industrial equipment that requires two related operating commands while limiting emergency-stop release to authorized personnel.
Key-Release E-Stop 2 Momentary Commands Two-Button Interlock IP54 Enclosure PG13.5 Cable Entry Holder Available Rear Magnet Option
Controlled Reset for Two-Direction Equipment
The XDL10-EPBK3 is intended for equipment where two operating directions must be controlled from a handheld pendant, but emergency-stop release should not be available to every operator.
After the emergency stop is pressed, the mushroom operator remains latched. The corresponding key is required to release it, helping equipment owners establish a more controlled inspection and reset procedure.
Typical Button Assignments
UP / DOWN
Tail lift, platform or lifting equipment movement.
OPEN / CLOSE
Hydraulic doors, covers, gates or machine components.
EXTEND / RETRACT
Hydraulic cylinders and mobile equipment actuators.

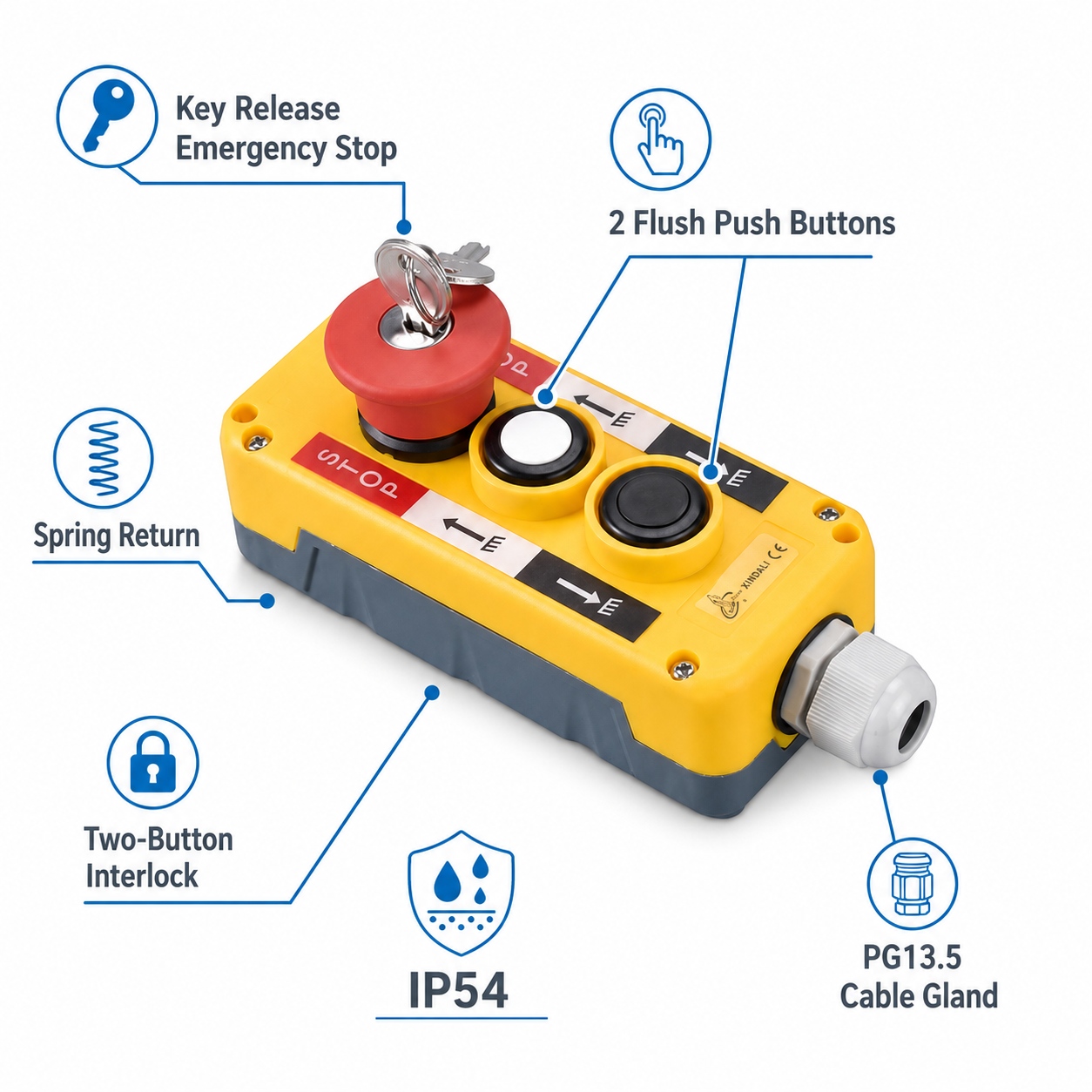

Three-Position Safety Control Layout
Key-Release Emergency Stop
Press to latch the emergency stop. Release requires the correct key after the machine condition has been checked.
Two Spring-Return Buttons
The two flush push buttons return automatically after release and are suitable for momentary control.
Interlocked Opposite Commands
The two-button interlock arrangement helps prevent opposite commands from being activated simultaneously.
Authorized Reset Procedure
1
Activate E-Stop
Press the red mushroom operator if unsafe or abnormal operation occurs.
2
Inspect Equipment
Inspect the machine, load, hydraulic system and surrounding area.
3
Release with Key
Authorized personnel use the matching key to release the emergency stop.
4
Resume Safely
Equipment restart remains subject to the machine control circuit and safety logic.
Recommended Applications
This controller is suitable for machines requiring paired movement control and restricted emergency-stop release.

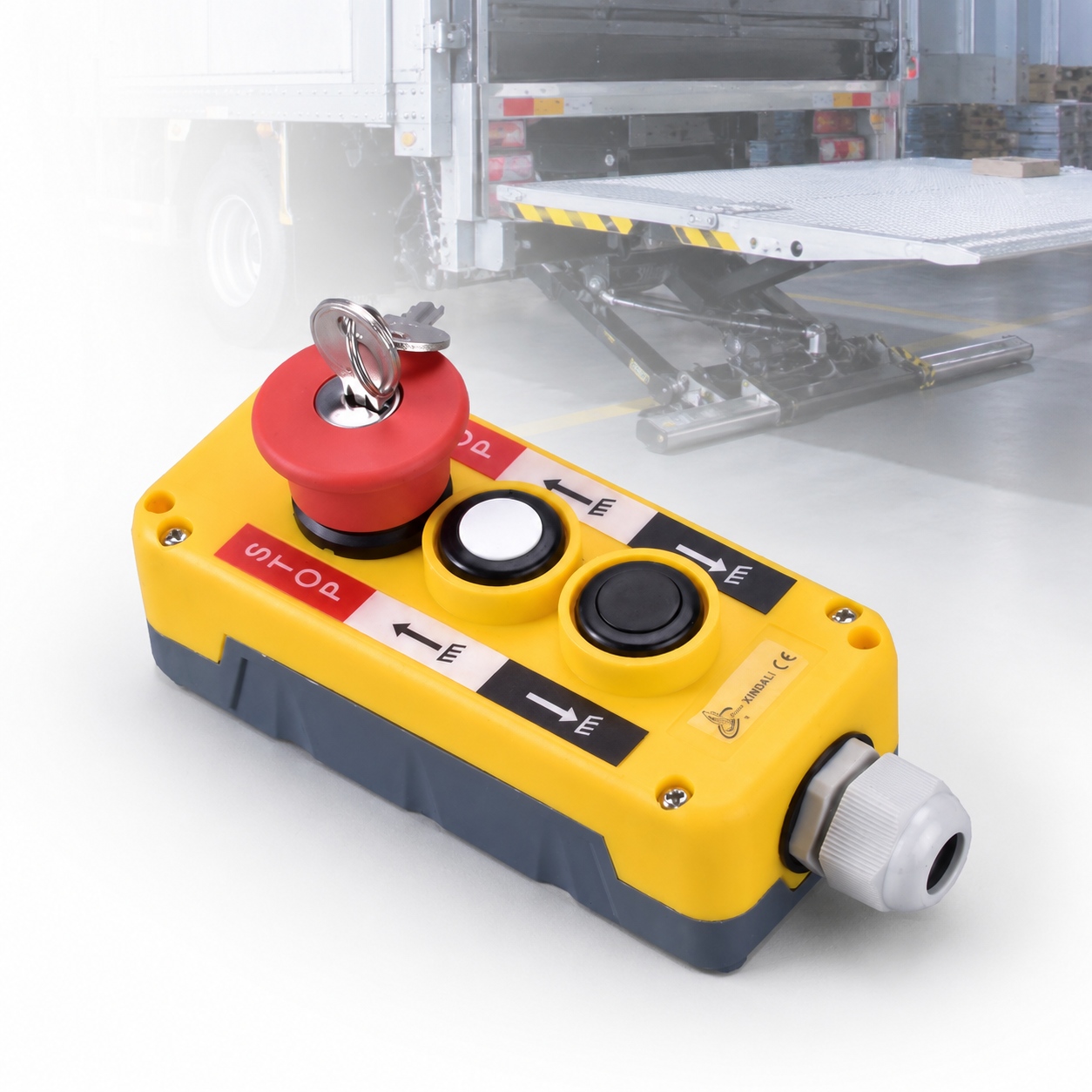

Truck Tail Lifts
Raise and lower control with a key-controlled emergency stop.
Hydraulic Power Units
Dual-action hydraulic operation with controlled reset access.
Vehicle-Mounted Equipment
Suitable for mobile machines operated from the side or rear of a vehicle.
OEM Safety Assemblies
Custom labels, contacts, wiring and cable specifications are available.
Choosing Between EPBK2, EPBK3 and EPBS3
| Model | Emergency-Stop Release | Command Buttons | Recommended Use |
|---|---|---|---|
| XDL10-EPBK2 | Key release | 1 momentary command | Single-action equipment requiring restricted reset |
| XDL10-EPBK3 | Key release | 2 momentary commands | Dual-direction control requiring authorized reset |
| XDL10-EPBS3 | Turn to release | 2 momentary commands | General dual-direction control with standard E-stop reset |
| XDL10-EPB3 | No emergency-stop position | 3 command buttons | General three-command pendant control |
Holder Storage and Magnetic Mounting
Optional XDL10-EPC Holder
The matching holder provides a dedicated storage position when the controller is not in use. It can be installed on vehicle bodies, control panels or equipment frames.
Optional Strong Rear Magnets
Rear magnets allow temporary attachment to suitable ferrous truck bodies, steel panels and machine surfaces for convenient operator access.
Technical Specifications
| Product Model | XDL10-EPBK3 |
| Alternative Contact Version | XDL10-EPBK32 |
| Series | XDL10 Series |
| Housing Layout | 3 holes |
| Emergency Stop | 1 key-release emergency stop |
| Command Buttons | 2 flush push buttons |
| Button Action | Spring return / momentary |
| Interlock | Two-button interlock |
| Emergency-Stop Contact | N/C |
| Push-Button Contact Version | N/O for XDL10-EPBK3; 2N/O for XDL10-EPBK32 |
| Protection Level | IP54 |
| Cable Entry | PG13.5 |
| Approximate Housing Size | 142 × 62 mm |
| Approximate Housing Depth | 45.9 mm |
| Optional Accessories | XDL10-EPC holder, rear magnets, custom labels, cable and wiring options |
The machine manufacturer or system integrator must verify the final emergency-stop circuit, restart logic, risk assessment and applicable regulatory requirements.
Compare Related XDL10 Safety Controllers
For equipment requiring only one operating command, compare the XDL10-EPBK2 key-release emergency stop pendant .
For two-direction control with a standard twist-reset emergency stop, see the XDL10-EPBS3 dual-command emergency stop controller .
Browse the complete XDL10 handheld pendant controller series , explore tail lift control box solutions , or review more industrial pendant controllers .
Need a Key-Release Pendant for Up/Down or Open/Close Control?
Send XINDALI your operating functions, contact arrangement, cable length and mounting requirements for an XDL10-EPBK3 quotation or OEM configuration.
