XDL10-EPBK4 Keyed-Reset Pendant Controller with Three Momentary Commands
XINDALI XDL10 Series | Authorized-Reset Multi-Command Pendant
XDL10-EPBK4 Keyed-Reset Pendant Controller with Three Momentary Commands

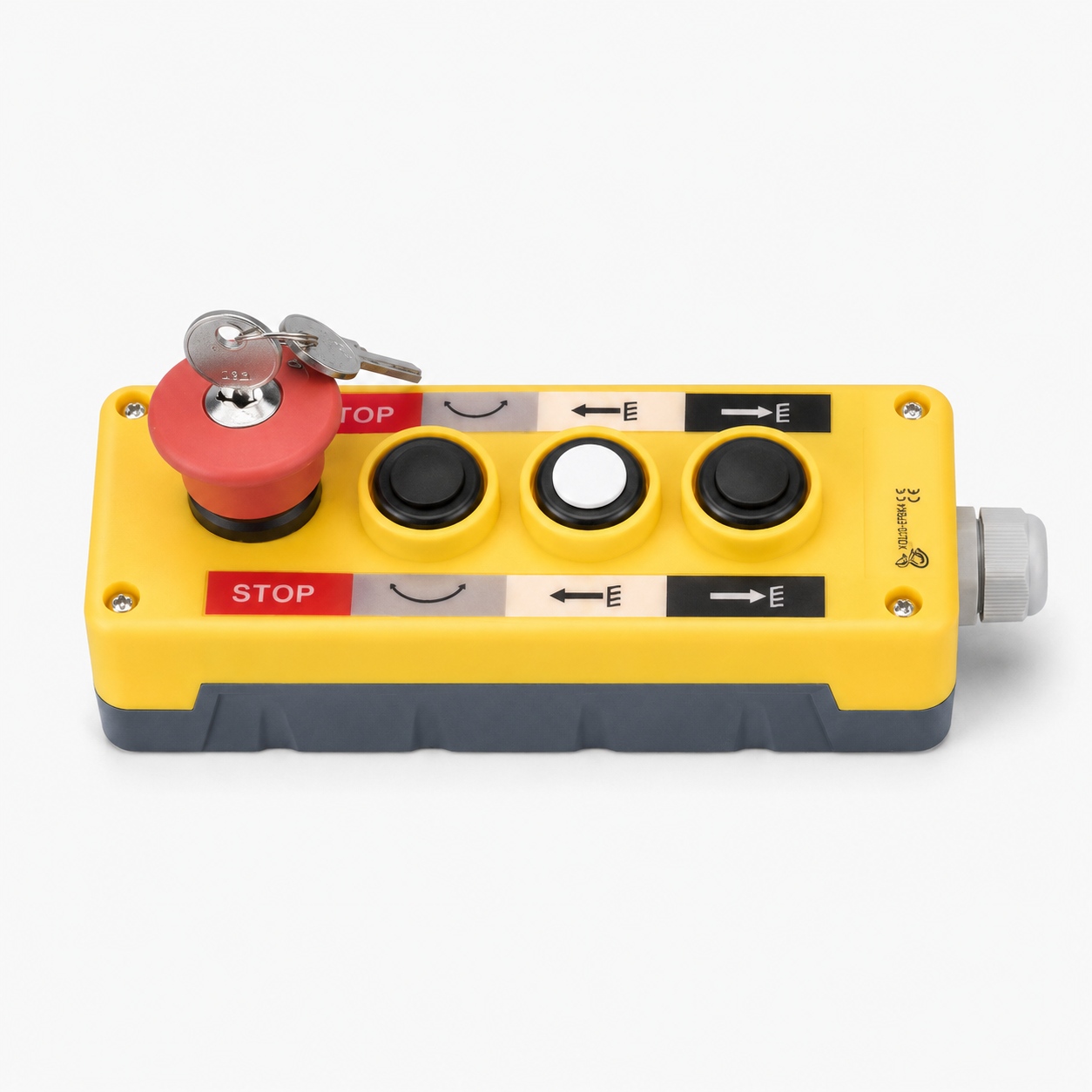

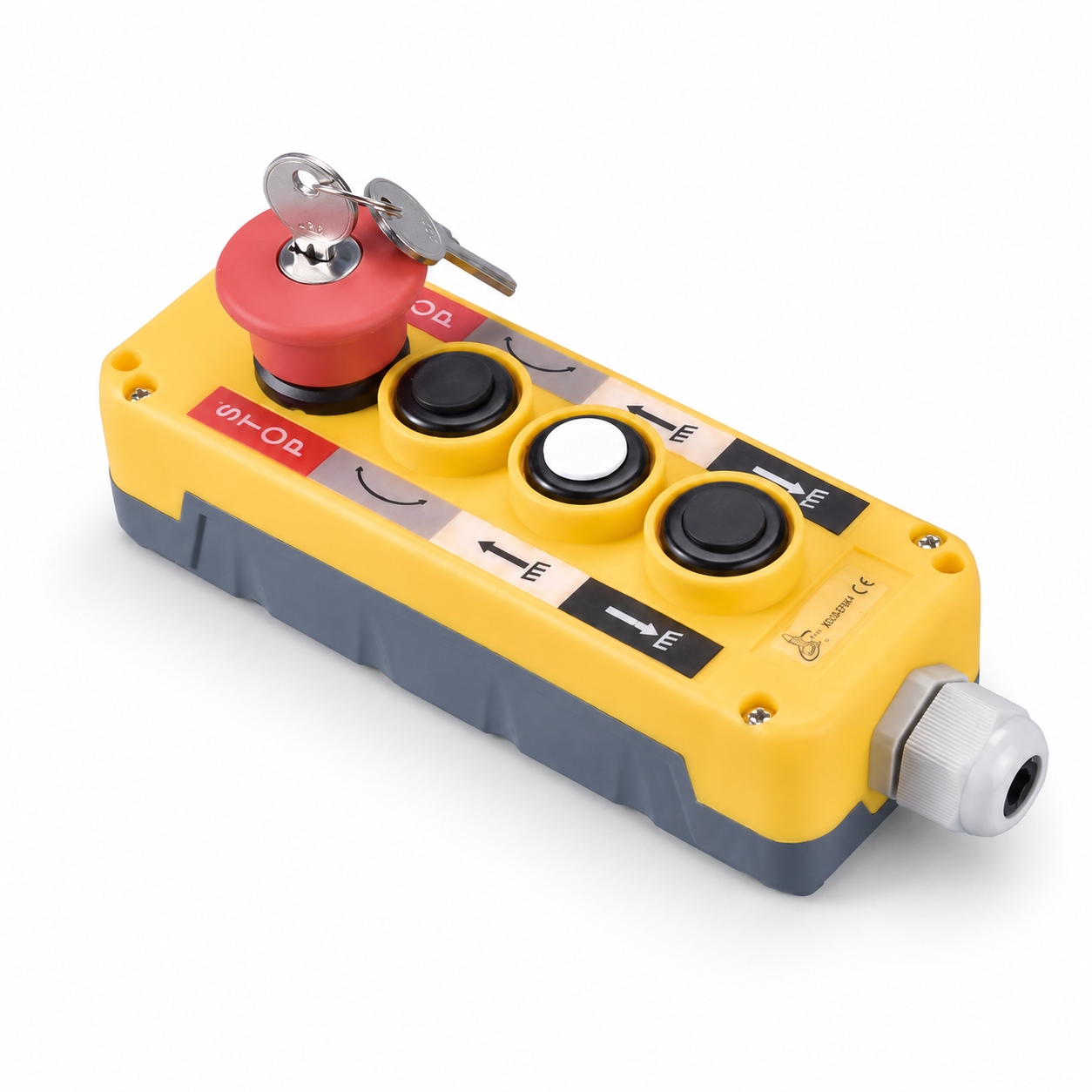

The XDL10-EPBK4 combines one key-release emergency stop with three spring-return flush push buttons. It is designed for hydraulic, vehicle-mounted and industrial equipment that requires a three-command operating sequence while restricting emergency-stop release to authorized personnel.

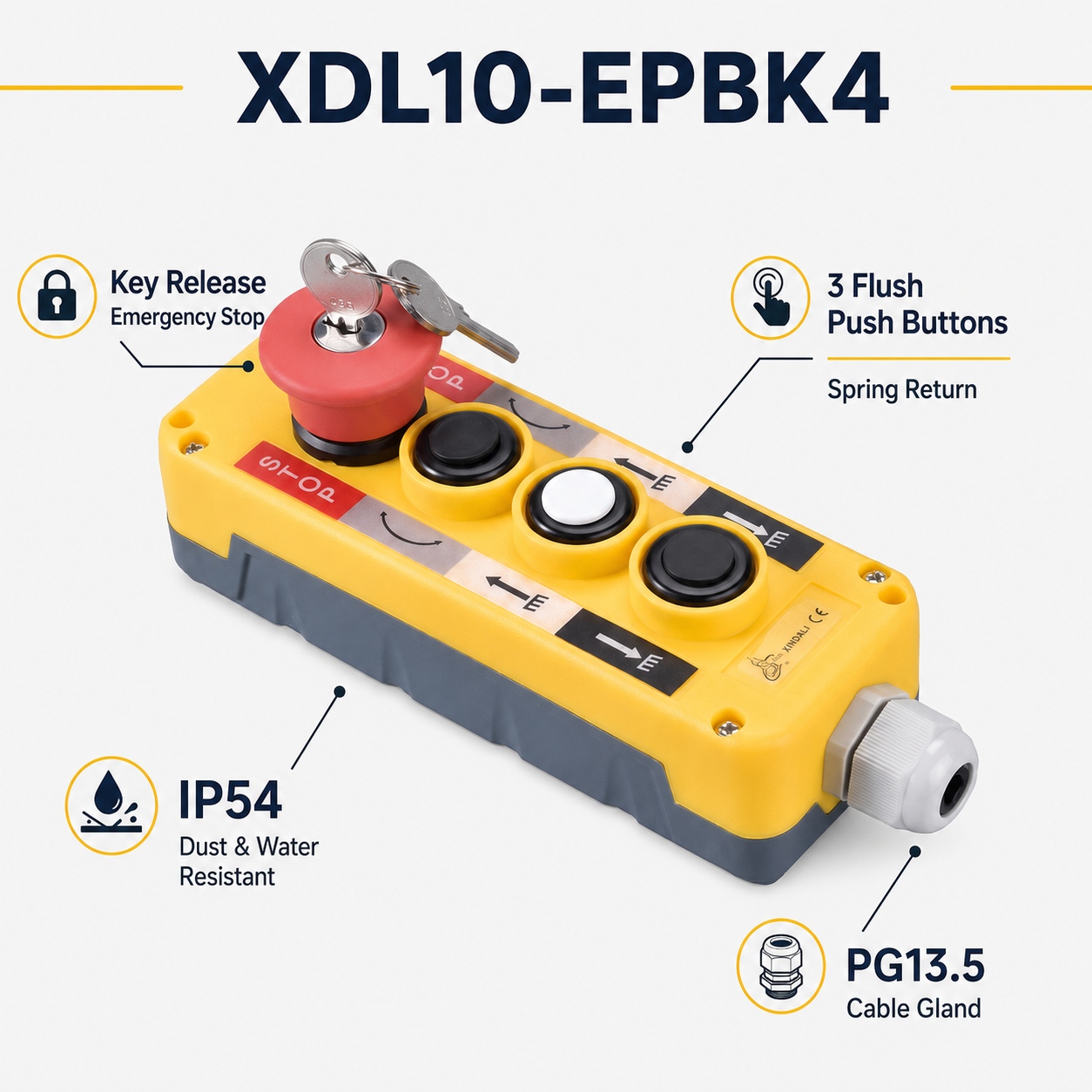

Key-Release Emergency Stop 3 Momentary Commands Two-Button Interlock IP54 Protection PG13.5 Cable Entry Optional Holder Optional Rear Magnets
Three Commands with Controlled Emergency-Stop Release
XDL10-EPBK4 is intended for machinery that needs more than a simple up/down pendant, but where emergency-stop reset should still follow an authorized procedure.
The key-release mushroom operator helps prevent immediate reset by an unauthorized operator. After an emergency stop, designated personnel can inspect the machine and use the matching key to release the latched emergency-stop operator.
Typical Three-Command Layouts
UP / DOWN / AUXILIARY
Suitable for tail lifts, platforms and hydraulic lifting equipment.
OPEN / CLOSE / RESET
Suitable for hydraulic covers, doors, gates and machine components.
EXTEND / RETRACT / ENABLE
Suitable for cylinders, outriggers and vehicle-mounted equipment.
Four-Position Control Architecture

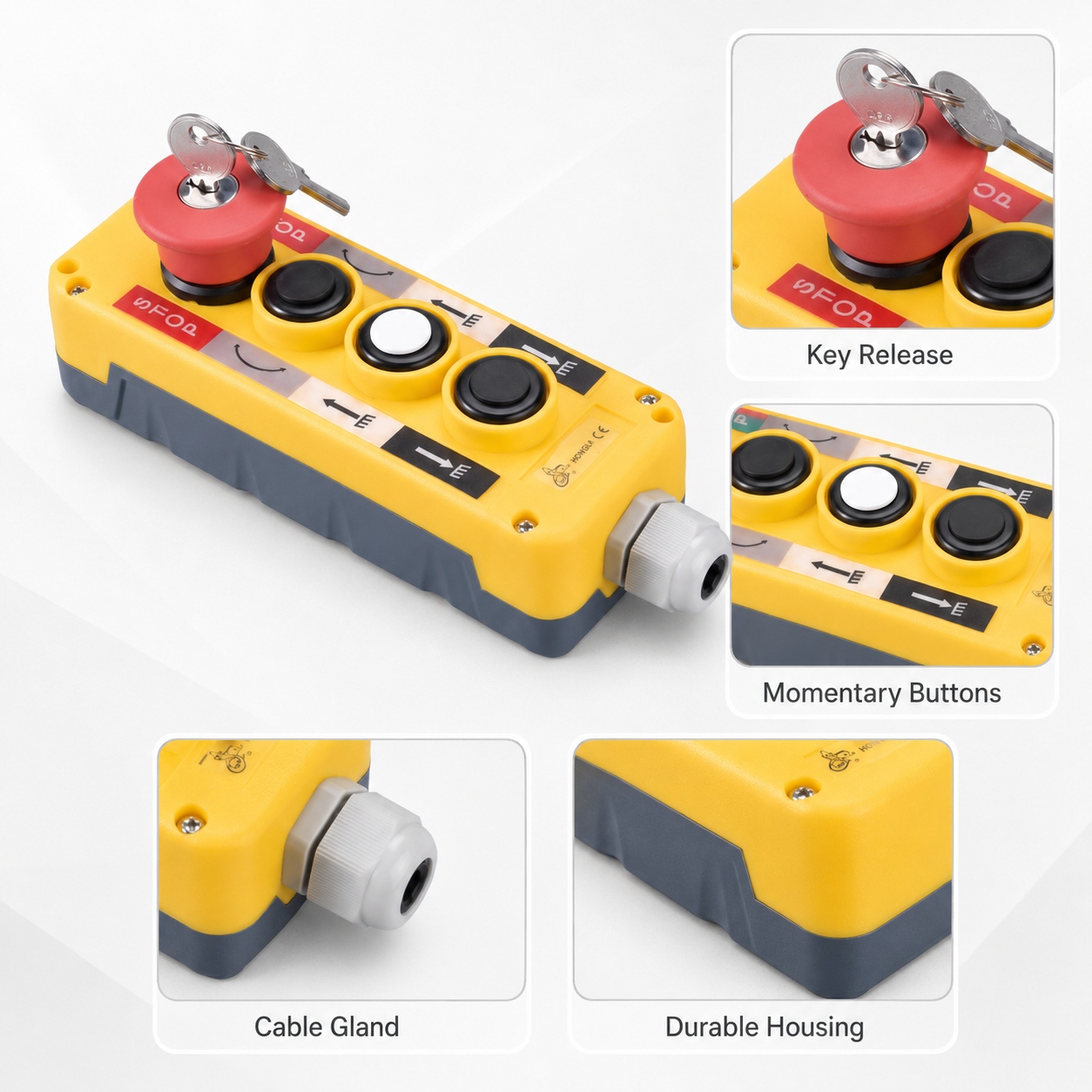

Key-Release E-Stop
The emergency stop remains latched after activation and requires the corresponding key for release.
Three Flush Buttons
Three command positions support a more complete operating sequence than EPBK2 or EPBK3.
Spring-Return Action
Each command button returns automatically after release for momentary press-and-hold control.
Paired-Command Interlock
Related opposite commands can use the two-button interlock arrangement to reduce simultaneous activation.
Authorized Restart Workflow
The key-release design supports a more deliberate reset process after emergency-stop activation.
01
Stop the Equipment
Press the red emergency-stop operator when an unsafe or abnormal condition occurs.
02
Inspect the System
Check the load, hydraulic circuit, actuators and working area.
03
Release with Key
Authorized personnel use the matching key to release the latched emergency stop.
04
Resume Operation
Restart remains subject to the equipment control circuit and machine safety logic.
Recommended Equipment Applications

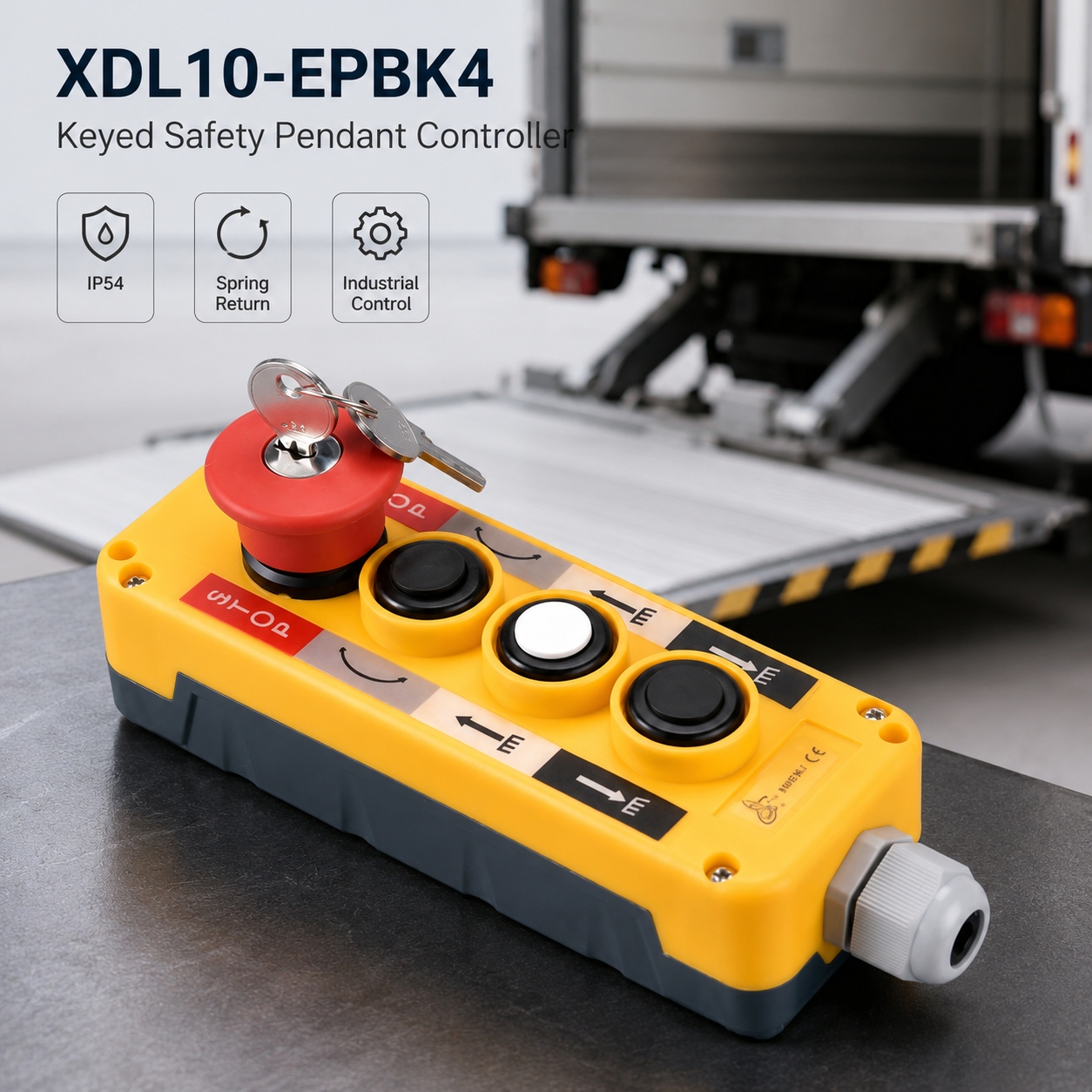

Tail Lift Control
Configure raise, lower and an auxiliary platform function while retaining a keyed emergency stop.
Vehicle-Mounted Hydraulics
Suitable for service trucks, hydraulic bodies, outriggers and mobile equipment.
Lifting Platforms
Provides two principal movement commands plus one enable, reset or auxiliary function.
Hydraulic Power Units
Supports three momentary commands and a controlled emergency-stop release procedure.
Maintenance Stations
Suitable where maintenance personnel need to control emergency-stop reset access.
OEM Control Assemblies
Button functions, labels, contacts, cable and wiring can be configured for specific machinery.
XDL10 Key-Release Pendant Selection
| Model | Emergency-Stop Release | Command Layout | Recommended Use |
|---|---|---|---|
| XDL10-EPBK2 | Key release | 1 momentary command | Single-action machinery requiring restricted reset |
| XDL10-EPBK3 | Key release | 2 momentary commands | Dual-direction equipment control |
| XDL10-EPBK4 | Key release | 3 momentary commands | Three-command workflow with authorized reset |
| XDL10-EPBS4 | Turn to release | 3 momentary commands | General three-command control with standard E-stop reset |
| XDL10-EPB4 | No emergency-stop position | 4 command buttons | General four-command pendant operation |
Storage and Truck-Body Mounting Options
Optional XDL10-EPC Holder
The matching holder provides a fixed storage position when the controller is not in use. It helps keep the pendant protected, organized and within reach on trucks or machinery.
Optional Rear Magnetic Mounting
Strong magnets can be installed on the rear housing for temporary attachment to suitable ferrous truck bodies, steel equipment panels and machine frames.
Technical Specifications

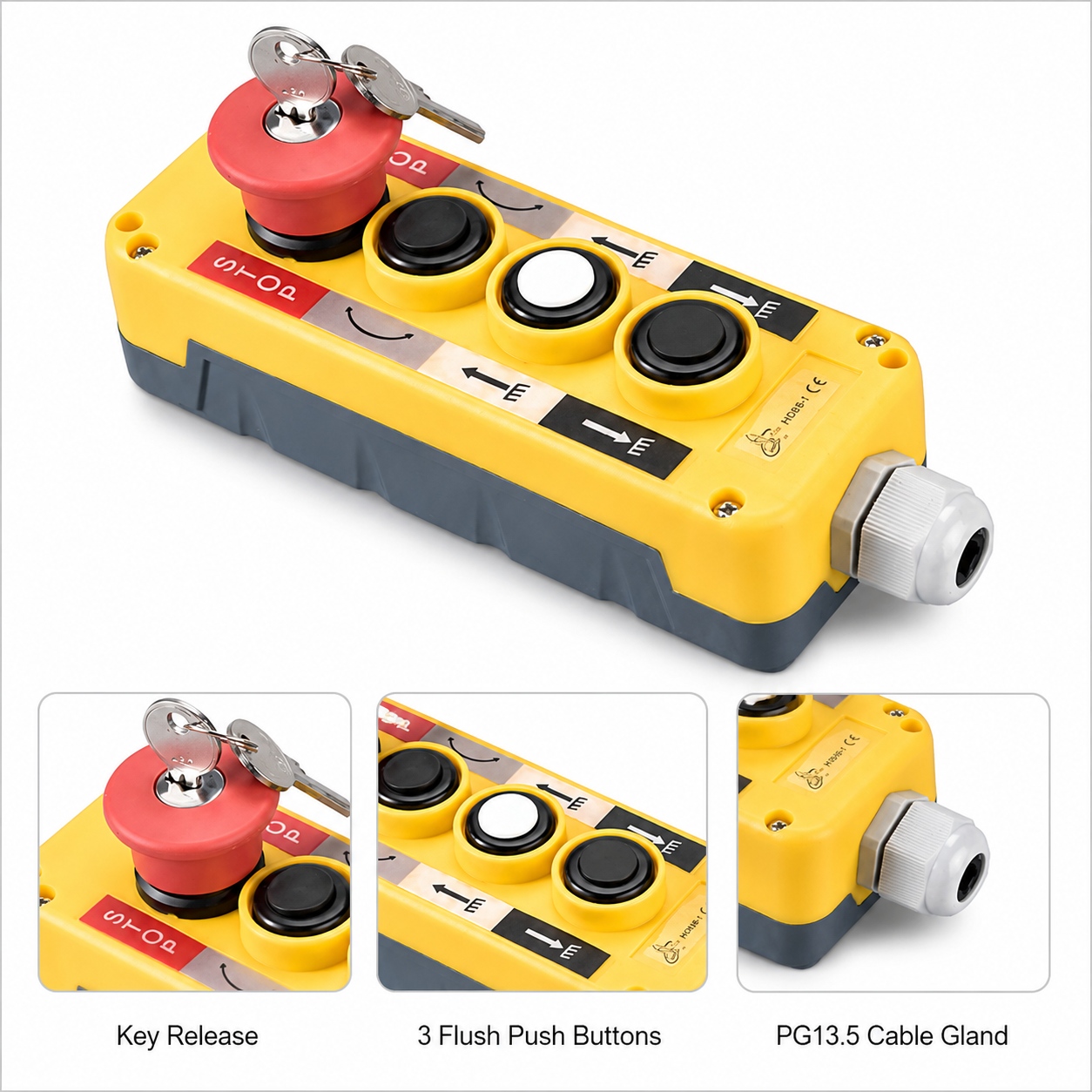

| Product Model | XDL10-EPBK4 |
| Alternative Contact Version | XDL10-EPBK42 |
| Product Series | XDL10 Series |
| Housing Layout | 4 holes control box |
| Emergency Stop | 1 key-release emergency stop |
| Command Buttons | 3 flush push buttons |
| Button Operation | Spring return / momentary |
| Interlock | Two-button interlock |
| Emergency-Stop Contact | N/C |
| Push-Button Contact Version | N/O for XDL10-EPBK4; 2N/O for XDL10-EPBK42 |
| Protection Level | IP54 |
| Cable Entry | PG13.5 |
| Approximate Housing Size | 171 × 62 mm |
| Approximate Housing Depth | 45.9 mm |
| Approximate Operator Projection | 38.5 mm, subject to final operator configuration |
| Optional Accessories | XDL10-EPC holder, rear magnets, custom labels, cable and wiring options |
The machine manufacturer or system integrator must verify the final emergency-stop circuit, restart logic, machine risk assessment and applicable regulatory requirements.
Compare Related XDL10 Control Pendants
For one-command operation with keyed reset, compare the XDL10-EPBK2 key-release emergency stop pendant .
For two-direction control with authorized emergency-stop release, review the XDL10-EPBK3 dual-direction keyed safety pendant .
For three commands with a standard turn-to-release emergency stop, see the XDL10-EPBS4 three-command emergency stop controller .
Browse more industrial handheld pendant controllers , explore tail lift control solutions , or contact XINDALI for a customized keyed control pendant .
Need Three Control Commands with Authorized Emergency-Stop Reset?
Send XINDALI your operating sequence, contact arrangement, cable length and mounting requirements for an XDL10-EPBK4 quotation or OEM configuration.
Request a Quotation
