XDL10-EPBS3 Emergency Stop Pendant Controller with 2 Push Buttons | XINDALI

XDL10-EPBS3 is a compact emergency stop pendant controller with one turn-to-release emergency stop and two spring-return flush push buttons. Suitable for tail lifts, hydraulic equipment, truck-mounted systems, lifting platforms, and OEM safety control assemblies requiring two-direction control.

  • Product Model XDL10-EPBS3
  • Series XDL10 Series
  • Configuration 1 Emergency Stop + 2 Flush Push Buttons
  • Control Box Structure 3 Holes Control Box
  • Emergency Stop Type Turn to Release
  • Push Button Operation Spring Return / Momentary
  • Interlock Type Two-Button Interlock
  • Contact Configuration N/C + N/O; EPBS32 option: N/C + 2N/O
  • Protection Level IP54
  • Cable Entry PG13.5
  • Application Industrial machinery, hydraulic systems, tail lift control, tipping trailers, automation equipment
  • Approx. Size 142 × 62 mm
  • Approx. Housing Width 45.9 mm
  • Holder Optional XDL10-EPC box holder
  • Optional Accessories XDL10-EPC holder, strong back magnets, custom labels, cable options
Contact us
Product Detail

XINDALI XDL10 Series | Safety + Dual Command Pendant Controller

XDL10-EPBS3 Emergency Stop Pendant Controller with 2 Spring-Return Push Buttons

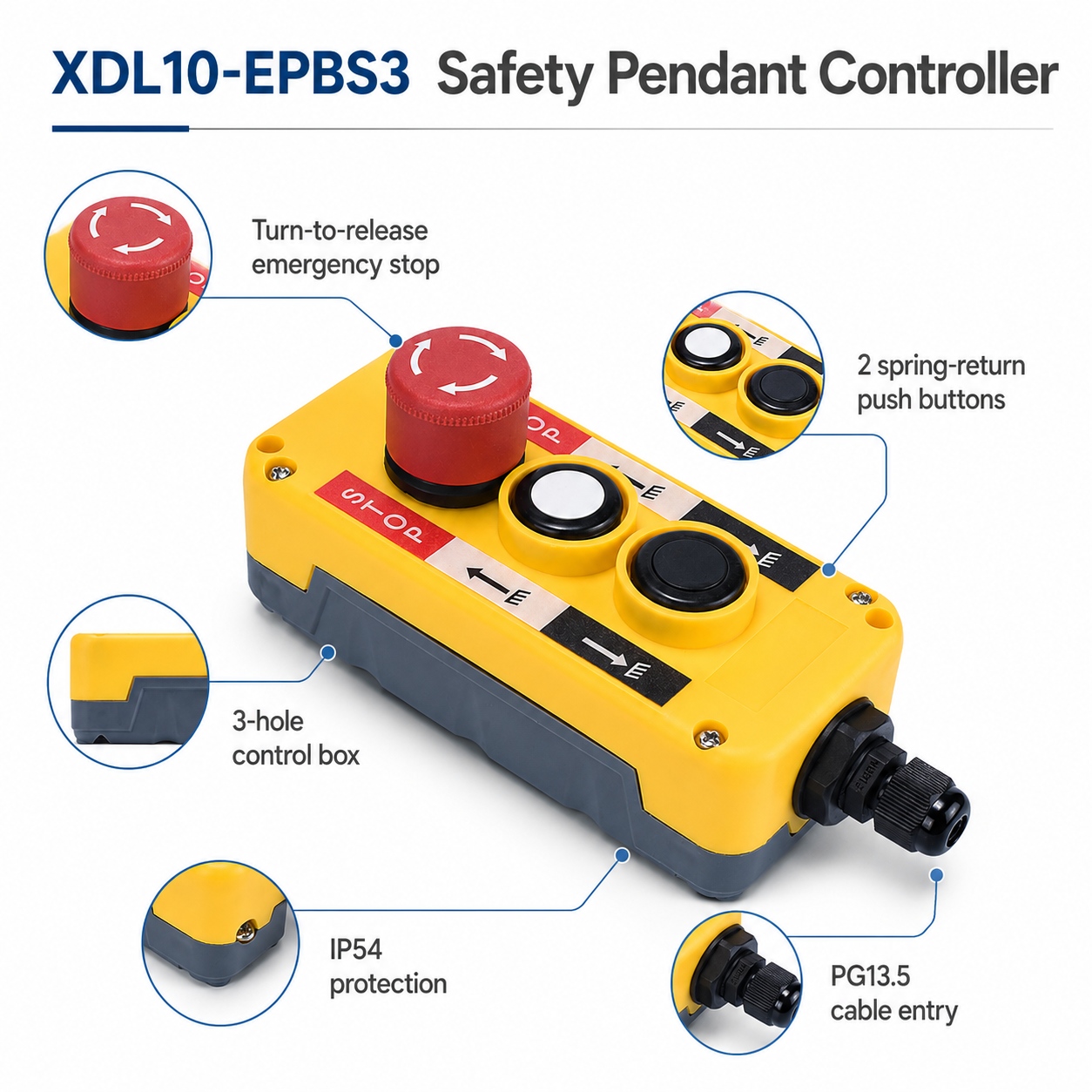

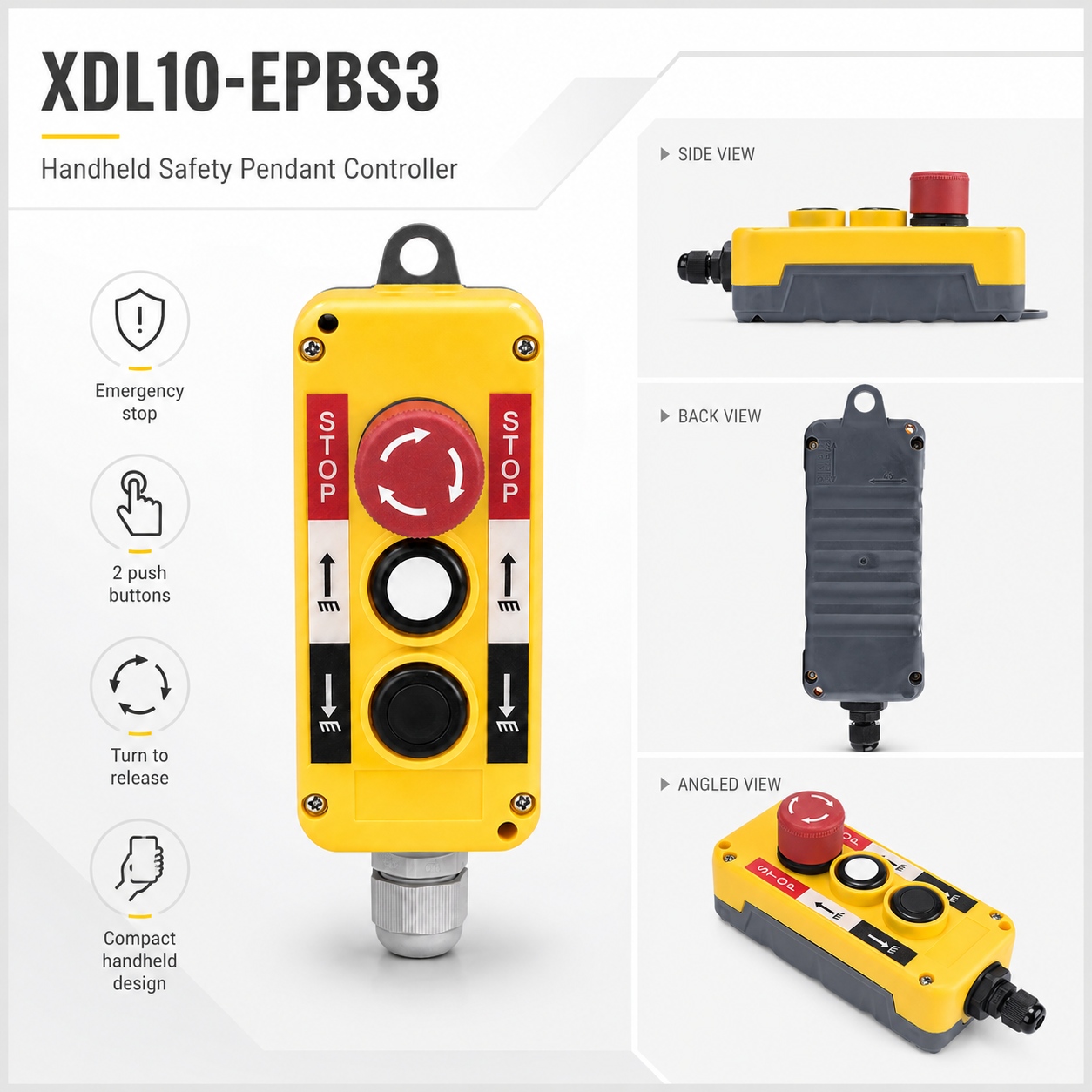

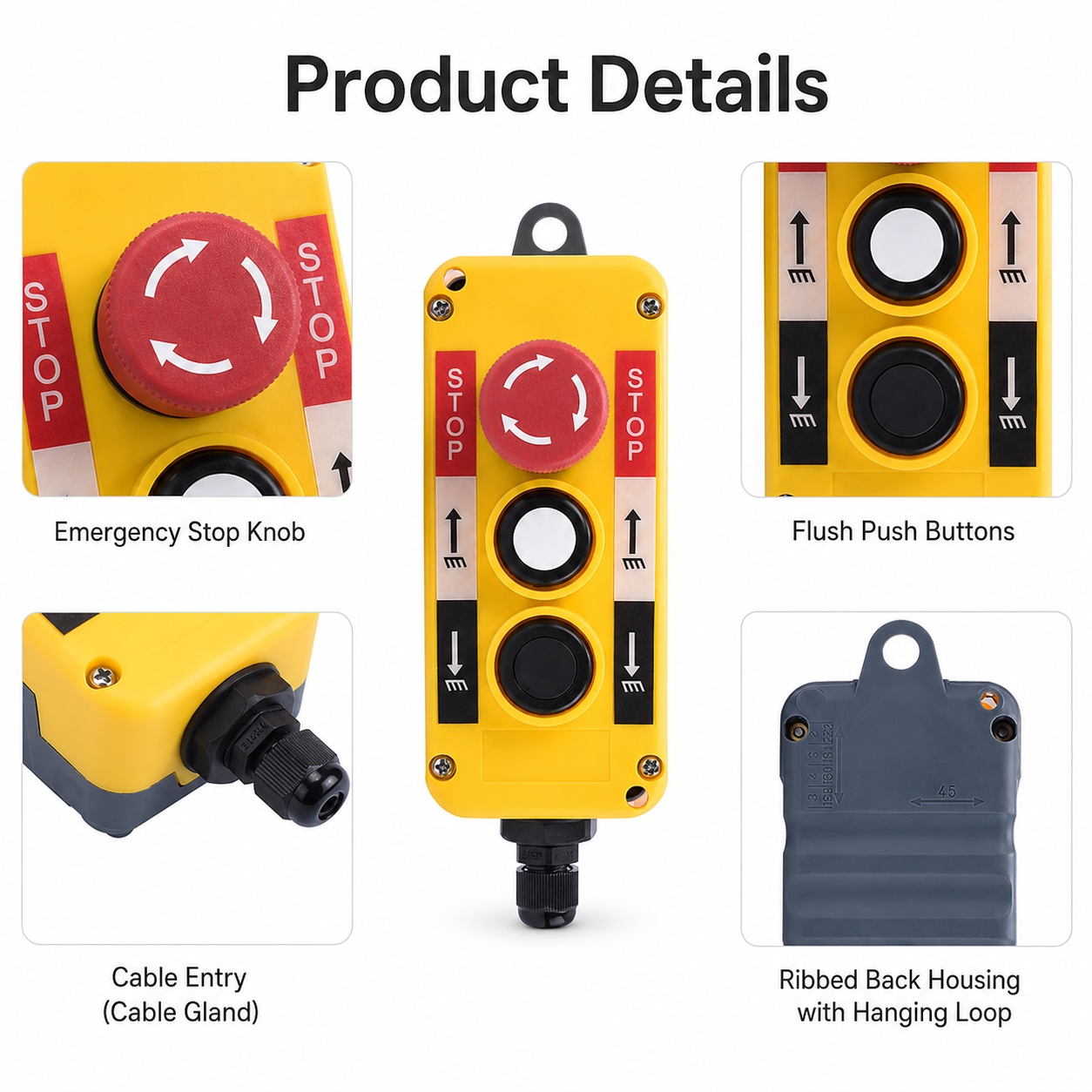

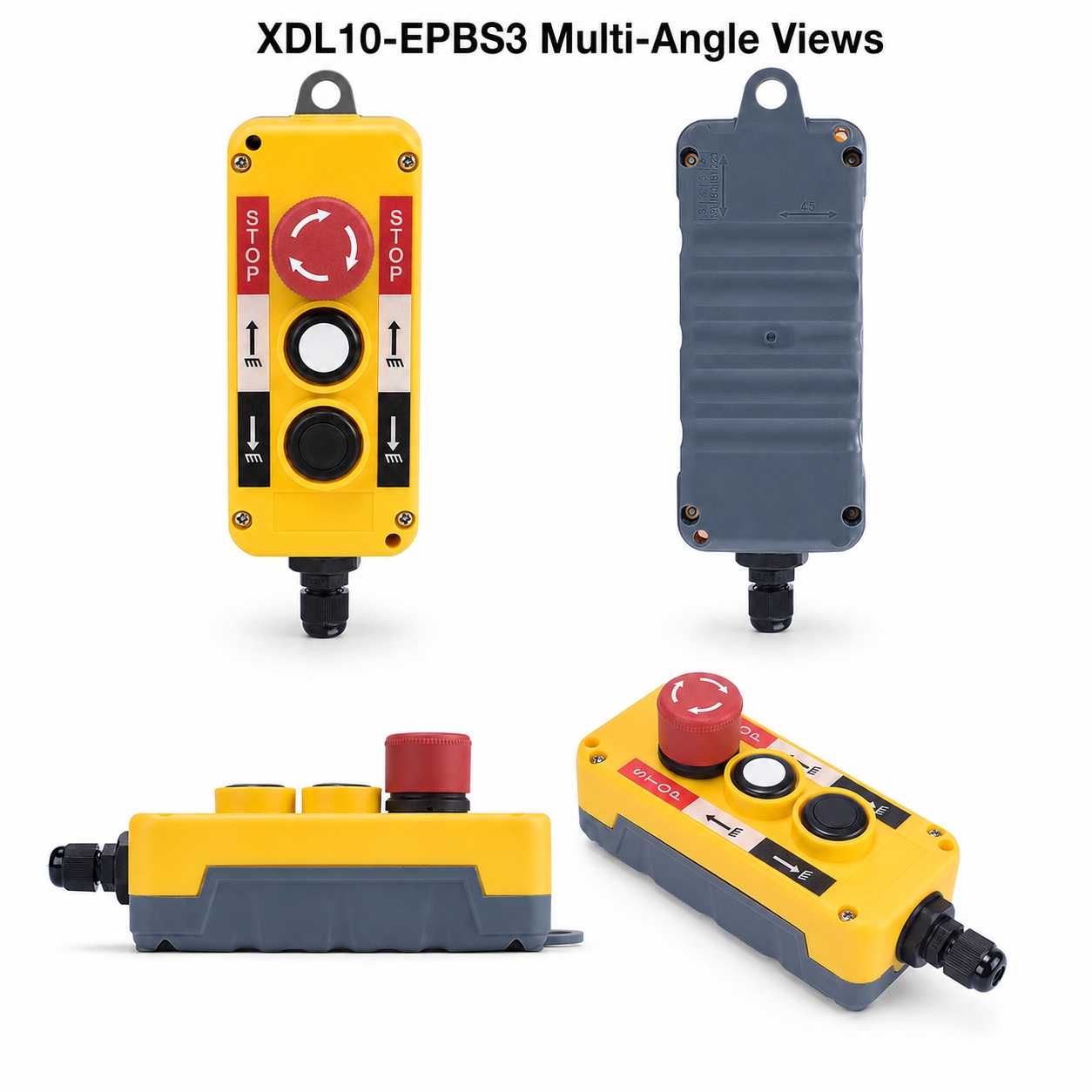

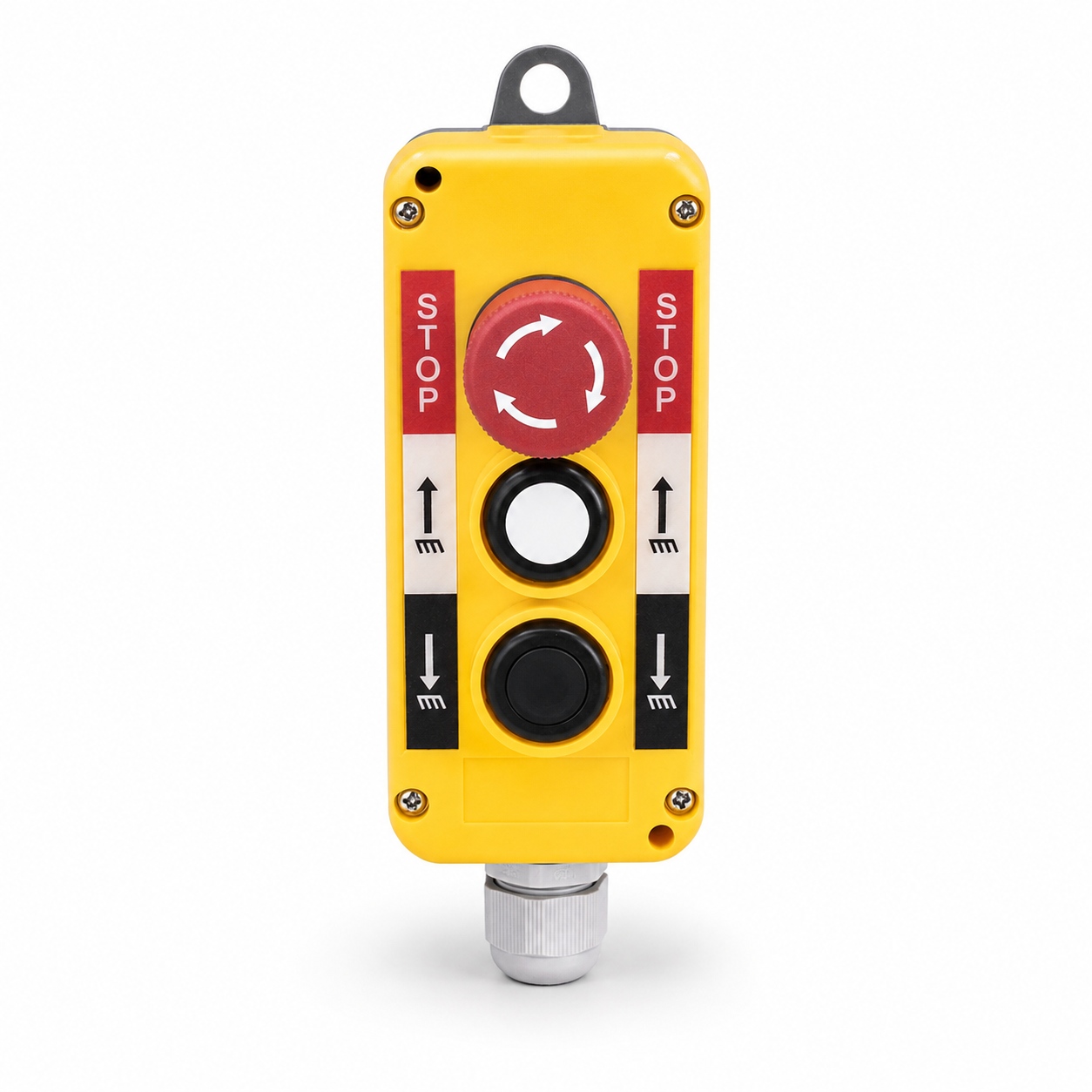

The XDL10-EPBS3 is a compact handheld pendant controller designed for equipment that requires emergency stop protection together with two momentary control commands. It combines 1 turn-to-release emergency stop and 2 spring-return flush push buttons inside a 3-hole handheld control box, making it suitable for tail lifts, hydraulic units, truck-mounted equipment, lifting platforms, and OEM safety control systems.

1 Emergency Stop 2 Flush Push Buttons Dual Command Control Turn-to-Release E-Stop Two-Button Interlock IP54 Protection PG13.5 Cable Entry

For Machines That Need Safety Stop + Two Direction Control

The XDL10-EPBS3 is different from standard multi-button pendant controllers. It is designed for applications where two operating commands must be combined with a local emergency stop. Typical control logic includes UP / DOWN, LEFT / RIGHT, OPEN / CLOSE, RAISE / LOWER, or other two-direction equipment actions.

This makes it suitable for compact hydraulic systems, truck tail lifts, mobile machinery, vehicle-mounted platforms, service equipment, and OEM control boxes where operators need simple movement control with direct safety interruption.

Safety + Dual Command Control Logic

Emergency Stop Protection
The red mushroom emergency stop is used to stop equipment quickly when abnormal or unsafe operation occurs.
Two Momentary Commands
Two flush push buttons can be used for two related commands such as raise/lower, open/close, or left/right.
Two-Button Interlock
Interlock design helps prevent two related opposite commands from being activated at the same time.
Compact 3-Hole Design
Combines one emergency stop and two command buttons in a compact handheld pendant controller.

Recommended Application Scenarios

XDL10-EPBS3 is ideal for equipment requiring two-direction movement control and a built-in emergency stop.

Tail Lift Systems
For raise/lower control with emergency stop protection.
Hydraulic Power Units
For dual-action hydraulic operation with safety stop.
Truck-Mounted Equipment
For vehicle-mounted control where quick stop access is required.
OEM Safety Assemblies
For custom control systems requiring emergency stop plus two commands.

How XDL10-EPBS3 Differs from Other XDL10 Models

Model Type Main Configuration Best Application
XDL10-EPBS2 1 Emergency Stop + 1 Push Button Single command with safety stop
XDL10-EPBS3 1 Emergency Stop + 2 Push Buttons Two-direction control with emergency stop
XDL10-EPB Series Multiple flush push buttons only Multi-command operation without E-stop layout

Optional XDL10-EPC Holder

The XDL10-EPBS3 can be matched with the XDL10-EPC holder for fixed storage. This helps keep the controller protected and easy to reach when used on trucks, tail lifts, and hydraulic equipment.

Optional Strong Back Magnets

Strong magnets can be installed on the back of the controller, allowing quick attachment to truck bodies, metal panels, lift platforms, and machine frames.

Technical Specifications

Product Model XDL10-EPBS3
Alternative Version XDL10-EPBS32
Series XDL10 Series
Control Box Structure 3 Holes Control Box
Configuration 1 Emergency Stop + 2 Flush Push Buttons
Emergency Stop Type Turn to Release
Push Button Operation Spring Return / Momentary
Interlock Function Two-Button Interlock
Contact Configuration N/C + N/O; EPBS32 option: N/C + 2N/O
Protection Level IP54

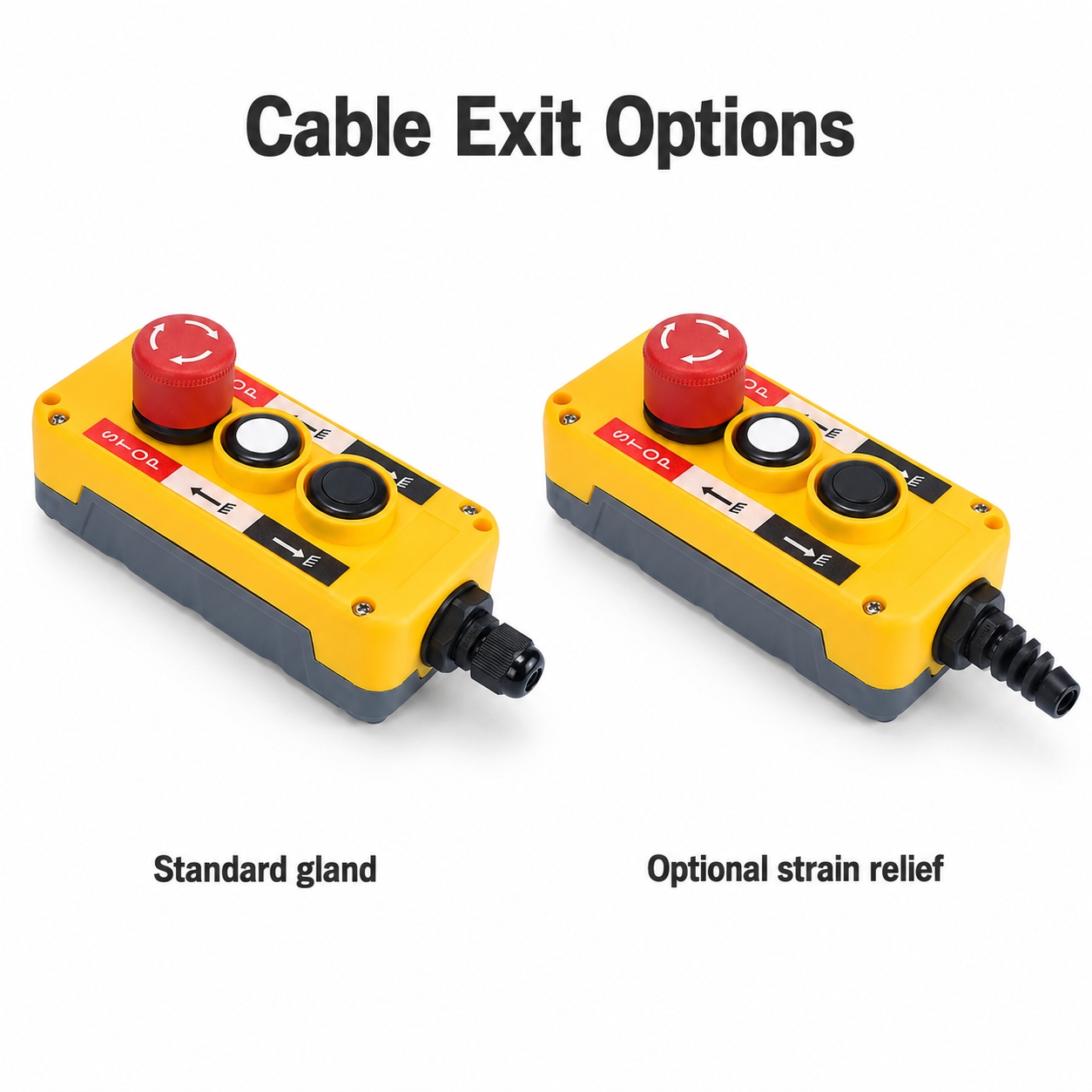

Cable Entry PG13.5
Approx. Size 142 × 62 mm
Approx. Housing Width 45.9 mm
Optional Accessories XDL10-EPC holder, strong back magnets, custom labels, cable options

People Also Ask

Buyer questions about emergency stop pendant controllers with two command buttons.

What is XDL10-EPBS3 used for?

XDL10-EPBS3 is used for equipment that requires one emergency stop and two momentary control commands. It is suitable for tail lifts, hydraulic units, lifting platforms, truck-mounted equipment, and OEM safety control assemblies.

Why choose XDL10-EPBS3 instead of XDL10-EPBS2?

XDL10-EPBS3 provides two spring-return push buttons in addition to the emergency stop. It is better for equipment that needs two-direction control, such as raise/lower, open/close, or left/right movement.

What does turn-to-release emergency stop mean?

The emergency stop button is pressed to stop operation and reset by turning the mushroom button. This helps prevent accidental reset after emergency activation.

What is two-button interlock used for?

Two-button interlock helps prevent two related opposite commands from being pressed at the same time, such as up/down, left/right, or open/close.

Can XDL10-EPBS3 be mounted on a truck body?

Yes. Strong magnets can be installed on the back of the controller, allowing it to attach to truck bodies, lift platforms, metal panels, or equipment frames.

Can XDL10-EPBS3 be customized?

Yes. XINDALI supports OEM customization for button colors, labels, contact configuration, cable length, wiring solutions, holder matching, and magnetic mounting options.

Related Control Solutions

For complete vehicle and industrial control systems, explore tail lift control box solutions, push button control stations, and custom OEM pendant controller support.

Need an Emergency Stop Pendant with Two Control Commands?

Contact XINDALI for XDL10-EPBS3 quotation, contact configuration, custom labels, holder matching, magnetic mounting, and OEM wiring solutions.
