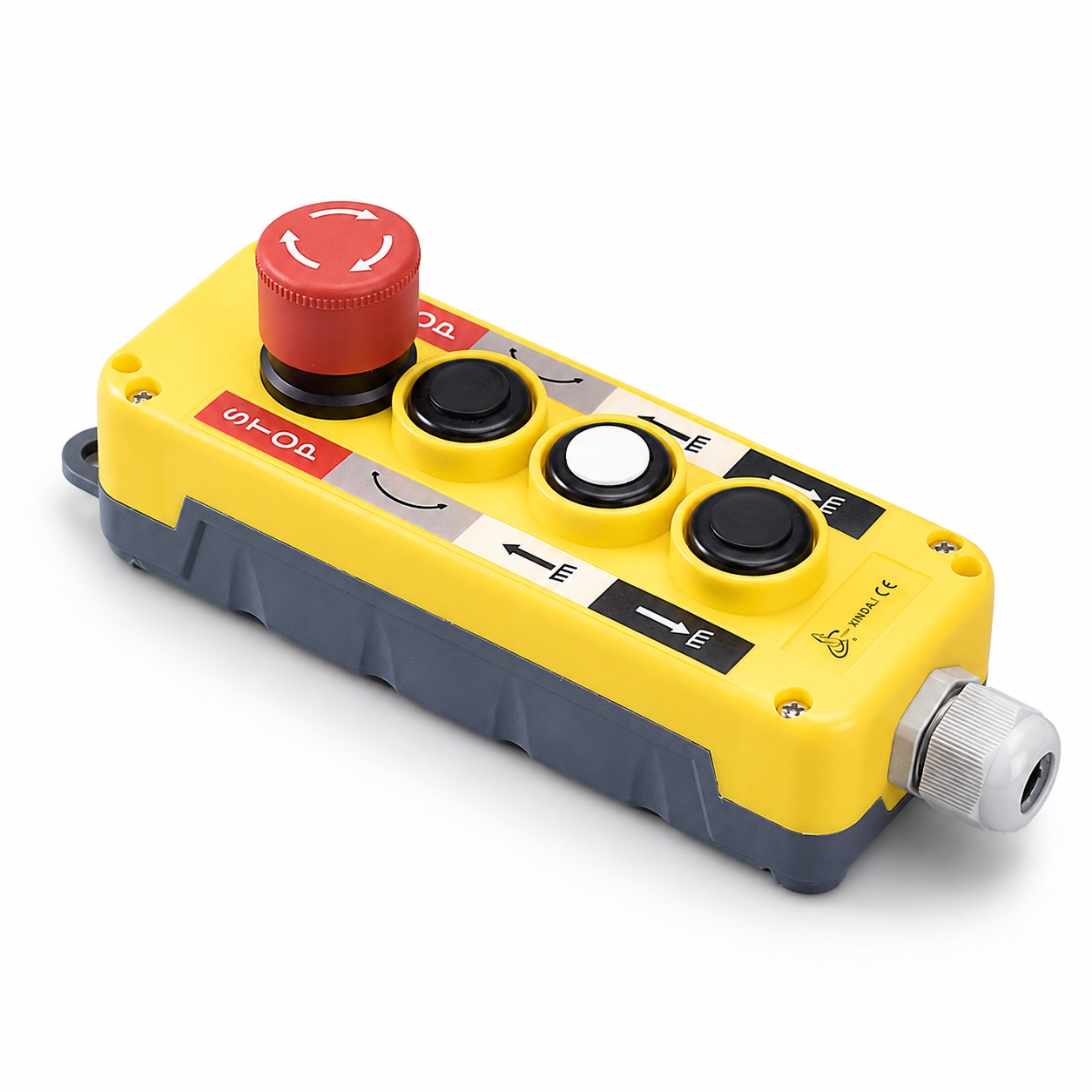

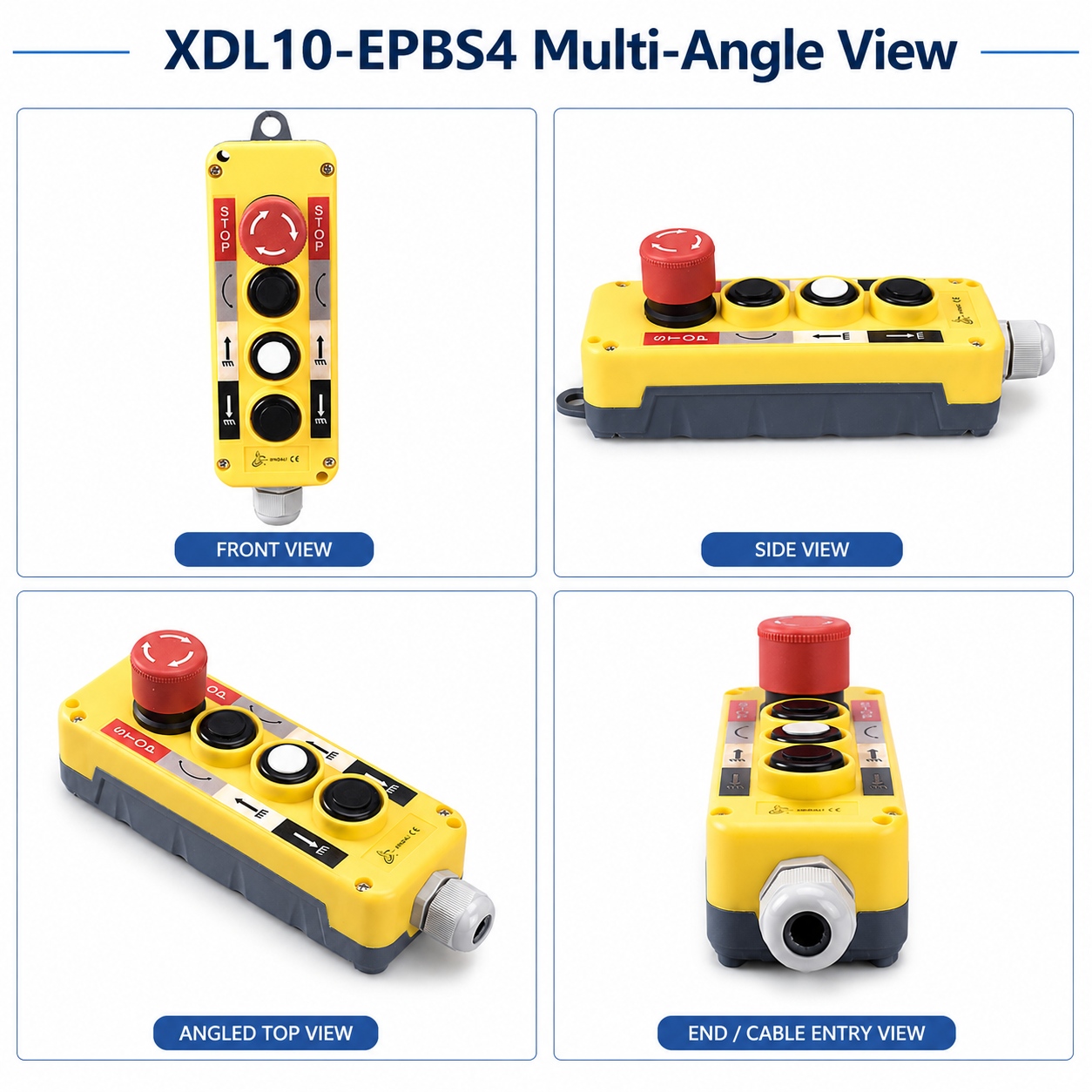

XDL10-EPBS4 Emergency Stop Pendant Controller with 3 Push Buttons

Introducing the XDL10-EPBS4, a highly efficient compact emergency stop pendant controller designed to enhance safety and control in various applications. This robust device features a unique turn-to-release emergency stop and three reliable spring-return flush push buttons, ensuring quick and effective operation, Ideal for tail lifts, hydraulic machinery, truck-mounted systems, lifting platforms, and OEM safety control assemblies, the XDL10-EPBS4 supports safe three-command operation for demanding environments. Its durable design and user-friendly interface make it a perfect choice for industries prioritizing safety and efficiency. Upgrade your equipment safety with the XDL10-EPBS4 pendant controller

  • Product Model XDL10-EPBS4
  • Series XDL10 Series
  • Configuration 1 Emergency Stop + 3 Flush Push Buttons
  • Control Box Structure 4 Holes Control Box
  • Emergency Stop Type Turn to Release
  • Push Button Operation Spring Return / Momentary
  • Interlock Type Two-Button Interlock
  • Contact Configuration Emergency stop N/C; push button contacts N/O or 2N/O according to version
  • Protection Level IP54
  • Cable Entry PG13.5
  • Application Industrial machinery, hydraulic systems, tail lift control, tipping trailers, automation equipment
  • Approx. Size 171 × 62 mm
  • Approx. Housing Width 45.9 mm
  • Holder Optional XDL10-EPC box holder
  • Optional Accessories XDL10-EPC holder, strong back magnets, custom labels, cable options
Contact us
Product Detail

XINDALI XDL10 Series | Emergency Stop + Three Command Controller

XDL10-EPBS4 Emergency Stop Pendant Controller with 3 Flush Push Buttons

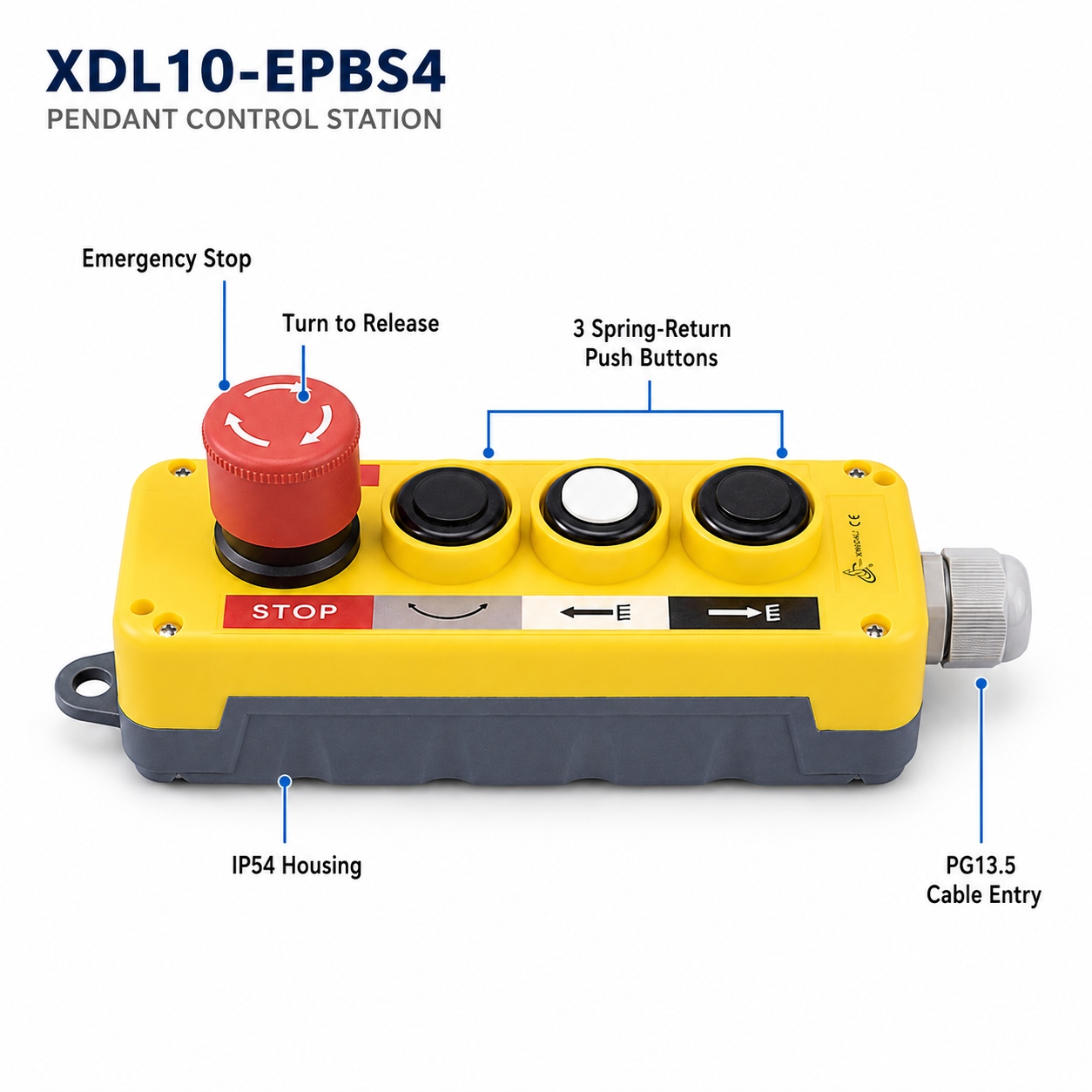

The XDL10-EPBS4 is a compact safety pendant controller designed for equipment that requires one emergency stop and three momentary control commands in one handheld unit. It combines a turn-to-release emergency stop, 3 spring-return flush push buttons, two-button interlock, IP54 protection, and PG13.5 cable entry. This model is suitable for tail lifts, hydraulic units, lifting platforms, truck-mounted equipment, and OEM machine control systems.

1 Emergency Stop 3 Flush Push Buttons Three Command Functions Turn-to-Release E-Stop Two-Button Interlock IP54 Protection PG13.5 Cable Entry

For Equipment That Needs Emergency Stop + Three Operating Commands

The XDL10-EPBS4 is designed for applications where a simple emergency stop pendant is not enough. Compared with the EPBS2 and EPBS3 versions, this model provides one additional command button, allowing the operator to control a more complete machine workflow from one handheld pendant.

Typical control logic can include UP / DOWN / STOP, RAISE / LOWER / AUX, OPEN / CLOSE / RESET, or other three-command equipment functions while keeping the emergency stop button directly available on the same control box.

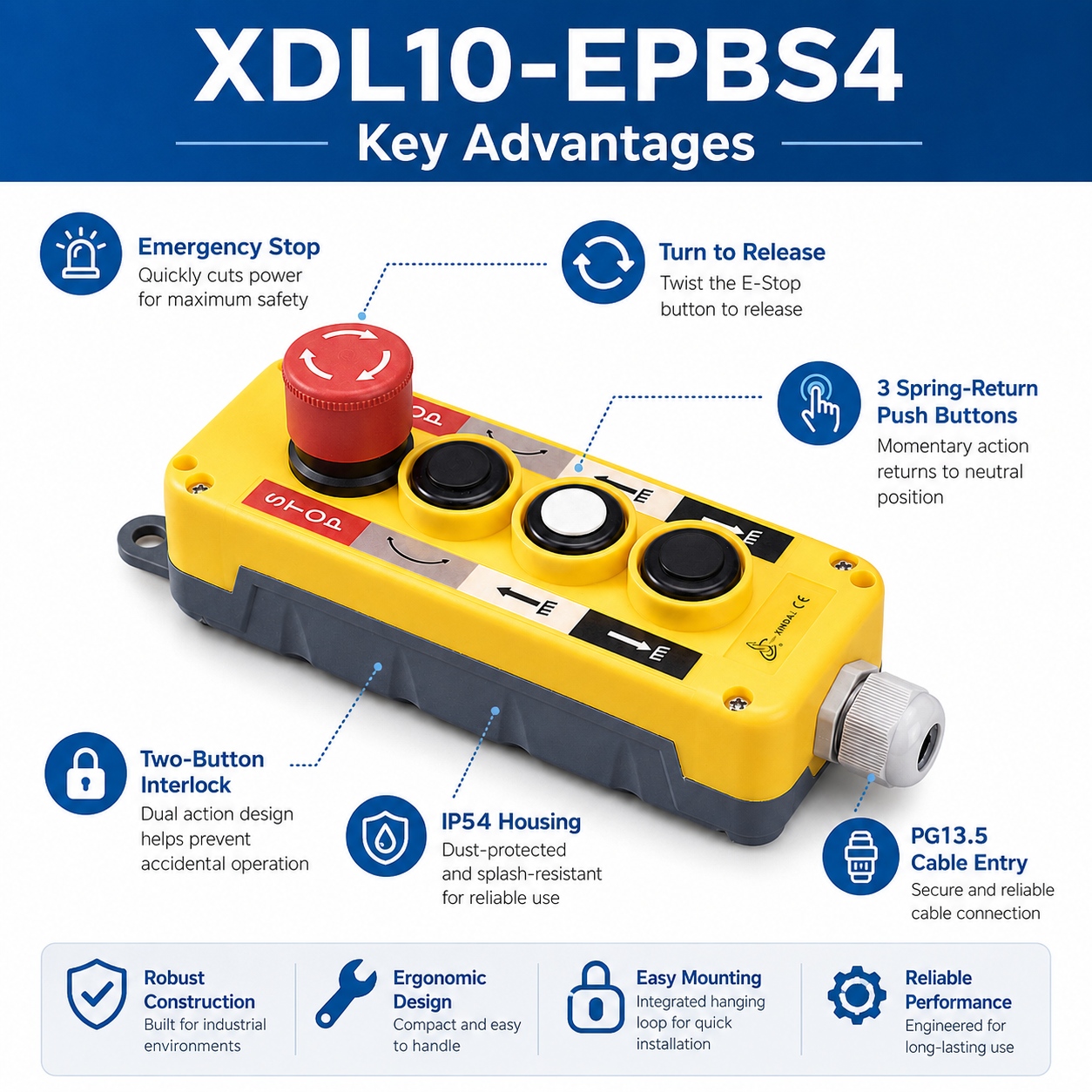

Three-Command Safety Control Layout

Emergency Stop Protection
The red mushroom emergency stop provides direct safety interruption for abnormal or unsafe operation.
Three Momentary Commands
Three flush push buttons allow additional machine actions beyond basic two-direction movement.
Spring-Return Operation
Each push button returns automatically after release, suitable for press-and-hold hydraulic or machinery control.
Two-Button Interlock
Interlock design helps prevent opposite or related commands from being pressed at the same time.

Recommended Applications

XDL10-EPBS4 is suitable for equipment that requires emergency stop protection plus three command functions.

Tail Lift Control
For lift, lower, auxiliary control, and emergency stop protection.
Hydraulic Power Units
For hydraulic systems requiring three momentary control actions.
Truck-Mounted Equipment
For mobile machinery where safety stop and command control must be close to the operator.
OEM Safety Control Assemblies
For machine builders requiring customized emergency stop pendant solutions.

XDL10-EPBS Series Selection Guide

Model Configuration Best For
XDL10-EPBS2 1 Emergency Stop + 1 Push Button Single command safety control
XDL10-EPBS3 1 Emergency Stop + 2 Push Buttons Two-direction movement with emergency stop
XDL10-EPBS4 1 Emergency Stop + 3 Push Buttons Three-command equipment control with safety stop
XDL10-EPB Series Flush push button models without emergency stop layout General multi-command pendant operation

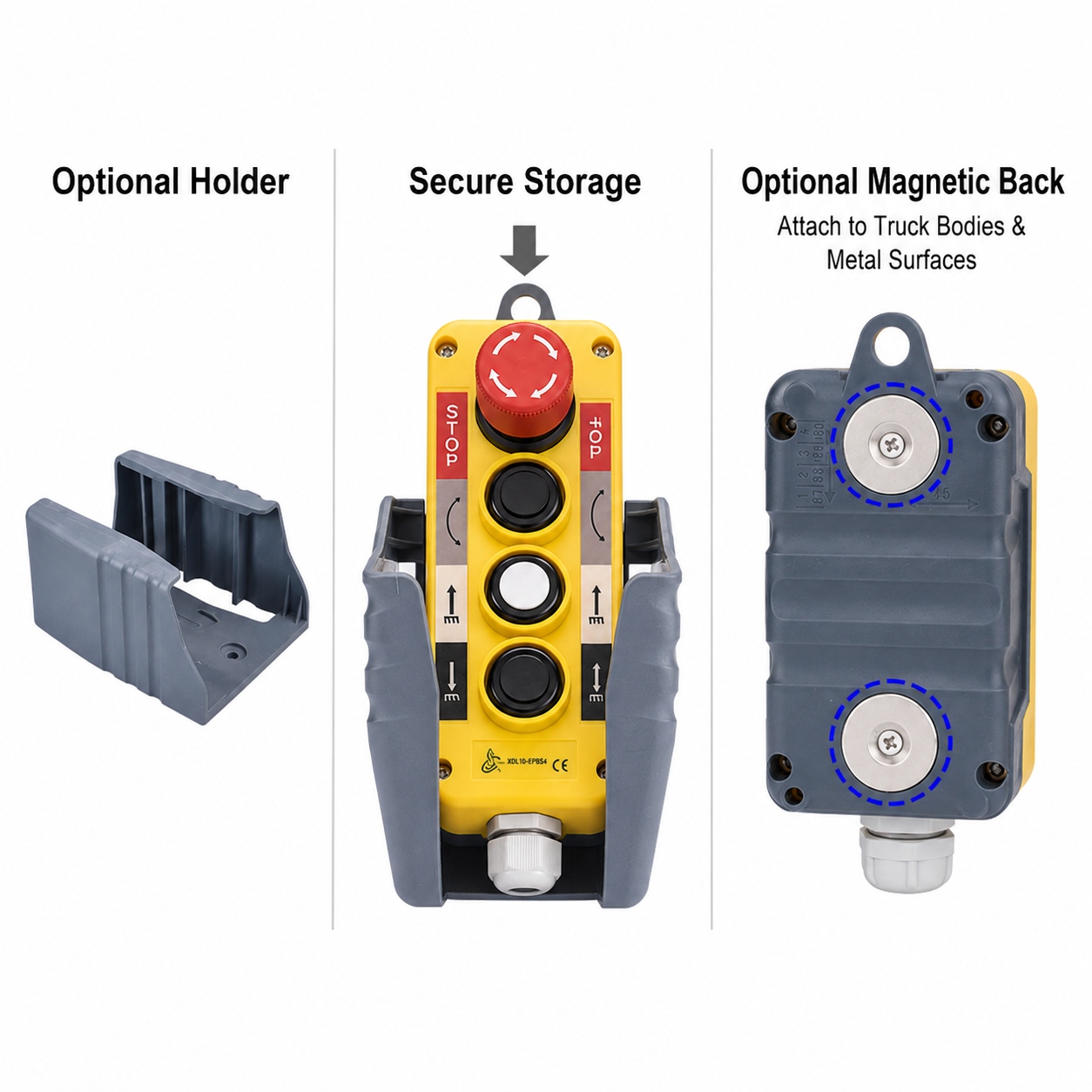

Optional XDL10-EPC Holder

The XDL10-EPBS4 can be used with the XDL10-EPC holder for fixed storage. This helps keep the pendant controller protected, organized, and easy to access on vehicles or equipment.

Optional Strong Back Magnets

Strong magnets can be installed on the back of the controller, allowing quick attachment to truck bodies, metal panels, lift platforms, and machine frames.

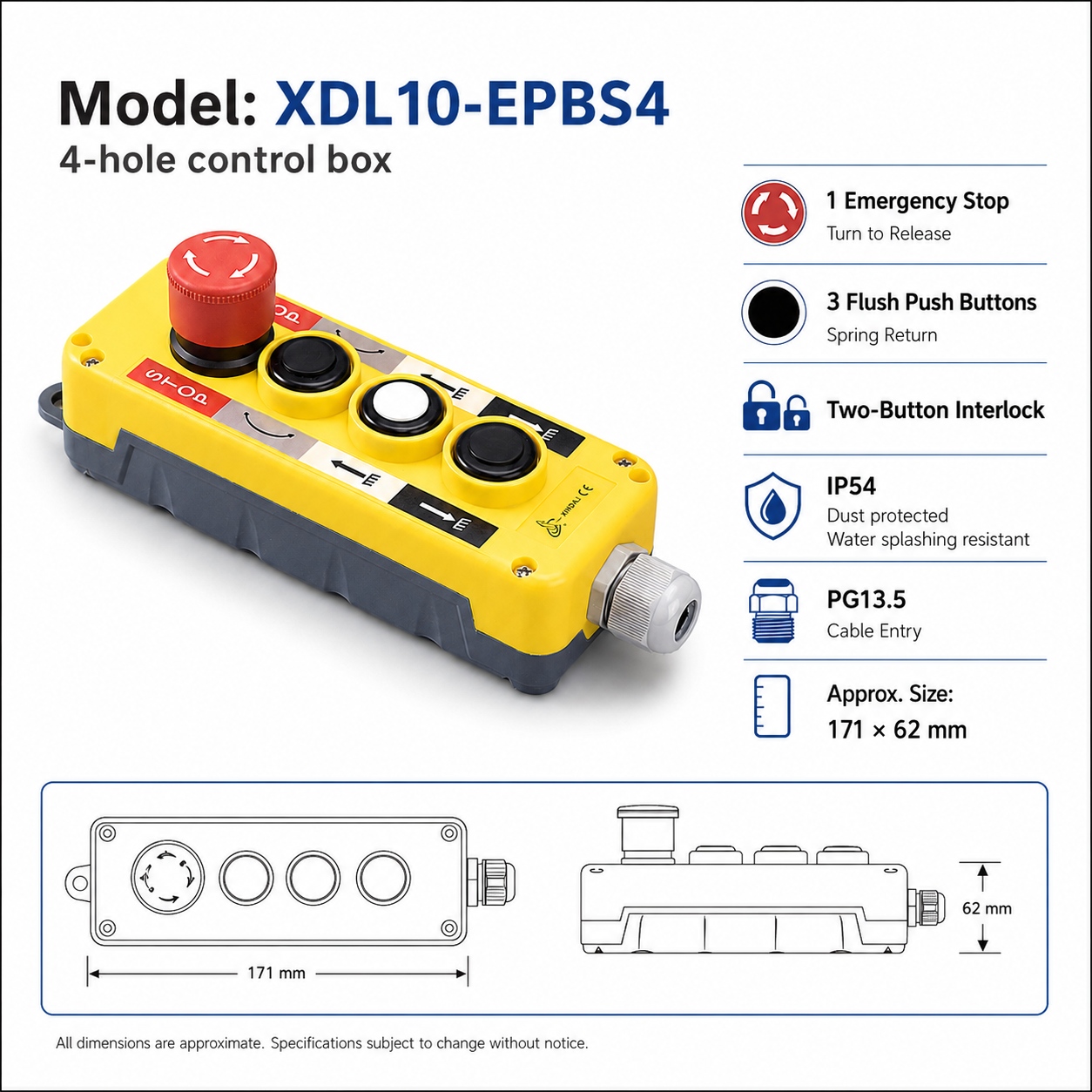

Technical Specifications

Product Model XDL10-EPBS4
Alternative Version XDL10-EPBS42
Series XDL10 Series
Control Box Structure 4 Holes Control Box
Configuration 1 Emergency Stop + 3 Flush Push Buttons
Emergency Stop Type Turn to Release
Push Button Operation Spring Return / Momentary
Interlock Function Two-Button Interlock
Contact Configuration Emergency stop N/C; push button contacts N/O or 2N/O according to version
Protection Level IP54
Cable Entry PG13.5
Approx. Size 171 × 62 mm
Approx. Housing Width 45.9 mm
Optional Accessories XDL10-EPC holder, strong back magnets, custom labels, cable options

People Also Ask

Buyer questions about emergency stop pendant controllers with three command buttons.

What is XDL10-EPBS4 used for?

XDL10-EPBS4 is used for equipment that requires one emergency stop and three momentary control commands. It is suitable for tail lifts, hydraulic units, lifting platforms, truck-mounted equipment, and OEM machine control systems.

Why choose XDL10-EPBS4 instead of XDL10-EPBS3?

XDL10-EPBS4 adds one more spring-return push button compared with XDL10-EPBS3. It is better for equipment that needs three command functions together with emergency stop protection.

What can the three push buttons control?

The three flush push buttons can be assigned to functions such as raise, lower, auxiliary action, start, stop, reset, open, close, or customized equipment commands.

What does turn-to-release emergency stop mean?

The emergency stop button is pressed to stop operation and reset by turning the mushroom button. This helps prevent accidental reset after emergency activation.

Can XDL10-EPBS4 be mounted on a truck body?

Yes. Strong back magnets can be installed on the controller, allowing it to attach to truck bodies, lift platforms, metal panels, or equipment frames.

Can XDL10-EPBS4 be customized?

Yes. XINDALI supports OEM customization for button colors, labels, contact configuration, cable length, wiring solutions, holder matching, and magnetic mounting options.

Related Control Solutions

For more industrial control products, explore pendant controller solutions, tail lift control box systems, and push button control stations.

Need an Emergency Stop Pendant with Three Command Buttons?

Contact XINDALI for XDL10-EPBS4 quotation, contact configuration, custom labels, holder matching, magnetic mounting, and OEM wiring solutions.
