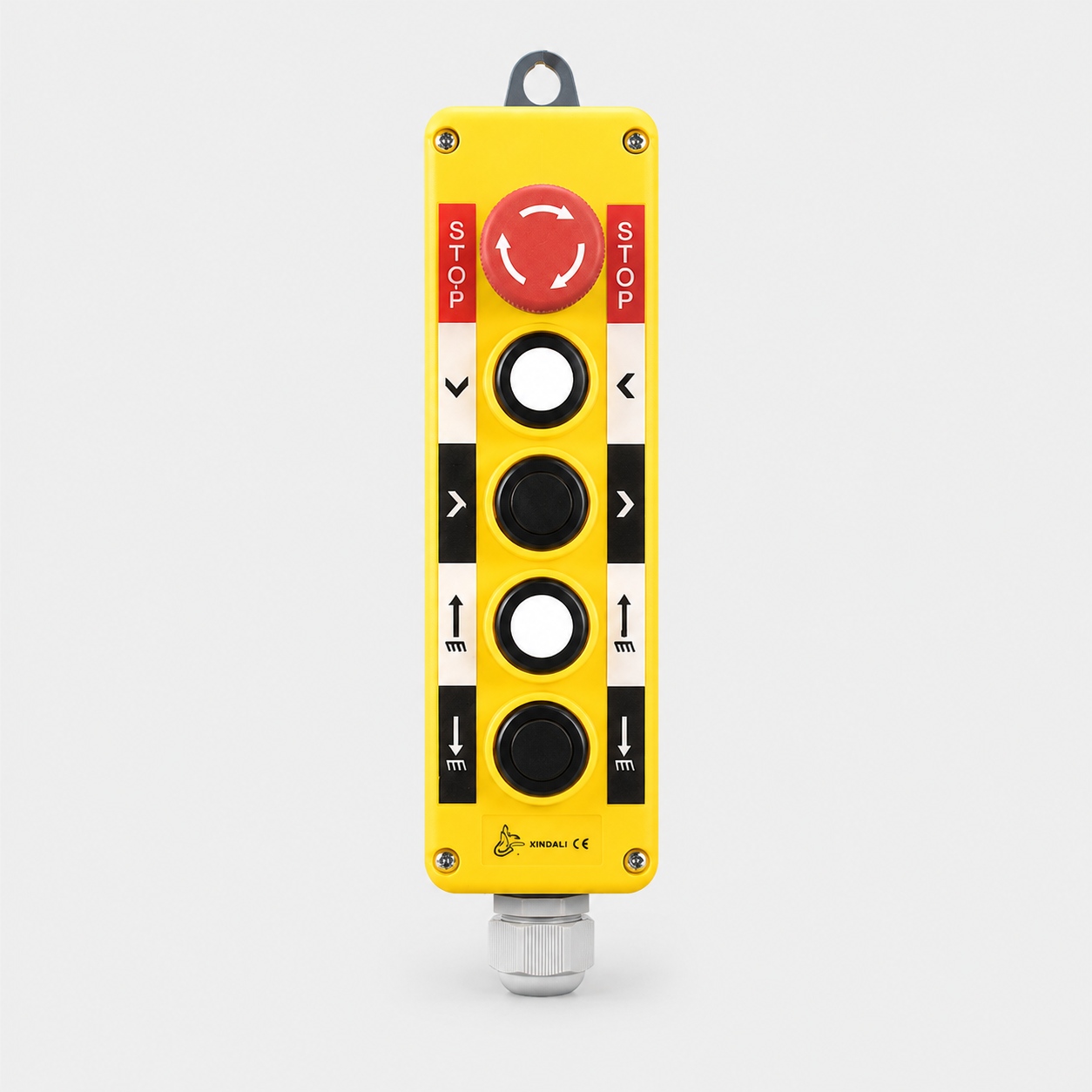

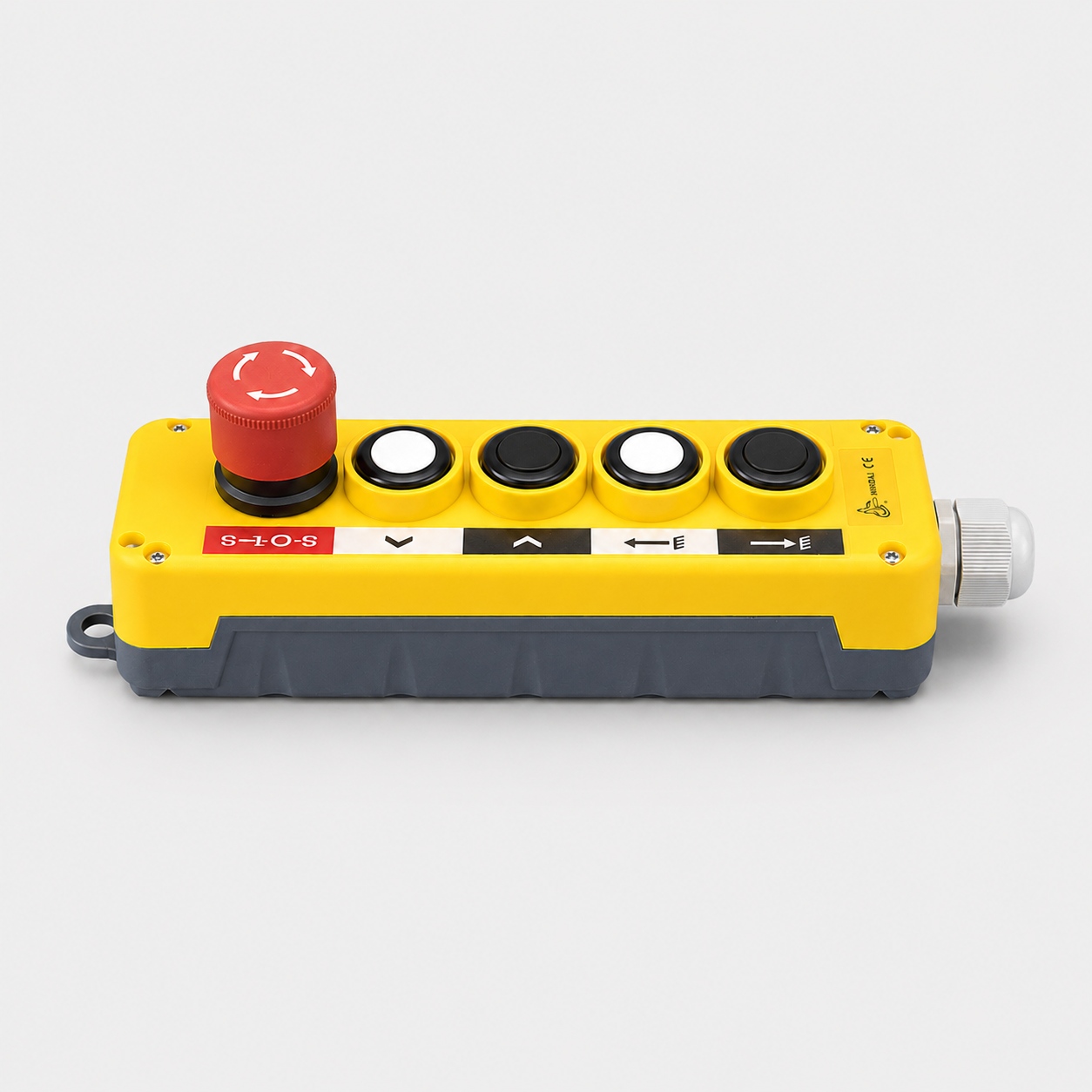

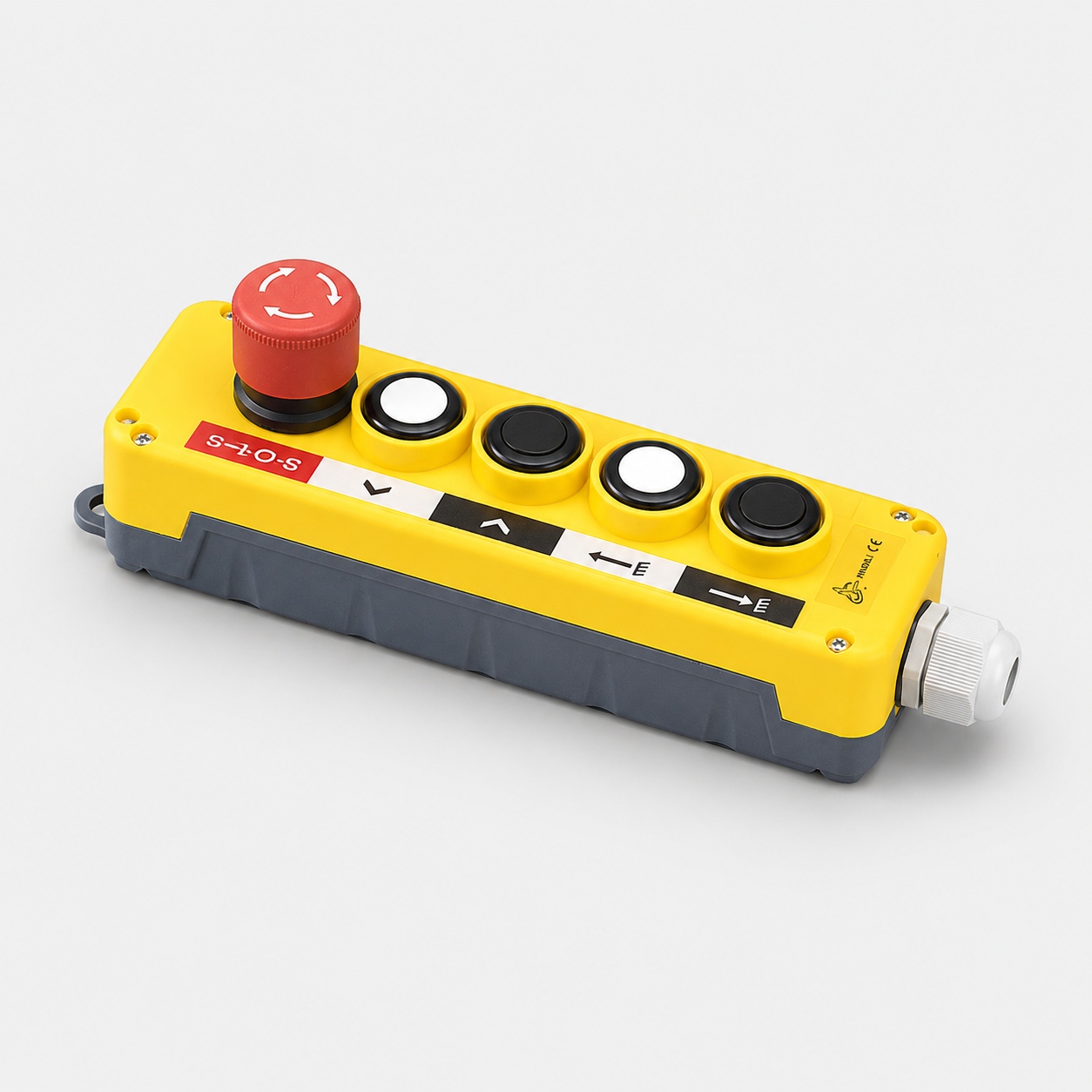

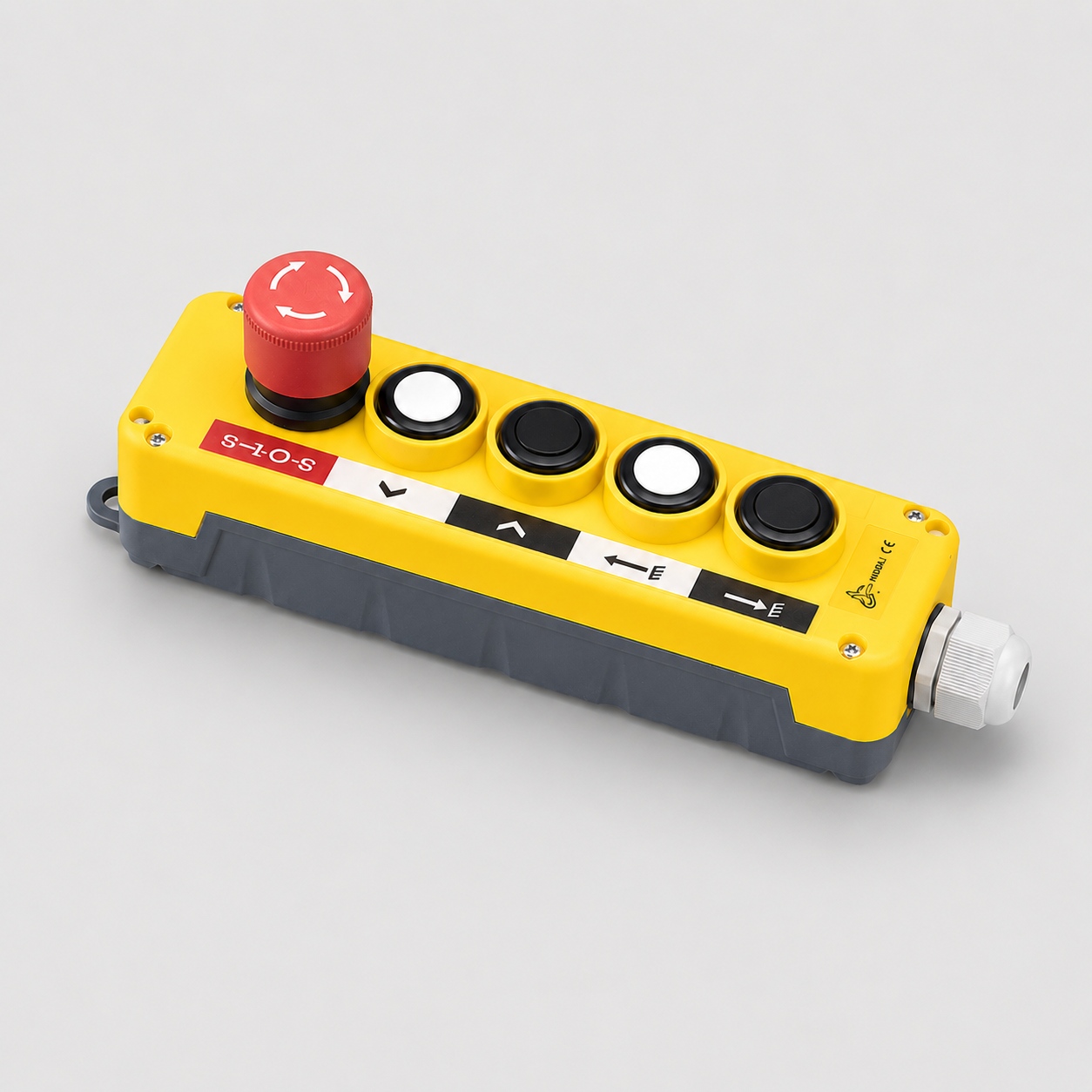

XDL10-EPBS5 Emergency Stop Pendant Controller with 4 Push Buttons

XDL10-EPBS5 is a compact emergency stop pendant controller with one turn-to-release emergency stop and four spring-return flush push buttons. Suitable for tail lifts, hydraulic equipment, truck-mounted systems, lifting platforms, and OEM safety control assemblies requiring four-command operation.

  • Product Model XDL10-EPBS5
  • Series XDL10 Series

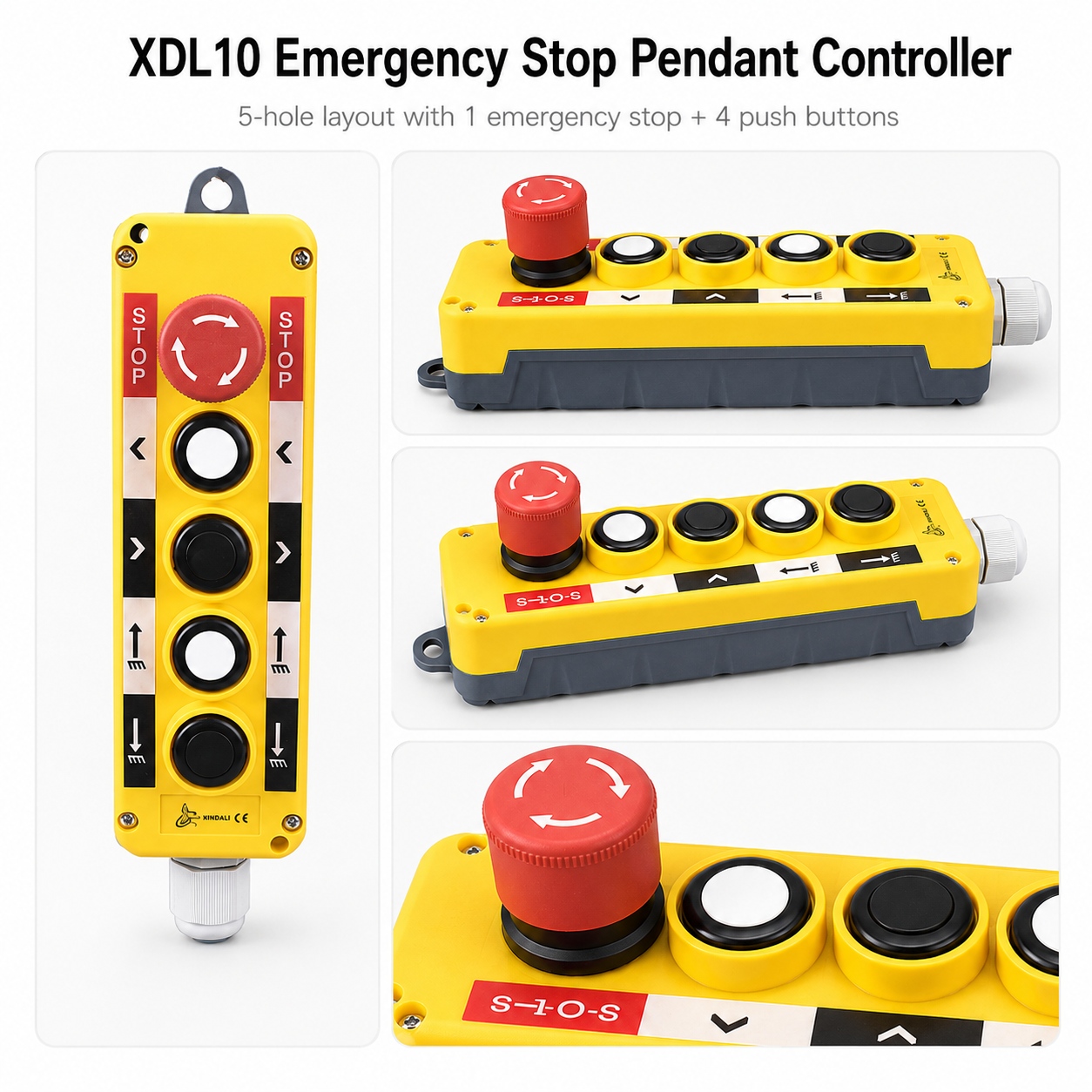

  • Configuration 1 Emergency Stop + 4 Flush Push Buttons
  • Control Box Structure 5 Holes Control Box
  • Emergency Stop Type Turn to Release
  • Push Button Operation Spring Return / Momentary
  • Interlock Type Two-Button Interlock
  • Contact Configuration Emergency stop N/C; push button contacts N/O or 2N/O according to version
  • Protection Level IP54
  • Cable Entry PG13.5
  • Application Industrial machinery, hydraulic systems, tail lift control, tipping trailers, automation equipment
  • Approx. Size 201 × 62 mm
  • Approx. Housing Width 45.9 mm
  • Holder Optional XDL10-EPC box holder
  • Optional Accessories XDL10-EPC holder, strong back magnets, custom labels, cable options
Contact us
Product Detail

XINDALI XDL10 Series | Emergency Stop + Four Command Safety Controller

XDL10-EPBS5 Emergency Stop Pendant Controller with 4 Spring-Return Push Buttons

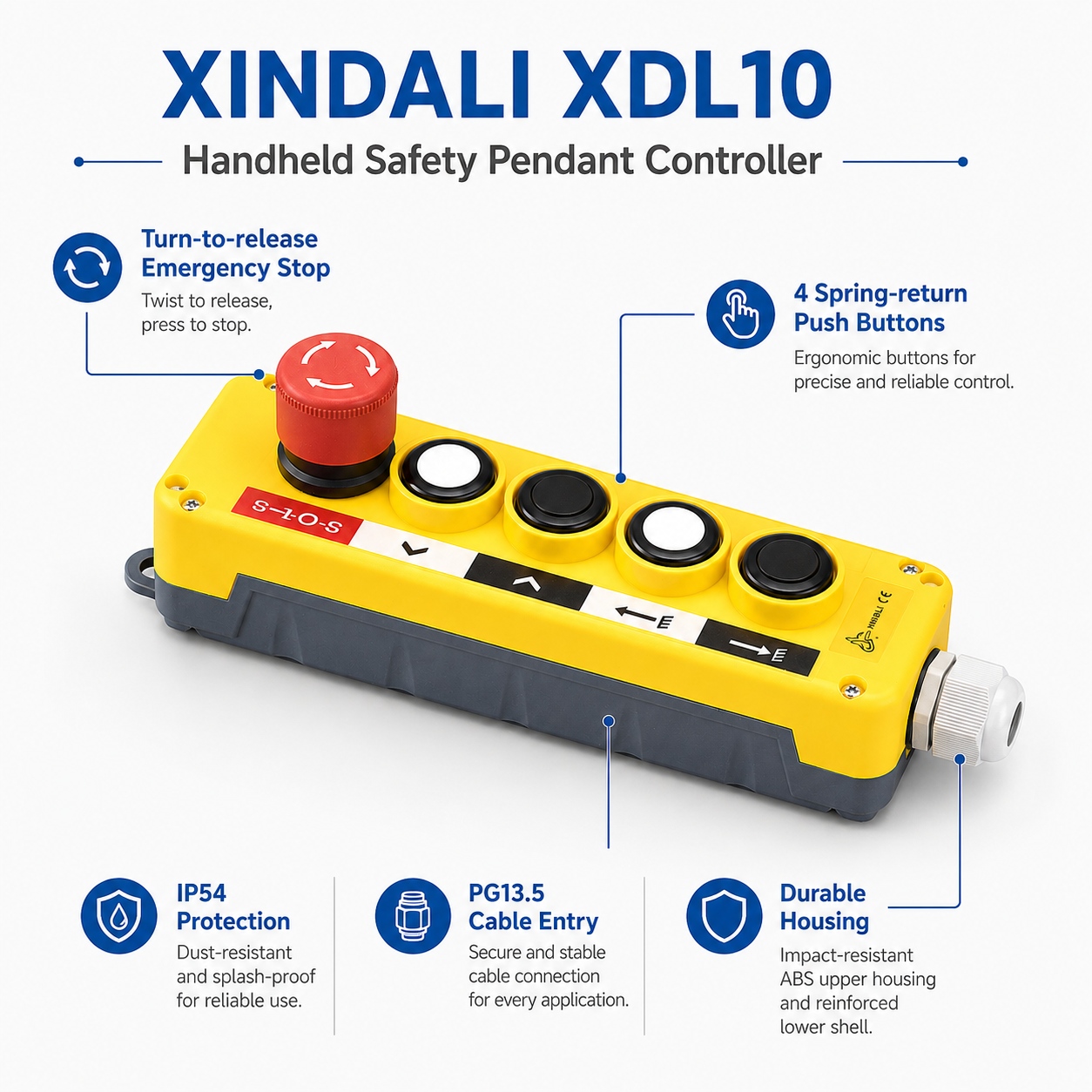

The XDL10-EPBS5 is a safety-focused handheld pendant controller designed for equipment that requires one emergency stop and four momentary control commands in one compact control box. It combines a turn-to-release emergency stop, 4 flush spring-return push buttons, two-button interlock, IP54 protection, and PG13.5 cable entry, making it suitable for tail lifts, hydraulic units, truck-mounted equipment, lifting platforms, and OEM machine control systems.

1 Emergency Stop 4 Flush Push Buttons Four Command Functions Turn-to-Release E-Stop Two-Button Interlock IP54 Protection PG13.5 Cable Entry

For Equipment That Needs Safety Stop + Four Operating Commands

The XDL10-EPBS5 is positioned for machines that need more than basic two-direction or three-command operation. Compared with the EPBS2, EPBS3, and EPBS4 models, this version provides a larger command layout while still keeping the emergency stop button directly available to the operator.

Typical control logic can include UP / DOWN / LEFT / RIGHT, RAISE / LOWER / OPEN / CLOSE, START / STOP / RESET / AUX, or customized hydraulic and mechanical actions where four momentary commands must be controlled from one handheld unit.

Four-Command Safety Control Workflow

Emergency Stop Always Available
The red mushroom emergency stop allows direct interruption when abnormal movement, overload, or unsafe operation occurs.
Four Momentary Commands
Four flush push buttons support more complete machine workflows, reducing the need for an additional control station.
Spring-Return Operation
Each push button returns automatically after release, suitable for press-and-hold equipment control.
Interlock for Opposite Actions
Two-button interlock helps prevent related opposite commands from being pressed at the same time.

Recommended Application Scenarios

XDL10-EPBS5 is suitable for equipment that requires a safety stop and four operating commands in one handheld pendant controller.

Tail Lift & Vehicle Equipment
For lift, lower, platform adjustment, auxiliary action, and emergency stop control.
Hydraulic Control Units
For hydraulic equipment requiring multiple movement commands and local safety interruption.
Mobile Lifting Platforms
For operators who need handheld control of several machine actions from one compact pendant.
OEM Machine Control Assemblies
For machine builders requiring customized safety pendant control with emergency stop and four commands.

XDL10-EPBS Series Selection Guide

Model Configuration Best Application
XDL10-EPBS2 1 Emergency Stop + 1 Push Button Single-command safety control
XDL10-EPBS3 1 Emergency Stop + 2 Push Buttons Two-direction control with emergency stop
XDL10-EPBS4 1 Emergency Stop + 3 Push Buttons Three-command safety control
XDL10-EPBS5 1 Emergency Stop + 4 Push Buttons Four-command equipment control with safety stop
XDL10-EPB Series Flush push button models without emergency stop layout General multi-command pendant operation

Optional XDL10-EPC Holder

The XDL10-EPBS5 can be used with the XDL10-EPC holder for fixed storage. This helps keep the controller protected, organized, and easy to access on trucks, platforms, and mobile equipment.

Optional Strong Back Magnets

Strong magnets can be installed on the back of the controller, allowing quick attachment to truck bodies, metal panels, lift platforms, hydraulic equipment, and machine frames.

Technical Specifications

Product Model XDL10-EPBS5
Alternative Version XDL10-EPBS52
Series XDL10 Series
Control Box Structure 5 Holes Control Box
Configuration 1 Emergency Stop + 4 Flush Push Buttons
Emergency Stop Type Turn to Release
Push Button Operation Spring Return / Momentary
Interlock Function Two-Button Interlock
Contact Configuration Emergency stop N/C; push button contacts N/O or 2N/O according to version
Protection Level IP54
Cable Entry PG13.5
Approx. Size 201 × 62 mm
Approx. Housing Width 45.9 mm
Optional Accessories XDL10-EPC holder, strong back magnets, custom labels, cable options

People Also Ask

Buyer questions about emergency stop pendant controllers with four command buttons.

What is XDL10-EPBS5 used for?

XDL10-EPBS5 is used for equipment that requires one emergency stop and four momentary control commands. It is suitable for tail lifts, hydraulic units, lifting platforms, truck-mounted equipment, and OEM machine control systems.

Why choose XDL10-EPBS5 instead of XDL10-EPBS4?

XDL10-EPBS5 adds one more spring-return push button compared with XDL10-EPBS4. It is better for equipment that needs four command functions together with emergency stop protection.

What can the four push buttons control?

The four flush push buttons can be assigned to functions such as up, down, left, right, raise, lower, open, close, start, reset, auxiliary action, or customized hydraulic commands.

Is XDL10-EPBS5 the same as a normal 5-button pendant controller?

No. XDL10-EPBS5 includes one emergency stop and four command buttons. A normal 5-button EPB model usually focuses on command operation only, while EPBS5 is designed for safety stop plus multi-command control.

Can XDL10-EPBS5 be mounted on a truck body?

Yes. Strong back magnets can be installed on the controller, allowing it to attach to truck bodies, lift platforms, metal panels, or equipment frames.

Can XDL10-EPBS5 be customized?

Yes. XINDALI supports OEM customization for button colors, labels, contact configuration, cable length, wiring solutions, holder matching, magnetic mounting, and complete pendant control assemblies.

Related Control Solutions

For more control solutions, explore tail lift control box systems, handheld pendant controllers, and push button control stations.

Need an Emergency Stop Pendant with Four Command Buttons?

Contact XINDALI for XDL10-EPBS5 quotation, contact configuration, custom labels, holder matching, magnetic mounting, and OEM wiring solutions.
