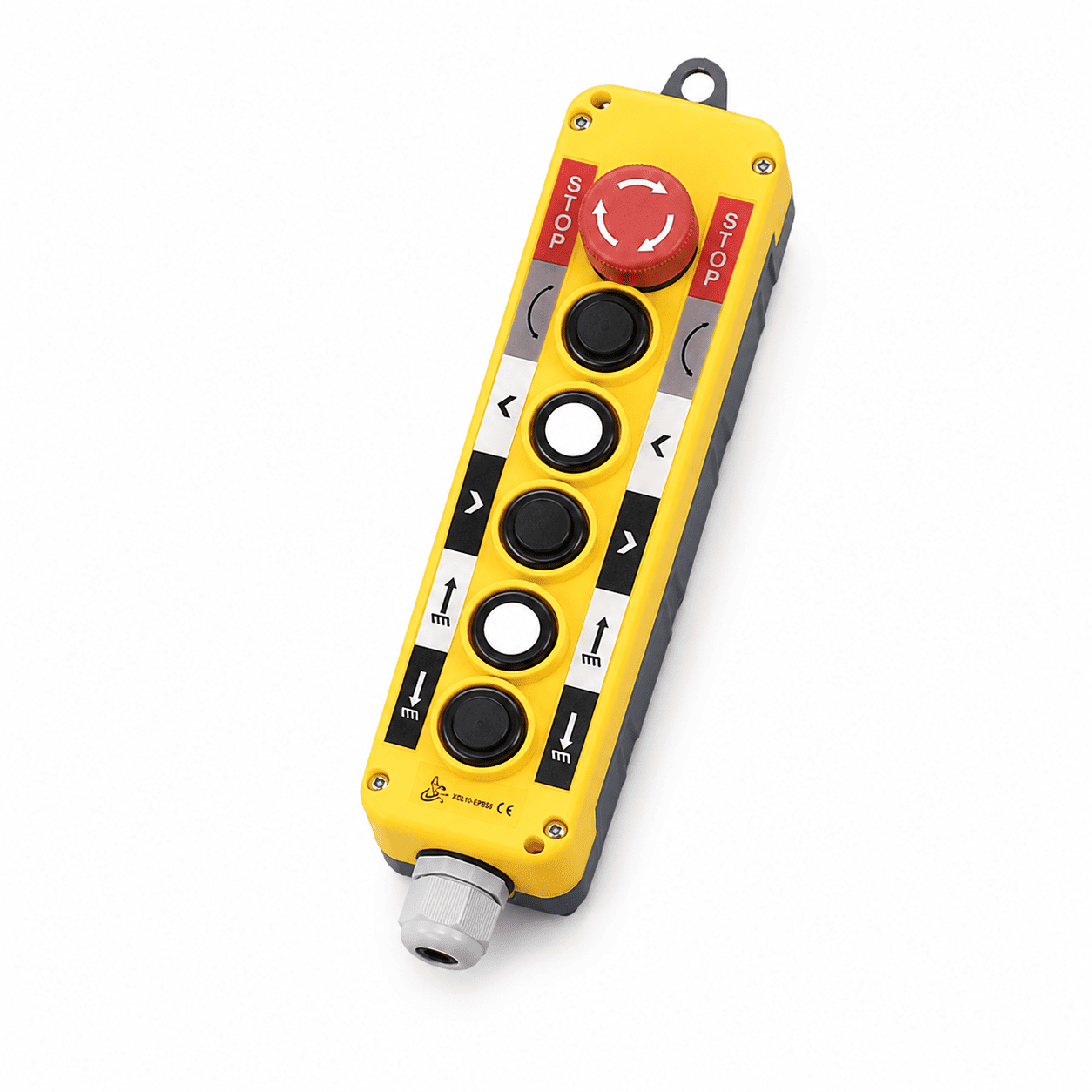

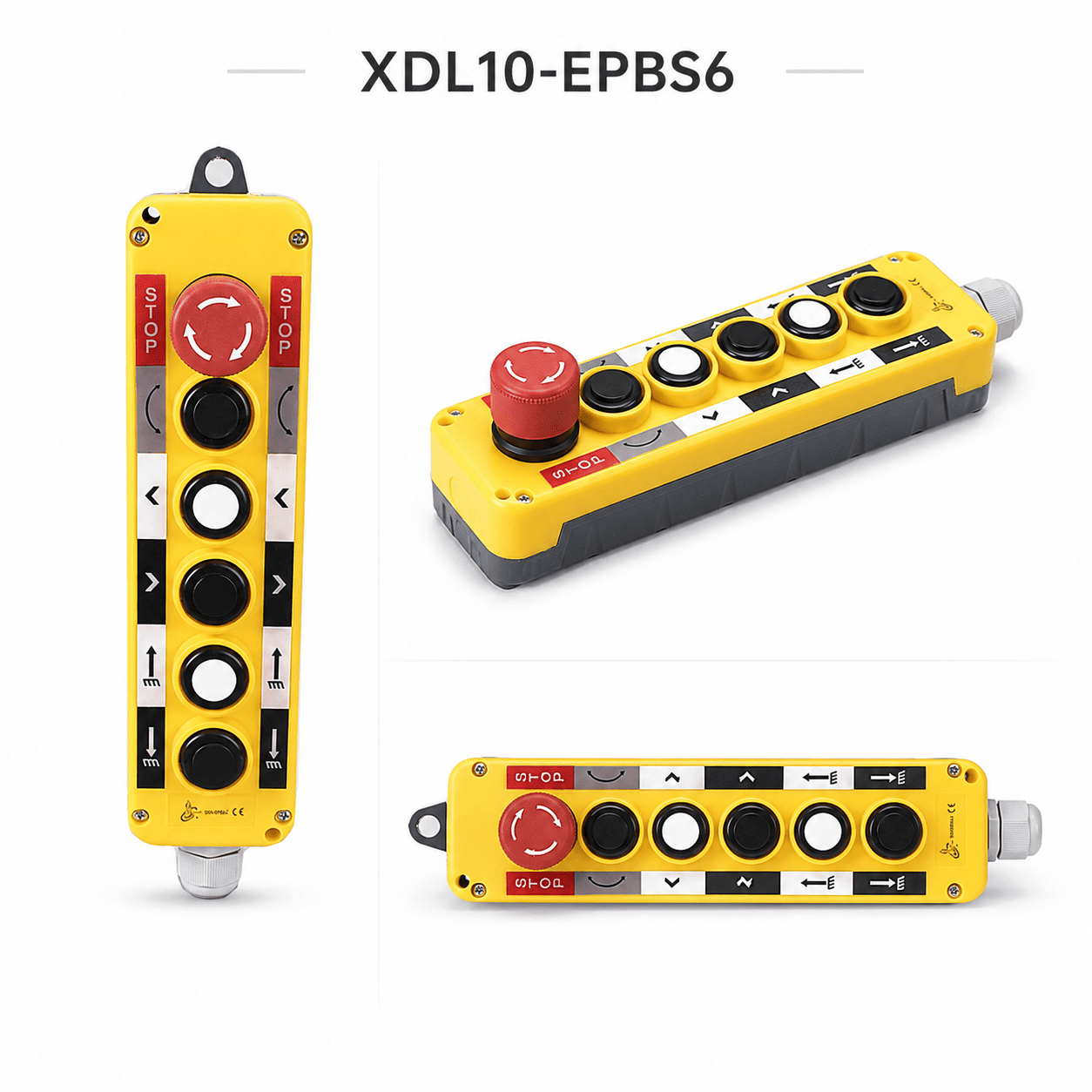

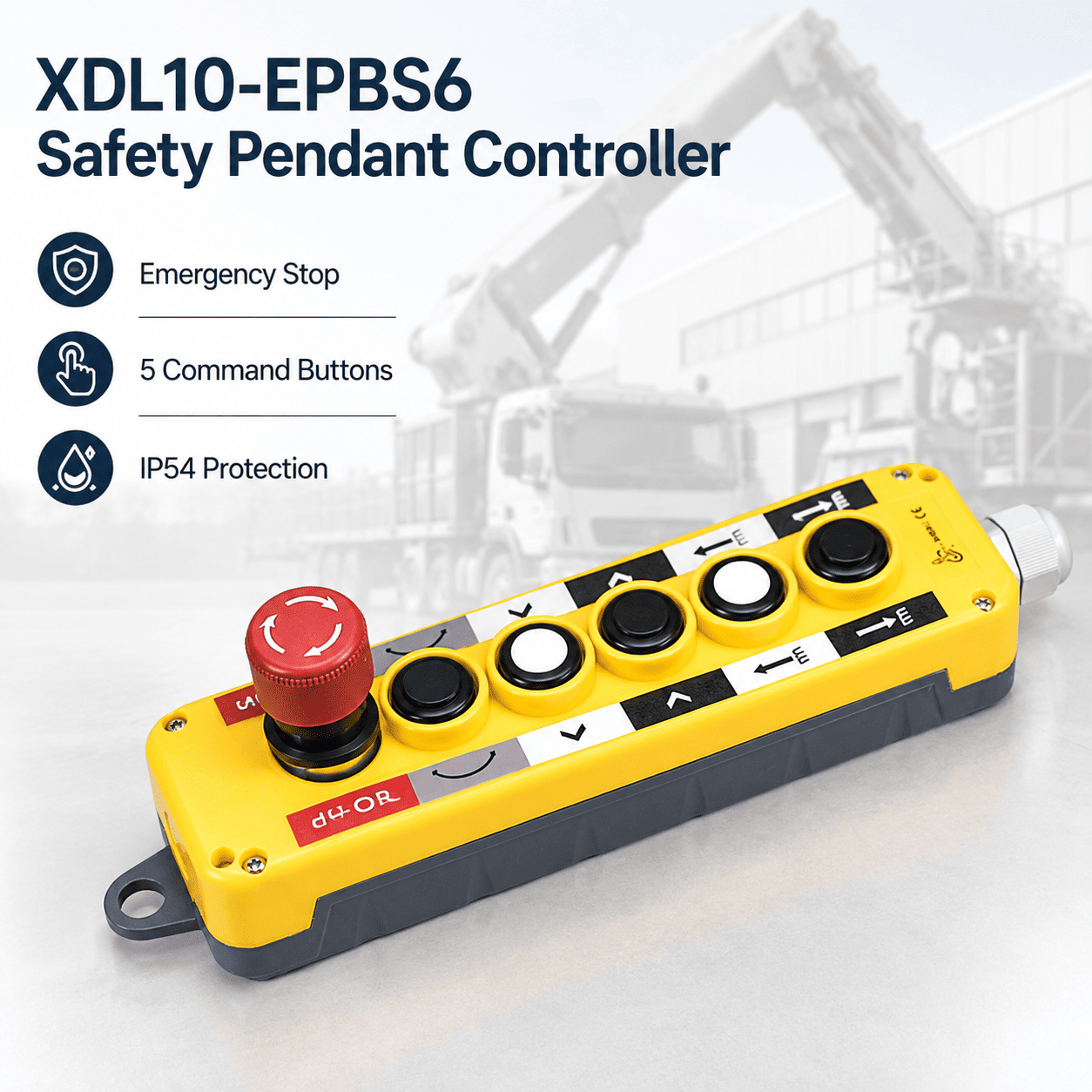

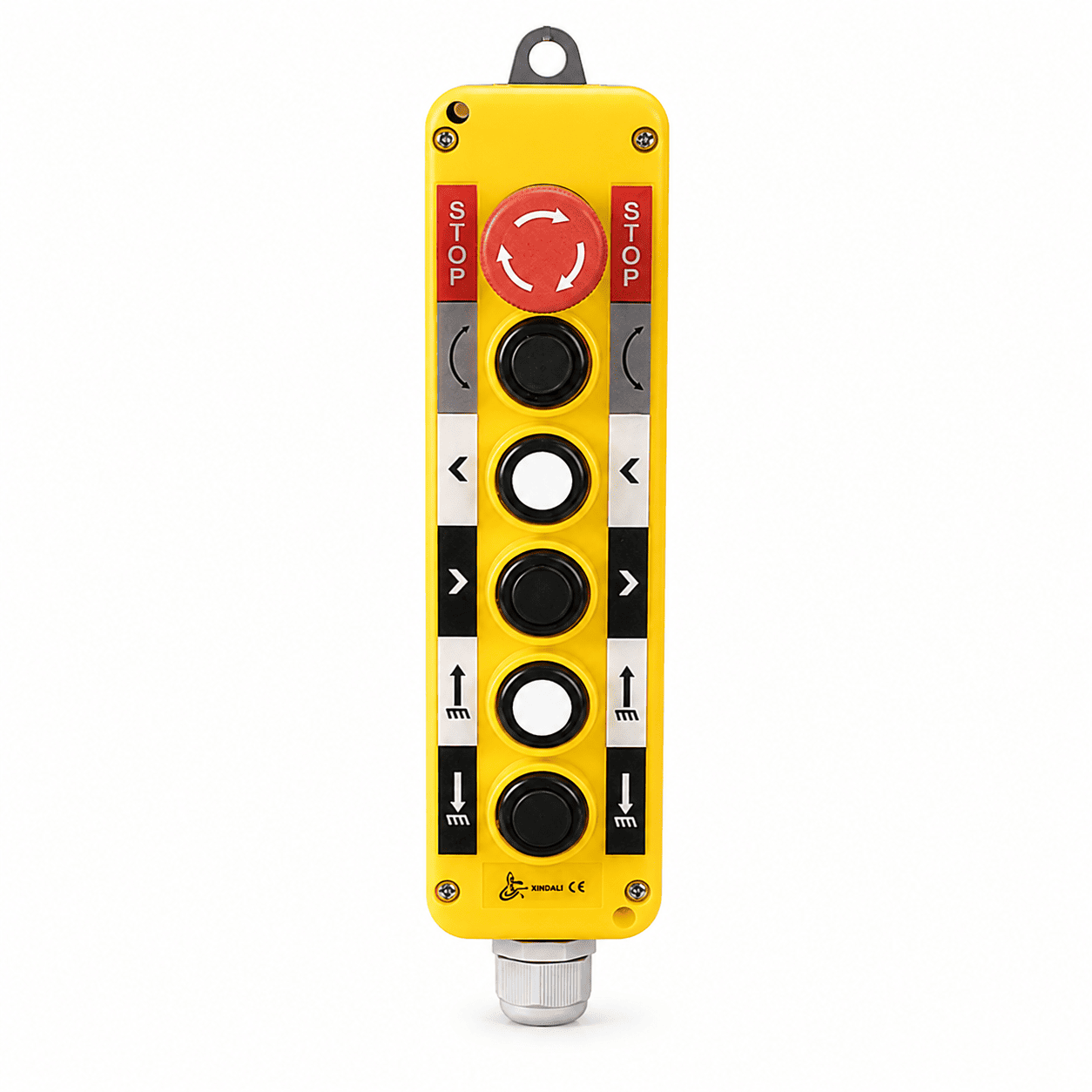

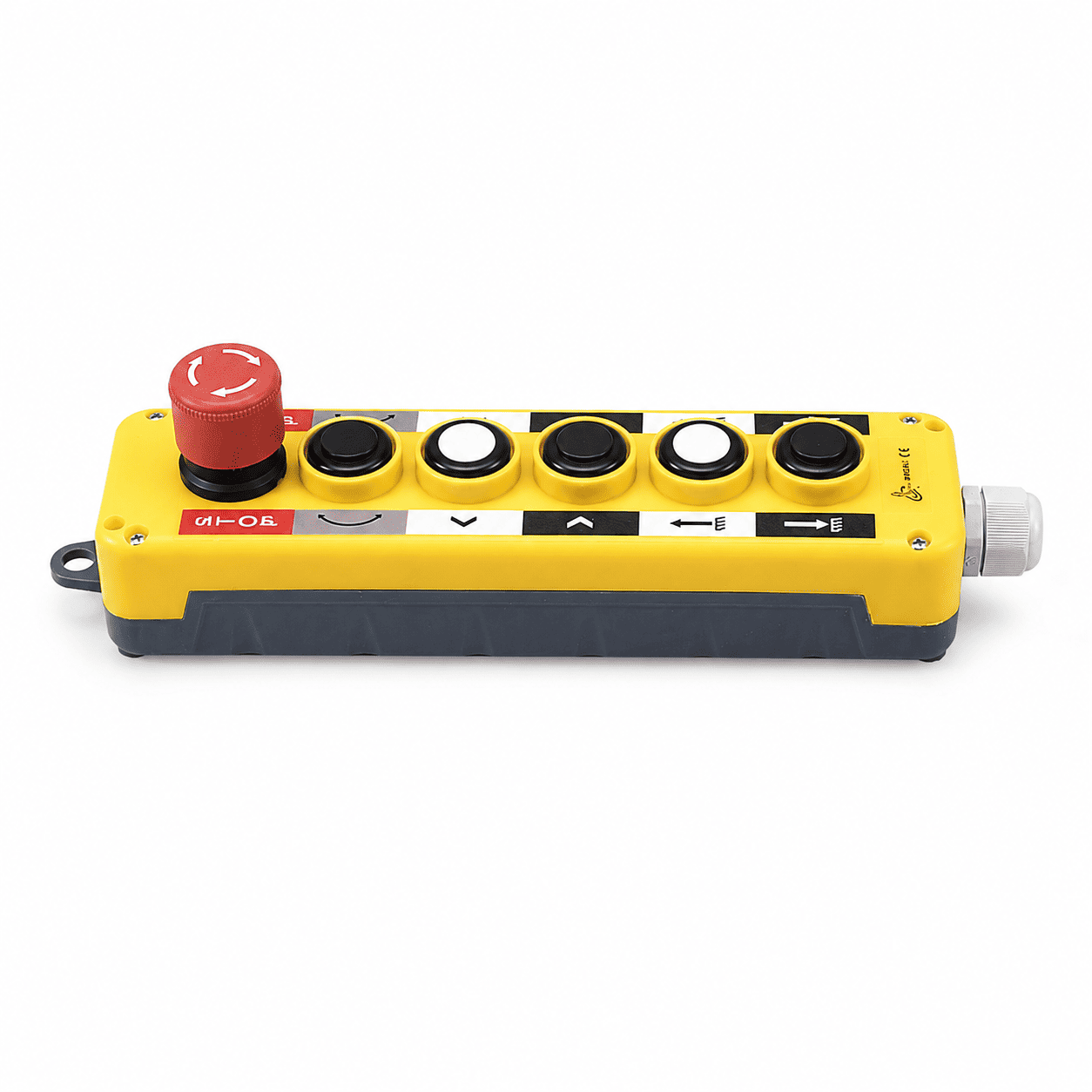

XDL10-EPBS6 Five-Command Safety Pendant Controller with Emergency Stop

XDL10-EPBS6 combines a turn-to-release emergency stop with five spring-return control buttons for multi-axis hydraulic, tail lift and truck-mounted equipment. IP54 housing, PG13.5 cable entry, optional holder and rear magnetic mounting.

  • Product Model XDL10-EPBS6
  • Series XDL10 Series
  • Configuration 1 Emergency Stop + 5 Flush Push Buttons
  • Control Box Structure 6 Holes Control Box
  • Emergency Stop Type Turn to Release
  • Push Button Operation Spring Return / Momentary
  • Interlock Type Two-Button Interlock
  • Contact Configuration Emergency stop N/C; push button contacts N/O or 2N/O according to version
  • Protection Level IP54
  • Cable Entry PG13.5
  • Application Industrial machinery, hydraulic systems, tail lift control, tipping trailers, automation equipment
  • Approx. Size 234 × 62 mm
  • Approx. Housing Width 45.9 mm
  • Holder Optional XDL10-EPC box holder
  • Optional Accessories XDL10-EPC holder, rear magnets, customized labels, contacts, wiring and cable length
Contact us
Product Detail

XINDALI XDL10 Series | Multi-Function Safety Pendant

XDL10-EPBS6 Five-Command Safety Pendant Controller with Emergency Stop

The XDL10-EPBS6 integrates a turn-to-release emergency stop and five spring-return control buttons into one compact handheld enclosure. It is intended for hydraulic, vehicle-mounted and industrial equipment that requires several operating commands while keeping a local emergency stop directly within the operator’s reach.

1 Emergency Stop 5 Momentary Buttons Two-Button Interlock IP54 Enclosure PG13.5 Cable Entry Holder Available Magnetic Back Option

A Safety Pendant for More Complex Operating Sequences

Some mobile and hydraulic machines need more than simple up/down control. They may require directional movement, platform adjustment, auxiliary operation, unlocking, folding or another independent command.

The XDL10-EPBS6 provides five momentary command positions in addition to the emergency stop, allowing machine builders to consolidate a larger control sequence into one handheld device without moving the safety stop to a separate station.

Suitable Control Combinations

Raise / Lower + platform adjustment + auxiliary function
Left / Right / Up / Down + enable command
Open / Close + extend / retract + reset
Customized five-command logic for OEM equipment

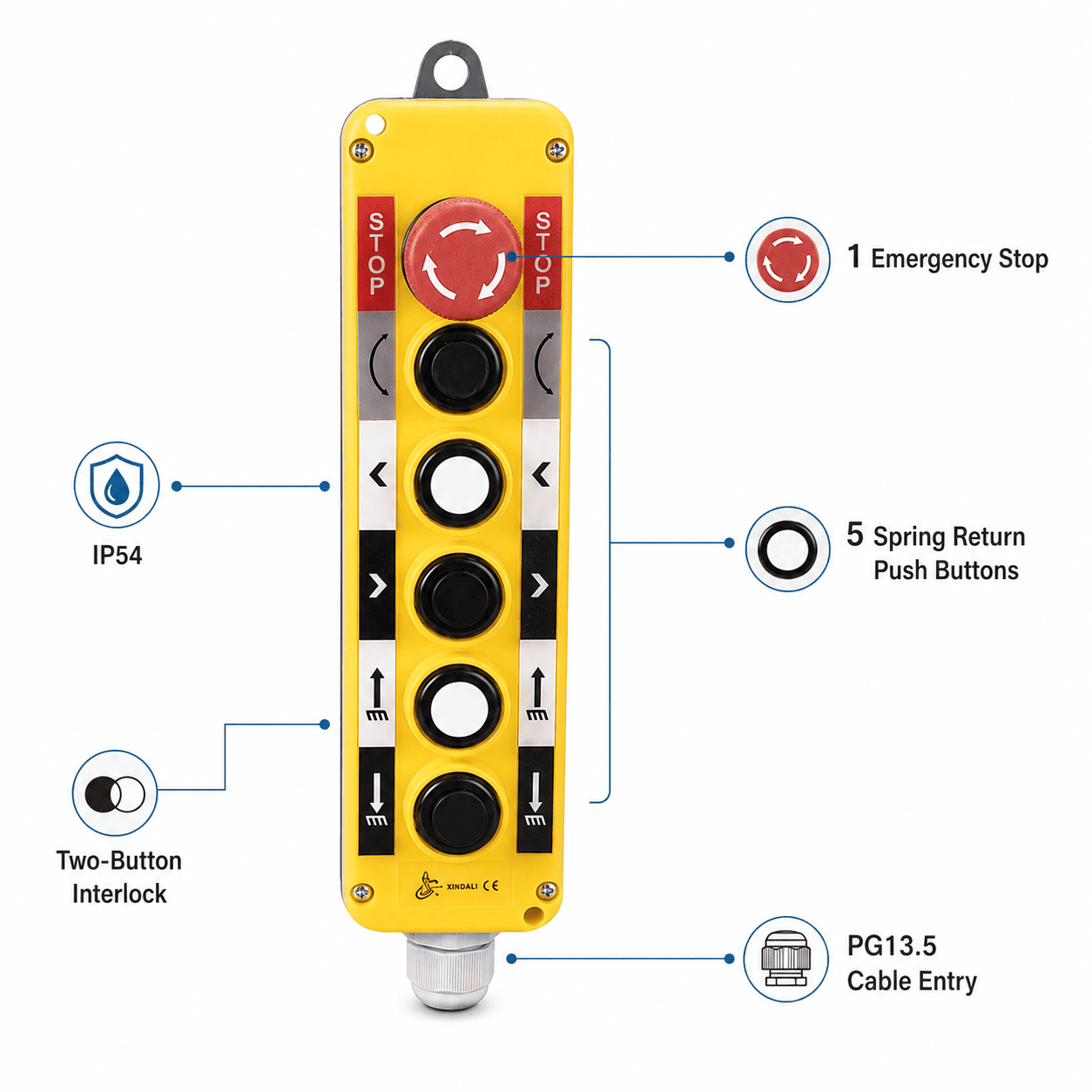

Control Architecture

Local Emergency Stop
The red mushroom operator is pressed to stop operation and turned to release after the machine condition has been checked.
Five Spring-Return Commands
Each flush push button returns to its normal position after release, supporting momentary press-and-hold control.
Interlocked Opposite Actions
Related buttons can use a two-button interlock arrangement to reduce simultaneous activation of opposing commands.
Two Contact Versions
Select XDL10-EPBS6 for N/O push-button contacts or XDL10-EPBS62 for the 2N/O version according to the control circuit.

Where the XDL10-EPBS6 Adds Value

This model is intended for machinery where several actions must be controlled from a movable operator position.

Truck Tail Lift Systems
Multiple platform movements, auxiliary control and local emergency interruption.
Vehicle-Mounted Hydraulics
Suitable for service trucks, hydraulic bodies and mobile equipment with several actuated functions.
Lifting and Access Platforms
Supports multi-direction movement and an additional enable, reset or auxiliary command.
OEM Control Assemblies
Button functions, symbols, contacts, cable length and wiring can be configured for the machine.

Storage and Truck-Body Mounting

XDL10-EPC Holder

The dedicated holder supports fixed storage when the pendant is not being operated. It helps keep the longer six-position housing organized and within the operator’s reach.

Optional Back Magnets

Strong magnets can be fitted to the rear housing for temporary attachment to truck bodies, steel panels, platform frames and other ferrous equipment surfaces.

When to Select XDL10-EPBS6

Model Operator Layout Recommended Use
EPBS4 E-stop + 3 commands Compact three-function machine workflow
EPBS5 E-stop + 4 commands Two paired directions or four independent actions
EPBS6 E-stop + 5 commands Multi-axis operation plus an auxiliary or enable function
EPB6 6 command buttons without E-stop layout General six-command control where a separate safety stop is used

Technical Data

Model XDL10-EPBS6
Alternative Contact Version XDL10-EPBS62
Housing Layout 6 holes
Emergency Stop 1 turn-to-release emergency stop
Command Buttons 5 flush push buttons
Button Action Spring return / momentary
Interlock Two-button interlock
Emergency-Stop Contact N/C
Push-Button Contact Version N/O for EPBS6; 2N/O for EPBS62
Protection Level IP54
Cable Entry PG13.5
Approx. Housing Size 234 × 62 mm
Approx. Housing Depth 45.9 mm
Optional Accessories XDL10-EPC holder, rear magnets, customized labels, contacts, wiring and cable length

The final emergency-stop circuit, machine risk assessment and compliance validation must be completed by the equipment manufacturer or system integrator.

People Also Ask

Practical questions about selecting a multi-function pendant with an integrated emergency stop.

When should I choose XDL10-EPBS6?

Choose XDL10-EPBS6 when the machine requires five momentary operating commands and a local emergency stop in the same handheld controller. It is especially useful for multi-axis hydraulic or vehicle-mounted equipment.

How is XDL10-EPBS6 different from XDL10-EPB6?

XDL10-EPBS6 uses one position for a turn-to-release emergency stop and the remaining five positions for control commands. XDL10-EPB6 uses all six positions as regular push-button commands.

What functions can the five push buttons control?

The buttons can be configured for directional movement, lifting, lowering, extending, retracting, opening, closing, resetting, enabling or another auxiliary function required by the machine.

What is the difference between EPBS6 and EPBS62?

Both versions use an N/C contact for the emergency stop. The EPBS6 push-button version uses N/O contacts, while EPBS62 is supplied with 2N/O push-button contacts.

Can the controller be stored on a truck body?

Yes. It can be used with the XDL10-EPC holder, and rear magnets can be added for temporary attachment to suitable ferrous truck panels or machine surfaces.

Can XDL10-EPBS6 be customized for OEM machinery?

Yes. Available customization can include button colors, labels, symbols, contact arrangements, cable length, wiring, holder matching and magnetic mounting.

Related XINDALI Solutions

Compare more handheld pendant controllers, review tail lift control solutions, or contact us for a custom control assembly.

Need Five Commands and an Emergency Stop in One Pendant?

Send us your control sequence, contact requirements and cable specification for an XDL10-EPBS6 quotation or OEM configuration.
