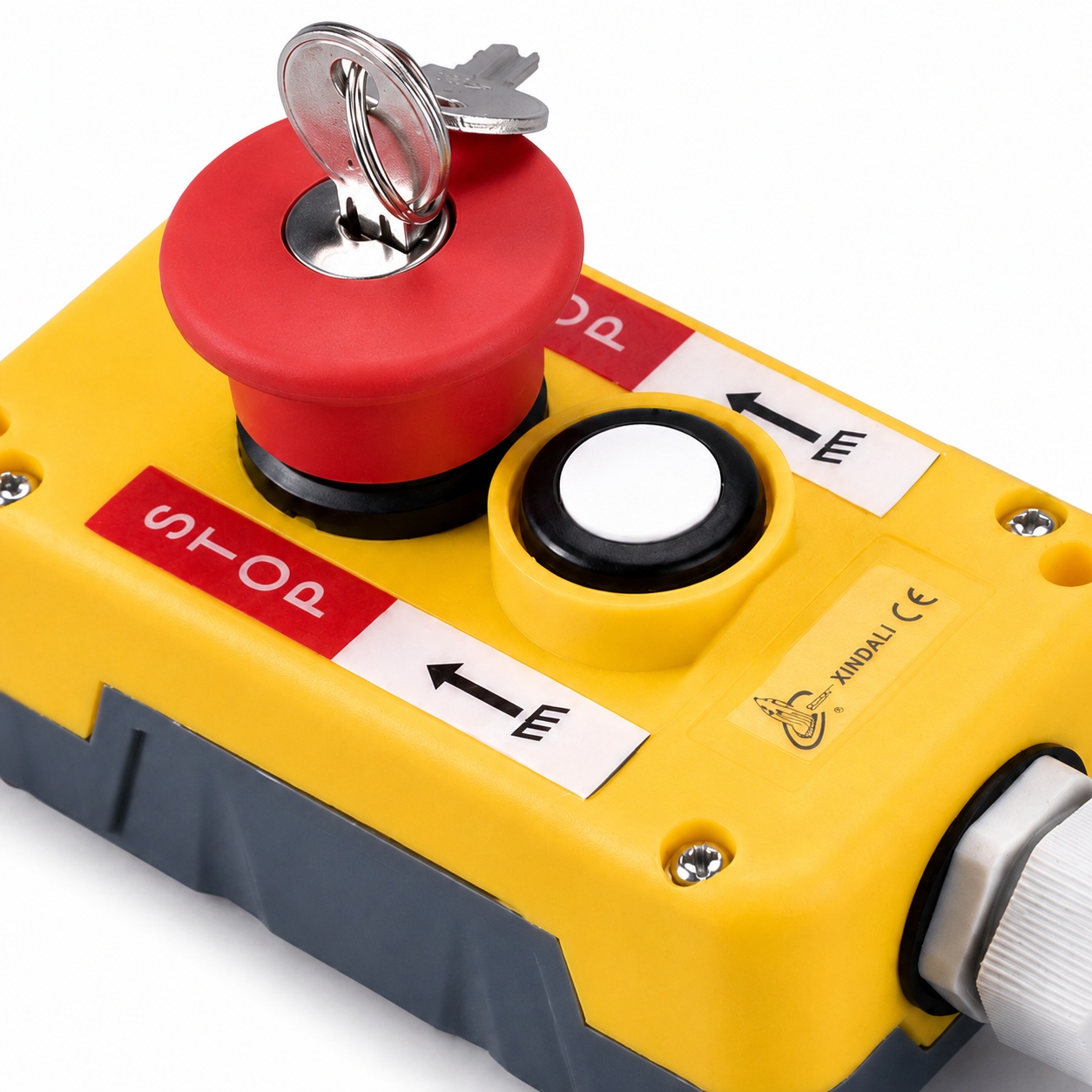

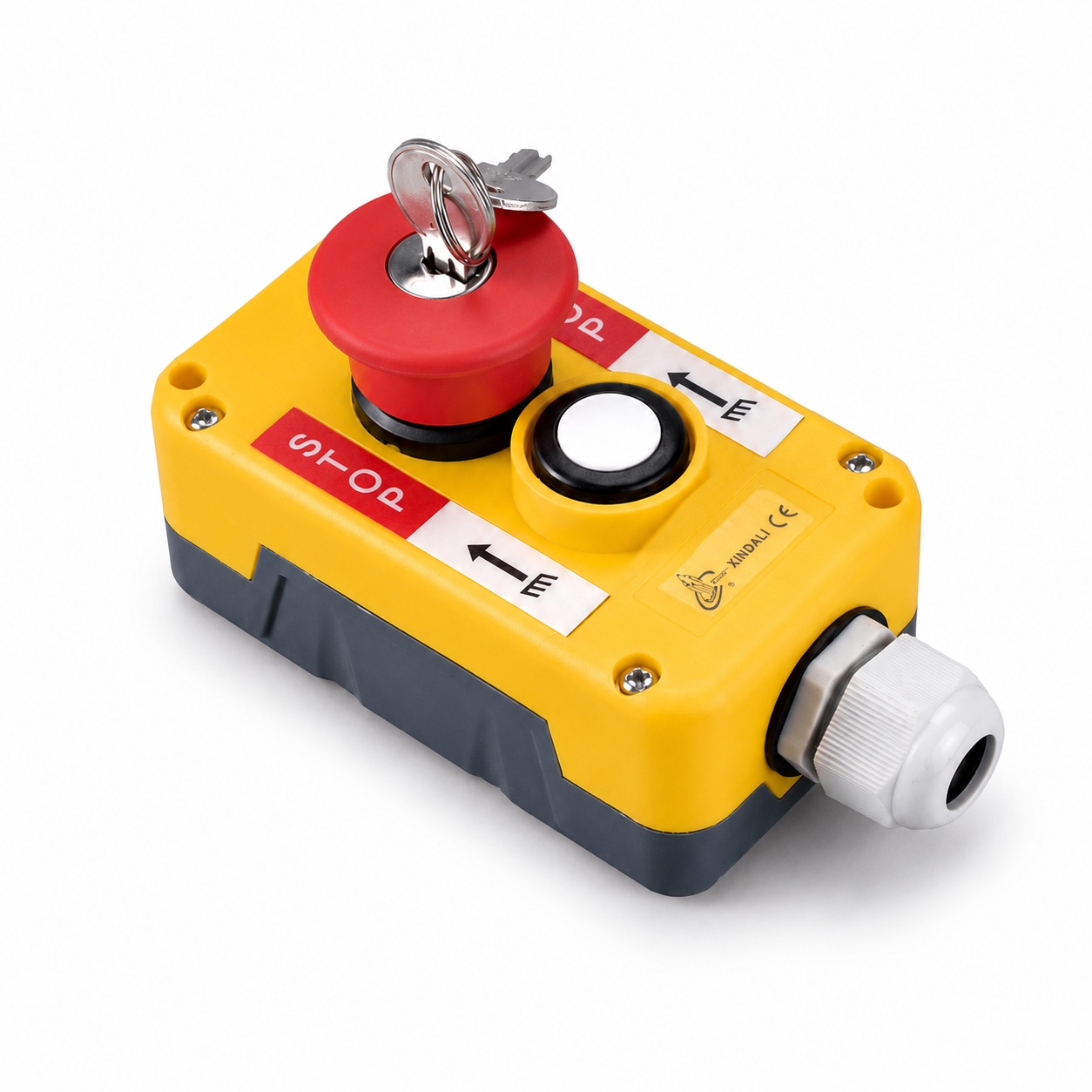

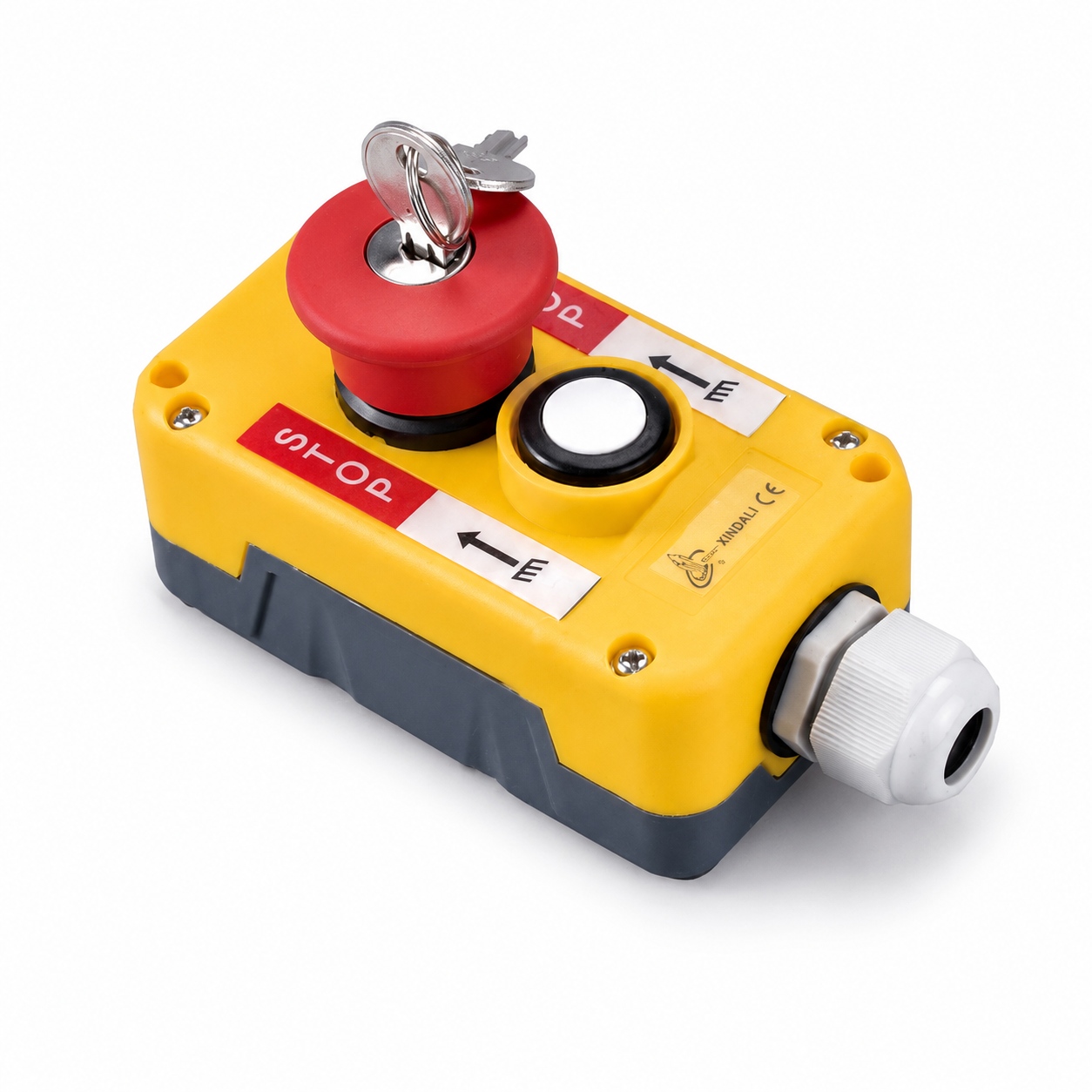

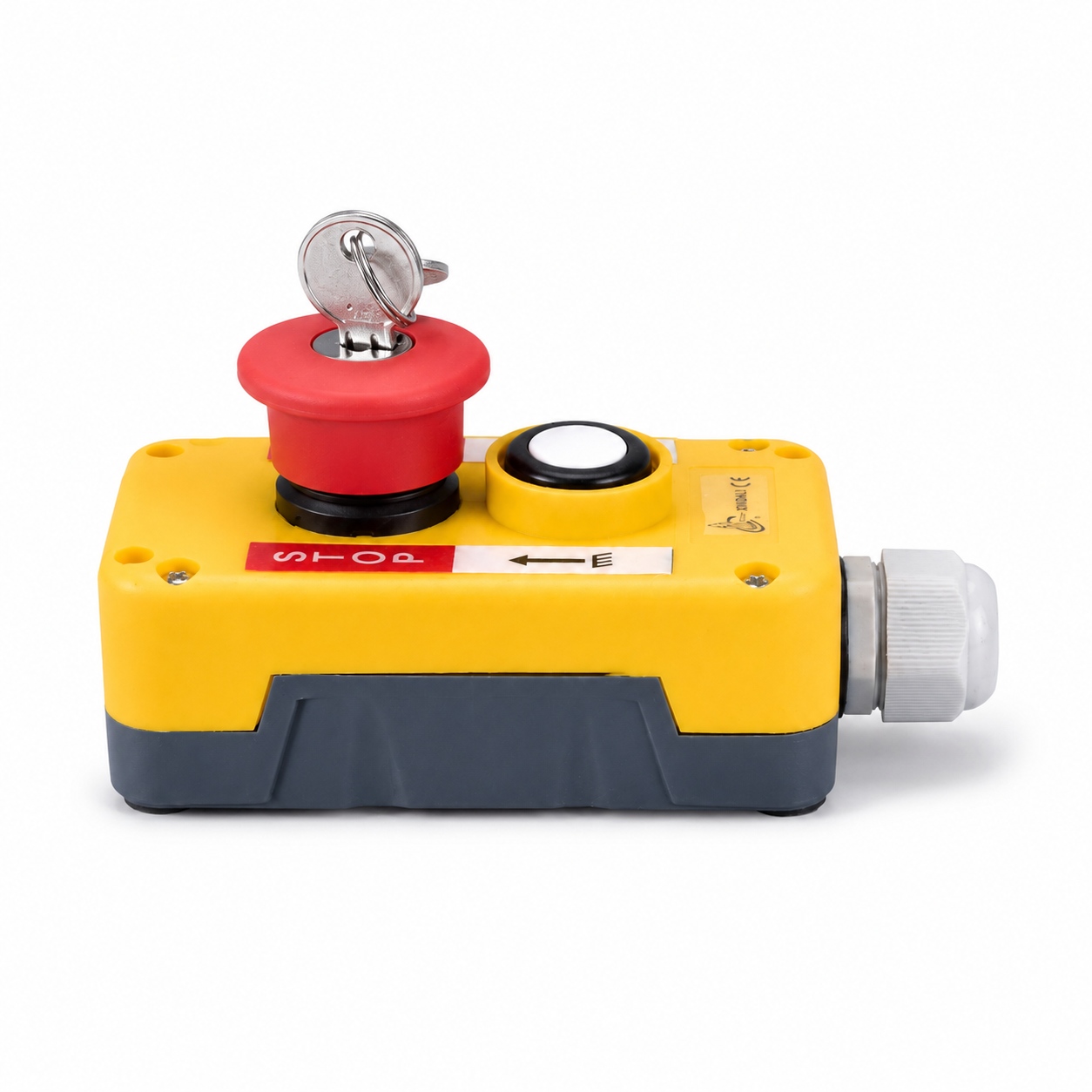

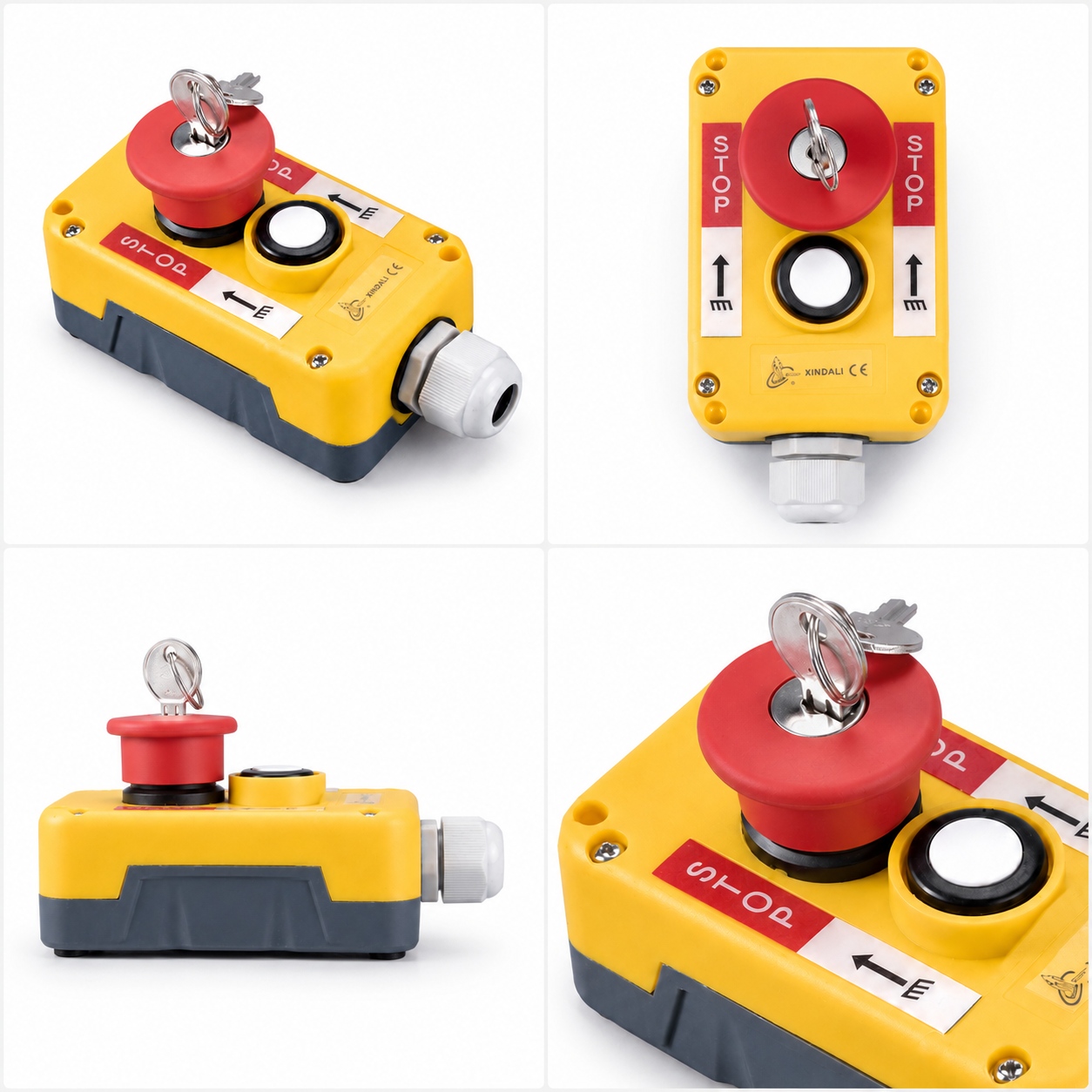

XDL10-EPBK2 Key-Release Emergency Stop Pendant Controller

XDL10-EPBK2 combines a key-release emergency stop and one spring-return push button for tail lifts, hydraulic equipment and OEM machinery. Features IP54 protection, PG13.5 cable entry, optional holder and rear magnetic mounting.

  • Product Model XDL10-EPBK2
  • Series XDL10 Series
  • Housing Layout 2 holes
  • Control Box Structure 2 Holes Control Box
  • Emergency Stop Type 1 key-release emergency stop
  • Push Button Operation Spring Return / Momentary
  • Command Button 1 flush push button
  • Contact Configuration Emergency stop N/C; push button contacts N/O or 2N/O according to version
  • Protection Level IP65
  • Cable Entry PG13.5
  • Application Industrial machinery, hydraulic systems, tail lift control, tipping trailers, automation equipment
  • Approx. Size 106 × 62 mm
  • Approx. Housing Width 45.9 mm
  • Holder Optional XDL10-EPC box holder
  • Optional Accessories XDL10-EPC holder, rear magnets, customized labels, contacts, wiring and cable length
  • Interlock Two-button interlock
  • Emergency-Stop Contact N/C
  • Push-Button Contact N/O for EPBK2; 2N/O for EPBK22
Contact us
Product Detail

XINDALI XDL10 Series | Key-Controlled Safety Pendant

XDL10-EPBK2 Key-Release Emergency Stop Pendant Controller

The XDL10-EPBK2 combines a key-release emergency stop and one spring-return flush push button in a compact handheld control box. It is designed for machinery that requires a local emergency stop while restricting reset access to personnel holding the correct key.

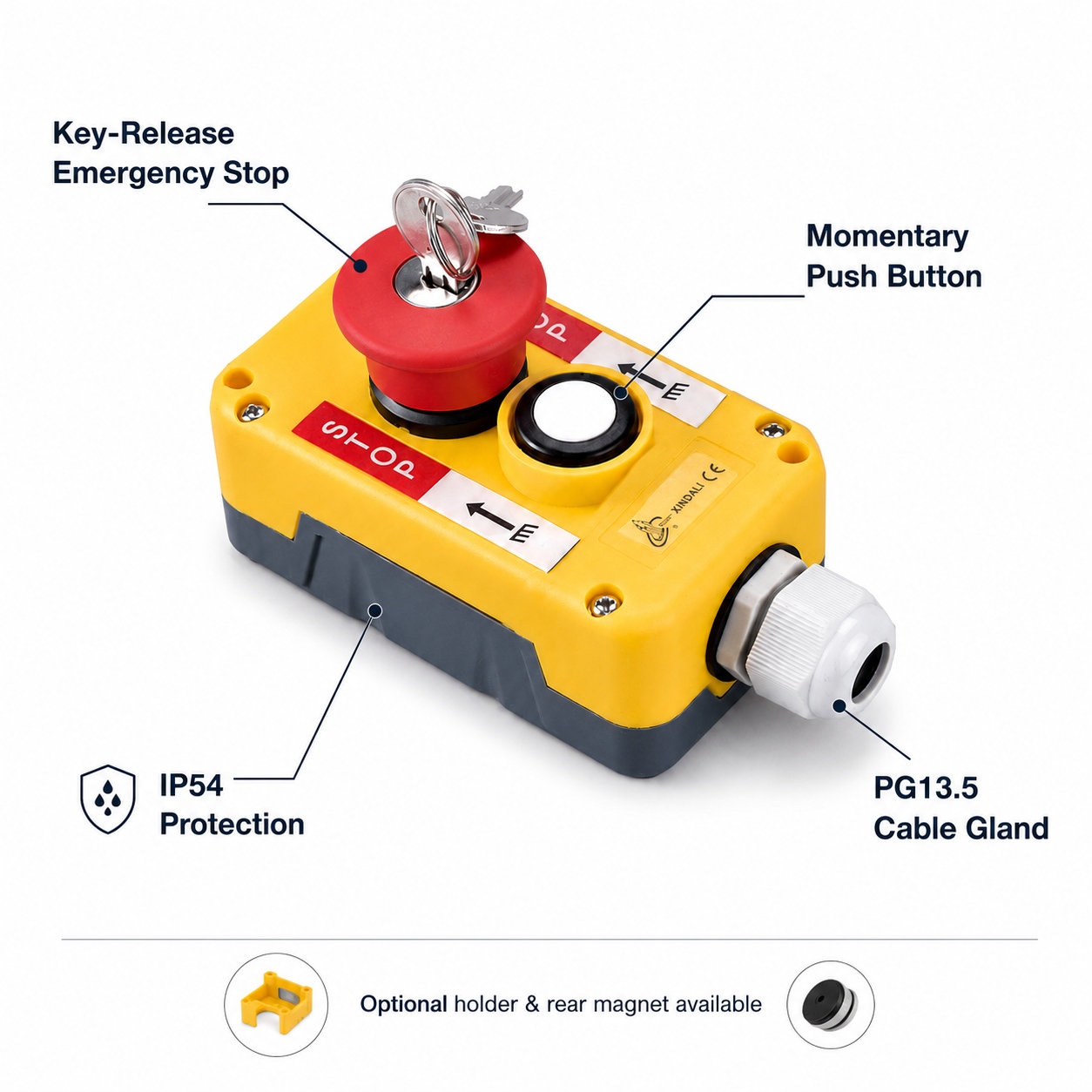

Key-Release E-Stop 1 Momentary Command N/C Safety Contact IP54 Enclosure PG13.5 Cable Entry Holder Available Magnetic Back Option

Emergency Stop Reset Controlled by Key

A normal turn-to-release emergency stop can be reset by any operator. The XDL10-EPBK2 uses a key-release mechanism, allowing the equipment designer to add another level of reset control.

After the emergency stop is activated, the mushroom operator remains latched. Release requires the matching key, helping reduce unintended or unauthorized reset before the machine condition has been inspected.

Two Functions in One Compact Pendant

Emergency Stop
Press to interrupt equipment operation. Use the key to release the latched operator.
Momentary Push Button
Assign the spring-return button to start, run, raise, lower, jog, reset or another machine command.

Key-Controlled Reset Workflow

1

Press Emergency Stop

The red mushroom operator latches when an emergency or unsafe condition occurs.

2

Inspect the Equipment

Check the machine, hydraulic system, load and surrounding work area before reset.

3

Release with Key

The emergency stop can only be released by using the corresponding key.

4

Resume Operation

Restart remains subject to the equipment control circuit and the machine builder’s safety logic.

Applications Requiring Controlled Emergency-Stop Release

The XDL10-EPBK2 is suitable for equipment where emergency-stop reset should be managed more carefully than a standard twist-release design.

Truck Tail Lift Systems
Provides a local operating command and key-controlled emergency-stop release near the loading area.
Hydraulic Power Units
Suitable for compact hydraulic systems requiring a controlled reset procedure.
Maintenance Control Points
Allows service personnel to retain control of emergency-stop release during inspection or maintenance.
OEM Safety Assemblies
Suitable for custom machinery requiring a keyed emergency-stop operator and one momentary command.

XDL10-EPBK2 vs. XDL10-EPBS2

Feature XDL10-EPBK2 XDL10-EPBS2
Emergency-Stop Release Key release Turn to release
Reset Access Requires matching key Can be reset by turning the operator
Command Button 1 spring-return button 1 spring-return button
Recommended Use Equipment requiring controlled reset access General compact emergency-stop control

Storage and Vehicle Mounting Options

Optional XDL10-EPC Holder

The dedicated holder keeps the pendant controller in a fixed storage position when it is not being operated. It is suitable for installation on trucks, equipment frames and machine panels.

Optional Rear Magnetic Mounting

Strong magnets can be installed on the rear housing for temporary attachment to suitable ferrous truck bodies, steel panels or machine surfaces.

Technical Specifications

Product Model XDL10-EPBK2
Alternative Contact Version XDL10-EPBK22
Series XDL10 Series
Housing Layout 2 holes
Emergency Stop 1 key-release emergency stop
Command Button 1 flush push button
Button Action Spring return / momentary
Interlock Two-button interlock
Emergency-Stop Contact N/C
Push-Button Contact N/O for EPBK2; 2N/O for EPBK22
Protection Level IP54
Cable Entry PG13.5
Approx. Housing Size 106 × 62 mm
Approx. Housing Depth 45.9 mm
Optional Accessories XDL10-EPC holder, rear magnets, customized labels, cable and wiring options

The final emergency-stop circuit, restart logic, machine risk assessment and regulatory compliance must be verified by the equipment manufacturer or system integrator.

People Also Ask

Questions buyers ask about key-release emergency stop pendant controllers.

What is a key-release emergency stop?

A key-release emergency stop remains latched after it is pressed and requires the corresponding key to release the operator. This can help restrict emergency-stop reset access.

When should I choose XDL10-EPBK2?

Choose XDL10-EPBK2 when the machine requires one momentary operating command, a local emergency stop and a keyed release mechanism.

How is EPBK2 different from EPBS2?

EPBK2 requires a key to release the emergency stop. EPBS2 uses a standard turn-to-release emergency stop that does not require a key.

What can the flush push button control?

The spring-return button can be configured for functions such as start, run, raise, lower, jog, reset or another customized momentary command.

Can XDL10-EPBK2 be attached to a truck body?

Yes. Optional magnets can be installed on the rear housing for attachment to suitable ferrous truck bodies or metal equipment surfaces. The XDL10-EPC holder is also available.

Can XDL10-EPBK2 be customized?

Yes. Available customization can include labels, button color, contact arrangement, wiring, cable length, holder matching and rear magnetic mounting.
