XDL11 7-Hole Elevator Inspection Box with Work Light and Socket
The XDL11 7-Hole Elevator Inspection Box is designed for local elevator inspection, maintenance and commissioning operations. It groups frequently used maintenance controls into one clearly arranged and easy-to-operate enclosure.

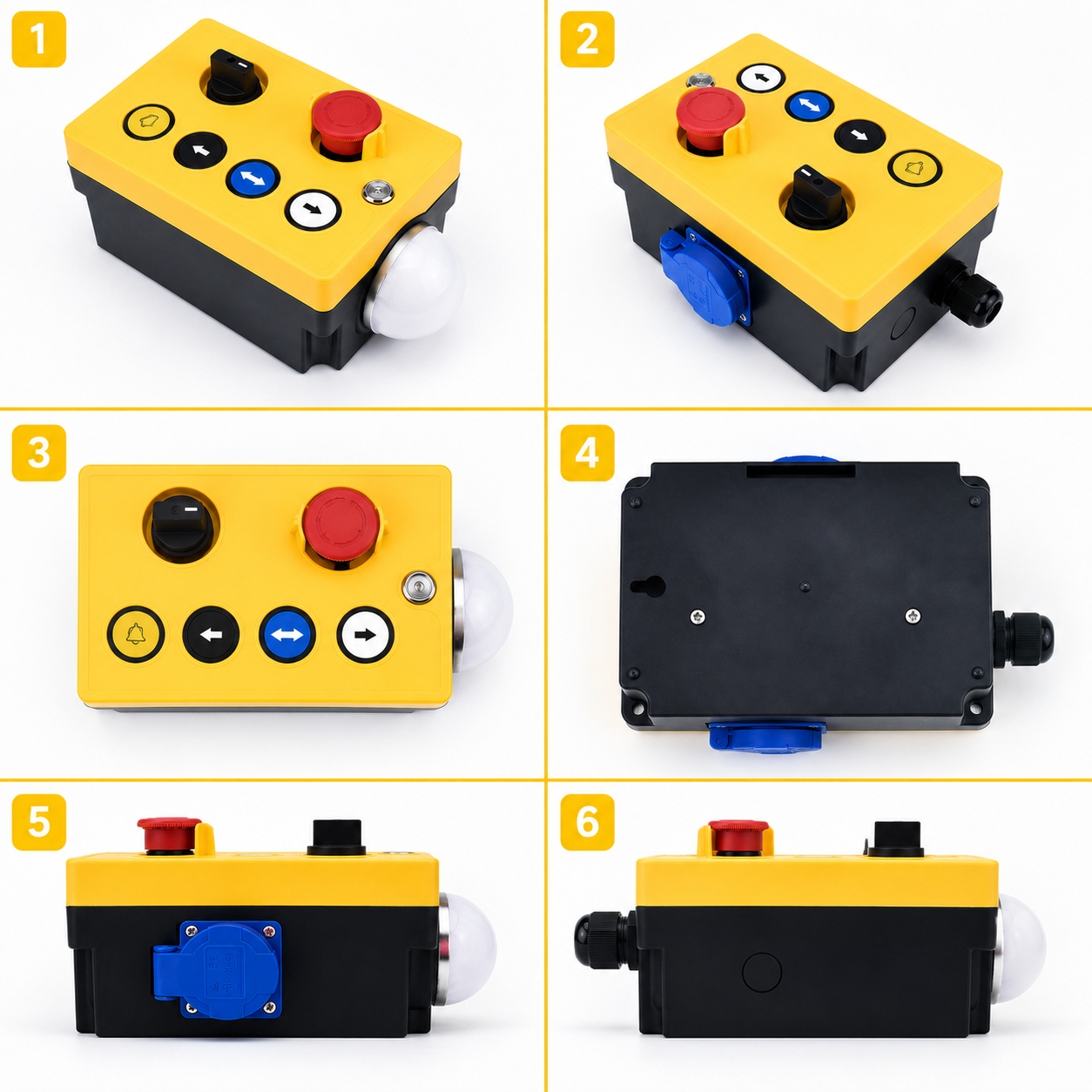

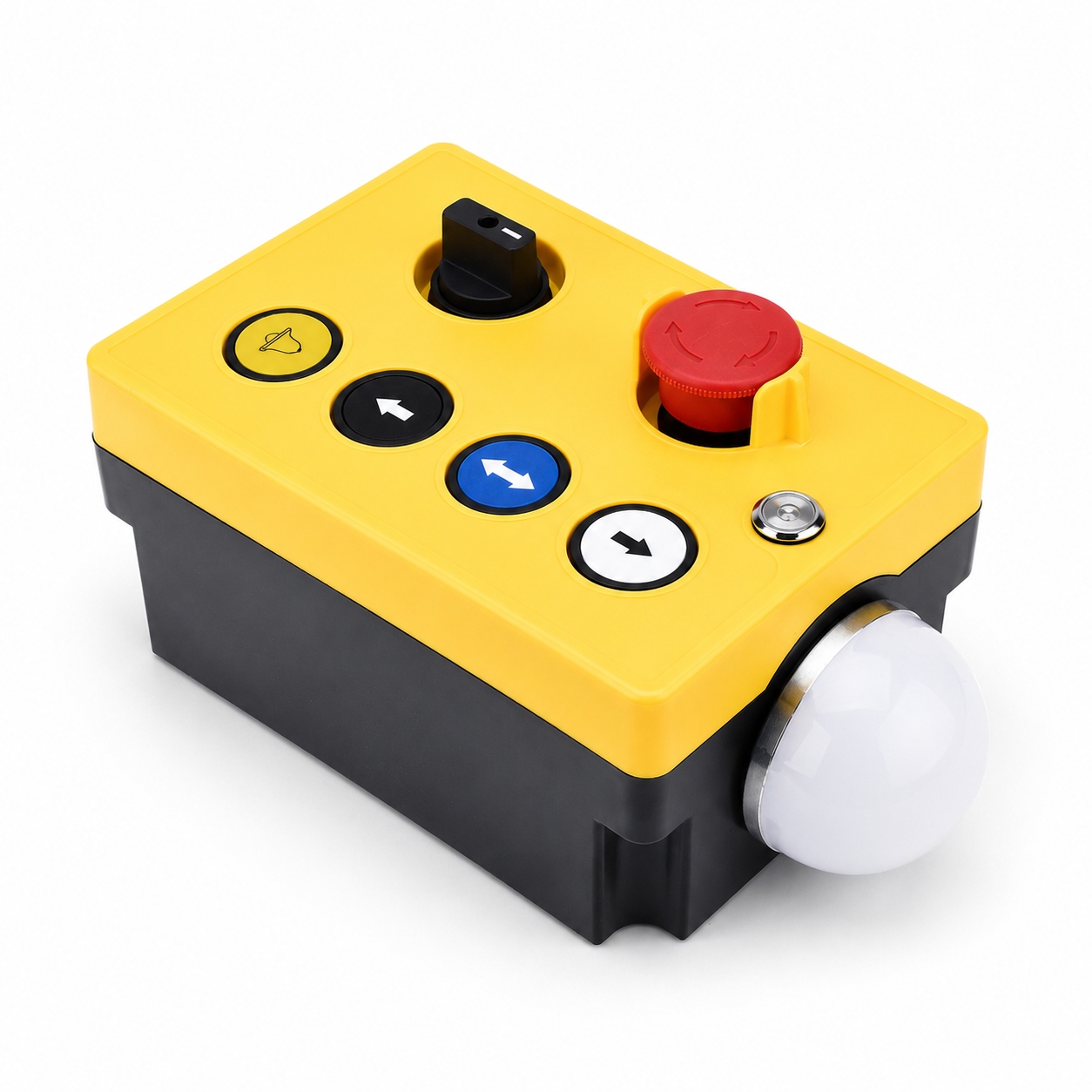

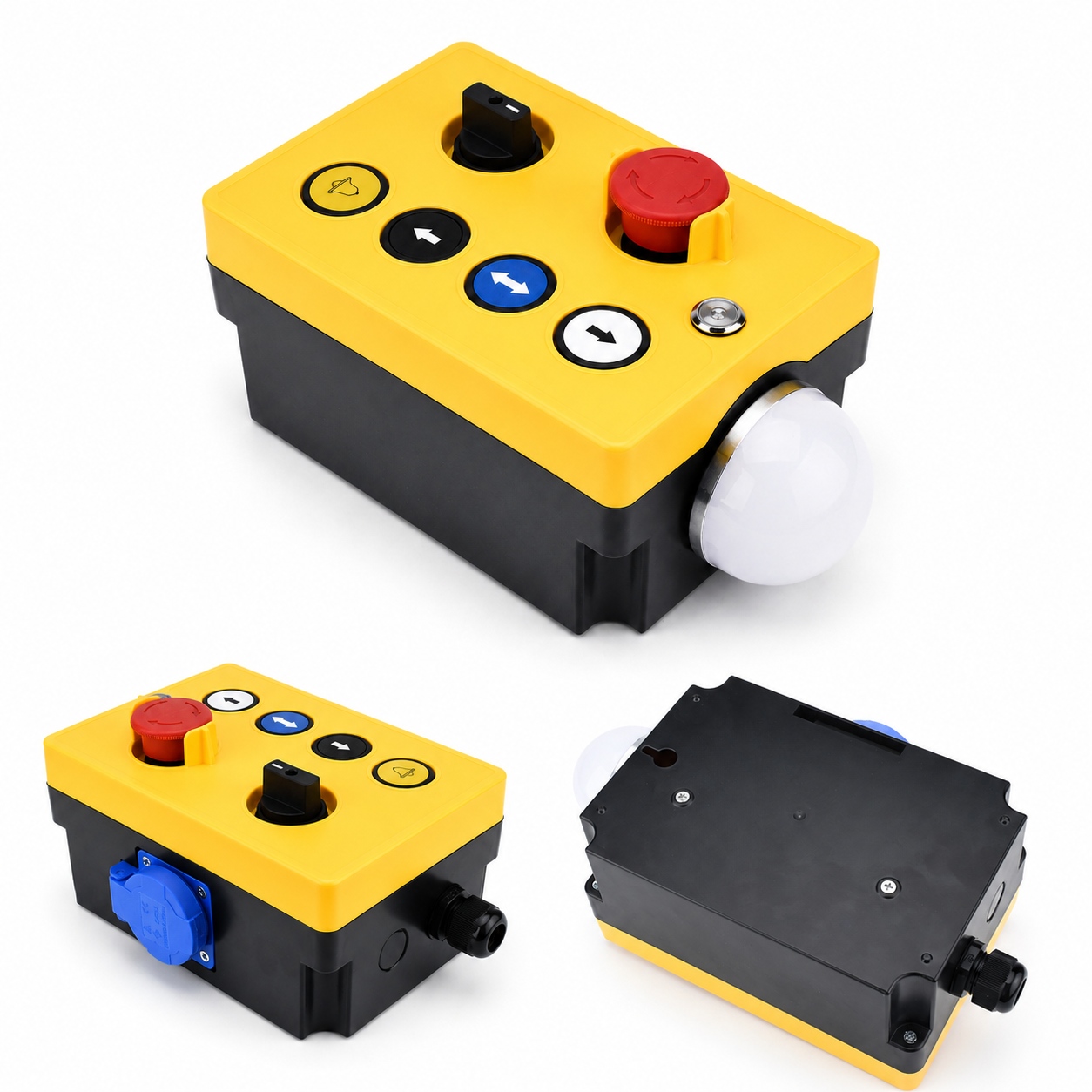

The pictured configuration includes directional push buttons, a RUN/ENABLE control, alarm button, emergency stop, selector switch, integrated work light and a covered industrial socket.
XINDALI supports OEM configuration of the button functions, contact combinations, front-panel legends, cable, connector and internal wiring.
What Is the XDL11 Elevator Inspection Box?
An elevator inspection box, also known as an elevator inspection station, elevator maintenance box or car-top inspection control station, provides local controls for qualified personnel during elevator servicing and testing.
Depending on the elevator design, the inspection box may be installed on the elevator car top, in the pit, in the machine room or at another designated maintenance position.
The XDL11 model shown on this page uses a seven-hole control layout and combines the primary operating controls with auxiliary lighting and a protected socket. The final functions and wiring must be matched to the customer’s elevator controller and approved electrical diagram.

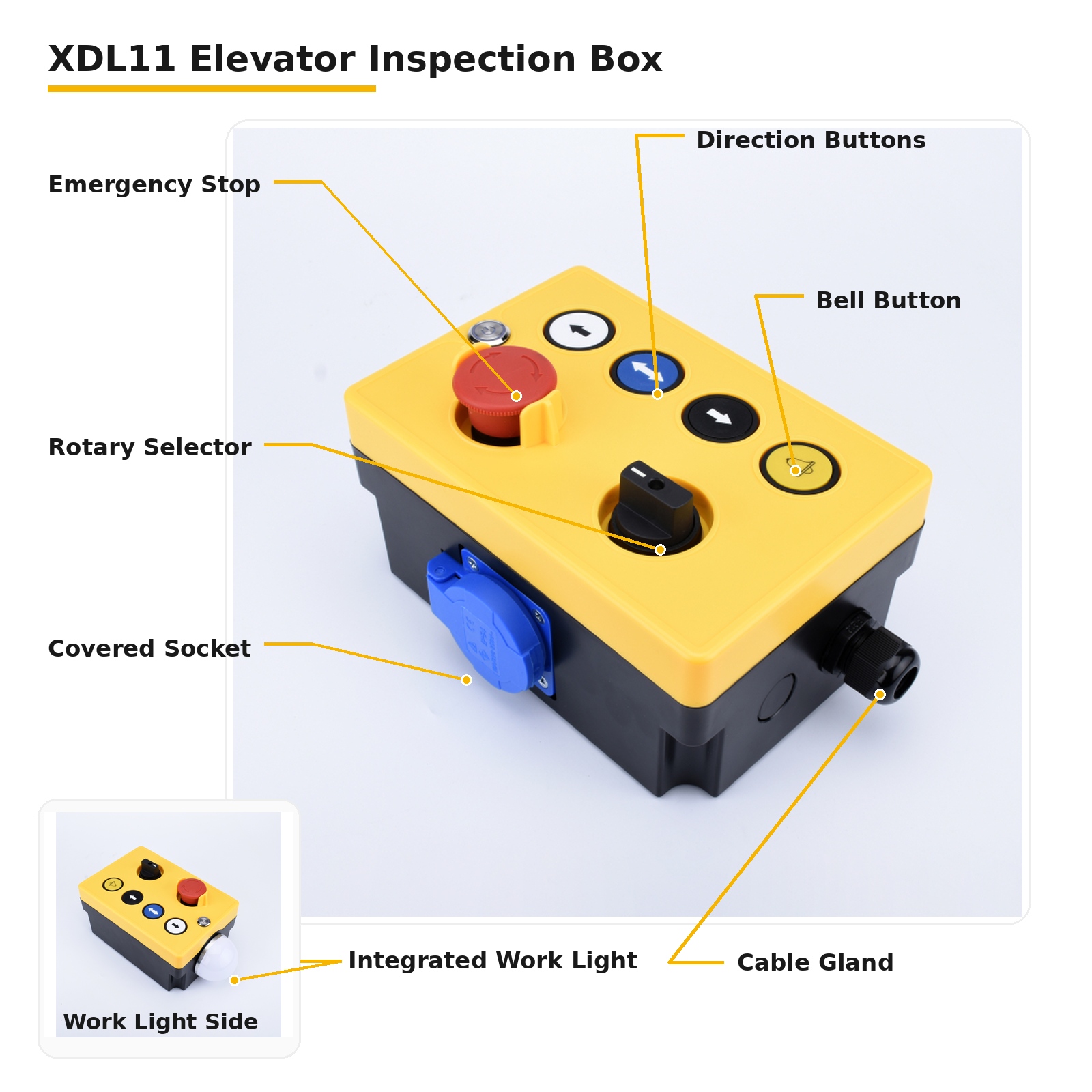

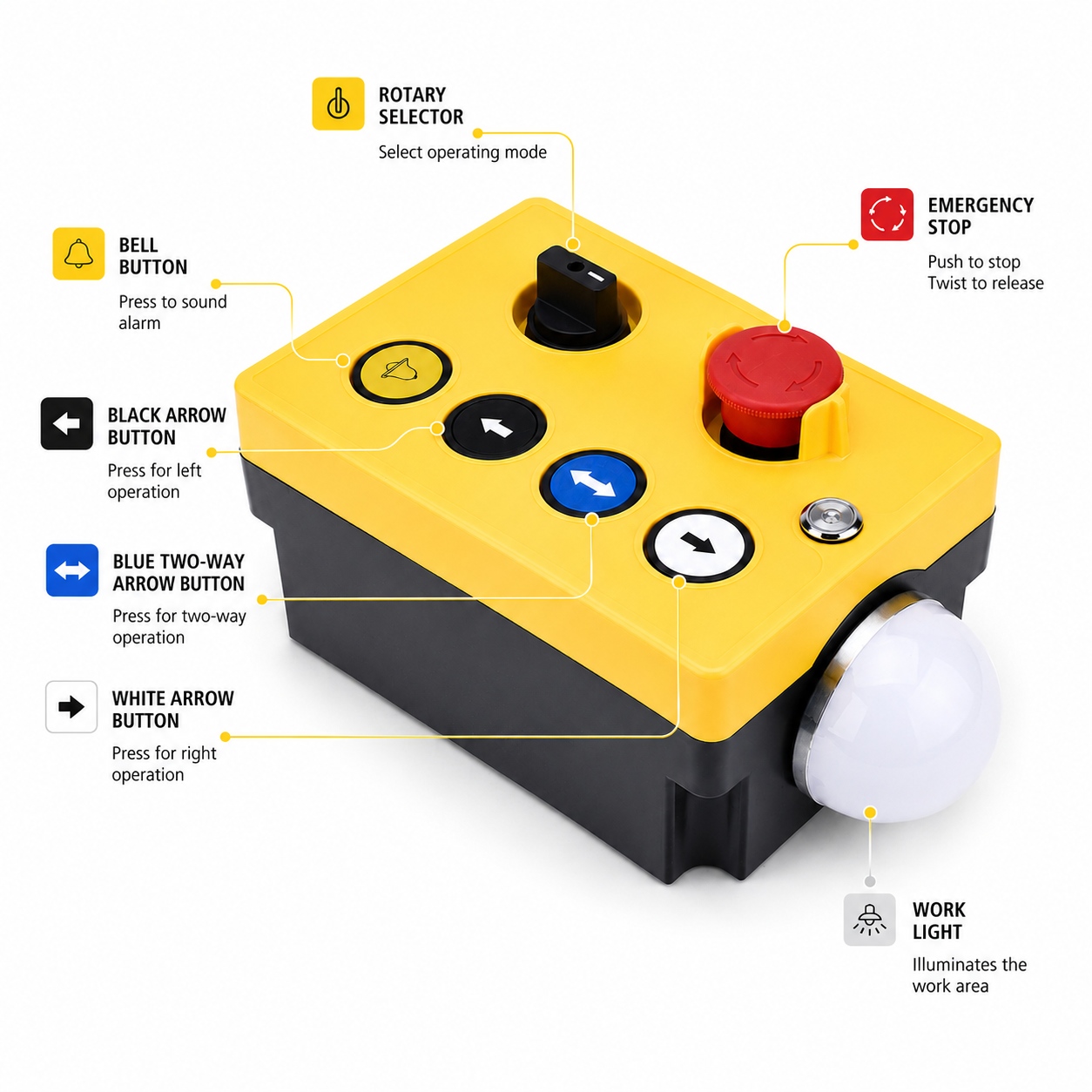

Main Functions of the 7-Hole Inspection Box
UP and DOWN Push Buttons
Clearly marked directional controls allow qualified technicians to issue local movement commands during inspection operation.
RUN or ENABLE Control
The RUN/ENABLE button can be configured to operate together with a directional button according to the elevator control circuit.
Emergency Stop Button
A large mushroom-head emergency stop actuator provides a clearly visible and accessible safety control.
Inspection Selector Switch
The selector switch can be configured for inspection/normal mode or another operating-state selection required by the system.
Alarm or Bell Button
A dedicated alarm control provides an additional clearly identified command for maintenance personnel.
Integrated Work Light
The side-mounted light helps illuminate the nearby working area during elevator inspection and maintenance.
Covered Industrial Socket
The protected socket provides an auxiliary power connection for compatible maintenance tools and inspection equipment.
Protected Cable Entry
A cable gland supports secure cable routing and helps protect the cable-entry area from dust and moisture.
Product Specifications
| Product Series | XDL11 Series |
|---|---|
| Product Type | Elevator inspection and maintenance control box |
| Control Layout | Seven-hole front control layout |
| Main Functions | UP, RUN/ENABLE, DOWN, alarm, emergency stop and operating-mode selection |
| Emergency Stop | Mushroom-head emergency stop; contact arrangement and reset method can be configured |
| Push Button Operation | Momentary or maintained operation according to the approved circuit |
| Contact Options | N/O, N/C or combined N/O and N/C contacts |
| Auxiliary Components | Integrated work light and covered industrial socket |
| Cable Entry | Cable gland, pre-wired cable or customized connector solution |
| Typical Application | Elevator car-top inspection, pit maintenance, commissioning and local service control |
| Customization | Functions, contacts, legends, colors, cable, connector, internal wiring, label and packaging |
OEM Elevator Inspection Box Customization
Elevator manufacturers and maintenance companies may use different control logic, terminal definitions, voltages and connection methods. XINDALI can therefore configure the XDL11 inspection box according to the customer’s technical documents.
Custom Control Layout
Customize the functions, positions, colors and symbols of push buttons, emergency stops and selector switches.
Contact Configuration
Select normally open, normally closed or combined contact arrangements according to the elevator circuit.
Custom Legends
Add UP, DOWN, RUN, STOP, ALARM, inspection-mode symbols or customer-specific text in the required language.
Pre-Wired Assembly
Internal wiring, terminal assignment, wire markers and cable connection can be completed according to an approved drawing.
Cable and Connector Options
Cable length, conductor specification, connector type and cable gland can be selected for the intended installation.
OEM Branding and Packaging
Customer labels, model numbers, product identification and customized packaging can be evaluated for volume orders.
For other enclosure sizes and control layouts, view the XDL11 Custom Elevator Inspection Box Series .
You can also learn more about our ODM and OEM control box service .
Applications
Elevator Car-Top Inspection
Provides local movement and safety controls for qualified personnel carrying out car-top maintenance.
Elevator Pit Maintenance
Can be configured as a local inspection station for maintenance work performed in the elevator pit.
Elevator Commissioning
Supports local control requirements during installation, adjustment and system commissioning.
Replacement Projects
Can be developed from an existing sample, wiring diagram, dimensions or terminal definition for replacement applications.
Information Required for a Quotation
- Front-panel layout and required button functions.
- Contact logic for each push button and selector switch.
- Operating voltage for the controls, light and socket.
- Electrical drawing, wiring diagram or terminal definition.
- Required cable length, wire specification and connector type.
- Button legends, symbols and label language.
- Required quantity and expected delivery schedule.
Frequently Asked Questions
What is an elevator inspection box used for?
It provides local controls for qualified technicians during elevator inspection, maintenance, commissioning and fault diagnosis.
Can the seven control positions be customized?
Yes. The button functions, colors, symbols, contact combinations and front-panel arrangement can be configured according to the approved electrical drawing.
Can this product be used as a car-top inspection box?
It can be configured for car-top inspection, pit maintenance or another designated service position. The final installation must be confirmed by the elevator system designer.
Can the socket be changed for different countries?
Socket configuration can be evaluated according to the target market, operating voltage and customer requirements.
Can XINDALI supply internal wiring and cable?
Yes. Internal wiring, cable length, terminal assignment, wire marking and connector type can be produced according to the approved diagram.
What is the waterproof rating of the inspection box?
The final protection level depends on the enclosure, push buttons, socket, light, cable gland and overall assembly. Please provide the required protection level and installation environment before ordering.
Can you develop a replacement from an existing sample?
Yes. You may provide a physical sample, product photos, dimensions, wiring drawing and terminal definitions for evaluation.
Safety notice: Elevator inspection equipment must be selected, wired, installed and tested by qualified personnel. Final electrical logic, protection level and compliance requirements must be verified for the complete elevator system.
Request a Custom XDL11 Inspection Box
Send us your layout, wiring diagram, voltage, cable requirements and order quantity. We will evaluate a suitable configuration for your elevator inspection system.
Request a Quote View More Inspection Boxes
OEM Project Case
Custom Elevator Inspection Box Developed for a Customer Project
In addition to the standard XDL11 configuration, XINDALI can develop elevator inspection control boxes according to customer drawings, samples and electrical requirements.
From a Control Requirement to a Finished Inspection Box
This project demonstrates how the enclosure layout, operating components and cable connections can be adapted for a specific elevator maintenance system.
The customer-defined configuration combines directional controls, an emergency-stop device, operating-mode selection, auxiliary buttons, a protected socket and pre-installed cables in one integrated control station.
- Custom button functions and panel layout
- Emergency-stop and selector configuration
- Custom legends, symbols and markings
- Socket and auxiliary component options
- Pre-wired cable and cable-entry solutions
- Development from drawings or physical samples

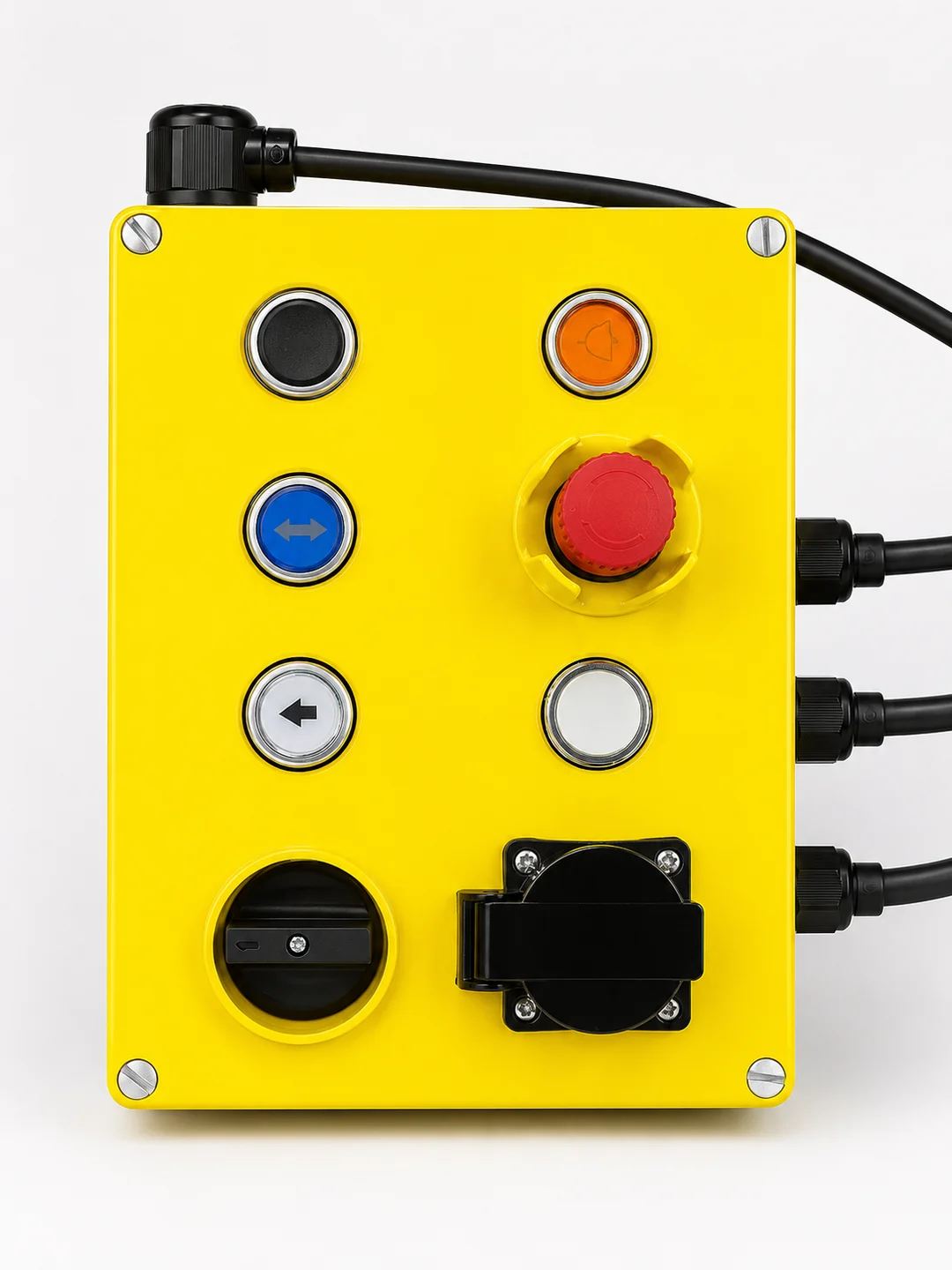

Project note: The image shows one customized project configuration. Component layout, button functions, cable quantity, socket type and wiring can be adjusted according to the approved technical drawing.
