XDL19 Series Industrial Wireless Remote Controller For Crane Hoist Lift Tailgate

The XDL19 series of industrial wireless remote controls, produced by Xindali Industrial, is characterized by its ergonomic design and high protection rating (IP65), offering a comfortable and durable operating experience. The product has the ability to control at long distances, up to 200 meters, while preventing accidental operations through a reasonable button function setup. Clear signal and status indication lights keep users informed of the equipment status at all times. Multiple power options are available to meet different usage scenarios. The emergency stop button design enhances operational safety. With a compact receiver size and multi-function indicator lights, the XDL19 series remote controls not only perform exceptionally but also offer intuitive operation, making them an ideal choice for applications such as industrial cranes and truck tailgates.

product details

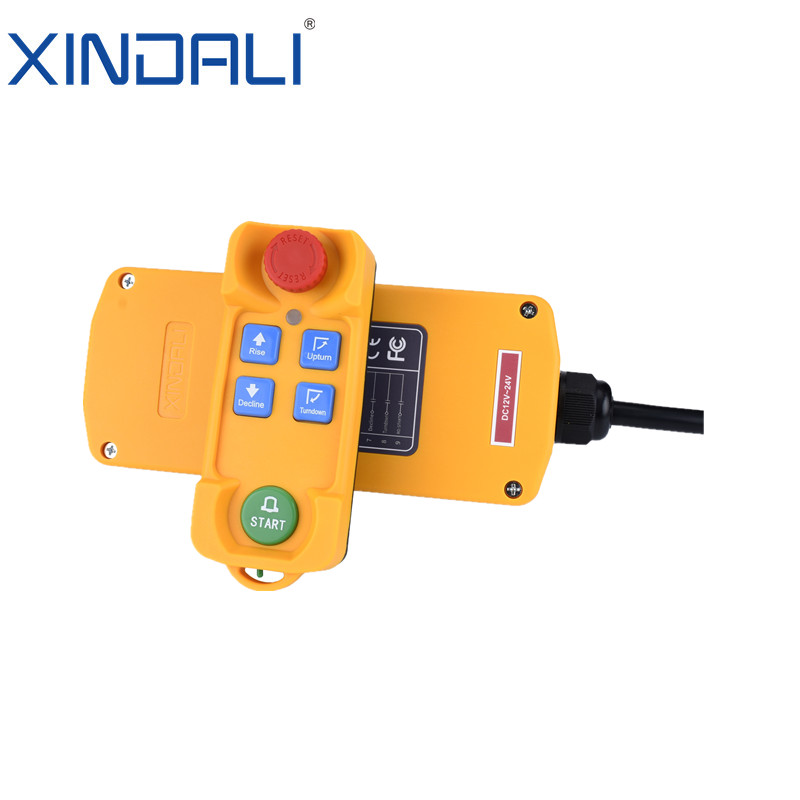

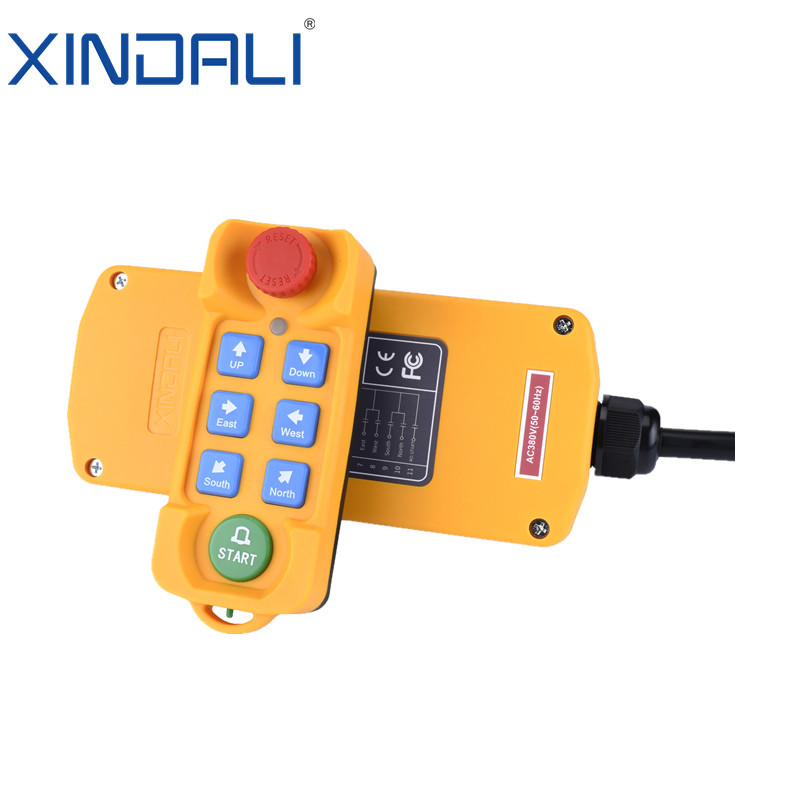

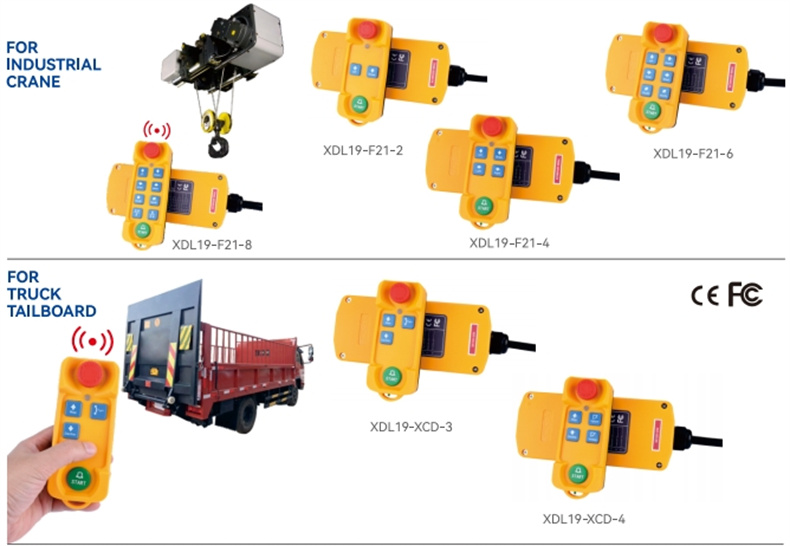

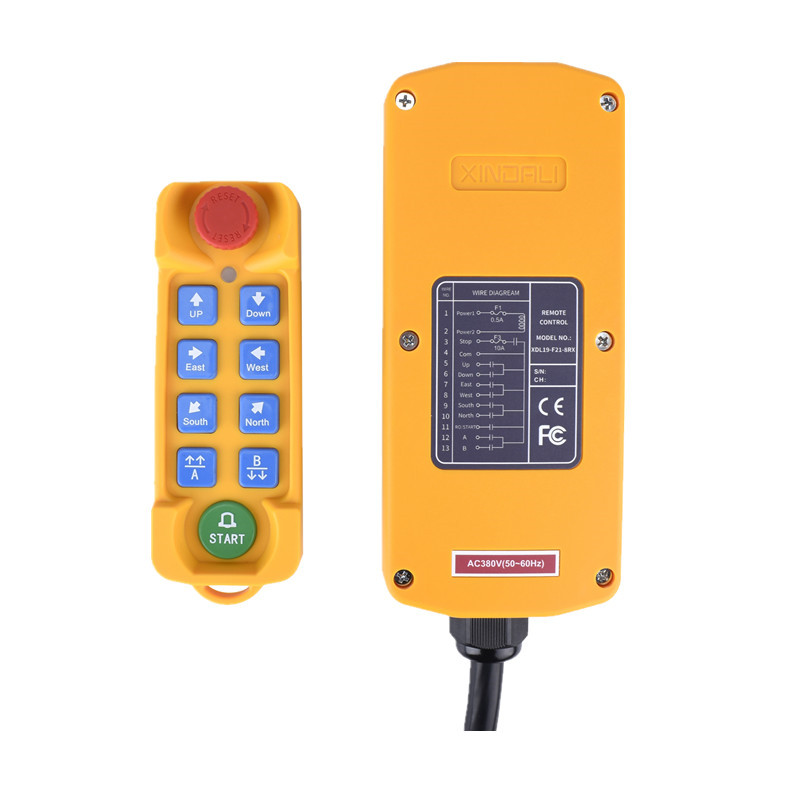

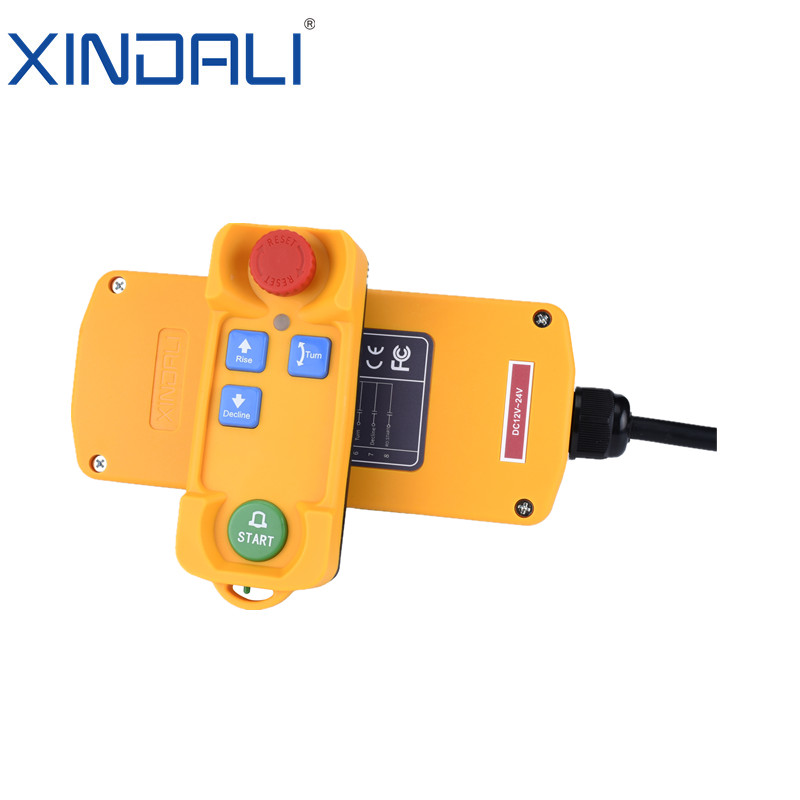

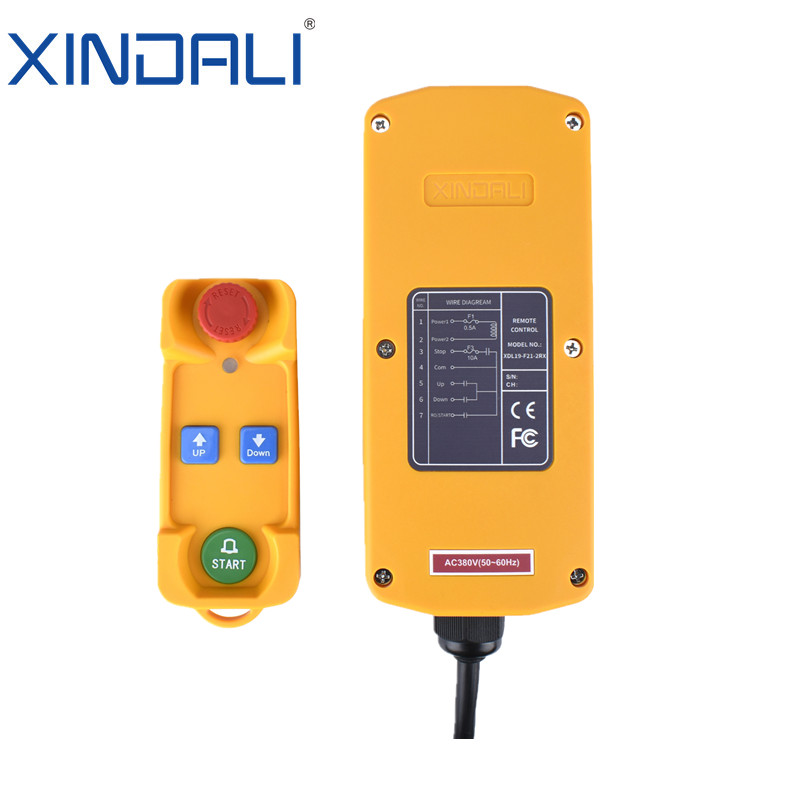

Product Display

Product Introduction

1.Ergonomic Design: The shape is designed according to ergonomics, making it lightweight and comfortable to operate.

2.Accurate Key Positioning: Features clear and distinct function indicators and flexible keys with just the right amount of resistance.

High Protection Rating: The casing is made of glass fiber reinforced nylon, with a protection rating of IP65.

3.Long-Range Control: Capable of controlling at distances up to 200 meters.

Misoperation Protection: The button function is reasonably set to effectively prevent accidental operations.

4.Clear Signal Indication: The signal indication is clear, with a slow flashing yellow button light when the battery level is low.

5.Multiple Power Options: The transmitter battery can be either 3.7V (2000mAh lithium battery) or 3V (two AA batteries).

6.Status Indication: Different operational states have corresponding indications, such as green light flashing for coding status and rapid red light flashing for emergency stop.

7.Broad Frequency Range: The frequency range is 415~435MHz, adapting to various environments.

8.Emergency Stop Button Design: The emergency stop button is conveniently designed for improved safety.

9.Compact Receiver Size: The compact and stylish design makes it easy to install and use.

10.Multi-Function Indicator Lights: Equipped with indicators for power, signal, emergency stop, loss of code, and power-on.

parameter

Feature	Description
Appearance	Small and elegant appearance.
Protection Degree	IP65
Outgoing Line Mark and Wiring Connection	Clear outgoing line mark and wiring connection.

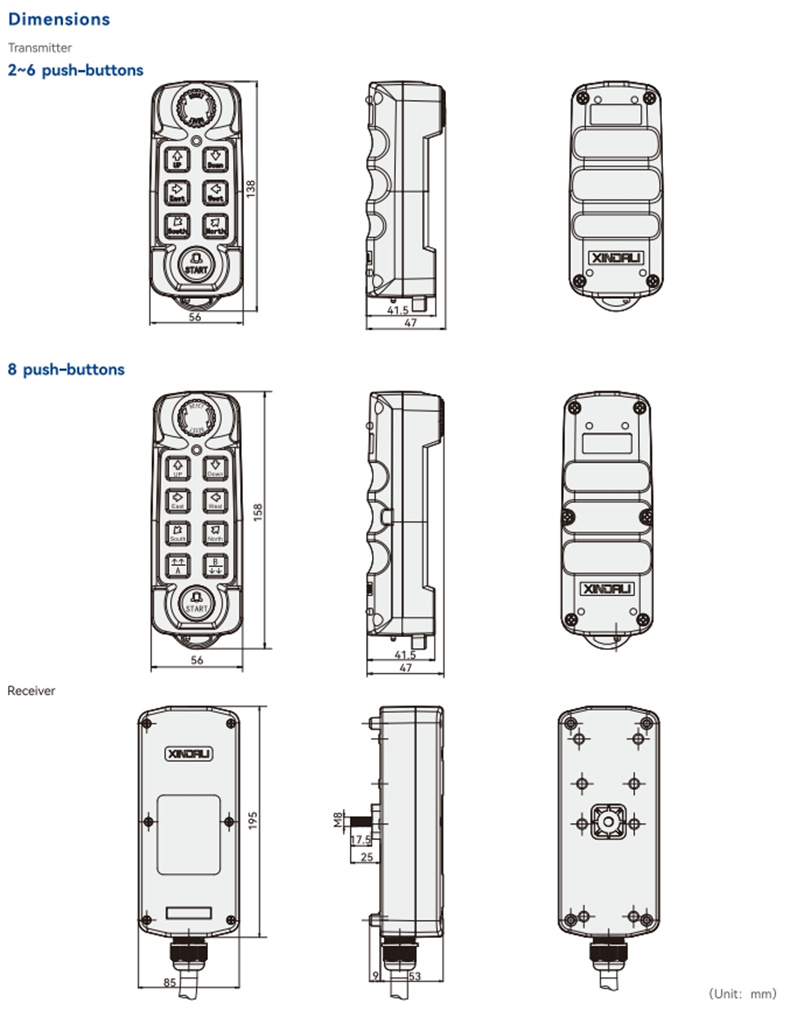

Controller Dimension	8 buttons (L158mmxW56mmxH47mm), 6 buttons (L138mmxW56mmxH47mm)
Indicator Lights	Easy installation with clear display of each function.
Power Supply Signal	With various kinds of power supply signal, emergency stop, segment, and power on.
Receiver Dimension	L195mmxW85mmxH62mm
Weight	Controller: 180g, Receiver: 650~950g.
