What is a tail lift warning lamp used for?

A tail lift warning lamp is used to provide visible warning signals during tail lift or liftgate operation. It helps improve safety around rear loading platforms and vehicle-mounted lifting equipment.

What voltage range does the XDL20-TLWL support?

The XDL20-TLWL is designed for DC 5V to 48V battery-powered control circuits, making it suitable for different vehicle electrical systems.

Does the XDL20-TLWL have a low-battery warning function?

Yes. The XDL20-TLWL includes a battery voltage detection warning function. Under low-battery conditions, the lamp flashes faster to provide a warning signal.

Is the XDL20-TLWL waterproof?

The XDL20-TLWL has an IP67 protection rating, making it suitable for outdoor and harsh tail lift working environments where water and dust resistance are important.

What material is used for the housing?

The housing of the XDL20-TLWL is made of zinc alloy, which helps provide a strong structure for vehicle-mounted warning lamp applications.

How is the XDL20-TLWL installed?

The XDL20-TLWL uses M6x16 stainless steel hex bolts for installation, making it suitable for fixed mounting on tail lift structures.

Can XINDALI support OEM projects for tail lift warning systems?

Yes. XINDALI can support OEM and project-based cooperation for tail lift electrical products, warning lamps, and related control system applications.

XDL10-EPBG6 6 Button Pendant Controll...

XDL10-EPBG5 Key Selector Pendant Cont...

XDL10-EPBG4 Keyed Mode Selector Penda...

XDL10-EPBG3 Keyed Selector Pendant Co...

XDL10-EPBG2 Keyed Selector Pendant Co...

XDL11 7-Hole Elevator Inspection Box ...

XDL10-EPBK4 Keyed-Reset Pendant Contr...

XDL10-EPBK3 Key-Release Safety Pendan...

XDL10-EPBK2 Key-Release Emergency Sto...

XDL10-EPBS6 Five-Command Safety Penda...

0102030405

XDL20-TLWL Tail Lift Warning Lamp | DC 5V-48V IP67 Liftgate Warning Light | XINDALI

XDL20-TLWL tail lift warning lamp from XINDALI XDL20 Series. DC 5V-48V, 4 LED 12W, IP67, zinc alloy housing, low-battery warning flashing function, suitable for truck tail lift and liftgate safety systems.

Product Model XDL20-TLWL
Series XDL20 Series
Product Type Tail Lift Warning Lamp
Rated Voltage DC 5V–48V
4 LED Power 12W
Protection Level IP67
Housing Material Zinc alloy

Product Detail

XINDALI | XDL20 Series

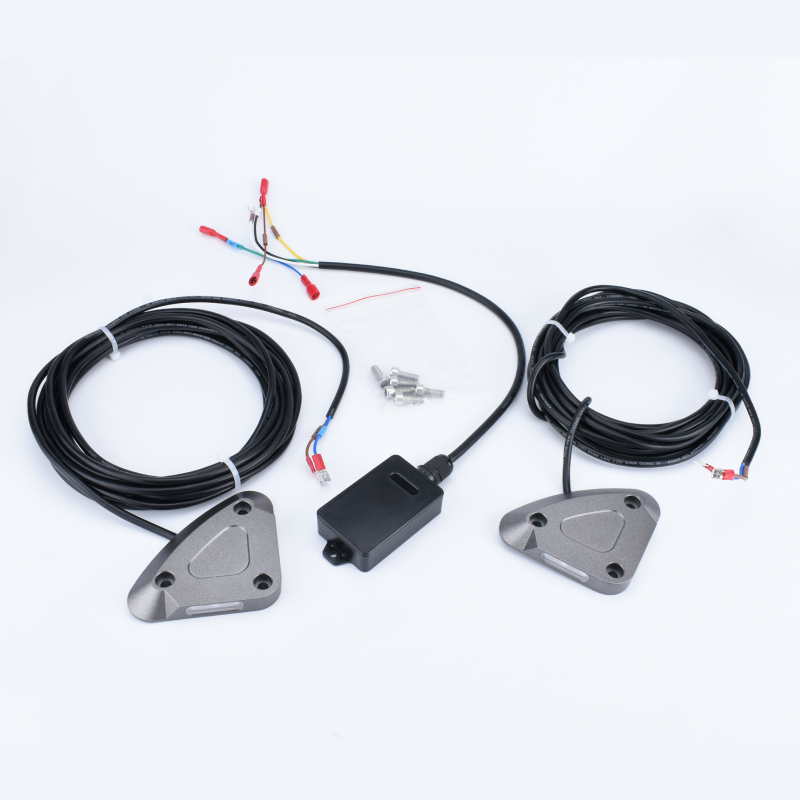

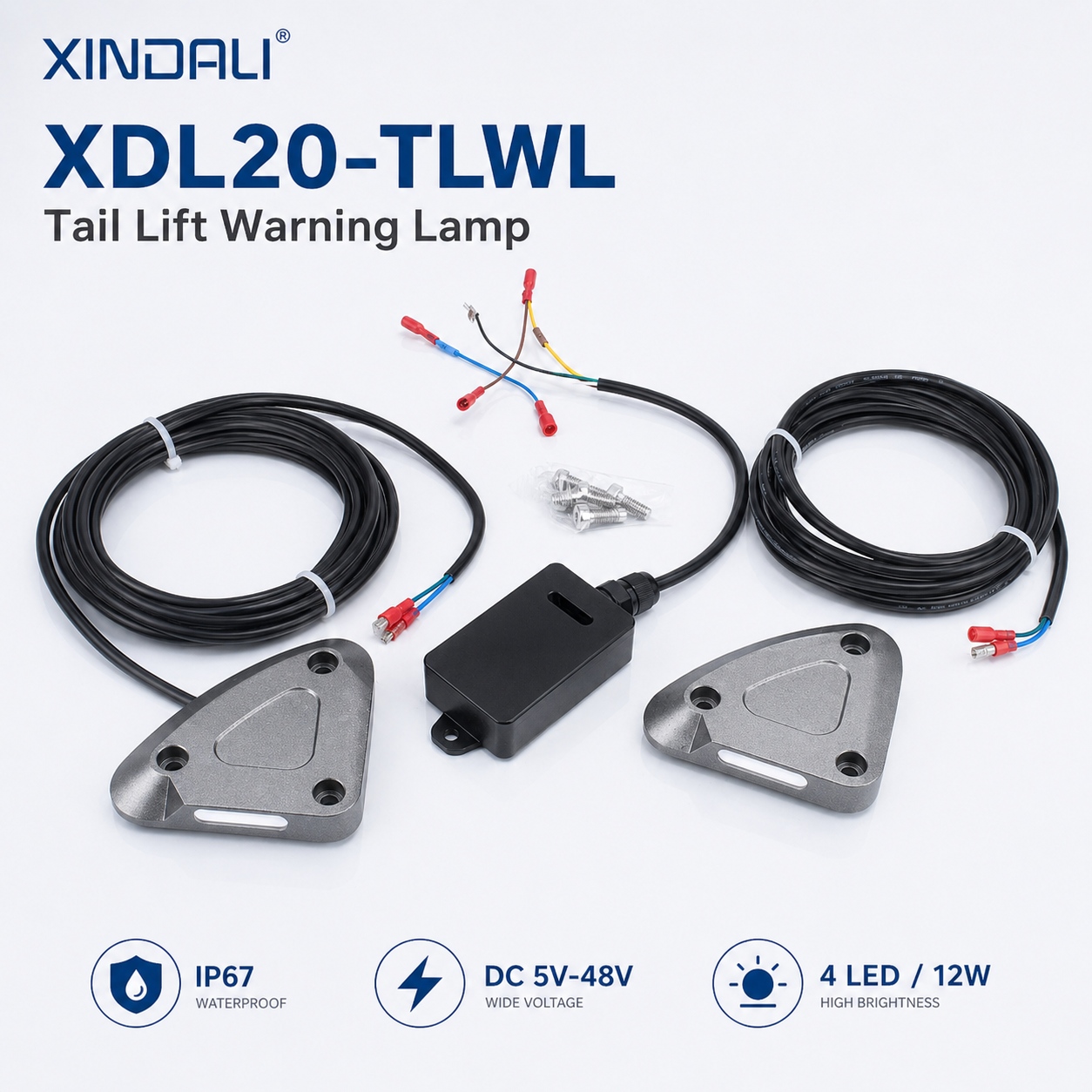

XDL20-TLWL Tail Lift Warning Lamp

Durable tail lift warning lamp designed for installation on truck tail lifts and liftgate systems. The XDL20-TLWL features DC 5V–48V compatibility, 4 LED 12W output, IP67 protection, and a low-battery warning flashing function for safer rear platform operation.

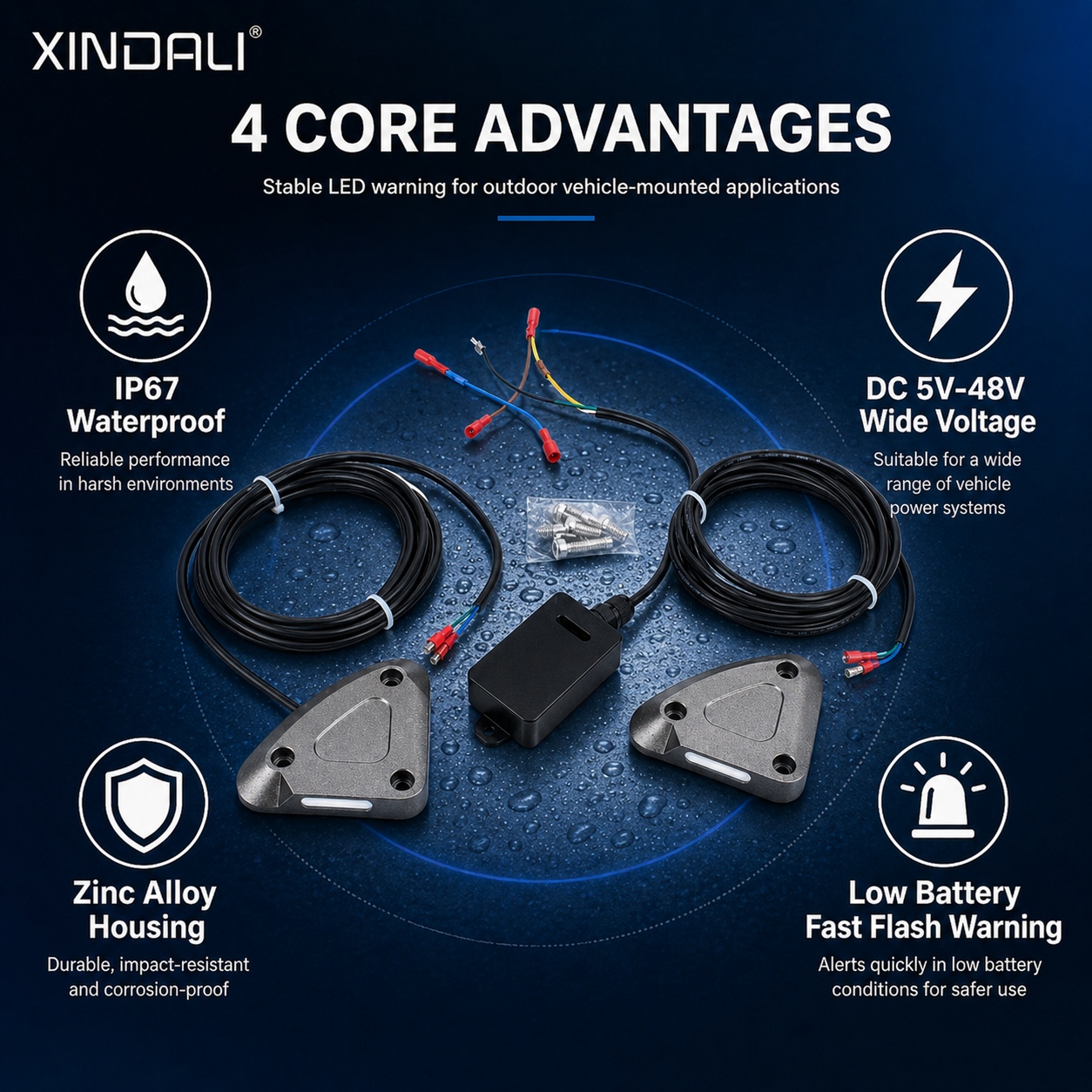

DC 5V–48V 4 LED / 12W IP67 Low Battery Warning Zinc Alloy Housing

Product Overview

The XDL20-TLWL is a practical tail lift warning lamp developed for rear platform safety on truck tail lifts and liftgate systems. It is designed for DC battery-powered control circuits from 5V to 48V, making it suitable for a wide range of vehicle-mounted applications.

This model uses a 4 LED, 12W lighting design and provides a battery voltage detection warning function. Under normal conditions, the lamp flashes at 0.9s per cycle; during low-battery warning, it flashes faster at 0.3s per cycle. With IP67 protection, a zinc alloy housing, and a wide operating temperature range of -40°C to +65°C, it is suitable for demanding outdoor working environments.

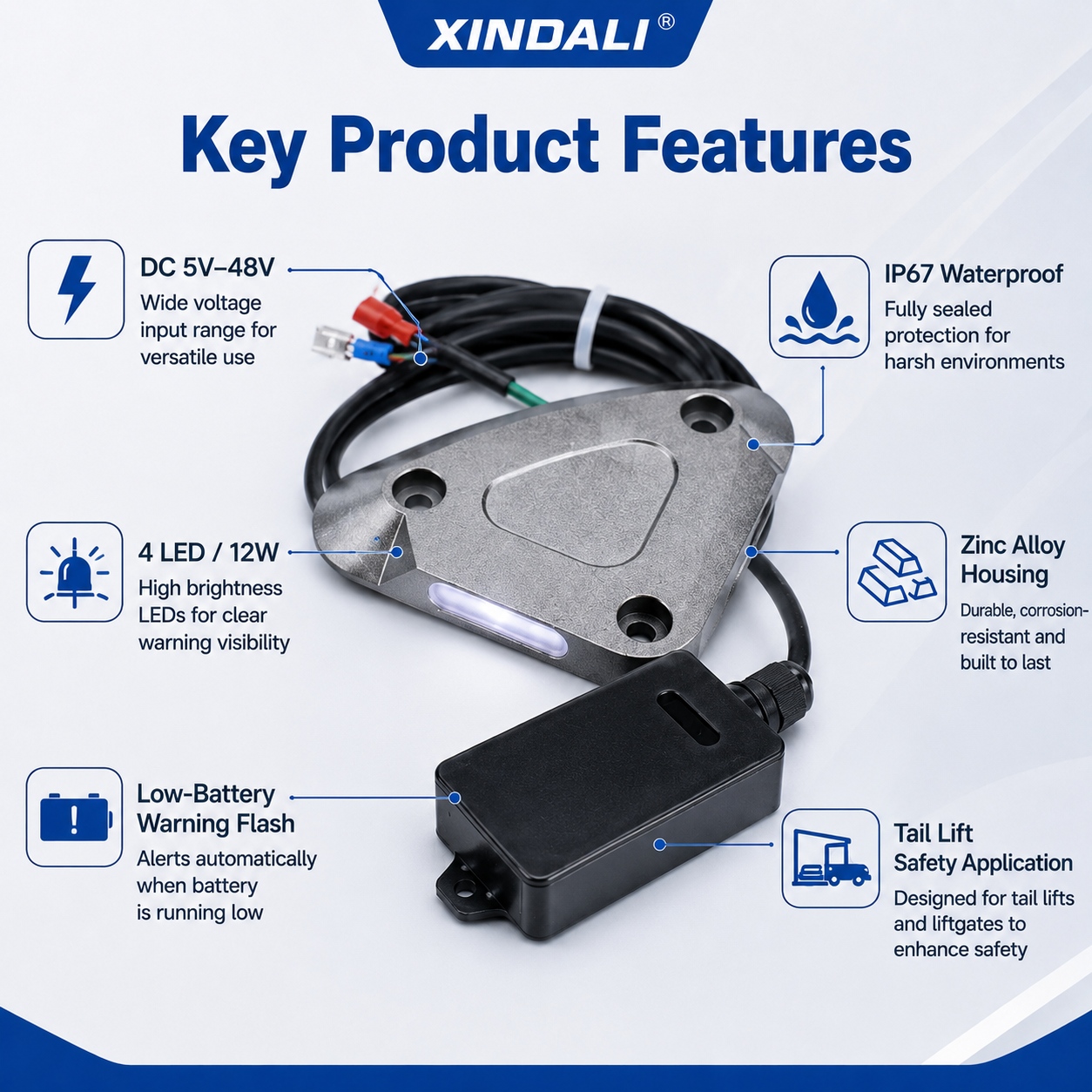

Key Features

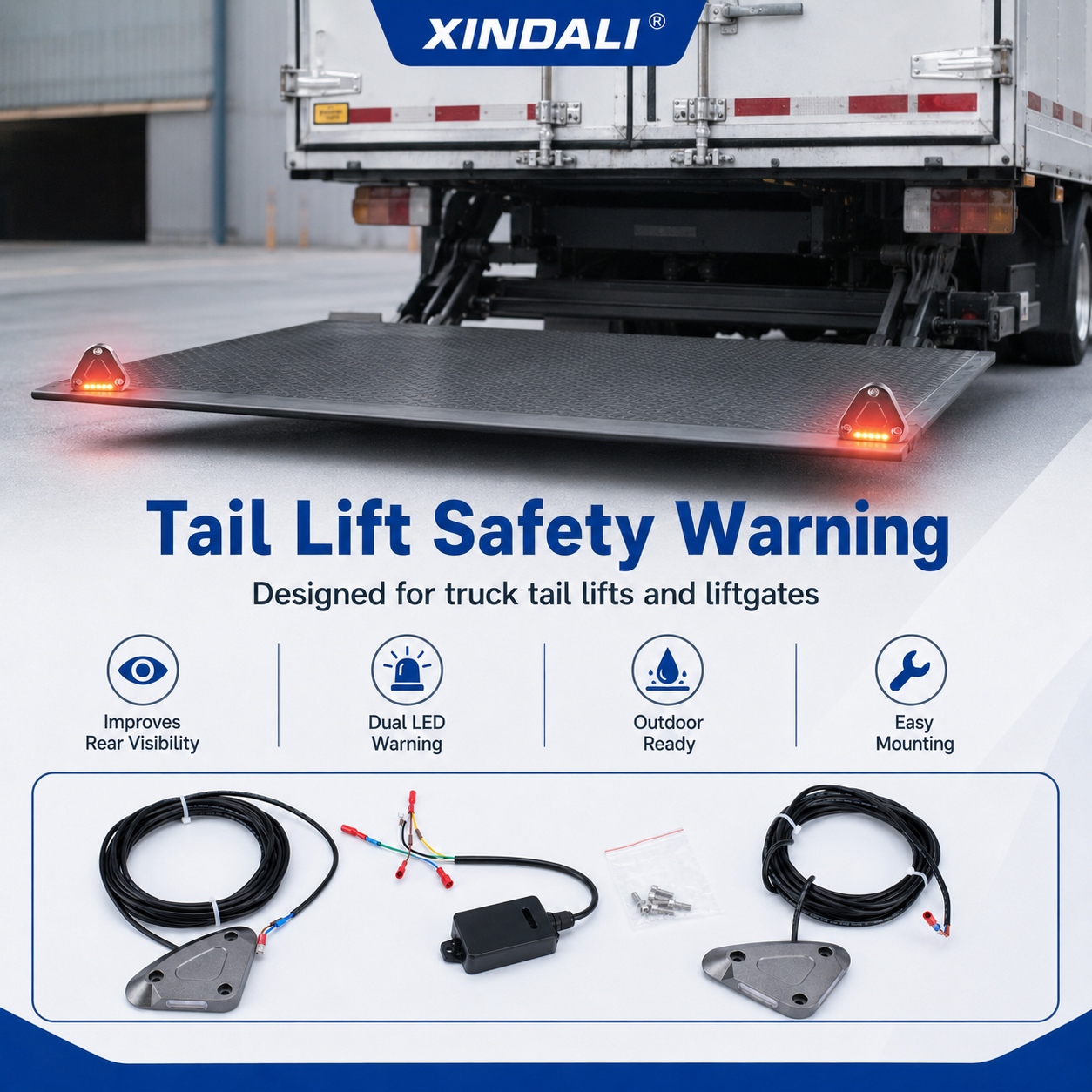

Tail Lift Safety Warning

Designed for warning indication on tail lift platforms and rear lifting systems.

Wide Voltage Compatibility

Supports DC 5V–48V battery-powered control circuits for flexible vehicle system matching.

4 LED 12W Output

Equipped with 4 LEDs for clear signal output and practical warning visibility.

Low Battery Detection Function

The lamp flashes rapidly when low battery is detected, helping improve operational safety.

IP67 Protection

Suitable for outdoor and harsh working environments where waterproof performance is required.

Zinc Alloy Housing

Robust metal housing structure for industrial and vehicle-mounted applications.

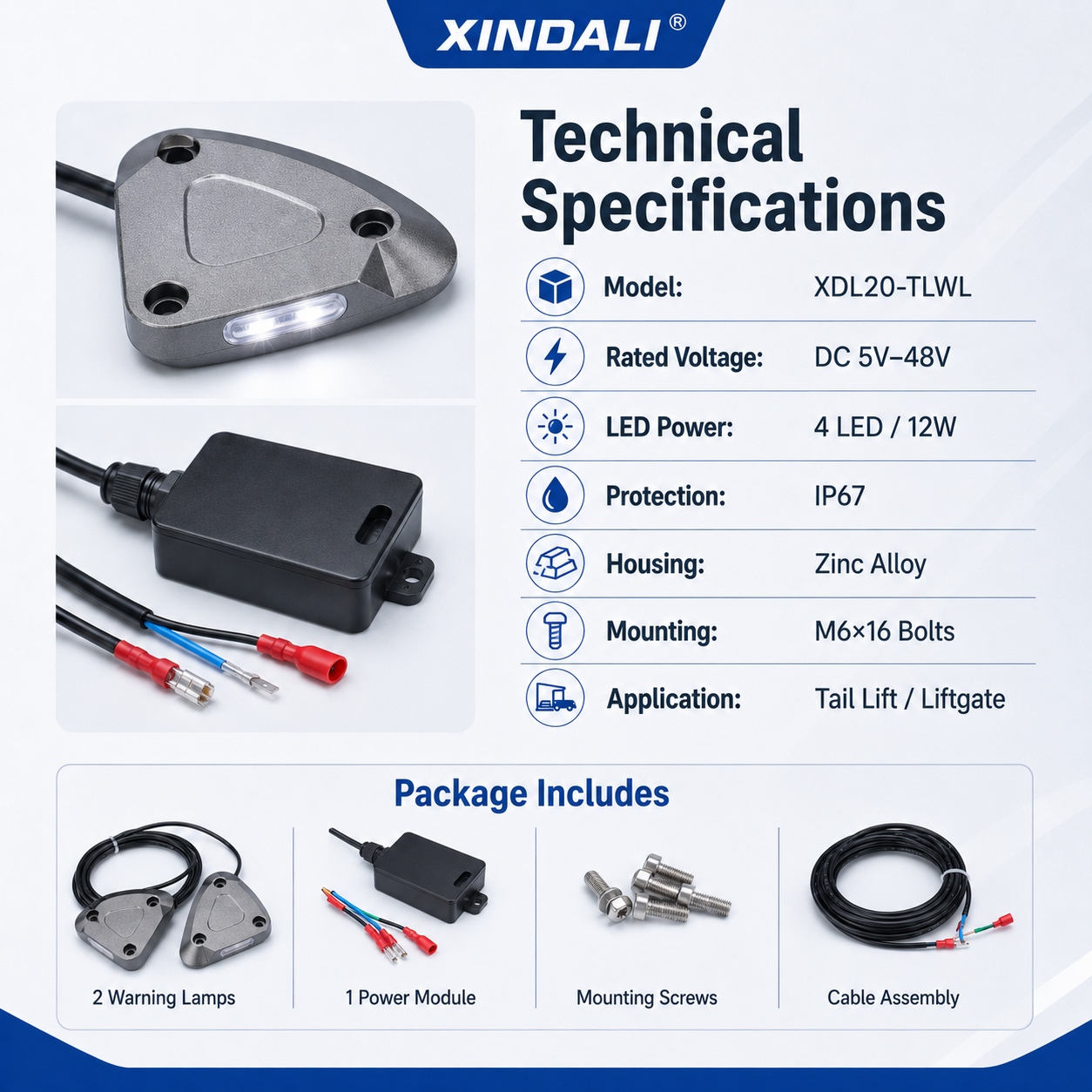

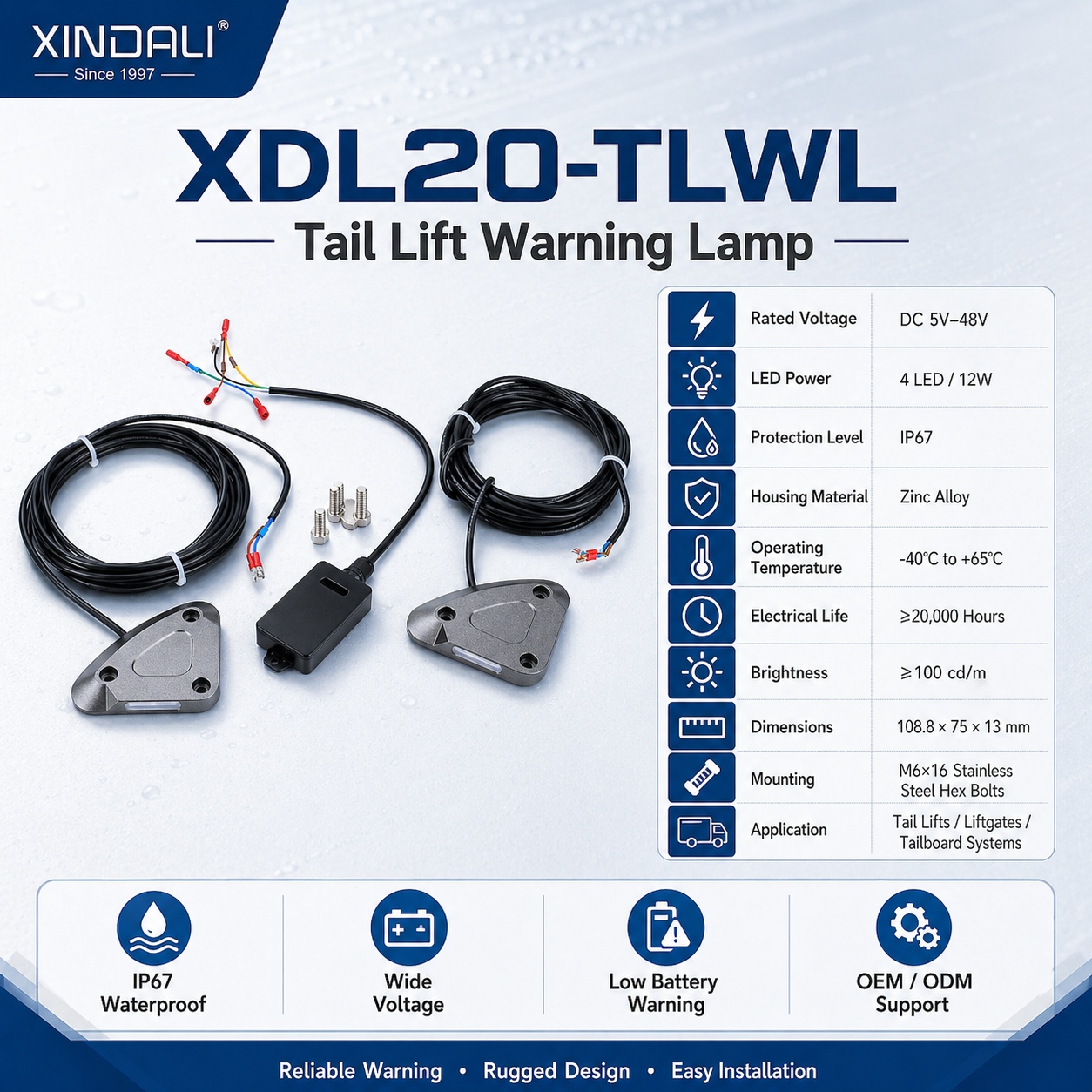

Technical Specifications

Product Model	XDL20-TLWL
Series	XDL20 Series
Product Type	Tail Lift Warning Lamp
Standard	GB 5920-2019
Rated Voltage	DC 5V–48V
4 LED Power	12W
Insulation Resistance	≥100MΩ
Withstand Voltage Test	AC 2.5KV/min
Brightness	≥100cd/m
Electrical Life	≥20,000 hours
Vibration Resistance	50Hz, amplitude approx. 1.2mm
Protection Level	IP67
Housing Material	Zinc alloy
Operating Temperature	-40°C to +65°C
Mounting Method	M6×16 stainless steel hex bolts
Warning Function	Battery voltage detection warning
Flashing Frequency	0.9s/time normally, 0.3s/time during low-battery warning

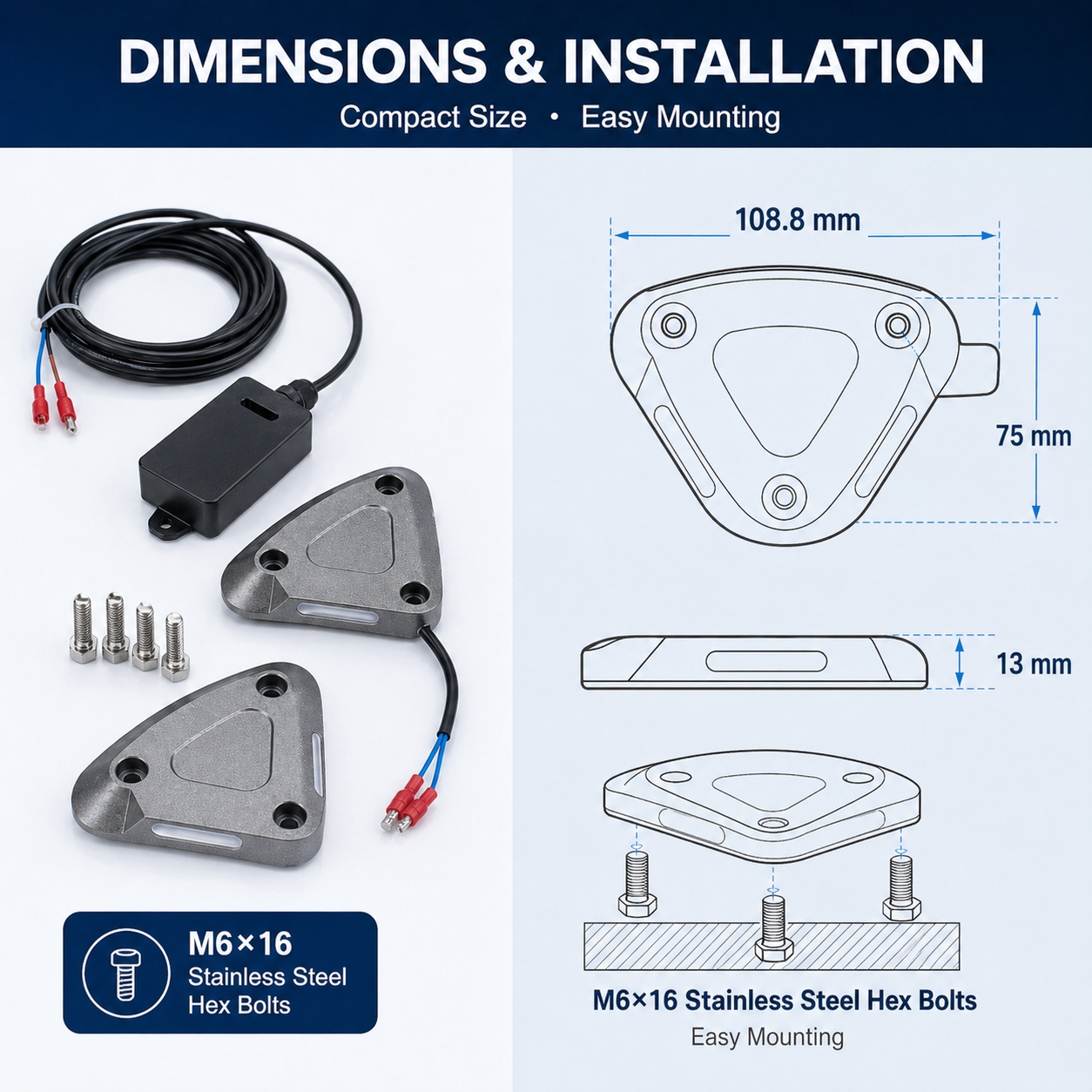

Dimensions & Installation

Overall Size

Approx. 108.8 × 75.26 × 13 mm

Mounting Structure

Triangular mounting layout with M6×16 stainless steel hex bolts.

Housing Material

Zinc alloy housing for stable outdoor and heavy-duty installation.

Applications

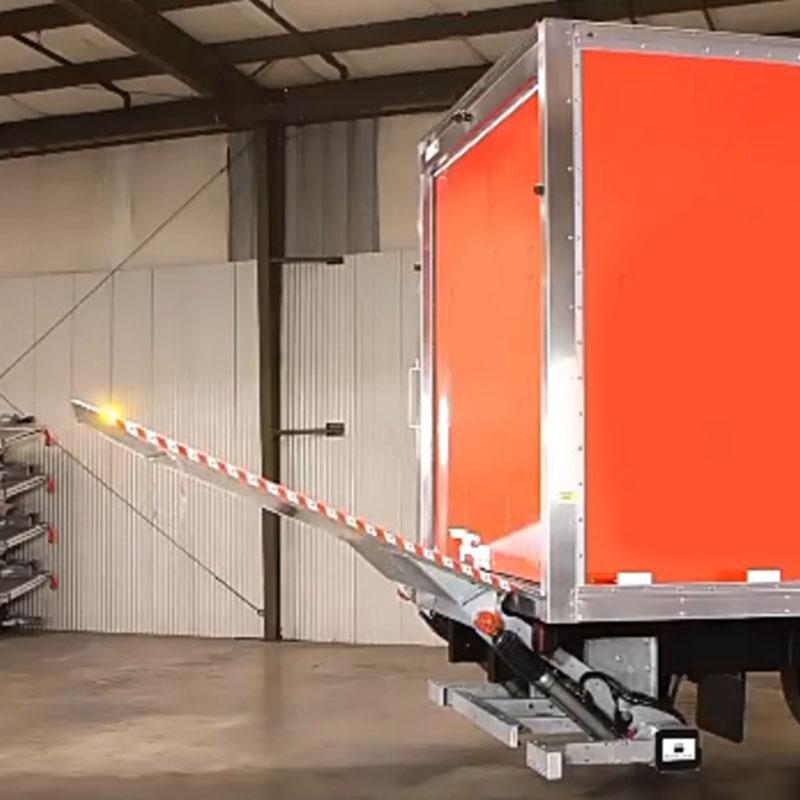

The XDL20-TLWL is designed for warning and signal indication in vehicle-mounted rear lifting systems, including:

• Truck tail lifts

• Liftgate platforms

• Rear loading systems

• DC battery-powered vehicle equipment

• Tail lift safety warning systems

• OEM tailboard control projects

Why Choose XINDALI

Tail Lift Product Experience

Suitable for tail lift and liftgate related electrical control and warning applications.

Outdoor Protection

IP67 protection and zinc alloy housing support demanding outdoor working conditions.

Wide Voltage Adaptability

Designed for DC 5V–48V systems, making model matching more flexible.

OEM / ODM Support

Support for project-based cooperation and matching solutions for tail lift systems.

Explore More Tail Lift Solutions

Looking for more products for tail lift systems? Explore our Tail Lift Control Box and Pendant Controller solutions.

Need a Tail Lift Warning Lamp Supplier?

Contact XINDALI for quotation, technical details, and OEM support for your tail lift safety project.
