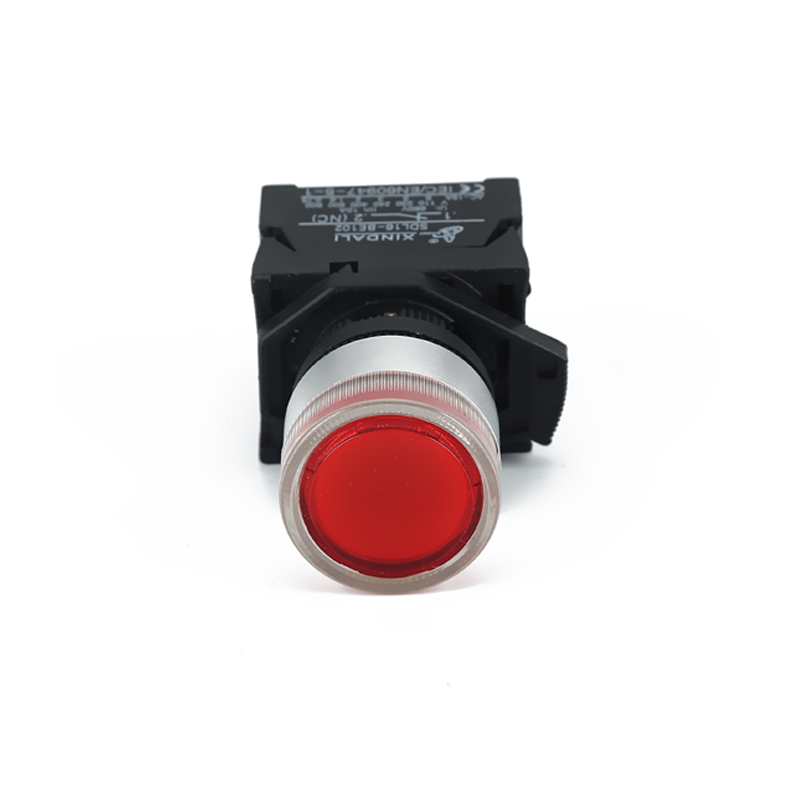

XDL21-BW3462 waterproof ip67 light head push button pull led switch

Share to:

XDL21-BW3462 waterproof ip67 light head push button pull led switch

Model:: XDL21-BW3462

MOQ:: 240

Payment:: T/T L/C

Brand:: XINDALI

Delivery time:: One week

Start Port:: Shanghai/ningbo

Certification:: ISO9001 RoSH CE UL TUV

SKU:
Availability:



Inquire

Product Description

◆ Characteristic: waterproof level IP65,Easy installation long service life,Higher performance than LAY series

◆ Features: It is used for controlling signal and interlocking purposes.

◆ Material: The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.

Basic Characteristic
Conforming to standards as	IEC60947-5-1:GB/T14048.GB14048.5
Ambient temperature	operating temperature:-5℃~+55℃ storage temperature:-25℃~+70℃
Operating and storage air relative humidity	35~85%RH
Vibration frequency	Conforming to IEC 68-2-6
Impact resistance	Conforming to IEC 68-2-27
Pollution grade	3
Installation sort	ClassⅢ
Protection grade	Ordinary:IP40 IP54
Protection grade	Protection:IP65 IP66 IP67 IP68
Mechanical life	pushbutton:30010 push and pull type emergency button:3010
Fastening torque	0.8Nm(MAX:1.2Nm)

Product Details

push button pull led switch Push button light switch led light button switch Illuminated Pushbutton Switch push switch waterproof button push button on off switch push button switches
