XINDALI | XDL22 Series

XDL22 Series 22mm Joystick Switch

Industrial 22mm panel mount joystick switch / cross selector switch designed for machine control, operator panels, and custom control stations. The XDL22 Series supports 2-way and 4-way directional operation, with self-lock or spring-return options and multiple head structures for different application needs.
22mm Panel Mount 2-Way / 4-Way Operation IP65 / IK10 Self-lock / Spring Return OEM Custom

Series Overview

The XDL22 Series 22mm joystick switch is a compact industrial control component used for directional operation in machinery, lifting equipment, operator consoles, and custom control panels. This series is suitable for applications requiring clear manual control, compact panel integration, and stable switching performance.

XDL22 series models are available in different head structures such as rubber head, plastic head, metal-ring versions, and protective shroud versions. Buyers can also choose between self-lock and spring-return types, with common standard configurations including 2NO and 4NO.

Key Features

22mm Standard Mounting
Standard Ø22mm panel mount design for industrial control panels and operator stations.
2-Way and 4-Way Operation
Supports directional control for machine operation, motion command, and industrial interface systems.
Self-lock or Spring Return
Available in maintained and momentary return versions for different control logic requirements.
IP65 Waterproof Protection
Designed for industrial environments where dust resistance and splash protection are important.
Multiple Head Structures
Rubber head, plastic head, metal ring, and protective shroud styles are available for different applications.
OEM Custom Support
Suitable for machine builders, panel integrators, and OEM projects requiring customized selection.

Technical Specifications

Series XDL22 Series
Product Type 22mm Joystick Switch / Cross Selector Switch
Mounting Hole Ø22mm
Operation Direction 2-Way / 4-Way
Operation Type Self-lock / Spring Return
Standard Contact Options 2NO / 4NO
Protection Rating IP65 / IK10
Ambient Temperature -25°C to 55°C
Humidity 45°C, 90%RH
Electrical Life 100,000 cycles
Mechanical Life 1,000,000 cycles
Conventional Thermal Current 10A
Travel / Force Approx. 4mm / 25N

Electrical & Material Data

AC-15 36V/10A, 110V/10A, 220V/5A, 380V/2.7A, 660V/1.8A
DC-13 24V/4A, 48V/4A, 110V/2A, 220V/1A, 440V/0.6A
Dielectric Strength 2kV / 5s
Contact Resistance < 50mΩ
Insulation Resistance > 100mΩ (500VDC)
Minimum Applicable Load 3V AC/DC, 5mA
Main Materials PA6+GF30%, PC, silicone, AgNi10/Cu, brass, steel plate, NBR

Model Options

The XDL22 Series includes different structural styles for different project needs.

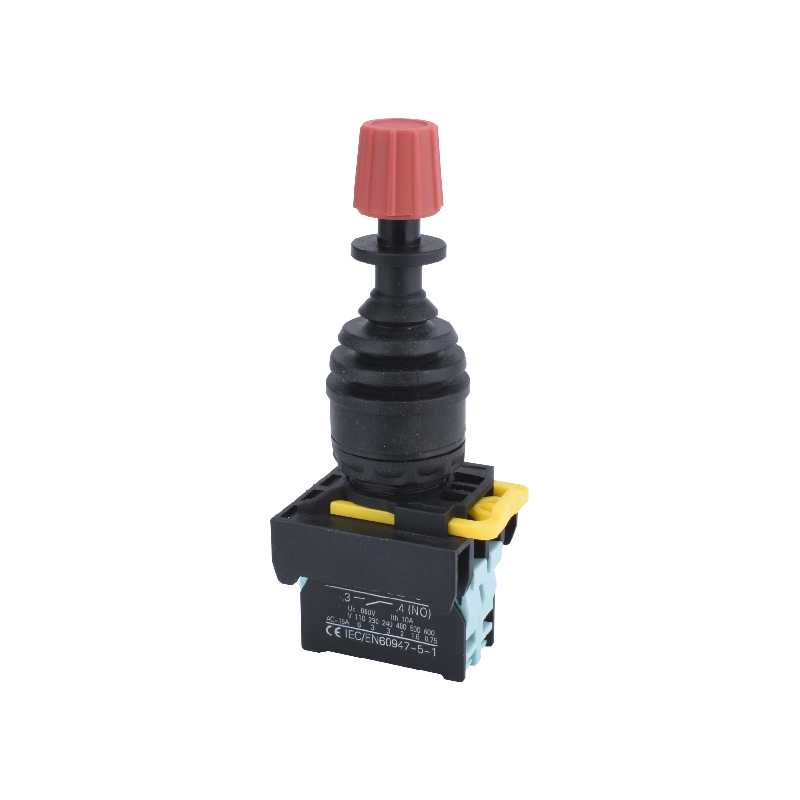

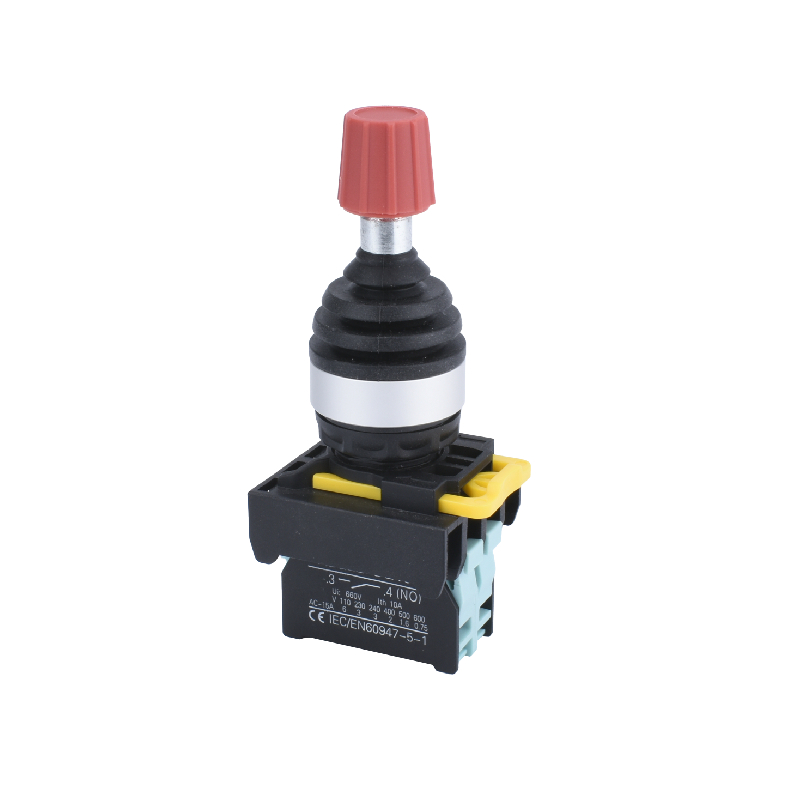

Rubber Head
Available in self-lock and spring-return, with 2NO or 4NO options.

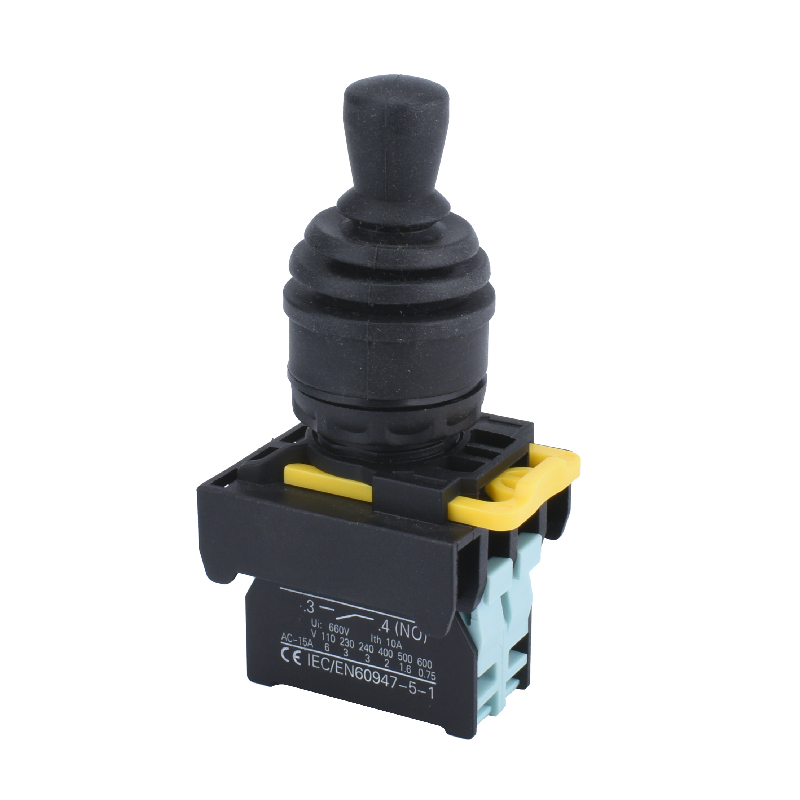

Plastic Head
Suitable for standard industrial control panels and compact interface designs.

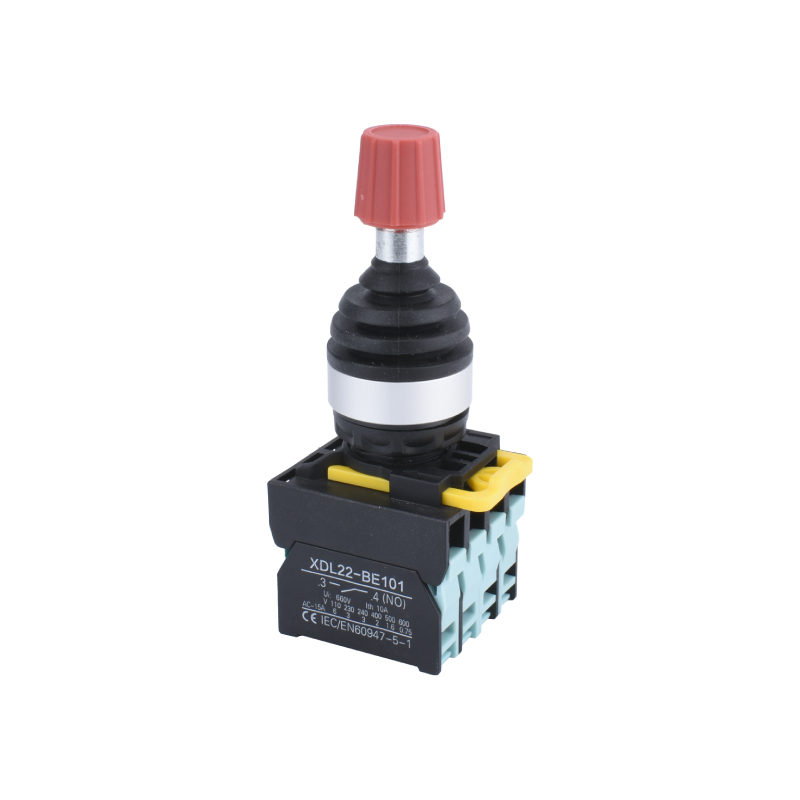

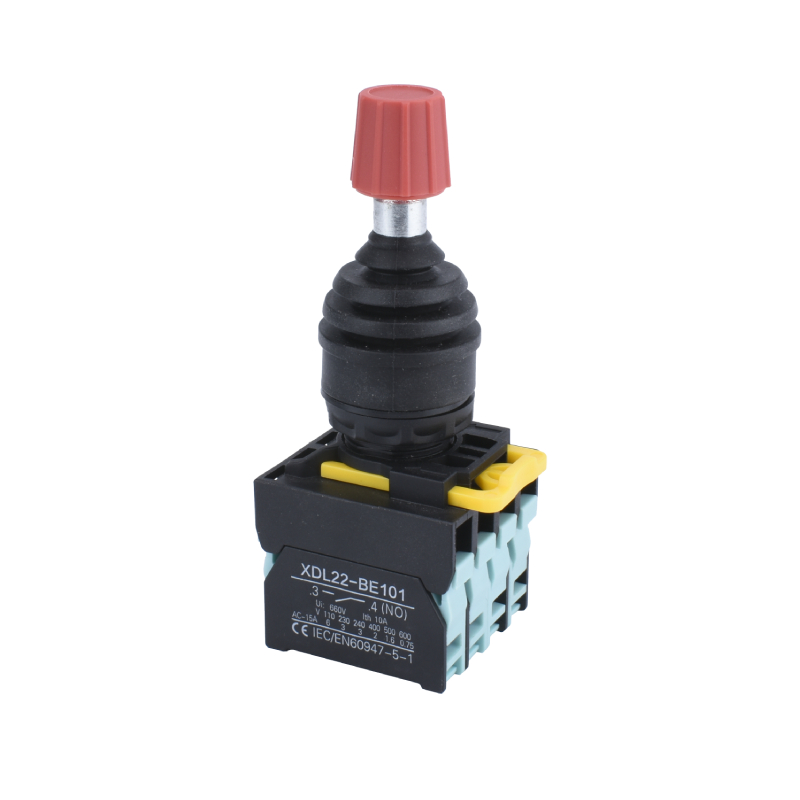

Metal Ring Versions
For buyers who want a stronger industrial appearance and upgraded structure.
Protective Shroud Versions
Helps improve operation guidance and adds structural protection in some use cases.

Applications

The XDL22 joystick switch can be used in a wide range of industrial operator and motion control systems:

• Machine control panels
• Industrial operator boxes
• Hoists and lifting equipment
• Custom control stations
• Automation equipment
• Panel control interfaces
• Motion direction command systems
• OEM machinery projects

People Also Ask

Common buyer questions about 22mm industrial joystick switches.

What is a 22mm joystick switch used for?

A 22mm joystick switch is commonly used for directional control in industrial equipment. It is suitable for machine panels, lifting systems, operator control boxes, and other equipment that requires manual motion or direction input.

Is the XDL22 Series a 2-way or 4-way joystick switch?

The XDL22 Series supports both 2-way and 4-way directional operation, depending on the selected model and application requirement.

What is the difference between self-lock and spring-return joystick switches?

A self-lock joystick switch stays in position after operation until it is released or reset, while a spring-return type automatically returns to its original position after the operator releases it.

Is the XDL22 joystick switch waterproof?

The XDL22 Series is designed with IP65 protection, making it suitable for industrial environments where splash resistance and dust protection are required.

What contact options are available in the XDL22 Series?

Common standard models in the XDL22 Series include 2NO and 4NO configurations. Additional combination references may also appear in the selection table depending on the model structure.

What head styles are available for the XDL22 Series?

Available structures include rubber head, plastic head, metal-ring versions, and protective shroud versions, allowing buyers to choose the style that best fits the equipment design.

Can XINDALI provide OEM custom solutions for joystick switches?

Yes. XINDALI can support OEM and project-based customization for industrial control products, including structure selection, return mode, contact type, and matching control assembly requirements.

Explore More Solutions

Looking for more industrial control products? Browse our Push Button Switches and Push Button Control Station solutions.

Need a 22mm Industrial Joystick Switch Supplier?

Contact XINDALI for quotation, model selection, and OEM support for your machine control project.
