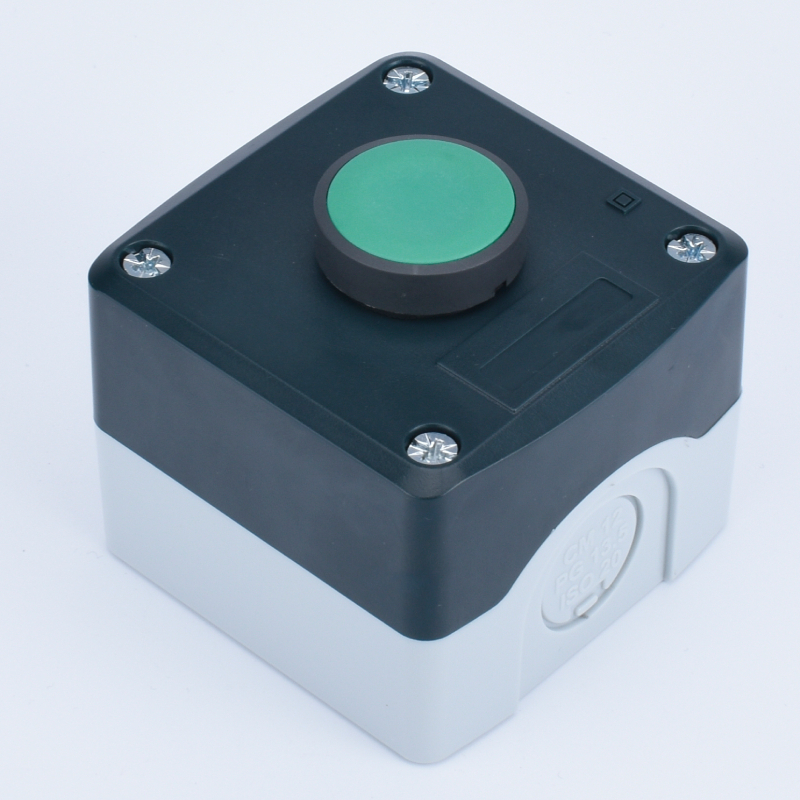

XDL44-BE101 — 1 Hole Control Box with 1 Flush Push Button (Green, NO, IP40/IP54)

Compact 1-hole control box with a green flush push button and 1NO contact for start control.

Designed for simple start functions and testing operations.
Spring-return mechanism ensures quick tactile feedback and reliable reset.
Suitable for light‑industrial and commercial environments with IP40/IP54 protection.
Fast wiring and compact footprint for panel or machine retrofits.

Model XDL44-BE101
Series XDL44 Series
Holes 1
Buttons 1
Contact Type 1NO
Operation Spring return/Self Locking
Ingress Protection IP40/IP54
Head Shape Flush
Mounting Cutout Ø22 mm
Enclosure Material Plastic

Product Detail

Product Introduction

Compact 1-hole control box with a green flush push button and 1NO contact for start control.

Designed for simple start functions and testing operations.
Spring-return mechanism ensures quick tactile feedback and reliable reset.
Suitable for light‑industrial and commercial environments with IP40/IP54 protection.
Fast wiring and compact footprint for panel or machine retrofits.

Get a Quote View all control stations

Applications

Suitable for machine panels, conveyors, liftgates, packaging equipment, and OEM assemblies. Works with PLC or relay logic systems.

FAQ

What is the difference between IP40 and IP54?

Both ratings protect against solid particles; IP54 additionally offers limited protection against dust and water spray—suitable for indoor industrial environments.

Can I customize contact blocks or button colors?

Yes. We support NO/NC contact combinations, laser engraving, and custom colors on request.

What cutout size do these buttons require?

Standard Ø22 mm mounting cutout.
