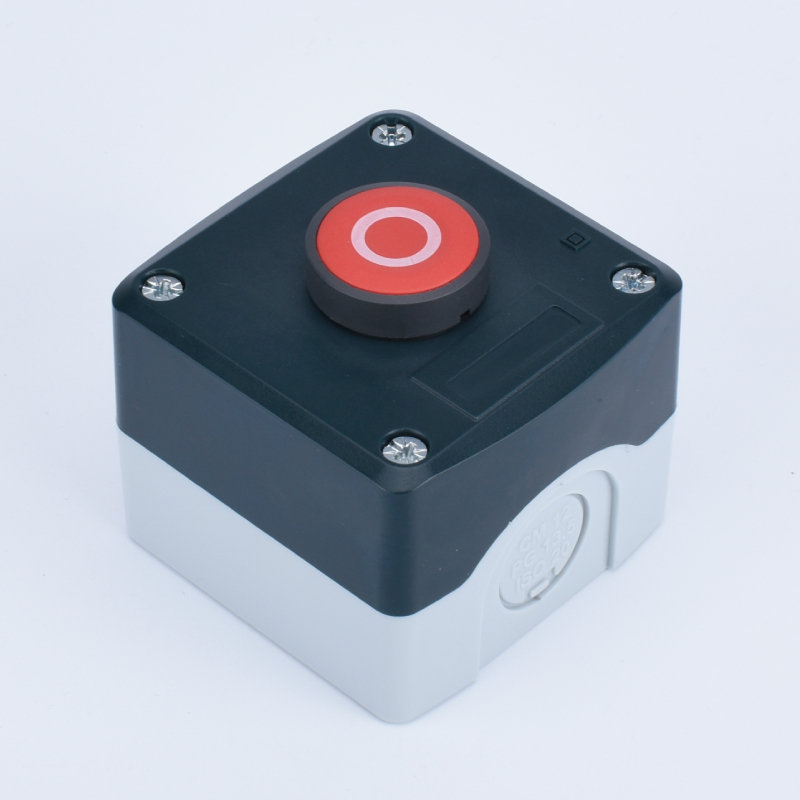

XDL44-BE112 — 1 Hole Control Box with 1 Flush Push Button (Red, NC, IP40/IP54)

The XDL44-BE112 provides a reliable single-function stop control with a red push button.

Model XDL44-BE112
Holes 1
Button 1 flush push button (Red)
Contact Type 1NC
Protection IP40/IP54
Operation Spring return
Mounting Cut out Ø22 mm
Enclosure Material Plastic

Product Detail

Product Introduction

1-hole control box with a red flush push button and 1NC contact for stop control.

Commonly used as a stop function in machinery and conveyors.
NC contact provides fail‑safe behavior for emergency circuits designed with redundancy.
IP40/IP54 enclosure supports indoor light‑industrial applications.
Simple surface mounting and quick wiring terminals lower installation time.

Get a Quote View all control stations

Technical Parameters

Model	XDL44-BE112
Series	XDL44 Series
Holes	1
Buttons	1 × flush push button (Red)
Contact Type	1NC
Operation	Spring return
Ingress Protection	IP40/IP54
Head Shape	Flush
Mounting Cutout	Ø22 mm
Enclosure Material	Plastic

Applications

Suitable for machine panels, conveyors, liftgates, packaging equipment, and OEM assemblies. Works with PLC or relay logic systems.

FAQ

What is the difference between IP40 and IP54?

Both ratings protect against solid particles; IP54 additionally offers limited protection against dust and water spray—suitable for indoor industrial environments.

Can I customize contact blocks or button colors?

Yes. We support NO/NC contact combinations, laser engraving, and custom colors on request.

What cutout size do these buttons require?

Standard Ø22 mm mounting cutout.
