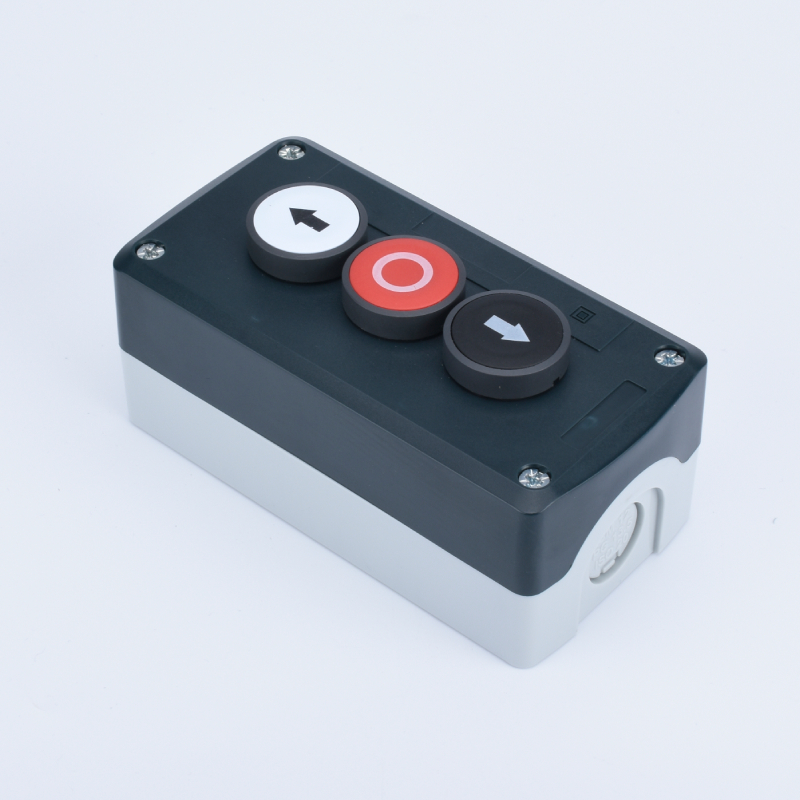

XDL44-BE334 — 3 Hole Control Box with 3 Flush Push Buttons (Red, White, Black, IP40/IP54)

The XDL44-BE334 features a 3-hole enclosure with three flush push buttons for multi-function machine control. Suitable for industrial applications requiring multiple operation points.

Model XDL44-BE334
Holes 3
Buttons Red, White, Black flush push buttons
Contact Type NO & NC mixed
Operation Spring return
Ingress Protection IP40/IP54
Head Shape Flush
Mounting Cutout Ø22 mm

Product Detail

Product Introduction

Three-button control station for multi-function machine operations.

Supports three independent commands such as start/stop/reset or forward/stop/reverse.
Color‑coded heads aid quick identification and reduce operator error.
Compact, durable housing simplifies panel layout and wiring.
Ideal for small machinery and retrofit projects.

Get a Quote View all control stations

Technical Parameters

Model	XDL44-BE334
Series	XDL44 Series
Holes	3
Buttons	Red + White + Black flush push buttons
Contact Type	Mixed NO/NC (configurable)
Operation	Spring return
Ingress Protection	IP40/IP54
Head Shape	Flush
Mounting Cutout	Ø22 mm
Enclosure Material	Plastic

Applications

Suitable for machine panels, conveyors, liftgates, packaging equipment, and OEM assemblies. Works with PLC or relay logic systems.

FAQ

What is the difference between IP40 and IP54?

Both ratings protect against solid particles; IP54 additionally offers limited protection against dust and water spray—suitable for indoor industrial environments.

Can I customize contact blocks or button colors?

Yes. We support NO/NC contact combinations, laser engraving, and custom colors on request.

What cutout size do these buttons require?

Standard Ø22 mm mounting cutout.
