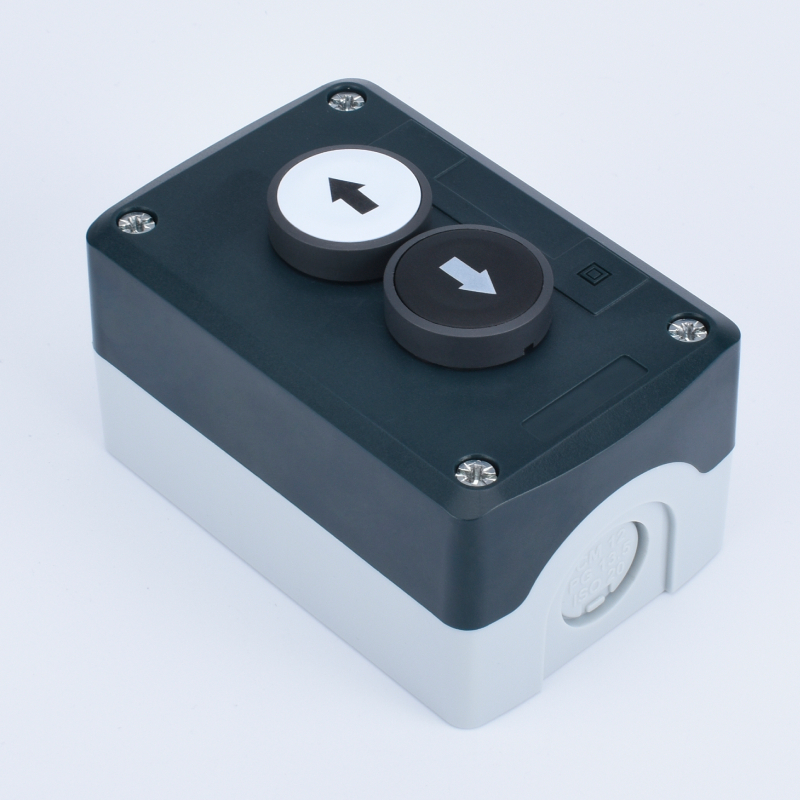

XDL44-BE223 — 2 Hole Control Box with 2 Flush Push Buttons (Black & White, NO, IP40/IP54)
Product Introduction
Two-button station with black and white flush push buttons, both NO contacts.
- Suited for dual‑function triggers, jog controls or auxiliary outputs.
- Consistent spring‑return actuation and tactile feel.
- Rugged enclosure and terminals for everyday industrial use.
- Easily labeled to match your process or PLC inputs.
Technical Parameters
| Model | XDL44-BE223 |
|---|---|
| Series | XDL44 Series |
| Holes | 2 |
| Buttons | Black + White flush push buttons |
| Contact Type | Both 1NO |
| Operation | Spring return |
| Ingress Protection | IP40/IP54 |
| Head Shape | Flush |
| Mounting Cutout | Ø22 mm |
| Enclosure Material | Plastic |
Applications
Suitable for machine panels, conveyors, liftgates, packaging equipment, and OEM assemblies. Works with PLC or relay logic systems.
FAQ
What is the difference between IP40 and IP54?
Both ratings protect against solid particles; IP54 additionally offers limited protection against dust and water spray—suitable for indoor industrial environments.
Can I customize contact blocks or button colors?
Yes. We support NO/NC contact combinations, laser engraving, and custom colors on request.
What cutout size do these buttons require?
Standard Ø22 mm mounting cutout.
